Abstract
本实用新型公开了一种聚氨酯硬泡建筑节能结构，其特征是它包括有基层墙体（1），所述基层墙体（1）的外侧面设有防潮隔汽层（2），防潮隔汽层（2）的外侧面设有聚氨酯碍泡保温层（3），聚氨酯碍泡保温层（3）的外侧面设有界面剂层（4），界面剂层（4）的外侧面设有抹面胶浆层（5），抹面胶浆层（5）的外侧面设有饰面层（7）。
The utility model discloses an energy-saving polyurethane rigid foam building, which is characterized in that it includes a base wall (1), and the outer surface of the base wall (1) is provided with a moisture-proof and steam-insulating layer (2). The outer surface of the steam layer (2) is provided with a polyurethane foam insulation layer (3), the outer surface of the polyurethane foam insulation layer (3) is provided with an interface agent layer (4), and the outer surface of the interface agent layer (4) is provided with The plastering mortar layer (5), the outer surface of the plastering mortar layer (5) is provided with a finishing layer (7).
Description
Technical field
The utility model relates to a kind of composite board, specifically a kind of warming plate.
Background technology
At present, if common building thing wall does not adopt any external-wall heat-insulation material, will cause energy loss serious, especially in summer and winter, more obvious when using air-conditioning.
Summary of the invention
The purpose of this utility model is exactly for above-mentioned the deficiencies in the prior art, and the hard polyurethane foam construction energy-saving structure of a kind of sound construction of exploitation, easy for installation, good flame retardation effect.
The technical solution adopted in the utility model is as follows:
A kind of hard polyurethane foam construction energy-saving structure, it is characterized in that it includes base course wall, the lateral surface of described base course wall is provided with anti-tidal rip vapour layer, the lateral surface of anti-tidal rip vapour layer is provided with polyurethane and hinders the bubble insulation layer, polyurethane hinders the lateral surface that steeps insulation layer to be provided with the interfacial agents layer, the lateral surface of interfacial agents layer is provided with the finishing mucilage layer, and the lateral surface of finishing mucilage layer is provided with finish coat.
Be provided with the glass screen cloth in described finishing mucilage layer.
The beneficial effects of the utility model have:
Simple in structure firmly, easy for installation, fire-retardant fireproof more, heat-insulating property is better, heat insulation effect has promoted 65%, simultaneously elegant in appearance, can be widely used in the decoration of exterior wall engineering.
The accompanying drawing explanation

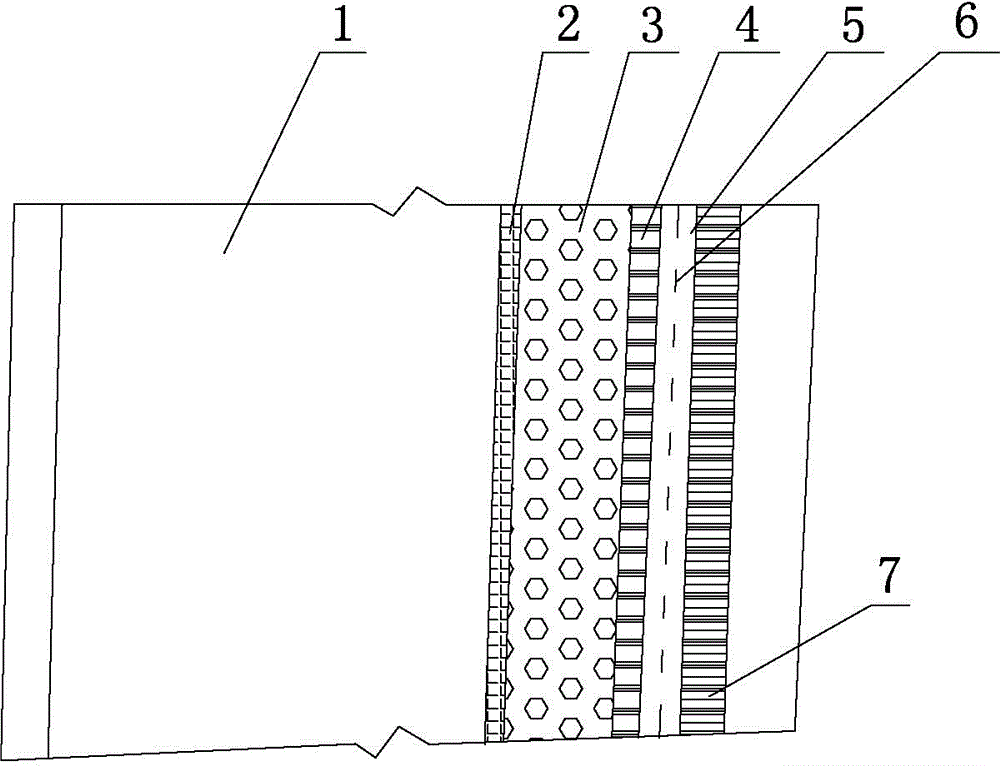

Fig. 1 is structural representation of the present utility model.
The specific embodiment
Below in conjunction with accompanying drawing, the utility model is further described:
As shown in Figure 1, it includes base course wall 1 the utility model, and the lateral surface of described base course wall 1 is provided with anti-tidal rip vapour layer 2, and the lateral surface of anti-tidal rip vapour layer 2 is provided with polyurethane and hinders bubble insulation layer 3, and hard polyurethane foam has excellent thermal insulation and building applicability.Polyurethane hinders the lateral surface that steeps insulation layer 3 to be provided with interfacial agents layer 4, and the lateral surface of interfacial agents layer 4 is provided with finishing mucilage layer 5, and the lateral surface of finishing mucilage layer 5 is provided with finish coat 7.Finish coat 7 plays the effect of attractive, decorative, can adopt as decoration panels such as Art Stones.Described finishing mucilage layer 5 is interior can also be provided with glass screen cloth 6, and the glass screen cloth has good flame retardant effect.
Other undeclared part that the utility model relates to is same as the prior art.
Claims (2)
