Abstract

The utility model relates to a novel intelligent lifting solar glass louver. The novel intelligent lifting solar glass louver comprises fives parts, namely a louver body, a controller, a storage battery, an electric appliance and an external remote controller. Glass louver blades serve as carriers for solar battery pieces. A louver body lifting transmission chain is used for lifting an electric motor for lifting, a motor rotating lever, a thread forward stretching short rod, a top horizontal rod, a short rod at the top of a rhombus mechanism and the rhombus mechanism. A louver body rotating transmission chain is used for rotating a motor for rotation, a third sliding groove, a trilinear mechanism, a hinge pin and the louver blades. The controller is connected with the external remote controller through an infrared device. The controller is connected with the motors on the louver body through a circuit. The solar battery pieces are connected to form the circuit through solder strips and connected with the controller and the storage battery through wires. The storage battery is connected with the electric appliance through a voltage converter. The novel intelligent lifting solar glass louver not only has the function of ventilation improvement of a traditional louver but also has the functions of sunshading and electric generation, and can realize automatic rotation and lifting.

Description

A kind of novel intelligent liftable solar energy glass shutter
Technical field
The utility model relates to a kind of building doors and windows, relates in particular to a kind of novel intelligent liftable solar energy glass shutter.
Background technology
The sunshade of existing highrise building is subject to the impact of itself character and generally adopts puggaree or indoor small plastic louvre blade, the waste that this can affect to a certain extent indoor lighting and cause a large amount of electric light energy consumptions, and the sunlight that is radiated on the puggaree can not be utilized, and has wasted ample resources.
The utility model content
The purpose of this utility model is to provide a kind of intelligent liftable solar energy glass shutter, not only possesses traditional shutter and improves the function of ventilating, and possess the function of sunshade and generating, can realize automatic rotation and lifting simultaneously.
For achieving the above object, the utility model provides following technical scheme:
A kind of novel intelligent liftable solar energy glass shutter is characterized in that, comprises forms, controller, battery, electrical appliance and five parts of external remote control;
Described forms comprise that again some glass louvre sheets, some solar battery sheets, louvre blade bearing pin, top horizon bar, screw thread advance to stretch quarter butt, motor swingle, the 3rd sliding tray, tri linear mechanism, lifting motor, rotation motor, level two the first fixing sliding trays, vertical two rhombus-mechanisms and two the second fixing sliding trays arranged side by side arranged side by side;
Described glass louvre sheet is the carrier of solar battery sheet, and solar battery sheet is attached on the glass louvre sheet, and described glass louvre sheet and solar battery sheet have formed the work contact surface of forms;
It is mutually orthogonal thereto that described top horizon bar and screw thread advance to stretch quarter butt, screw thread enters to stretch the quarter butt position to be fixed, there is screw thread at its crossover location place, the top horizon bar advances to stretch between the quarter butt by the interlock of screw thread phase with screw thread, screw thread advances to stretch quarter butt and is connected with the motor swingle, and the motor swingle is connected with motor with lifting;
The described rhombus-mechanism frame construction that many rhombuses link to each other of serving as reasons, each root quarter butt joins mutually in the rhombus-mechanism, the hinged formation interface point at the delivery position place, be interspersed with bearing pin in each glass louvre sheet, and this bearing pin and glass louvre sheet are fixedly linked, every bearing pin both sides end all is installed on the rhombus-mechanism interface point of both sides, and bearing pin stretches out interface point and is inserted in the second vertical chute; Each rhombus-mechanism links to each other with the top horizon bar by a quarter butt at top;
One side of described tri linear mechanism is fixedly linked with each bearing pin respectively, and the opposite side of tri linear mechanism is inserted in the 3rd sliding tray, and the top of the 3rd sliding tray is connected with motor with described rotation;
Described controller is installed on the forms outside;
Described controller links to each other by infrared facility with described external remote control, and the solar battery sheet on controller and the forms, lifting link to each other by circuit respectively with motor with motor, rotation;
Described solar battery sheet connects into circuit by welding, and its positive and negative polarities are connected in parallel with controller and battery respectively by wire;
Described battery is connected with electrical appliance by electric pressure converter.
Overall workflow of the present utility model is: external remote control realizes remote control to system in the controller, controller system conveys to forms by circuit with motor message, solar battery sheet on the forms is stored Energy transfer by welding and circuit in battery, as using, energy changes into normal voltage by the voltage transitions system in the controller and supplies with outside the use.
Solar battery sheet plays dual parts the most key in whole system, one: because solar battery sheet is opaque, the effect of sunshade will can be played after the shutter landing, its two: solar battery sheet absorbs solar ray energy and produces electric energy, with this part collection of energy and application, this also is the difference place with conventional solar cell sheet maximum.The utility model not only improves the function of ventilation, and possesses the function of sunshade and generating, finely must utilize solar energy resources.
Description of drawings

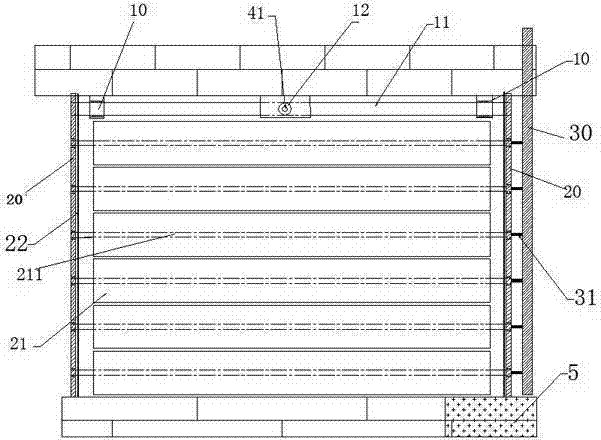

The structural front view of Fig. 1 novel intelligent liftable solar energy glass shutter.
The structure side view of Fig. 2 novel intelligent liftable solar energy glass shutter.
Structure (dissecing) top view of Fig. 3 novel intelligent liftable solar energy glass shutter.
Description of symbols: first sliding tray 10 at top, top horizon bar 11, screw thread advance to stretch quarter butt 12, motor swingle 41, the second sliding tray 20, louvre blade 21, louvre blade bearing pin 211, rhombus-mechanism 22, quarter butt node 221, the 3rd sliding tray 30, tri linear mechanism 31, lifting motor 4, rotation motor (not shown), controller 5.
The specific embodiment
Below in conjunction with accompanying drawing the utility model is described in more detail.
The utility model comprises: glass louvre (containing solar battery sheet), controller, battery, electrical appliance and five parts of external remote control form.
Such as Fig. 1,2,3 novel intelligent liftable solar energy glass shutter, the utility model machinery and drive mechanism feature are as follows.
One: it is mutually orthogonal thereto that top horizon bar 11 and screw thread advance to stretch quarter butt 12, screw thread enters to stretch quarter butt 12 positions to be fixed, there is screw thread at its crossover location place, top horizon bar 11 advances to stretch between the quarter butt 12 by the interlock of screw thread phase with screw thread, screw thread advances to stretch quarter butt 12 and is connected with motor swingle 41, and motor swingle 41 directly is connected with motor 4 with lifting.What screw thread advanced to stretch quarter butt 12 rotarily drives top horizon bar 11 at horizontal in-plane moving.
Two: the frame construction that is linked to each other by many rhombuses is rhombus-mechanism 22, each root quarter butt is connected to each other in the rhombus-mechanism, the hinged formation interface point 221 at the delivery position place, and this frame construction has synchronous folding and draftability, vertical two rhombus-mechanisms 22 arranged side by side in the utility model both sides and two the second fixing sliding trays 20.Be interspersed with a louvre blade bearing pin 211 in each louvre blade 21, and this bearing pin 211 is fixedly linked with louvre blade.Every bearing pin 211 both sides ends all are installed on the interface point 221 of both sides rhombus-mechanism, and bearing pin stretches out interface point and is inserted in the second vertical chute 20, so that louvre blade bearing pin 211 can slide vertically.A quarter butt that passes through the top of each rhombus-mechanism 22 links to each other with top horizon bar 11, and so when lifting was rotated with motor 4, the motion of vertical direction occured with the horizontal plane motion of top horizon bar 11 two rhombus-mechanisms 22 simultaneously.
Three: a side of tri linear mechanism 31 is fixedly linked with each louvre blade bearing pin 211 respectively, and the opposite side of tri linear mechanism 31 is inserted in the 3rd sliding tray 3, and the top of the 3rd sliding tray 3 is connected with the motor (not shown) with a rotation.
Four: by glass louvre sheet 21 and solar battery sheet (not shown) glass louvre dimerous, solar battery sheet adopts a glue technology to be attached on the glass louvre sheet, and the glass louvre sheet is the carrier of solar battery sheet.
Send work order by external remote control to controller 5, lifting is turned round with motor 4, these motor 4 overhanging swingles 11 rotarily drive the rotation that screw thread advances boom 2, top horizon bar 7 and then generation horizontal movement, affect rhombus-mechanism 22 so that the distance between the short connecting rod node reduces, rhombus-mechanism 22 moves on the whole, thereby has realized the rising of shutter (containing cell piece); Equally, when motor 4 counter-rotation was used in lifting, so that screw thread advances to stretch quarter butt 2 reverse rotations, so that the distance between the short connecting rod node increases, rhombus-mechanism 22 integral body moved down, thereby have realized the decline of shutter (containing cell piece).Therefore, the rotation of control motor 4 can be controlled the rise and fall of louvre blade.The lifting driving-chain of whole shutter is:
------screw thread advances to stretch quarter butt 12, and---top horizon bar 11---quarter butt at rhombus-mechanism top---is realized the lifting of rhombus-mechanism to motor swingle 41 with motor 4 in lifting.
Parallel moving mechanism is adopted in the rotation of louvre blade, and the bearing pin 211 that every louvre blade avris end stretches out links to each other with tri linear mechanism 31, and tri linear mechanism 31 1 ends and bearing pin 211 are fixedly linked, and the other end is placed in the 3rd sliding tray 30.Rotation places the top with the motor (not shown), and rotation drives 30 runnings of the 3rd sliding tray with the running of motor, thereby drives successively tri linear mechanism 31, bearing pin 211 rotations, and louvre blade 21 is thereupon rotation also.The rotating drivetrain of whole shutter is:
---------louvre blade bearing pin 211---louvre blade 21---is realized the louvre blade rotation to the 3rd sliding tray 30 to rotation motor (not shown) in tri linear mechanism 31.
Controller 5 is installed on the forms outside, wherein comprises: maximum power point tracking system (MPPT), kinetic control system (lifting and rotation), voltage transitions system.Described maximum power point tracking system can be by the continuous rotation adjustment of louvre blade and the angle between the sunray, to guarantee the power output maximum of solar cell.Described kinetic control system comprises lifting automatic control system and rotational automatic control system, wherein lifting automatic control system is namely by the rising on the external remote control or decline button, master control program sends rotate command to motor, by machine driving, whole rhombus-mechanism and louvre blade oscilaltion have been driven.Wherein rotational automatic control is namely by the rotary knob on the external remote control, and master control program sends action command to the motor of control rotation, and louvre blade rotates thereupon, adjusts to suitable position.Because the output voltage of battery might not be consistent with the operating voltage of electrical appliance, therefore in control system, add an electric pressure converter, for electrical appliance provides matching voltage.
This shutter controller inside arranges maximum power point tracking system, be solar light irradiation specifically, main program sends work order to rotation with motor, the rotation electric machine rotation at top, each power signal constantly that while electrical power data module will record returns main program, when arriving the power output peak, program sends stop signal to rotation with motor, rotation stops operating with motor, louvre blade stops operating too, this moment, the solar energy power output reached the highest, can produce maximum energy.The user externally presses the Auto button in the remote control, namely starts the peak power program, and the angle of louvre blade can change within the fixing unit interval in the change with sun altitude, thereby reaches the absorbed power maximum.
Described controller links to each other by infrared facility with external remote control, realizes remote control to the controller drive manner by the button on the external remote control, and controller links to each other by circuit respectively with solar battery sheet, motor on the forms and realizes controlling.
Described external remote control mainly makes things convenient for the user according to its demand this intelligent shutter to be controlled, and comprises " lifting " button, " rotation " button, " stop " button, the Auto button links to each other with controller by built-in infrared facility, and realizes simultaneously the remote control to controller.
The solar battery sheet that is attached on the glass louvre sheet connects into circuit by welding, and positive and negative polarities are connected in parallel with controller and battery respectively by wire.Because the energy that shines upon generation is by circuit transmission and store in the battery, when needing to use, open the electrical appliance switch, electric energy is converted to normal voltage by electric pressure converter and supplies with electrical appliance and use.

Claims (1)

1. a novel intelligent liftable solar energy glass shutter is characterized in that, comprises forms, controller, battery, electrical appliance and five parts of external remote control;
Described forms comprise that again some glass louvre sheets, some solar battery sheets, louvre blade bearing pin, top horizon bar, screw thread advance to stretch quarter butt, motor swingle, the 3rd sliding tray, tri linear mechanism, lifting motor, rotation motor, level two the first fixing sliding trays, vertical two rhombus-mechanisms and two the second fixing sliding trays arranged side by side arranged side by side;
Described glass louvre sheet is the carrier of solar battery sheet, and solar battery sheet is attached on the glass louvre sheet, and described glass louvre sheet and solar battery sheet have formed the work contact surface of forms;
It is mutually orthogonal thereto that described top horizon bar and screw thread advance to stretch quarter butt, screw thread enters to stretch the quarter butt position to be fixed, there is screw thread at its crossover location place, the top horizon bar advances to stretch between the quarter butt by the interlock of screw thread phase with screw thread, screw thread advances to stretch quarter butt and is connected with the motor swingle, and the motor swingle is connected with motor with lifting;
The described rhombus-mechanism frame construction that many rhombuses link to each other of serving as reasons, each root quarter butt joins mutually in the rhombus-mechanism, the hinged formation interface point at the delivery position place, be interspersed with bearing pin in each glass louvre sheet, and this bearing pin and glass louvre sheet are fixedly linked, every bearing pin both sides end all is installed on the rhombus-mechanism interface point of both sides, and bearing pin stretches out interface point and is inserted in the second vertical chute; Each rhombus-mechanism links to each other with the top horizon bar by a quarter butt at top;
One side of described tri linear mechanism is fixedly linked with each bearing pin respectively, and the opposite side of tri linear mechanism is inserted in the 3rd sliding tray, and the top of the 3rd sliding tray is connected with motor with described rotation;
Described controller is installed on the forms outside;
Described controller links to each other by infrared facility with described external remote control, and the solar battery sheet on controller and the forms, lifting link to each other by circuit respectively with motor with motor, rotation;
Described solar battery sheet connects into circuit by welding, and its positive and negative polarities are connected in parallel with controller and battery respectively by wire;
Described battery is connected with electrical appliance by electric pressure converter.
