Abstract
本实用新型涉及一种断桥隔热铝合金窗，其包括铝合金型材制成的窗框和窗扇、以及双层玻璃和隔热层，双层玻璃设置于窗扇中，窗扇设置于窗框内，双层玻璃之间为真空，窗扇包括前面板和后面板，隔热层填充于前面板和后面板之间，前面板和后面板之间设置有多个连接件，窗扇与双层玻璃接触位置设置有密封胶条。本实用新型的断桥隔热铝合金窗隔热性好，且结构稳定性好，不容易变形。
The utility model relates to a broken bridge heat-insulating aluminum alloy window, which comprises a window frame and a window sash made of aluminum alloy profiles, double-layer glass and a heat-insulating layer, the double-layer glass is arranged in the window sash, and the window sash is arranged in the window frame , there is a vacuum between the double-layer glass, the window sash includes a front panel and a back panel, and the heat insulation layer is filled between the front panel and the back panel, and there are multiple connecting pieces between the front panel and the back panel, and the window sash is in contact with the double-layer glass The position is provided with a sealing strip. The heat-insulating aluminum alloy window of the broken bridge of the utility model has good heat insulation performance, good structural stability, and is not easily deformed.
Description
Technical field
The utility model relates to building materials field, particularly a kind of bridge insulation thermal resistance aluminum window that is arranged at the building outside.
Background technology
Alumium alloy door and window are in light weight, the intensity height, and single aluminum alloy materials thermal transmittance height is unfavorable for heat preservation energy-saving.In order to improve heat-proof quality, usually will add heat insulating strip between aluminium alloy extrusions carries out heat insulation, but this heat insulation mode, heat insulation scope is little, and heat insulation effect is not very desirable, as increasing the thermal insulation areas of heat insulating strip, then the intensity of alumium alloy door and window will reduce, influence its normal use, therefore, need make improvements.
Summary of the invention
The purpose of this utility model is that the effect of heat insulation that exists at the existing bridge insulation thermal resistance aluminum window described in the background technology is poor, as enlarge thermal insulation areas, then can reduce the problem of alumium alloy door and window intensity, a kind of bridge insulation thermal resistance aluminum window that can solve foregoing problems is provided.
The technical scheme that can realize goal of the invention of the present utility model is as follows:
A kind of bridge insulation thermal resistance aluminum window, it comprises window frame and sash and double-layer glass and isolation layer that aluminium alloy extrusions is made, double-layer glass is arranged in the sash, sash is arranged in the window frame, be vacuum between the double-layer glass, sash comprises front panel and rear board, and isolation layer is filled between front panel and the rear board, be provided with a plurality of connectors between front panel and the rear board, sash and double-layer glass contact position are provided with sealing joint strip.
Described connector is threaded block and bolt.
The advantage of bridge insulation thermal resistance aluminum window of the present utility model is: bridge insulation thermal resistance aluminum window of the present utility model is simple in structure, the sash split arranges, stuffed heat insulated layer between the front panel of sash and rear board, connect front panel and rear board with connector, guarantee the Stability Analysis of Structures of aluminum window, indeformable, the position that sash contacts with double-layer glass arranges sealing joint strip, plays the effect of sealing insulation.
Description of drawings

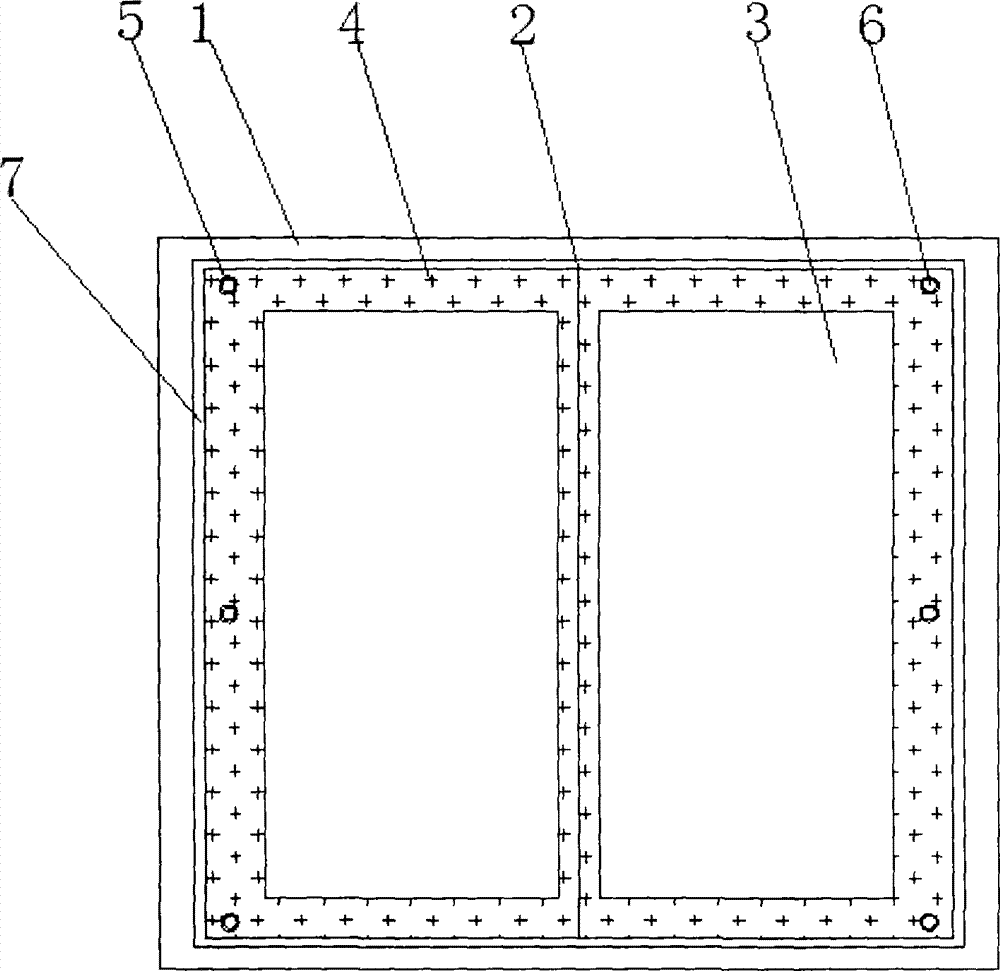

Fig. 1 is the structural representation of bridge insulation thermal resistance aluminum window of the present utility model;
Among the figure, 1 is window frame, and 2 is sash, and 3 is double-layer glass, and 4 is isolation layer, and 5 is threaded block, and 6 is bolt, and 7 is sealing joint strip.
The specific embodiment
Further set forth below in conjunction with 1 pair of specific embodiment of the present utility model of accompanying drawing:
Embodiment 1
A kind of bridge insulation thermal resistance aluminum window as shown in Figure 1, it comprises window frame 1 and sash 2 and double-layer glass 3 and isolation layer 4 that aluminium alloy extrusions is made, double-layer glass 3 is arranged in the sash 2, sash 2 is arranged in the window frame 1, be vacuum between the double-layer glass 3, sash 2 comprises front panel and rear board, and isolation layer 4 is filled between front panel and the rear board, be provided with a plurality of connectors between front panel and the rear board, sash 2 is provided with sealing joint strip 7 with double-layer glass 3 contact positions.
In the such scheme, described connector is threaded block 5 and bolt 6.
Claims (2)
1. bridge insulation thermal resistance aluminum window, it is characterized in that: it comprises window frame and sash and double-layer glass and isolation layer that aluminium alloy extrusions is made, double-layer glass is arranged in the sash, sash is arranged in the window frame, be vacuum between the double-layer glass, sash comprises front panel and rear board, and isolation layer is filled between front panel and the rear board, be provided with a plurality of connectors between front panel and the rear board, sash and double-layer glass contact position are provided with sealing joint strip.
2. bridge insulation thermal resistance aluminum window according to claim 1, it is characterized in that: described connector is threaded block and bolt.
