CN202627812U - Thermal insulation aluminum alloy door/window - Google Patents
Thermal insulation aluminum alloy door/window Download PDFInfo
- Publication number
- CN202627812U CN202627812U CN201220170613.6U CN201220170613U CN202627812U CN 202627812 U CN202627812 U CN 202627812U CN 201220170613 U CN201220170613 U CN 201220170613U CN 202627812 U CN202627812 U CN 202627812U
- Authority
- CN
- China
- Prior art keywords
- aluminum alloy
- thermal insulation
- window
- glass
- alloy door
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 229910000838 Al alloy Inorganic materials 0.000 title claims abstract description 37
- 238000009413 insulation Methods 0.000 title claims abstract description 25
- 239000011521 glass Substances 0.000 claims abstract description 14
- 238000007789 sealing Methods 0.000 claims abstract description 10
- 229920006327 polystyrene foam Polymers 0.000 claims description 3
- 239000012774 insulation material Substances 0.000 abstract description 3
- 238000004321 preservation Methods 0.000 abstract 1
- 239000000956 alloy Substances 0.000 description 1
- 230000009286 beneficial effect Effects 0.000 description 1
- 230000007547 defect Effects 0.000 description 1
- 230000000694 effects Effects 0.000 description 1
- 238000000034 method Methods 0.000 description 1
- 238000012986 modification Methods 0.000 description 1
- 230000004048 modification Effects 0.000 description 1
- 239000004033 plastic Substances 0.000 description 1
- 238000009417 prefabrication Methods 0.000 description 1
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02A—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE
- Y02A30/00—Adapting or protecting infrastructure or their operation
- Y02A30/24—Structural elements or technologies for improving thermal insulation
- Y02A30/249—Glazing, e.g. vacuum glazing
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02B—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO BUILDINGS, e.g. HOUSING, HOUSE APPLIANCES OR RELATED END-USER APPLICATIONS
- Y02B80/00—Architectural or constructional elements improving the thermal performance of buildings
- Y02B80/22—Glazing, e.g. vaccum glazing
Landscapes
- Securing Of Glass Panes Or The Like (AREA)
Abstract
本实用新型涉及一种保温铝合金门窗，其包括铝合金框体、密封条、玻璃以及保温层；其中，所述铝合金框体内呈中空结构，其上设有一对U型槽；所述玻璃安装于该对U型槽内；所述密封条抵接在玻璃和U型槽之间；所述保温层填充于铝合金框体内。本实用新型的保温铝合金门窗通过在中空的铝合金框体内填充保温材料，从而使该铝合金门窗的保温隔热性能好，尤其适合冬季寒冷地区使用。
The utility model relates to a thermal insulation aluminum alloy door and window, which comprises an aluminum alloy frame body, a sealing strip, glass and a thermal insulation layer; wherein, the aluminum alloy frame body is a hollow structure, and a pair of U-shaped grooves are arranged on it; the glass It is installed in the pair of U-shaped grooves; the sealing strip abuts between the glass and the U-shaped groove; and the heat preservation layer is filled in the aluminum alloy frame. The thermal insulation aluminum alloy door and window of the utility model is filled with thermal insulation material in the hollow aluminum alloy frame, so that the thermal insulation performance of the aluminum alloy door and window is good, and is especially suitable for use in cold regions in winter.
Description
技术领域 technical field
本实用新型涉及一种建筑用门窗，具体涉及一种保温铝合金门窗，属于铝合金材料技术领域。 The utility model relates to a door and window for building, in particular to a thermal insulation aluminum alloy door and window, which belongs to the technical field of aluminum alloy materials.
背景技术 Background technique
铝合金门窗具有外形美观，密封性好，重量轻且便于预制等诸多优点，其已经广泛应用于各种建筑物中。 Aluminum alloy doors and windows have many advantages such as beautiful appearance, good sealing performance, light weight and easy prefabrication, and have been widely used in various buildings.
然而，现有技术的铝合金门窗通常由铝合金型材和玻璃组装形成，其保温性能较差，窗内外的热量很容易通过铝合金框体本身进行传导，尤其是在北方冬季时，这个问题显得更加突出。 However, aluminum alloy doors and windows in the prior art are usually formed by assembling aluminum alloy profiles and glass, and their thermal insulation performance is poor. more prominent.
因此，为避免上述技术问题，确有必要提供一种具有改良结构的保温铝合金门窗，以克服现有技术中的所述缺陷。 Therefore, in order to avoid the above-mentioned technical problems, it is indeed necessary to provide a thermal insulation aluminum alloy door and window with an improved structure to overcome the defects in the prior art.
实用新型内容 Utility model content
为解决上述问题，本实用新型的目的在于提供一种保温隔热效果好的保温铝合金门窗，其尤其适合冬季寒冷地区使用。 In order to solve the above problems, the purpose of this utility model is to provide a thermal insulation aluminum alloy door and window with good thermal insulation effect, which is especially suitable for use in cold winter regions.
为实现上述目的，本实用新型采取的技术方案为：一种保温铝合金门窗，其包括铝合金框体、密封条、玻璃以及保温层；其中，所述铝合金框体内呈中空结构，其上设有一对U型槽；所述玻璃安装于该对U型槽内；所述密封条抵接在玻璃和U型槽之间；所述保温层填充于铝合金框体内。 In order to achieve the above purpose, the technical solution adopted by the utility model is: a thermal insulation aluminum alloy door and window, which includes an aluminum alloy frame body, a sealing strip, glass and a thermal insulation layer; wherein, the aluminum alloy frame body is a hollow structure, and A pair of U-shaped grooves is provided; the glass is installed in the pair of U-shaped grooves; the sealing strip abuts between the glass and the U-shaped groove; the heat-insulating layer is filled in the aluminum alloy frame.
本实用新型的保温铝合金门窗进一步设置为：所述保温层具体为聚苯乙烯泡沫塑料。 The thermal insulation aluminum alloy door and window of the utility model is further set as follows: the thermal insulation layer is specifically polystyrene foam plastic.
与现有技术相比，本实用新型具有如下有益效果：本实用新型的保温铝合金门窗通过在中空的铝合金框体内填充保温材料，从而使该铝合金门窗的保温隔热性能好，尤其适合冬季寒冷地区使用。 Compared with the prior art, the utility model has the following beneficial effects: the thermal insulation aluminum alloy doors and windows of the utility model are filled with thermal insulation materials in the hollow aluminum alloy frame, so that the thermal insulation performance of the aluminum alloy doors and windows is good, especially suitable for Used in cold winter areas.
附图说明 Description of drawings

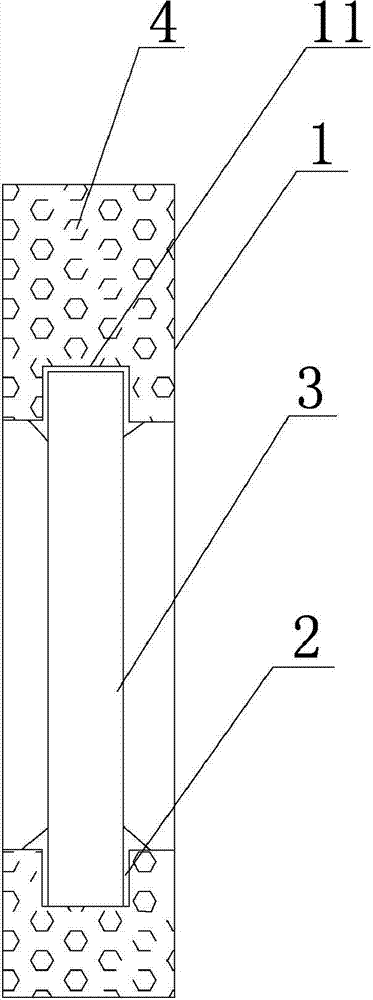

图1是本实用新型的保温铝合金门窗的结构示意图。 Fig. 1 is a schematic structural view of the thermal insulation aluminum alloy door and window of the present invention.
具体实施方式 Detailed ways
请参阅说明书附图1所示，本实用新型为一种保温铝合金门窗，其由铝合金框体1、密封条2、玻璃3以及保温层4等几部分组成。
Please refer to the accompanying
其中，所述铝合金框体1内部呈中空结构，其上设有一对U型槽11。所述保温层4填充于铝合金框体1内，其具体为聚苯乙烯泡沫塑料。
Wherein, the aluminum
所述玻璃3安装于U型槽11内。所述密封条2抵接在玻璃3和U型槽11之间，从而增加玻璃3和铝合金框体1之间的密封性能。
The
本实用新型的保温铝合金门窗通过在中空的铝合金框体1内填充保温材料，从而使该铝合金门窗的保温隔热性能好，尤其适合冬季寒冷地区使用。
The thermal insulation aluminum alloy door and window of the utility model fills the hollow aluminum
以上的具体实施方式仅为本创作的较佳实施例，并不用以限制本创作，凡在本创作的精神及原则之内所做的任何修改、等同替换、改进等，均应包含在本创作的保护范围之内。 The specific implementation above is only a preferred embodiment of this creation, and is not intended to limit this creation. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of this creation should be included in this creation. within the scope of protection.
Claims (2)
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201220170613.6U CN202627812U (en) | 2012-04-21 | 2012-04-21 | Thermal insulation aluminum alloy door/window |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201220170613.6U CN202627812U (en) | 2012-04-21 | 2012-04-21 | Thermal insulation aluminum alloy door/window |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN202627812U true CN202627812U (en) | 2012-12-26 |
Family
ID=47381020
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN201220170613.6U Expired - Fee Related CN202627812U (en) | 2012-04-21 | 2012-04-21 | Thermal insulation aluminum alloy door/window |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN202627812U (en) |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
