Abstract
本实用新型涉及一种新型铝合金门窗，其包括铝合金框体、密封条、两块玻璃以及间隔条；其中，所述铝合金框体上设有U型槽；所述两块玻璃安装于U型槽内，所述间隔条设置在两块玻璃之间；所述密封条抵接在两块玻璃和U型槽之间。本实用新型的新型铝合金门窗通过设置两块玻璃，并在两块玻璃之间用间隔条分割开，从而使该铝合金门窗的隔热性和隔音性较好。
The utility model relates to a new type of aluminum alloy door and window, which comprises an aluminum alloy frame body, a sealing strip, two pieces of glass and a spacer; wherein, the aluminum alloy frame body is provided with a U-shaped groove; the two pieces of glass are installed on In the U-shaped groove, the spacer bar is arranged between two pieces of glass; the sealing strip abuts between the two pieces of glass and the U-shaped groove. The novel aluminum alloy door and window of the utility model is provided with two pieces of glass and separated by a spacer between the two pieces of glass, so that the heat insulation and sound insulation of the aluminum alloy door and window are better.
Description
技术领域 technical field
本实用新型涉及一种建筑用门窗，具体涉及一种新型铝合金门窗，属于铝合金材料技术领域。 The utility model relates to a door and window for building, in particular to a novel aluminum alloy door and window, belonging to the technical field of aluminum alloy materials.
背景技术 Background technique
铝合金门窗具有外形美观、密封性好、重量轻且便于预制等诸多优点，其已经广泛应用于各种建筑物中。 Aluminum alloy doors and windows have many advantages such as beautiful appearance, good sealing performance, light weight and easy prefabrication, and have been widely used in various buildings.
现有技术的铝合金门窗通常由四周的铝合金型材和中央的玻璃组装形成。而玻璃所占的面积越大，窗内外的热量、声波越容易通过玻璃进行传导，从而使该铝合金门窗的隔热性和隔音性较差。 Aluminum alloy doors and windows in the prior art are usually formed by assembling aluminum alloy profiles around them and glass in the center. The larger the area occupied by the glass, the easier it is for the heat and sound waves inside and outside the window to conduct through the glass, so that the heat insulation and sound insulation of the aluminum alloy doors and windows are poor.
因此，为避免上述技术问题，确有必要提供一种具有改良结构的铝合金门窗，以克服现有技术中的所述缺陷。 Therefore, in order to avoid the above-mentioned technical problems, it is indeed necessary to provide an aluminum alloy door and window with an improved structure to overcome the defects in the prior art.
实用新型内容 Utility model content
为解决上述问题，本实用新型的目的在于提供一种隔热性和隔音性较好的新型铝合金门窗。 In order to solve the above problems, the purpose of this utility model is to provide a new type of aluminum alloy door and window with better heat insulation and sound insulation.
为实现上述目的，本实用新型采取的技术方案为：一种新型铝合金门窗，其包括铝合金框体、密封条、两块玻璃以及间隔条；其中，所述铝合金框体上设有U型槽；所述两块玻璃安装于U型槽内，所述间隔条设置在两块玻璃之间；所述密封条抵接在两块玻璃和U型槽之间。 In order to achieve the above purpose, the technical solution adopted by the utility model is: a new type of aluminum alloy door and window, which includes an aluminum alloy frame, a sealing strip, two pieces of glass and a spacer; wherein, the aluminum alloy frame is provided with a U Type groove; the two pieces of glass are installed in the U-shaped groove, and the spacer bar is arranged between the two pieces of glass; the sealing strip abuts between the two pieces of glass and the U-shaped groove.
本实用新型的新型铝合金门窗进一步设置为：所述两块玻璃之间的间距为5mm。 The novel aluminum alloy door and window of the utility model is further set as follows: the distance between the two pieces of glass is 5mm.
与现有技术相比，本实用新型具有如下有益效果：本实用新型的新型铝合金门窗通过设置两块玻璃，并在两块玻璃之间用间隔条分割开，从而使该铝合金门窗的隔热性和隔音性较好。 Compared with the prior art, the utility model has the following beneficial effects: the new aluminum alloy doors and windows of the utility model are provided with two pieces of glass, and are separated by a spacer bar between the two pieces of glass, so that the partition of the aluminum alloy door and window Thermal and sound insulation are better.
附图说明 Description of drawings

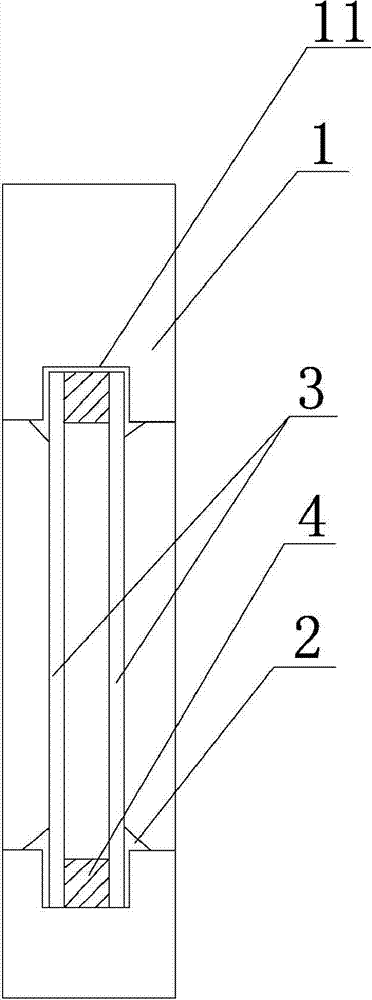

图1是本实用新型的新型铝合金门窗的结构示意图。 Fig. 1 is a schematic structural view of a new aluminum alloy door and window of the present invention.
具体实施方式 Detailed ways
请参阅说明书附图1所示，本实用新型为一种新型铝合金门窗，其由铝合金框体1、密封条2、两块玻璃3以及间隔条4等几部分组成。 Please refer to the accompanying drawing 1 of the description, the utility model is a novel aluminum alloy door and window, which is composed of an aluminum alloy frame body 1, a sealing strip 2, two pieces of glass 3 and spacer strips 4 and other parts.
其中，所述铝合金框体1上设有U型槽11。所述两块玻璃3安装于U型槽11内。 Wherein, the aluminum alloy frame body 1 is provided with a U-shaped groove 11 . The two pieces of glass 3 are installed in the U-shaped groove 11 .
所述密封条2抵接在两块玻璃3和U型槽11之间，从而增加玻璃3和铝合金框体1之间的密封性能。 The sealing strip 2 abuts between the two pieces of glass 3 and the U-shaped groove 11 , thereby increasing the sealing performance between the glass 3 and the aluminum alloy frame 1 .
所述间隔条4设置在两块玻璃3之间。且所述两块玻璃3之间的间距为5mm，即间隔条4的厚度为5mm。 The spacer bar 4 is arranged between two pieces of glass 3 . And the distance between the two pieces of glass 3 is 5 mm, that is, the thickness of the spacer bar 4 is 5 mm.
本实用新型的新型铝合金门窗通过设置两块玻璃3，并在两块玻璃3之间用间隔条4分割开，从而能够大大减少热量和声波通过玻璃3传导，使该铝合金门窗的隔热性和隔音性较好。 The new aluminum alloy doors and windows of the utility model are provided with two pieces of glass 3 and separated by a spacer 4 between the two pieces of glass 3, so that heat and sound waves can be greatly reduced through the glass 3, and the heat insulation of the aluminum alloy doors and windows can be greatly reduced. Sex and sound insulation are better.
以上的具体实施方式仅为本创作的较佳实施例，并不用以限制本创作，凡在本创作的精神及原则之内所做的任何修改、等同替换、改进等，均应包含在本创作的保护范围之内。 The specific implementation above is only a preferred embodiment of this creation, and is not intended to limit this creation. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of this creation should be included in this creation. within the scope of protection.
Claims (2)
