Abstract
A solar street lamp using an electrodeless lamp is mainly characterized in that received solar energy can be provided for the electrodeless lamp with a power-saving effect for use, and the solar street lamp comprises the electrodeless lamp, a solar photoelectric plate and a control unit; the solar photovoltaic panel is used for converting light energy into electric energy; the control unit is electrically connected with the solar photoelectric plate and the electrodeless lamp. The utility model discloses owing to adopt electrodeless lamp to can throw light on with lower power consumption, still have long service life and the heat low grade efficiency of production.
Description
Technical field
The utility model refers to a kind of solar street light light fixture that uses Non-polarized lamp especially about a kind of solar street light light fixture.
Background technology
Street lamp generally all is electrically connected to the city, changes by the battery in street lamp during power failure and takes over power supply.But, impact due to global warming, recently the solar electrical energy generation that has the carbon reduction effect is extended application gradually, one of them is about to street lamp and is combined with solar energy, take utilize by day solar opto-electronic board with transform light energy as electric energy and be stored in battery, evening can be with this powered battery to street lamp, thereby reduces power consumption.
Yet, conventional road lamp all uses the incandescent lamp of rather power consumption or Halogen lamp LED as light source, cause power saving effect little, but the delivery that particularly utilizes solar energy to come via opto-electronic conversion is also little, therefore, although use light emitting diode (LED) as light source, still can be because exhausting electricity stored in battery then use civil power, power saving effect is not as expection; Moreover light emitting diode also has another shortcoming: its power is higher, and the incident heat dissipation problem of institute is also larger, therefore high-power LED road lamp is the doubt that has the heat radiation aspect.in comparison, another kind of new type light source---the electrodeless electromagnetic sense light (is called for short Non-polarized lamp, High-frequency Plasma Electrodeless Discharge In-duction Lamp) heat that produces is far below light emitting diode, and Non-polarized lamp itself is also electrodeless, it is according to electromagnetic induction and gas discharge principle and luminous a kind of light source, compared to traditional incandescent lamp bulb, the assembly (tungsten filament) that does not have the restriction light source life because of Non-polarized lamp, therefore reach its service life more than 100,000 hours, moreover, it is good that Non-polarized lamp has again colour rendering, without stroboscopic, free from glare, power saving effect more is better than light emitting diode ... Deng many merits, become splendid green illumination light source.Therefore, if Non-polarized lamp can be applied in the solar street light light fixture, the heat that not only produces is far below light emitting diode, and also has the plurality of advantages such as power consumption low (power saving), longer service life, more is applicable to the solar street light light fixture far beyond light emitting diode.
In view of this, the design artificially improves and solves above-mentioned disappearance, is that the spy concentrates on studies and coordinates scientific principle to use, and finally proposes a kind of reasonable in design and effectively improve the utility model of above-mentioned disappearance.
The utility model content
One of the utility model purpose is to provide a kind of solar street light light fixture that uses Non-polarized lamp, can throw light on lower power consumption, also has the effects such as the heat of long service life and generation is low.
In order to reach above-mentioned purpose, the utility model provides a kind of solar street light light fixture that uses Non-polarized lamp, and it comprises:
One Non-polarized lamp;
One charge storage unit;
One solar opto-electronic board is used for transform light energy is become electric energy; And
One control module is electrically connected this solar opto-electronic board and Non-polarized lamp; Wherein this charge storage unit is electrically connected at this control module, storing from the electric energy of this solar opto-electronic board institute output, and this control module function of having voltage stabilizing, charge and discharge protecting mechanism and automaticallying switch, supplies with the electric weight of this Non-polarized lamp to control this charge storage unit.
This control module and this charge storage unit are electrically connected, and this control module is detected the reserve of electricity of this charge storage unit, are powered to this Non-polarized lamp by this solar opto-electronic board or this charge storage unit to automatically switch.
This control module has one in order to control the timing module of power-on time, starts the time of throwing light on or closing illumination with energy free setting wish, thereby all can reach better power saving effect.
The solar street light light fixture of described use Non-polarized lamp more comprises an optical inductor that is electrically connected at this control module, this control module receives the photoinduction signal of this optical inductor and powers to this Non-polarized lamp, can automatically start at night illumination, and automatically to close by day illumination.
This Non-polarized lamp comprises a lamp housing that is formed with the light source chamber, a diffuser of being located at the indoor electrodeless bulb of this light-source chamber and removably being installed in this lamp housing outward and cover this light source chamber, and this electrodeless bulb comprises a pair of magnet ring and is connected to this to an electrodeless lamp tube of magnet ring.
This control module is detected the reserve of electricity of this charge storage unit and is switched and powered to this Non-polarized lamp by this charge storage unit or this solar opto-electronic board.
Each magnet ring is for annular and be wound with plurality of coils.
This electrodeless lamp tube is a loop formula fluorescent tube.
The utility model utilizes the low power consumption of Non-polarized lamp to carry out street lighting, the heat that produces far below light emitting diode of long service life and the heat that produces not only, and can throw light on lower power consumption, bring into play the savings advantage of Non-polarized lamp fully.
Description of drawings

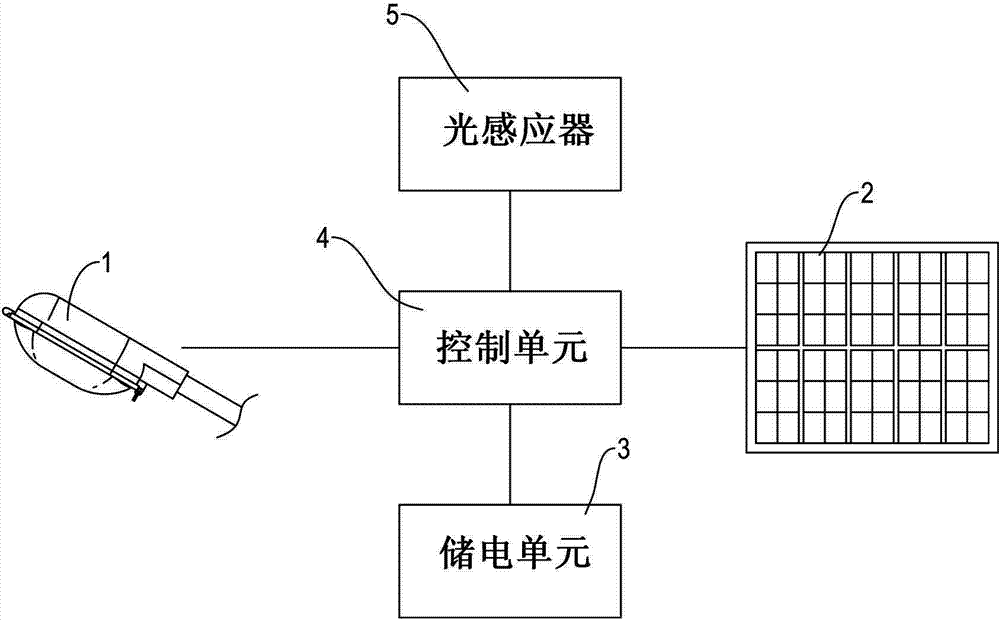

Fig. 1 is the block diagram of the utility model solar street light light fixture.
Fig. 2 is that the diffuser of Non-polarized lamp of the present utility model does not cover stereoscopic figure.
Fig. 3 is that the diffuser of Non-polarized lamp of the present utility model covers rear stereoscopic figure.
Fig. 4 is the use state diagram of the utility model solar street light light fixture.
The primary clustering symbol description:
1 Non-polarized lamp;
11 lamp housings; 111 light source chambers;
12 electrodeless bulbs; 121 electrodeless lamp tubes;
122 magnet rings;
13 diffusers;
14 lamp neck sections;
2 solar opto-electronic boards;
3 charge storage unit;
4 control modules;
5 optical inductors;
7 lamp stands;
8 lamp sockets.
The specific embodiment
For feature of the present utility model and technology contents can further be understood, see also following about detailed description of the present utility model and accompanying drawing, yet appended graphic only provide with reference to and the explanation use, be not to limit the utility model.
See also Fig. 1, Fig. 2 and shown in Figure 3, the utility model provides a kind of solar street light light fixture that uses Non-polarized lamp, offer in order to the solar energy that will receive the Non-polarized lamp that has especially electricity saving function through being converted to electric energy, this solar street light light fixture comprises Non-polarized lamp 1, solar opto-electronic board 2, charge storage unit 3, control module 4 and optical inductor 5.
This solar opto-electronic board 2 is used for transform light energy is become electric energy; And be electrically connected through control module 4 and Non-polarized lamp 1 and charge storage unit 3; The electric energy that solar opto-electronic board 2 produces directly can be powered to Non-polarized lamp 1.
This charge storage unit 3 is electrically connected at this control module 4 in order to store the electric energy from 2 outputs of solar opto-electronic board; And Non-polarized lamp 1 sees through control module 4 and is electrically connected with charge storage unit 3.
This control module 4 has the functions such as voltage stabilizing, charge and discharge protecting mechanism and automatic switchover, and it controls the electric weight that charge storage unit 3 is supplied with Non-polarized lamp 1.Wherein, this control module 4 can have the timing module that Fig. 1 does not show, can control power supply to the time of Non-polarized lamp 1 by this timing module, thereby can the free setting wish start the time of throwing light on or closing illumination, reaches better power saving effect.
This can be responded to bright, the dark optical inductor of light 5 and be electrically connected at this control module 4, whether this control module 4 is can receive the photoinduction signal of optical inductor 5 and control and power to Non-polarized lamp 1, thereby can automatically throw light in the dimmed startup in evening of light, also automatically become at light and close illumination the daytime of becoming clear, also can reach better power saving effect.
This control module 4 can be detected the reserve of electricity of charge storage unit 3, is powered to Non-polarized lamp 1 by solar opto-electronic board 2 or charge storage unit 3 and automatically switch.
By the composition of above-mentioned structure, can obtain solar street light light fixture of the present utility model.
The electrodeless electromagnetic sense light (is called for short Non-polarized lamp, High-frequency Plasma Electrodeless DischargeIn-duction Lamp), this Non-polarized lamp 1 is one according to electromagnetic induction and gas discharge principle and luminous a kind of new type light source is the more recent application technology of 21 century environmental protection lighting field.Owing to there is no filament or electrode in bulb, therefore there is not the inevitable assembly of restriction light source life, General Life can reach more than 100,000 hours, was 100 times of common bulb; And the power consumption of Non-polarized lamp 1 is lower than light emitting diode (power saving), and the heat that produces is also far below light emitting diode, and Non-polarized lamp 1 also has very high lux maintenance (2000 hours be 95%, 6000 hour be 85%) even.
According to the utility model, Non-polarized lamp 1 comprises that a lamp housing 11, that is formed with light source chamber 111 is located at that electrodeless bulbs 12 and in this light source chamber 111 are installed in removably that this lamp housing 11 is outer and diffuser that cover light source chamber 111 (sees Fig. 2-Fig. 4) 13.This solar opto-electronic board 12 and optical inductor 5 all are arranged on the lamp housing 11 of this Non-polarized lamp 1, and this lamp housing 11 extends back and is provided with a lamp neck section 14.Wherein, this electrodeless bulb 12 comprises a pair of magnet ring 122 and and is connected to this to the electrodeless lamp tube 121 of magnet ring 122, this electrodeless lamp tube 121 is a loop formula fluorescent tube, and respectively this magnet ring 122 is annular and is wound with plurality of coils (not marking component symbol), through producing the high frequency waves of electromagnetic induction after energising, and clash into the fluorescent material that is coated with on the inwall of this electrodeless lamp tube that is connected to magnet ring 122 121, reach by this illumination effect.
See also shown in Figure 4, the utility model uses the solar street light light fixture of Non-polarized lamp, can be assembled on a lamp stand 7 with its lamp neck section 14, and the lower end of this lamp stand 7 is fixedly arranged on a lamp socket 8, being provided with described charge storage unit 3 and control module 4(in this lamp socket 8 also can as shown in Figure 2 and Figure 3, be arranged at charge storage unit 3 and control module 4 in the lamp housing 11 of this Non-polarized lamp 1 certainly).So can be applied to the street lamp occasion on Ordinary Rd, use the advantage of utilizing Non-polarized lamp 1 and replace the light source that conventional road lamp uses.
Therefore, the utility model uses the solar street light light fixture of Non-polarized lamp, by Non-polarized lamp 1 is used in the solar street light light fixture, has advantages of especially with 1 of Non-polarized lamp of performance, and particularly the power consumption of Non-polarized lamp 1 is more lower than light emitting diode (power saving; Throw light on lower power consumption), but therefore be able to be applicable to the little solar electrical energy generation of this delivery, comparatively speaking, under identical condition, charge storage unit 3 can be supplied the longer time of the utility model solar street light light fixture, also can easily deal with even if power off time surpasses one, two day; Conversely, under the same conditions, the volume of the charge storage unit 3 that the utility model uses is much smaller than the volume of conventional road lamp charge storage unit that light fixture uses, so the utility model can use the little and cheap lead-acid battery of volume, traditional solar street light light fixture must use the battery that volume is large and expense is high.Moreover, by the design of optical inductor 5, can automatically start at night illumination, and automatically to close by day illumination; Or by the design of the control module 4 with timing module, can the free setting wish to start illumination or to close time of illumination, thereby all can reach better power saving effect.
Claims (7)
1. solar street light light fixture that uses Non-polarized lamp is characterized in that comprising:
One Non-polarized lamp;
One charge storage unit;
One solar opto-electronic board is used for transform light energy is become electric energy; And
One control module is electrically connected this solar opto-electronic board and Non-polarized lamp; Wherein this charge storage unit is electrically connected at this control module, storing from the electric energy of this solar opto-electronic board institute output, and this control module function of having voltage stabilizing, charge and discharge protecting mechanism and automaticallying switch, supplies with the electric weight of this Non-polarized lamp to control this charge storage unit.
2. the solar street light light fixture of use Non-polarized lamp as claimed in claim 1, it is characterized in that, this control module and this charge storage unit are electrically connected, and this control module is detected the reserve of electricity of this charge storage unit, are powered to this Non-polarized lamp by this solar opto-electronic board or this charge storage unit to automatically switch.
3. the solar street light light fixture of use Non-polarized lamp as claimed in claim 2, is characterized in that, this control module has one in order to control the timing module of power-on time.
4. the solar street light light fixture of use Non-polarized lamp as claimed in claim 2, is characterized in that, more comprises an optical inductor that is electrically connected at this control module, and this control module receives the photoinduction signal of this optical inductor and powers to this Non-polarized lamp.
5. the solar street light light fixture of use Non-polarized lamp as claimed in claim 1, it is characterized in that, this Non-polarized lamp comprises a lamp housing that is formed with the light source chamber, a diffuser of being located at the indoor electrodeless bulb of this light-source chamber and removably being installed in this lamp housing outward and cover this light source chamber, and this electrodeless bulb comprises a pair of magnet ring and is connected to this to an electrodeless lamp tube of magnet ring.
6. the solar street light light fixture of use Non-polarized lamp as claimed in claim 5, is characterized in that, each magnet ring is for annular and be wound with plurality of coils.
7. the solar street light light fixture of use Non-polarized lamp as claimed in claim 5, is characterized in that, this electrodeless lamp tube is a loop formula fluorescent tube.
