CN203021501U - Coke guide bar quick maintaining device for coke guide of tamping coke oven - Google Patents
Coke guide bar quick maintaining device for coke guide of tamping coke oven Download PDFInfo
- Publication number
- CN203021501U CN203021501U CN 201220733775 CN201220733775U CN203021501U CN 203021501 U CN203021501 U CN 203021501U CN 201220733775 CN201220733775 CN 201220733775 CN 201220733775 U CN201220733775 U CN 201220733775U CN 203021501 U CN203021501 U CN 203021501U
- Authority
- CN
- China
- Prior art keywords
- coke
- coke guide
- guide
- tamping
- frame
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Coke Industry (AREA)
Abstract
The utility model discloses a coke guide bar quick maintaining device for a coke guide of a tamping coke oven, and the coke guide bar quick maintaining device is used for quickly maintaining a coke guide bar for the coke guide of the tamping coke oven. The device comprises a support frame, wherein a second travelling track of the coke guide is arranged at the top of the support frame. The device further comprises a middle track which is used for connecting the second travelling track of the coke guide with the coke guide arranged at the top of a coke guide groove. The support frame comprises a top frame, wherein four support columns are connected to each side on two opposite sides of the top frame, and a connecting piece is arranged between two adjacent support columns on the same side.
Description
Technical field
The utility model relates to a kind of tamping coke furnace coke guide grid of coke guide Quick overhaul device.
Background technology
Track of tamping coke furnace coke guide is arranged on coke oven and discharges of the coke on the wing furnace platform, and another track is arranged on outside steel structure base across electric locomotive and quenching car or coke tank truck, two rail spacing 9010mm.Its effect is to get, fill the coke side fire door, during coke pushing, red Jiao is imported in the burnt tank of quenching car or in the water carriage of coke quenching car by leading burnt grid, simultaneously the coke flue dust is imported control of dust main, cleaning fire door and stove frame, collects head and tail coke etc.Coke guide grid of coke guide is positioned at the car body middle part, by messenger, side steering roll, lead burnt grid skeleton, lead burnt backplate, lead burnt grid bottom and top, locking mechanism, driving oil cylinder etc. form.Ripe coke enters in burnt tank by coke guide, and the distortion of coke guide wallboard is serious, will increase the coke pushing resistance, and the wallboard serious wear affects coke-pushing process etc.But the maintenance of coke guide grid of coke guide exists space for maintenance narrow and small, and temperature fall time is long, and upkeep operation is subjected to the difficult points such as impact of quenching car, and each maintenance needs to produce to coordinate and stops coming out of the stove, and causes the coke output loss.
The utility model content
The technical problem that the utility model solves is to provide a kind of tamping coke furnace coke guide grid of coke guide Quick overhaul device that is conducive to Quick overhaul tamping coke furnace coke guide grid of coke guide.
The technical scheme that its technical problem that solves the utility model adopts is: tamping coke furnace coke guide grid of coke guide Quick overhaul device, comprise bracing frame, the bracing frame top is provided with coke guide the second walking track, also comprises the intermediate orbit that is connected for coke guide the first walking track that coke guide the second walking track and the top of coke guide are arranged.
Be further: support frame as described above comprises top frame, and on two opposite sides of top frame, every side is connected with 4 pillar stiffeners, is provided with web member between adjacent two pillar stiffeners of homonymy.
The beneficial effects of the utility model are: by coke guide the second walking track and intermediate orbit is set, can together fast export to bracing frame in company with coke guide the burnt grid of leading of needs maintenance, can make like this maintenance of coke guide grid of coke guide that enough spaces are arranged, can make also that to lead burnt grid cooling fast.In addition, in maintenance process, can use other coke guide, and then can continue to keep coming out of the stove of coke, not need to stop coming out of the stove, can guarantee the normal operation of producing.Thereby can reduce the cost of overhaul.
Description of drawings

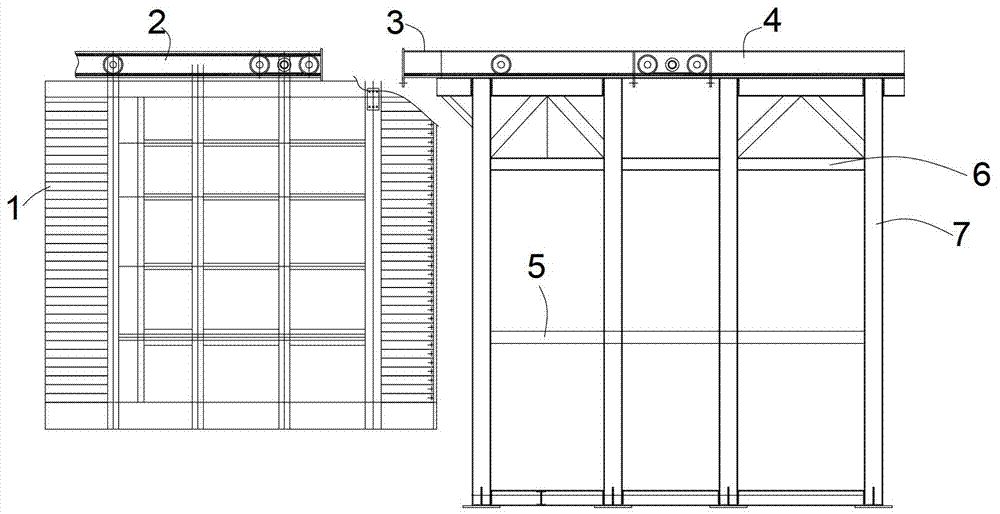

Fig. 1 is the schematic diagram of coke guide arranged outside bracing frame;
Be labeled as in figure: coke guide 1, coke guide the first walking track 2, intermediate orbit 3, coke guide the second walking track 4, web member 5, top frame 6, pillar stiffener 7.
Embodiment
Below in conjunction with the drawings and specific embodiments, the utility model is further illustrated.
As shown in Figure 1, tamping coke furnace coke guide grid of coke guide Quick overhaul device, comprise bracing frame, the bracing frame top is provided with coke guide the second walking track 4, also comprises the intermediate orbit 3 that coke guide the first walking track 2 of arranging for the top with coke guide the second walking track 4 and coke guide 1 is connected.Coke guide the first walking track 2 that the top of coke guide 1 arranges is the tracks that existed in prior art, the utility model is on this basis, increase again coke guide the second walking track 4 and intermediate orbit 3, like this when needs overhaul, be connected with coke guide the second walking track 4 with coke guide the first walking track 2 respectively by the two ends with intermediate orbit 3 and form a continuous maintenance track, the burnt grid of leading of needs maintenance can be exported on bracing frame in company with coke guide integral body like this, then can overhaul.
The embodiment of above-mentioned bracing frame has multiple, in order to be convenient to install making bracing frame have the structure that makes bracing frame on the basis of higher support strength, support frame as described above comprises top frame 6, on two opposite sides of top frame 6, every side is connected with 4 pillar stiffeners 7, is provided with web member 5 between adjacent two pillar stiffeners of homonymy.Above-mentioned web member 5 can be connected as a single entity by anchor ear and adjacent pillar stiffener 7, thereby can guarantee the support strength of above-mentioned bracing frame.Every side of above-mentioned top frame 6 connects 4 pillar stiffeners 7, and 8 pillar stiffeners 7 come support, top framework 6 altogether, and coke guide the second walking track 4 is arranged on the end face of top frame 6.
Claims (2)
1. tamping coke furnace coke guide grid of coke guide Quick overhaul device, it is characterized in that: comprise bracing frame, the bracing frame top is provided with coke guide the second walking track (4), also comprises the intermediate orbit (3) that is connected for coke guide the first walking track (2) that coke guide the second walking track (4) and the top of coke guide (1) are arranged.
2. tamping coke furnace coke guide grid of coke guide Quick overhaul device as claimed in claim 1, it is characterized in that: support frame as described above comprises top frame (6), on two opposite sides of top frame (6), every side is connected with 4 pillar stiffeners (7), is provided with web member (5) between adjacent two pillar stiffeners of homonymy.
