CN203015476U - Fruit harvesting device - Google Patents
Fruit harvesting device Download PDFInfo
- Publication number
- CN203015476U CN203015476U CN 201220583284 CN201220583284U CN203015476U CN 203015476 U CN203015476 U CN 203015476U CN 201220583284 CN201220583284 CN 201220583284 CN 201220583284 U CN201220583284 U CN 201220583284U CN 203015476 U CN203015476 U CN 203015476U
- Authority
- CN
- China
- Prior art keywords
- gathering
- scissors
- fruit
- pole
- harvesting
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Harvesting Machines For Specific Crops (AREA)
Abstract
The utility model discloses a fruit harvesting device. The device comprises a harvesting rod, a harvesting frame, fixed scissors, movable scissors and a scissor pulling rope, and is characterized in that the top end of the harvesting rod is fixedly connected with the fixed scissors and the harvesting frame; the fixed scissors are elastically and movably hinged to the movable scissors through a return spring and a bearing pin; the scissor pulling rope is arranged at the front ends of the movable scissors; and the scissor pulling rope is suspended downwards and matched with the harvesting rod for use after going around a pulley wheel arranged at the top end of the harvesting rod. The fruit harvesting device is easy and convenient to use, fruit can be harvested and also can be collected in a string bag instantly, the damage to fruit caused by possibility of high-altitude falling is prevented, and the work efficiency of fruit harvesting is also greatly improved.
Description
Technical field
The utility model belongs to fruit harvesting device tool technical field, is specifically related to a kind of simple in structurely, uses lightly, is not subjected to luxuriant foliage and spreading branches in leafy profusion the impact, can either shear the fruit on branch, can accept simultaneously the recovering device of taking in fruit again.
Background technology
Fruit is gathered, and especially gathering of high-branch fruit is thing very time-consuming, effort, for the fruit of granule type, as jujube, is mostly that the mode that adopts stock to beat branch plucks, and is commonly called as " BAR-TACK ".And for large grain type fruit, apple, pears etc., this mode is not on your life, can only adopt single harvesting.Modern fruit freshness preserving technology more requires to adopt the monomer cut mode to pluck.Because trunk is tall and big, the fruit on the branch of top is difficult to pluck.Usually adopt high ladder to complete, both required great effort, time-consuming, need again many people cooperating.In the urgent need to developing a kind of can the use on the ground, can directly pluck the special implement of the fruit on branches of tall trees, with the harvesting of the satisfying high-branch fruit demand to utility.
The utility model content
It is a kind of simple in structure, with low cost that the purpose of this utility model is to provide, and uses lightly, can either shear the fruit on several, can also avoid the hanging and pulling of branch on the impact of operation, can accept simultaneously the recovering device of taking in fruit.
The purpose of this utility model is achieved in that
A kind of fruit recovering device, comprise the bar of gathering, the frame of gathering, decide scissors, moving scissors and draw and cut rope, it is characterized in that: the described bar of gathering is expansion link, and affixed the setting decided scissors and the frame of gathering on its top, deciding scissors and moving scissors is movably hinged by return spring, bearing pin elasticity, moving scissors front end setting is drawn and is cut rope, draws to cut to be used in conjunction with letting droop with the bar of gathering after rope is walked around the pulley of the masthead end setting of gathering.
Wherein, the described frame of gathering is the aluminum bowl structure.
Wherein, the described bar of gathering is expansion link, formed by four pole bodies, every pole body is sky light wall pipe shape, the internal diameter of the 4th pole body is maximum, and in interior, and the three pair rod body can accommodating second section shaft in order to accommodating three pair rod body, the second section shaft again can accommodating first segment shaft in wherein, thereby the flexible shape of being arranged to successively be nested; One side of the 4th pole body is provided with a hole in order to projection set in blocking three pair rod body grooved rail; And the grooved rail of the 3rd, two pole bodies is arranged to be inserted in respectively in the grooved rail of second, one pole body, and also is arranged to distinguish the hole clipping of projection set in blocking second, a pole body grooved rail in the 3rd, two pole body grooved rails.
Wherein said every pole height degree is 80cm.
The utlity model has following features:
1, the utility model adopts the concertina type bar of gathering, can just adjust the pole length of gathering according to fruit tree, and the bar scissors of gathering is used in conjunction with the frame of gathering, shear fruit in process, can be in shearing be accommodated in fruit the frame of gathering immediately, avoid fruit high-altitude landing injury, solved well the harvesting problem of fruit.
2, the utility model is simple in structure, and is easy for operation.The labour has been saved in one man operation, and efficient quick.
3, the utility model adopts aluminium to be made into the frame of gathering, and can avoid in operating process by the branch hanging and pulling.
Description of drawings

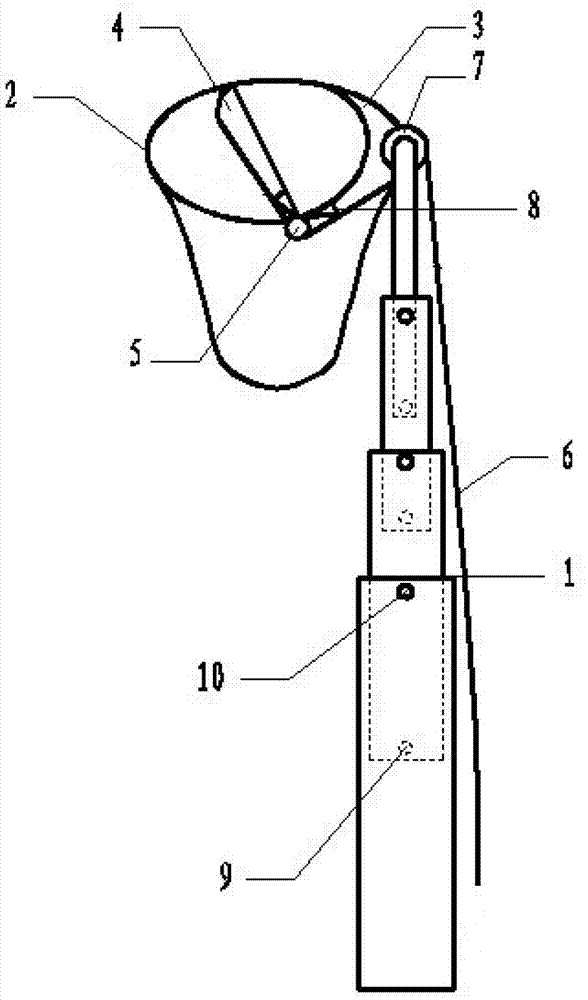

Fig. 1 is that overall structure of the present utility model concerns schematic diagram.
In figure: the 1-bar of gathering, the 2-frame of gathering, 3-decides scissors, and 4-moves scissors, and 5-bearing pin, 6-draw cuts rope, 7-pulley, 8-return spring, 9-projection, 10-hole.
Embodiment
Below in conjunction with drawings and Examples, the utility model is further described, but never in any form the utility model is limited, any conversion based on the utility model training centre is done all falls into protection domain of the present utility model.
As shown in Figure 1, the utility model comprises the bar 1 of gathering, the frame 2 of gathering, decide scissors 3, moving scissors 4 and draw and cut rope 6, the described bar 1 of gathering is expansion link, and the affixed arc that arranges is decided scissors 3 and the frame 2 of gathering on its top, deciding scissors 3 is movably hinged by return spring 8, bearing pin 5 elasticity with moving scissors 4, moving scissors 4 front end settings are drawn and are cut rope 6, draw to cut to be used in conjunction with letting droop with the bar 1 of gathering after rope 6 is walked around the pulley 7 of the bar 1 top setting of gathering.
The described frame 2 of gathering is the aluminum bowl structure.
The described bar 1 of gathering is Telescopic rod structure, formed by four pole bodies, every pole height degree is that the 80cm body is sky light wall pipe shape, the internal diameter of the 4th pole body is maximum, in order to accommodating three pair rod body in interior, and the three pair rod body can accommodating second section shaft, the second section shaft again can accommodating first segment shaft in wherein, thereby the flexible shape of being arranged to successively be nested; One side of the 4th pole body is provided with a hole 10 in order to projection 9 set in blocking three pair rod body grooved rail; And the grooved rail of the 3rd, two pole bodies is arranged to be inserted in respectively in the grooved rail of second, one pole body, and also is arranged to distinguish the hole clipping 10 of projection 9 set in blocking second, a pole body grooved rail in the 3rd, two pole body grooved rails.
Operation principle of the present utility model and the course of work:
When using the utility model fruit recovering device, the length of at first regulating the bar of gathering according to the height of fruit tree just is positioned at by under fruit-picking the frame of gathering, pull downwards and cut rope, drive moving scissors and decide the scissors closure, cut off the fruit handle, fruit drops in the frame of gathering, and completes harvesting.
It is easy and convenient that the utility model uses, but both fruit-pickings can immediately be accommodated in the string bag again, avoided the damage that may cause of fruit falling from high altitude, also greatly improved the operating efficiency of fruit picking.
Claims (4)
1. fruit recovering device, comprise the bar of gathering, the frame of gathering, decide scissors, moving scissors and draw and cut rope, it is characterized in that: the described bar of gathering is expansion link, and affixed the setting decided scissors and the frame of gathering on its top, deciding scissors and moving scissors is movably hinged by return spring, bearing pin elasticity, moving scissors front end setting is drawn and is cut rope, draws to cut to be used in conjunction with letting droop with the bar of gathering after rope is walked around the pulley of the masthead end setting of gathering.
2. fruit recovering device according to claim 1, it is characterized in that: the described frame of gathering is the aluminum bowl structure.
3. fruit recovering device according to claim 1, it is characterized in that: the described bar of gathering is expansion link, formed by four pole bodies, every pole body is sky light wall pipe shape, the internal diameter of the 4th pole body is maximum, and in interior, and the three pair rod body can accommodating second section shaft in order to accommodating three pair rod body, the second section shaft again can accommodating first segment shaft in wherein, thereby the flexible shape of being arranged to successively be nested; One side of the 4th pole body is provided with a hole in order to projection set in blocking three pair rod body grooved rail; And the grooved rail of the 3rd, two pole bodies is arranged to be inserted in respectively in the grooved rail of second, one pole body, and also is arranged to distinguish the hole clipping of projection set in blocking second, a pole body grooved rail in the 3rd, two pole body grooved rails.
4. fruit recovering device according to claim 3, it is characterized in that: described every pole height degree is 80cm.
