Abstract
The utility model relates to a time switch device for computer, belongs to the technical field of the time switch of the computer and is used for solving the problem that the service life of the computer is influenced because the computer is not shut down in use. The time switch device for the computer comprises a processor, a timer, a time clock circuit, an execution control circuit and a computer switch, wherein the timing signal output end of the timer is connected with the timing signal input end of the processor; the time clock signal output end of the time clock circuit is connected with the time clock signal input end of the processor; and the switch command output end of the processor is connected with the command input end of the execution control circuit, and the command output end of the execution control circuit is connected with the control end of the computer switch. The time switch device for the computer is used for realizing automatic startup and shutdown of the computer.
Description
Technical field
The utility model relates to a kind of timing switch of computer device, belongs to the timing switch of computer technical field.
Background technology
Nowadays, computing machine has become indispensable instrument in people's work and life.Opening computer and shutdown all need occupy user's time, in use, and usually can be owing to having little time to shut down, forget that shutdown affects the serviceable life of computing machine.People custom do not cut off Switching Power Supply, cause again unnecessary power consumption, and easily form disaster hidden-trouble.
The utility model content
The utility model is in use to affect the problem in serviceable life owing to not shutting down in order to solve computing machine, and a kind of timing switch of computer device is provided.
Timing switch of computer device described in the utility model, it comprises processor, timer, clock circuit, execution control circuit and computer switch,
The timing signal output of timer is connected with the timing signal input end of processor;
The clock signal output terminal of clock circuit is connected with the clock signal input terminal of processor;
The switch order output terminal of processor is connected with the instruction input end of carrying out control circuit, and the instruction output end of carrying out control circuit is connected with the control end of computer switch.
It also comprises the note transtation mission circuit, and the note of processor sends instruction output end and is connected with the note transmission instruction input end of note transtation mission circuit.
The utility model has the advantages that: the utility model realizes that by Auto Power On and the unused time of timer setting computer computing machine is according to predetermined time auto-open-close machine.It can effectively prevent from forgetting shutdown or the not generation of powered-down phenomenon, and is safe and reliable, is conducive to increase work efficiency.
The utlity model has easy to usely, save the energy and also extend the computing machine advantage in serviceable life.
When carrying out the switching on and shutting down operation, by the state of note transtation mission circuit to owner's sending computer, make owner relieved, prevent the adverse consequences that maloperation causes.
Description of drawings:

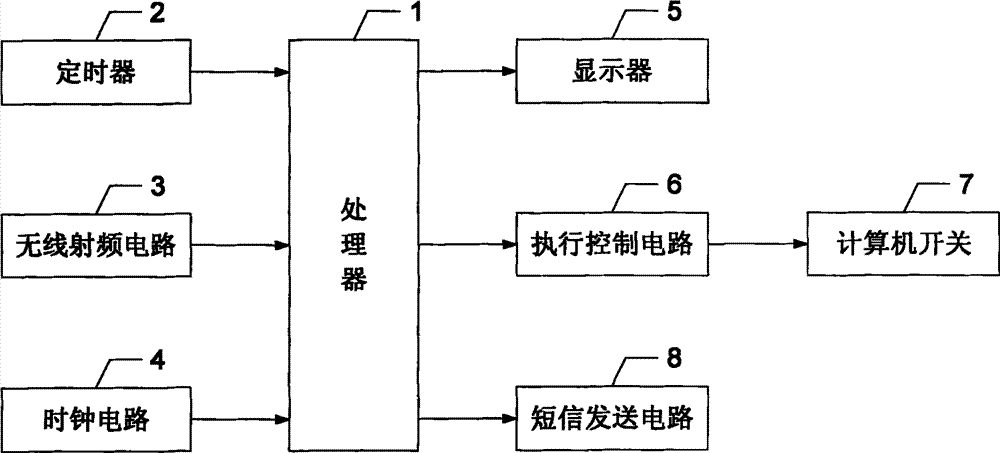

Fig. 1 is the structured flowchart of timing switch of computer device described in the utility model.
Embodiment
Embodiment one: below in conjunction with Fig. 1, present embodiment is described, the described timing switch of computer device of present embodiment, it comprises processor 1, timer 2, clock circuit 4, carries out control circuit 6 and computer switch 7,
The timing signal output of timer 2 is connected with the timing signal input end of processor 1;
The clock signal output terminal of clock circuit 4 is connected with the clock signal input terminal of processor 1;
The switch order output terminal of processor 1 is connected with the instruction input end of carrying out control circuit 6, and the instruction output end of carrying out control circuit 6 is connected with the control end of computer switch 7.
The course of work: by the time of the start of timer 2 setting computer and shutdown, when the on time arrived, timer 2 sent starting-up signal, and processor 1 is realized the start operation by carrying out control circuit 6 control computer switch 7; When the unused time arrived, timer 2 sent off signal, and processor 1 is realized power-off operation by carrying out control circuit 6 control computer switch 7.
Embodiment two: present embodiment is for to the further illustrating of embodiment one, and it also comprises display 5, and the idsplay order output terminal of processor 1 is connected with the idsplay order input end of display 5.
Embodiment three: present embodiment is for to the further illustrating of embodiment one or two, and it also comprises wireless radio frequency circuit 3, and the switch order output terminal of wireless radio frequency circuit 3 is connected with the switch order input end of processor 1.
It is that the radio frequency chip of nRF2401 is realized that wireless radio frequency circuit 3 is selected model.
The described timing switch of computer device of present embodiment is provided with wireless radio frequency circuit 3, people can be with telepilot to the instruction of computing machine transmit button, so that people need not arrive the other manually shutdown of computing machine again tired out getting under the state of having prepared to have a rest, need not wait until that also setting-up time shuts down again, wastes electric energy.
Embodiment four: present embodiment is for to embodiment one, two or three further illustrate, and it also comprises note transtation mission circuit 8, and the note of processor 1 sends instruction output end and sends the instruction input end with the note of note transtation mission circuit 8 and be connected.
People have set the unused time when using computing machine, due to hasty not manually shutdown, preset at timer 2 that time is up when going out, computing machine meeting automatic shutdown, in order to make people relieved, when carrying out power-off operation, send a note for people's mobile phone.
Claims (6)
1. timing switch of computer device is characterized in that: it comprises processor (1), timer (2), clock circuit (4), carries out control circuit (6) and computer switch (7),
The timing signal output of timer (2) is connected with the timing signal input end of processor (1);
The clock signal output terminal of clock circuit (4) is connected with the clock signal input terminal of processor (1);
The switch order output terminal of processor (1) is connected with the instruction input end of carrying out control circuit (6), and the instruction output end of carrying out control circuit (6) is connected with the control end of computer switch (7).
2. timing switch of computer device according to claim 1, it is characterized in that: it also comprises display (5), the idsplay order output terminal of processor (1) is connected with the idsplay order input end of display (5).
3. timing switch of computer device according to claim 1, it is characterized in that: it also comprises wireless radio frequency circuit (3), the switch order output terminal of wireless radio frequency circuit (3) is connected with the switch order input end of processor (1).
4. timing switch of computer device according to claim 1, it is characterized in that: it also comprises note transtation mission circuit (8), and the note of processor (1) sends instruction output end and is connected with the note transmission instruction input end of note transtation mission circuit (8).
5. timing switch of computer device according to claim 3 is characterized in that: it is that the radio frequency chip of nRF2401 is realized that wireless radio frequency circuit (3) is selected model.
6. according to claim 1,2,3 or 4 described timing switch of computer devices, it is characterized in that: processor (1) selects single-chip microcomputer to realize.
