The utility model relates to waste disposal equipment and discloses a kitchen waste dehydration device for an organic waste disposer. The device comprises a motor driving system, a bottom support, a waste bin body, a bin cover, a drain valve, sewage collecting chambers, filter screens and blades, wherein the motor driving system is connected with the blades; the motor driving system is installed in the middle of the bottom support; the sewage collecting chambers are arranged at the top of the bottom support; the drain valve is arranged on the side of one sewage collecting chamber; the filter screens are fixed at the tops of the sewage collecting chambers; the waste bin body is installed above the sewage collecting chambers; the bin cover is arranged at the top of the waste bin body; and the blades are arranged in the center of the waste bin body. The device can reduce the water content before the kitchen wastes are thrown, and has the advantages of beautiful appearance, seepage prevention, firmness, durability and simplicity and convenience in use.
Description
Technical field
The utility model relates to a kind of refuse treatment plant, is specifically related to a kind of changing food waste dewater unit for organic garbage disposal.
Background technology
The main processing of existing organic garbage disposal is to liking changing food waste.It is a Plastic Drum that existing changing food waste is thrown in bucket, as separate unit, is for the task equipment of changing food waste being knocked down the treatment trough of organic garbage disposal.Because the changing food waste water content is larger, food waste treatment equipment can expend a large amount of time and electric energy and come transpiring moisture when decomposing rubbish, has significantly increased the operating cost of machine.
The utility model content
The purpose of this utility model provides a kind of changing food waste dewater unit for organic garbage disposal, and the water content before reducing changing food waste and throwing in has good looking appearance, antiseep, firm and durable, advantage easy to use.
In order to achieve the above object, the utility model has following technical scheme:
A kind of changing food waste dewater unit for organic garbage disposal of the present utility model, comprise that motor driven systems, collet, rubbish staving, bung, draining valve, sewage gather chamber, filter screen, blade, described motor driven systems is connected with blade, motor driven systems is installed in the middle part of collet, sewage gathers the top that the chamber is positioned at collet, draining valve is positioned at the side that sewage gathers the chamber, filter screen is fixed on sewage and gathers the top, chamber, the rubbish staving is installed in sewage and gathers on the chamber, bung covers at rubbish staving top, and blade is positioned at the central authorities of rubbish staving.
Wherein, described blade is comprised of several blades.
Owing to taked above technical scheme, the utlity model has following advantage:
1, the utility model can make the changing food waste water content reduce by 50%, meets microbial bacteria processing organic matter desired moisture content in the existing organic garbage disposal.
2, the utlity model has fast, cleaning, handy and safe, firm and durable, long advantage of life-span.
Description of drawings

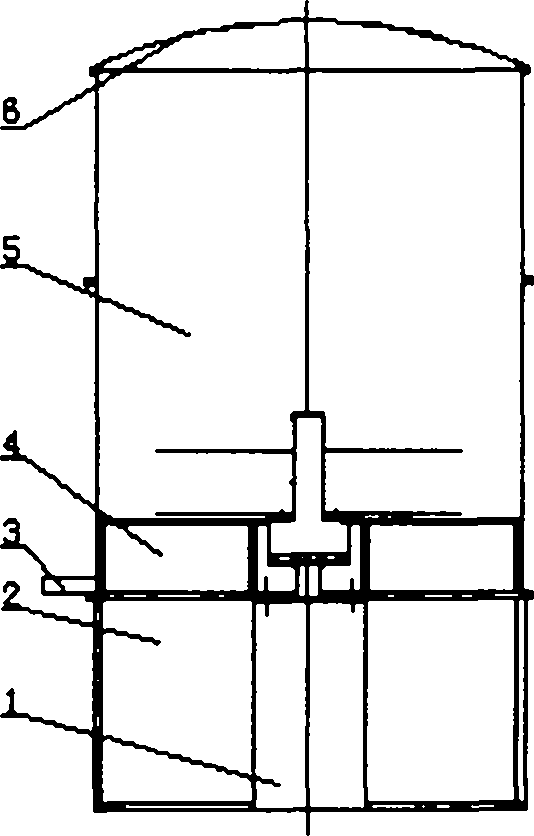

Fig. 1 is structural representation of the present utility model;
Fig. 2 is the enlarged diagram after the utility model is removed collet.
Among the figure, 1, motor driven systems, 2, collet, 3, draining valve, 4, sewage gathers the chamber, 5, the rubbish staving, 6, bung, 8, filter screen, 9, blade.
The specific embodiment
Following examples are used for explanation the utility model, but are not used for limiting scope of the present utility model.
Such as Fig. 1, shown in 2, a kind of changing food waste dewater unit for organic garbage disposal of the present utility model, by motor driven systems 1, collet 2, draining valve 3, sewage gathers chamber 4, rubbish staving 5, bung 6, filter screen 8, several blades 9 form, described motor driven systems is connected with several blades, motor driven systems is installed in the middle part of collet, sewage gathers the top that the chamber is positioned at collet, draining valve is positioned at the side that sewage gathers the chamber, filter screen is fixed on sewage and gathers the top, chamber, the rubbish staving is installed in sewage and gathers on the chamber, bung covers at rubbish staving top, and several blades are positioned at the central authorities of rubbish staving.
When the utility model uses, changing food waste is dropped in the rubbish staving 5, cover bung 6, starter motor drive system 1, blade 9 drives the changing food waste rotation, and sewage infiltrates sewage by filter screen 8 thereupon and gathers in the chamber 4, and discharges through draining valve 3.Disable motor drive system after 1 minute is removed rubbish staving 5 from collet 2, just can will throw in the treatment trough of organic garbage disposal through the changing food waste of dehydration.
