Abstract
An air energy heat pump air conditioning equipment with high temperature hot water producing and refrigerating capacity comprises a compressor, a heat pump and a heat pump, wherein the compressor is provided with an inlet and an outlet; an expansion device having an inlet and an outlet; the hot water heating unit comprises a condenser and a hot water storage tank, wherein the condenser is provided with a first end and a second end, and the first end of the condenser is connected with the outlet of the compressor; and a heat exchanger set comprising a first heat exchanger and a second heat exchanger, wherein the first heat exchanger has a first end and a second end, the first end of the first heat exchanger is connected with the second end of the condenser, the second end of the first heat exchanger is connected with the inlet of the expansion device, the second heat exchanger has a first end and a second end, the first end of the second heat exchanger is connected with the inlet of the compressor, and the second end of the second heat exchanger is connected with the outlet of the expansion device; a control unit for controlling the operation of the air-source heat pump air conditioning equipment; and a fan for providing an air fluid to pass through the heat exchanger set. Therefore, the utility model has the advantages of improve refrigeration capacity and make the ability of higher temperature hot water, reach energy-conserving carbon reduction and efficient.
Description
Technical field
The utility model relates to a kind of air energy heat pump air-conditioning equipment, particularly a kind of air energy heat pump air-conditioning equipment with manufacturing high-temperature-hot-water and refrigerating capacity.
Background technology
Basic composition element includes evaporimeter, compressor, condenser, and four large elements such as expansion gear in existing air-conditioning equipment, and sequentially connect by pipeline, the circulation that is formed on evaporimeter refrigeration and heats at condenser, its product has different titles such as air conditioner, refrigerator, air-conditioner, ice water host computer, refrigerator, Teat pump boiler etc. according to different functions.
See also the schematic diagram of the existing coolant circulating system that Fig. 1 shows, its basic composition element includes evaporimeter, compressor, condenser, and expansion gear, and sequentially connects by pipeline, forms a refrigerant circulation.The operation principle of coolant circulating system be the low-temp low-pressure refrigerant of liquid gas coexistence at evaporimeter 1 interior absorption refrigeration to reduce the temperature of surrounding fluid, air makes air themperature reduce through evaporimeter 1, produce refrigerating capacity, and the refrigerant evaporation that liquid gas is coexisted becomes gaseous coolant, gaseous coolant after the evaporation enters compressor 2 via the refrigerant conduit, added by compressor 2 and to be pressed into the high pressure-temperature gaseous coolant, this high pressure-temperature gaseous coolant enters condenser 3 via the refrigerant conduit, in condenser 3, inhale the cold temperature that heats to promote surrounding fluid, air makes air themperature promote through condenser 3, produce heating capacity, make the high-pressure gaseous refrigerant become the high-pressure liquid refrigerant, the high-pressure liquid refrigerant enters expansion gear 4 via the refrigerant conduit, control the flow of refrigerant and with the refrigerant decompressional expansion by expansion gear 4, refrigerant after the step-down is the low-temp low-pressure refrigerant of liquid gas coexistence, the low-temp low-pressure refrigerant of this moment enters evaporimeter 1 via the refrigerant conduit again, at evaporimeter 1 interior absorption refrigeration, so constantly circulation, its shortcoming is that the function waste that condenser heats is fallen.
Has the heat-pump air conditioning unit making hot water and cold air is provided as shown in Figure 2, its function that has more than coolant circulating system is for providing feedwater with heating of condenser 3, the temperature that promotes water is made hot water, with hot water storage in heat exchange cell body 5, hot water in the heat exchange cell body 5 conducts heat to the heated water at low temperature for the treatment of in the hot water storage tank 6 again, by connecting pipeline and utilize thermosiphon principle or pumping, the hot water of manufacturing and the water at low temperature in the hot water storage tank 6 are circulated, and the water at low temperature in the hot water storage tank 6 are introduced again carry out circulating-heating in the heat exchange cell body 5, improve the water temperature in the hot water storage tank 6, and with hot water storage in hot water storage tank 6.
After the condenser 3 of high pressure-temperature gaseous coolant in water heater funnel discharges condensation heat, the high pressure-temperature gaseous coolant becomes the high pressure-temperature liquid refrigerants, this high pressure-temperature liquid refrigerants enters expansion gear 4 again, the high pressure-temperature liquid refrigerants is become the low-pressure low-temperature liquid refrigerants, enter again evaporimeter 1 and discharge heat of evaporation manufacturing cold air in outdoor, so constantly circulation, evaporimeter 1 refrigerating capacity does not enter and indoorly provides indoor cold air former because the hot water temperature in the hot water storage tank is when higher, the high pressure-temperature gaseous coolant can't discharge condensation heat fully, can make the coolant system high pressure higher, the ability of relative evaporimeter 1 refrigeration can reduce, the refrigerating capacity that can't provide is to indoor, only have evaporimeter 1 is put to outdoor, another shortcoming is when making hot water winter, because the lower so that low-pressure low-temperature of evaporimeter 1 interior refrigerant of outdoor temperature in winter can be low when running well, the high pressure-temperature refrigerant of relative condenser 3 can be when running well the high pressure refrigerant low, the hot water temperature who makes can reduce naturally, but still the product of the carbon reduction of can yet be regarded as.
As from the foregoing, above-mentioned existing air-conditioning equipment or heat-pump air conditioning unit in practical application, obviously have shortcoming and exist, and need to be improved.
So the inventor thinks that above-mentioned shortcoming can improve, by concentrating on studies and learning, finally propose a kind of reasonable in design and can effectively improve the innovation and creation of above-mentioned shortcoming.
The utility model content
The utility model provides a kind of air energy heat pump air-conditioning equipment of making high-temperature-hot-water and refrigerating capacity that has, and has and improves refrigerating capacity and the ability of making higher temperatures hot water, reaches the high advantage of carbon reduction and efficient.
The technical solution adopted in the utility model is in order to achieve the above object: have the air energy heat pump air-conditioning equipment of making high-temperature-hot-water and refrigerating capacity, comprising: a compressor has an entrance and an outlet; One expansion gear has an entrance and an outlet; One hot water heating unit comprises a condenser and a hot water storage tank, and this condenser has a first end and one second end, and the first end of this condenser connects the outlet of this compressor; An and heat exchanger set, comprise one first heat exchanger and one second heat exchanger, this first heat exchanger has a first end and one second end, the first end of this first heat exchanger connects the second end of this condenser, and the second end of this first heat exchanger connects the entrance of this expansion gear, and this second heat exchanger has a first end and one second end, the first end of this second heat exchanger connects the entrance of this compressor, and the second end of this second heat exchanger connects the outlet of this expansion gear; One control module is controlled this and is had the air energy heat pump air-conditioning equipment running of making high-temperature-hot-water and refrigerating capacity; And a fan, this fan can make this air fluid pass through first this first heat exchanger, passes through this second heat exchanger again.
Preferably, this first heat exchanger is a condenser, and this second heat exchanger is evaporimeter.
Preferably, this control module can be according to this compressor of signal controlling and the fan running of one first temperature detecting device.
Preferably, this first heat exchanger and this second heat exchanger connect as one.
Preferably, have water in this hot water storage tank, this condenser can be to this water heating.This hot water storage tank has a water at low temperature entrance and a hot water outlet, and this water at low temperature entrance provides water at low temperature to enter this hot water storage tank, and this hot water outlet provides hot water to flow out this hot water storage tank.Wherein this water at low temperature entrance and this hot water outlet are equipped with a control valve, flow into or the hot water outflow with the control water at low temperature.
Preferably, it is inner that this condenser is arranged at this hot water storage tank, and this hot water storage tank has a water at low temperature entrance and a hot water outlet.Or another embodiment is, this condenser is one to be wound in the pipeline on the outer wall of this hot water storage tank, and this condenser contacts with the outer wall of this hot water storage tank, and this hot water storage tank has a water at low temperature entrance and a hot water outlet.
Preferably, the second end of this condenser is connected by bypass line with the first end of this first heat exchanger, the entrance of this expansion gear is connected by bypass line with the second end of this first heat exchanger, and valve is arranged on this bypass line, and this valve can hard to bear this control module control.
Another kind of air energy heat pump air-conditioning equipment with manufacturing high-temperature-hot-water and refrigerating capacity in the utility model, comprising: a compressor has an entrance and an outlet; One expansion gear has an entrance and an outlet; One hot water heating unit, comprise a condenser, a heat exchange cell body, a hot water storage tank, be provided with connecting pipeline between this heat exchange cell body and this hot water storage tank, this condenser has a first end and one second end, and the first end of this condenser connects the outlet of this compressor; An and heat exchanger set, comprise one first heat exchanger and one second heat exchanger, wherein this first heat exchanger has a first end and one second end, the first end of this first heat exchanger connects the second end of this condenser, and the second end of this first heat exchanger connects the entrance of this expansion gear, and this second heat exchanger has a first end and one second end, the first end of this second heat exchanger connects the entrance of this compressor, and the second end of this second heat exchanger connects the outlet of this expansion gear; One control module is controlled this and is had the air energy heat pump air-conditioning equipment running of making high-temperature-hot-water and refrigerating capacity; And a fan, this fan can make this air fluid pass through first this first heat exchanger, passes through this second heat exchanger again.
Preferably, this first heat exchanger is a condenser, and this second heat exchanger is evaporimeter.
Preferably, this control module can be according to this compressor of signal controlling and the fan running of the first temperature detecting device.
Preferably, have water in this heat exchange cell body, this condenser can be to this water heating.
Preferably, this first heat exchanger and this second heat exchanger system integrally combines.
Preferably, this hot water storage tank has a water at low temperature entrance and a hot water outlet, and this water at low temperature entrance provides water at low temperature to enter this hot water storage tank, and this hot water outlet provides hot water to flow out this hot water storage tank.Wherein this water at low temperature entrance and this hot water outlet are equipped with a control valve, flow into or the hot water outflow with the control water at low temperature.
Preferably, the second end of this condenser is connected by bypass line with the first end of this first heat exchanger, the entrance of this expansion gear is connected by bypass line with the second end of this first heat exchanger, and valve is arranged on this bypass line, and this valve can hard to bear this control module control.
The utlity model has and improve refrigerating capacity and the ability of making higher temperatures hot water, reach the high advantage of carbon reduction and efficient.
Description of drawings
Below in conjunction with accompanying drawing the air energy heat pump air-conditioning equipment with manufacturing high-temperature-hot-water and refrigerating capacity described in the utility model is described in further detail.This explanation is for the ease of understanding of the present utility model, but not interest field of the present utility model is done any restriction.
Fig. 1 is the schematic diagram of existing coolant circulating system.
Fig. 2 is the schematic diagram of existing air energy hot water heat pump air-conditioning equipment.
Fig. 3 is the schematic diagram of the utility model the first embodiment.
Fig. 4 is the schematic diagram of the utility model the second embodiment.
Fig. 5 is the schematic diagram of another embodiment of hot water storage tank in the utility model.
The main element label declaration:
10. compressor 20. expansion gears
30. hot water heating unit 31. condensers
32. heat exchange cell body 33. hot water storage tanks
331. water at low temperature entrance 332. hot water outlets
34,35. connecting pipelines, 36. valves
37. bypass line 40. heat exchanger set
41. the first heat exchanger 42. second heat exchangers
50. control module 51. first temperature detecting devices
60. fan
The specific embodiment

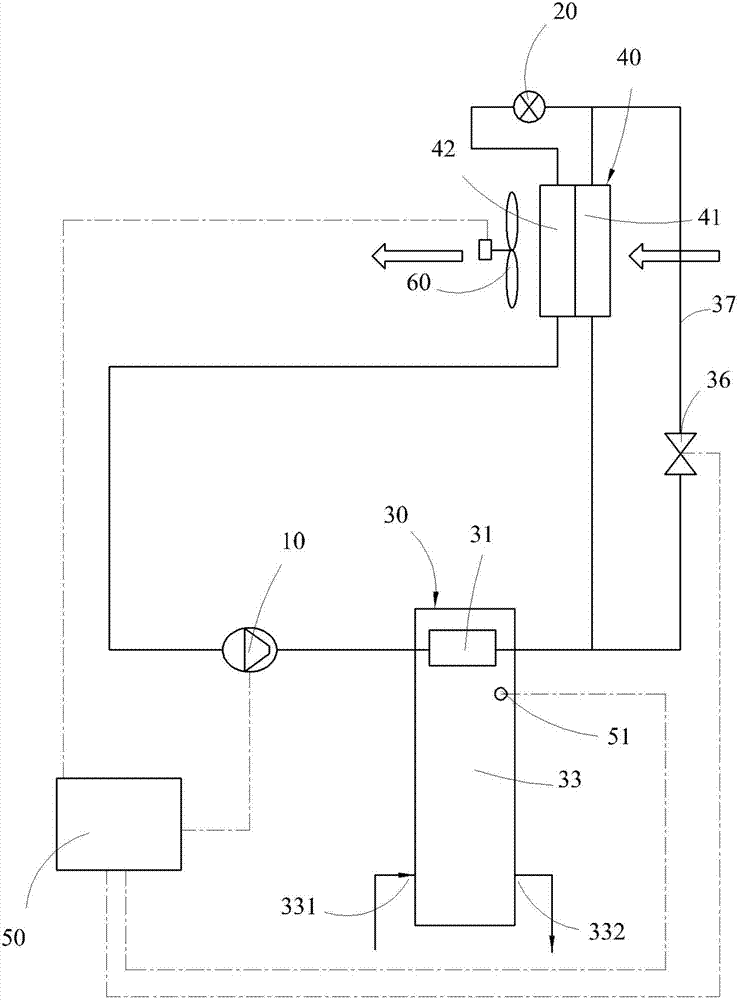

Seeing also Fig. 3 is the schematic diagram that the utlity model has the first embodiment of the air energy heat pump air-conditioning equipment of making high-temperature-hot-water and refrigerating capacity, this has the air energy heat pump air-conditioning equipment of making high-temperature-hot-water and refrigerating capacity, comprise a compressor 10, have an entrance and an outlet; One expansion gear 20 has an entrance and an outlet; One hot water heating unit 30 comprises a condenser 31 and a hot water storage tank 33, and this condenser 31 has a first end and one second end, and the first end of this condenser 31 connects the outlet of this compressor 10; An and heat exchanger set 40, comprise one first heat exchanger 41 and one second heat exchanger 42, wherein this first heat exchanger 41 has a first end and one second end, the first end of this first heat exchanger 41 connects the second end of this condenser 31, and the second end of this first heat exchanger 41 connects the entrance of this expansion gear 20, and this second heat exchanger 42 has a first end and one second end, the first end of this second heat exchanger 42 is connected to the entrance of this compressor 10, and the second end of this second heat exchanger 42 connects the outlet of this expansion gear 20; And a control module 50, control this and have the air energy heat pump air-conditioning equipment running of making high-temperature-hot-water and refrigerating capacity.Wherein these heat exchanger set 40 1 sides are provided with a fan 60.This fan 60 makes an air fluid pass through first this first heat exchanger 41, passes through this second heat exchanger 42 again.
This first heat exchanger 41 is a condenser, and this second heat exchanger 42 is evaporimeter.Wherein this first heat exchanger 41 is combined as a whole with this second heat exchanger 42.
This compressor 10 of signal controlling of this control module 50 foundations one first temperature detecting device 51 and fan 60, valve 36 runnings.
Have a water at low temperature in this hot water storage tank 33, make 31 pairs of this water at low temperature heating of this condenser.
In one embodiment, this condenser 31 is arranged at this hot water storage tank 33 inside, and this hot water storage tank 33 has a water at low temperature entrance 331 and a hot water outlet 332.This water at low temperature entrance 331 provides water at low temperature to enter this hot water storage tank 33, and this hot water outlet 332 provides hot water to flow out this hot water storage tank 33.Wherein this water at low temperature entrance 331 is equipped with a control valve with this hot water outlet 332, and is not shown in the figures, flows into or the hot water outflow with the control water at low temperature.
When the air energy heat pump air-conditioning equipment with manufacturing high-temperature-hot-water and refrigerating capacity is selected to make the hot water demand by this control module 50, refrigerant is the high pressure-temperature gaseous coolant through the outlet of this compressor 10, flow through condenser 31 in this hot water heating unit 30, and in this release condensation heat manufacturing hot water, water in the hot water storage tank 33 is heated, to improve the water temperature in this hot water storage tank 33, the high pressure-temperature gaseous coolant is after this condenser 31 discharges condensation heat, the high pressure-temperature gaseous coolant becomes the high pressure-temperature liquid refrigerants, this high pressure-temperature liquid refrigerants passes through the first heat exchanger 41 of this heat exchanger set 40 again, enters this expansion gear 20 again.This expansion gear 20 becomes the high pressure-temperature liquid refrigerants into the low-pressure low-temperature liquid refrigerants, make the second heat exchanger 42 through this heat exchanger set 40, and in the second heat exchanger 42 the low-pressure low-temperature liquid refrigerants is become the low-pressure low-temperature gaseous coolant, enter again the entrance of this compressor 10, so constantly circulation.When the water temperature in the hot water storage tank 33 raises gradually, the high pressure-temperature gaseous coolant is incited somebody to action gradually can't be in the condenser 31 interior condensation heat that discharge fully, partial condensation heat must be discharged condensation heat via the first heat exchanger 41 of heat exchanger set 40, this condensation heat can heat the extraneous air of introducing via fan 60, the heating outside air temperature, and the air after will heating imports the second heat exchanger 42 of this heat exchanger set 40 into, the low-pressure low-temperature liquid refrigerants can be flashed to the low-pressure low-temperature gaseous coolant easily, and can promote temperature and the pressure of low-pressure low-temperature gaseous coolant, can improve accordingly pressure and the temperature of the high pressure-temperature gaseous coolant of these compressor 10 outlets, so constantly circulation can produce the more hot water of high temperature.
In one embodiment, when the water temperature of the hot water storage tank 33 of hot water heating unit 30 is low, but open valve 36 makes the liquid refrigerant of HTHP of condenser 31 outputs through bypass line 37 to expansion gear 20, get back to compressor 10 through the second heat exchanger 42 again.Wherein bypass line 37 connects the second end of condenser 31 and first end and the entrance of expansion gear 20 and second end of this first heat exchanger 41 of the first heat exchanger 41, and valve 36 is arranged on the bypass line 37, and this valve 36 is subjected to this control module 50 controls.
Seeing also Fig. 4 is the schematic diagram that the utlity model has the second embodiment of the air energy heat pump air-conditioning equipment of making high-temperature-hot-water and refrigerating capacity, this has the air energy heat pump air-conditioning equipment of making high-temperature-hot-water and refrigerating capacity, comprise a compressor 10, have an entrance and an outlet; One expansion gear 20 has an entrance and an outlet; One hot water heating unit 30, comprise a condenser 31, a heat exchange cell body 32, a hot water storage tank 33, this heat exchange cell body 32 is provided with connecting pipeline 34,35 between the two with this hot water storage tank 33, this condenser 31 has a first end and one second end, and the first end of this condenser 31 connects the outlet of this compressor 10; An and heat exchanger set 40, comprise one first heat exchanger 41 and one second heat exchanger 42, wherein this first heat exchanger 41 has a first end and one second end, the first end of this first heat exchanger 41 connects the second end of this condenser 31, and the second end of this first heat exchanger 41 connects the entrance of this expansion gear 20, and this second heat exchanger 42 has a first end and one second end, the first end of this second heat exchanger 42 is connected to the entrance of this compressor 10, and the second end of this second heat exchanger 42 connects the outlet of this expansion gear 20; And a control module 50, control this and have the air energy heat pump air-conditioning equipment running of making high-temperature-hot-water and refrigerating capacity.Wherein these heat exchanger set 40 1 sides are provided with a fan 60.This fan 60 makes an air fluid pass through first this first heat exchanger 41, passes through this second heat exchanger 42 again.
This first heat exchanger 41 is a condenser, and this second heat exchanger 42 is evaporimeter.Wherein this first heat exchanger 41 is combined as a whole with this second heat exchanger 42.
This compressor 10 of signal controlling of this control module 50 foundations the first temperature detecting device 51 and fan 60, valve 36 runnings.
Have a water at low temperature in this heat exchange cell body 32, make 31 pairs of this water at low temperature heating of this condenser.
In one embodiment, this condenser 31 is arranged at this heat exchange cell body 32 inside, this heat exchange cell body 32 and a hot water storage tank 33 connecting pipeline 34,35 between the two, and this hot water storage tank 33 has a water at low temperature entrance 331 and a hot water outlet 332.This water at low temperature entrance 331 provides water at low temperature to enter this hot water storage tank 33, and this hot water outlet 332 provides hot water to flow out this hot water storage tank 33.Wherein this water at low temperature entrance 331 is equipped with a control valve with this hot water outlet 332, and is not shown in the figures, flows into or the hot water outflow with the control water at low temperature.
When the air energy heat pump air-conditioning equipment with manufacturing high-temperature-hot-water and refrigerating capacity is selected to make the hot water demand via this control module 50, refrigerant is through the high pressure-temperature gaseous coolant of the first end outlet of this compressor 10, condenser 31 in this heat exchange cell body 32, and at this release condensation heat manufacturing hot water.Utilize thermosiphon principle or pumping, with the hot water after these heat exchange cell body 32 heat exchanges in connecting pipeline 34,35 is stored in this hot water storage tank 33.Water at low temperature in this hot water storage tank 33 enters again carries out circulating-heating in the heat exchange cell body 32, to improve the water temperature in this hot water storage tank 33.
The high pressure-temperature gaseous coolant is after this condenser 31 discharges condensation heat, and the high pressure-temperature gaseous coolant becomes the high pressure-temperature liquid refrigerants, and this high pressure-temperature liquid refrigerants passes through the first heat exchanger 41 of this heat exchanger set 40 again, enters this expansion gear 20 again.This expansion gear 20 becomes the high pressure-temperature liquid refrigerants into the low-pressure low-temperature liquid refrigerants, makes the second heat exchanger 42 through this heat exchanger set 40 enter this compressor 10 again.Therefore, and in the second heat exchanger 42 the low-pressure low-temperature liquid refrigerants is become the low-pressure low-temperature gaseous coolant, enter again the entrance of this compressor 10, so constantly circulation.Wherein this first heat exchanger 41 is a condenser, and this second heat exchanger 42 is evaporimeter.
When the water temperature in the hot water storage tank 33 raises gradually, via the water in the connecting pipeline 35 introducing heat exchange cell bodies 32, absorption condensation is warm fully, the high pressure-temperature gaseous coolant is incited somebody to action gradually can't be in the condenser 31 interior condensation heat that discharge fully, partial condensation heat is discharged condensation heat via the first heat exchanger 41 of heat exchanger set 40, this condensation heat can heat the extraneous air of introducing via fan 60, the heating outside air temperature, and the air after will heating imports the second heat exchanger 42 of this heat exchanger set 40 into, the low-pressure low-temperature liquid refrigerants can be flashed to the low-pressure low-temperature gaseous coolant easily, and can promote temperature and the pressure of low-pressure low-temperature gaseous coolant, can improve accordingly pressure and the temperature of the high pressure-temperature gaseous coolant of these compressor 10 outlets, so constantly circulation can produce the more hot water of high temperature.
In one embodiment, when the water temperature of the hot water storage tank 33 of hot water heating unit 30 is low, but open valve 36 makes the HTHP liquid state refrigerant of condenser 31 outputs through bypass line 37 to expansion gear 20, get back to compressor 10 through the second heat exchanger 42 again.Wherein bypass line 37 connects the second end of condenser 31 and first end and the entrance of expansion gear 20 and second end of this first heat exchanger 41 of the first heat exchanger 41, and valve 36 is arranged on the bypass line 37, and this valve 36 is subjected to this control module 50 controls.
See also shown in Figure 5ly, among the embodiment, this condenser 31 can be a pipeline kenel and twines and to be contacted with on these hot water storage tank 33 outer walls, and this is another deformation design.Wherein this hot water storage tank 33 has this water at low temperature entrance 331 and this hot water outlet 332.
More than among each embodiment, the utility model more includes reservoir and drier etc., in the circulatory system of refrigerant, for making circulatory system running set smoothly, does not repeat them here.
The utlity model has and improve refrigerating capacity and the ability of making higher temperatures hot water, reach the high advantage of carbon reduction and efficient.
Claims (11)
1. one kind has the air energy heat pump air-conditioning equipment of making high-temperature-hot-water and refrigerating capacity, it is characterized in that, comprising:
One compressor has an entrance and an outlet;
One expansion gear has an entrance and an outlet;
One hot water heating unit comprises a condenser and a hot water storage tank, and this condenser has a first end and one second end, and the first end of this condenser connects the outlet of this compressor; And
One heat exchanger set, comprise one first heat exchanger and one second heat exchanger, this first heat exchanger has a first end and one second end, the first end of this first heat exchanger connects the second end of this condenser, and the second end of this first heat exchanger connects the entrance of this expansion gear, this second heat exchanger has a first end and one second end, and the first end of this second heat exchanger connects the entrance of this compressor, and the second end of this second heat exchanger connects the outlet of this expansion gear;
One control module is controlled this and is had the air energy heat pump air-conditioning equipment running of making high-temperature-hot-water and refrigerating capacity; And
One fan, this fan can make this air fluid pass through first this first heat exchanger, pass through this second heat exchanger again.
2. the air energy heat pump air-conditioning equipment with manufacturing high-temperature-hot-water and refrigerating capacity as claimed in claim 1 is characterized in that this control module can be according to this compressor of signal controlling and the fan running of the first temperature detecting device.
3. the air energy heat pump air-conditioning equipment with manufacturing high-temperature-hot-water and refrigerating capacity as claimed in claim 1 is characterized in that this first heat exchanger and this second heat exchanger connect as one.
4. the air energy heat pump air-conditioning equipment with manufacturing high-temperature-hot-water and refrigerating capacity as claimed in claim 1 is characterized in that, it is inner that this condenser is arranged at this hot water storage tank, and this hot water storage tank has a water at low temperature entrance and a hot water outlet.
5. as claimed in claim 1 have an air energy heat pump air-conditioning equipment of making high-temperature-hot-water and refrigerating capacity, it is characterized in that, this condenser is one to be wound in the pipeline on the outer wall of this hot water storage tank, this condenser contacts with the outer wall of this hot water storage tank, and this hot water storage tank has a water at low temperature entrance and a hot water outlet.
6. as claimed in claim 1 have an air energy heat pump air-conditioning equipment of making high-temperature-hot-water and refrigerating capacity, it is characterized in that, the second end of this condenser is connected by bypass line with the first end of this first heat exchanger, the entrance of this expansion gear is connected by bypass line with the second end of this first heat exchanger, valve is arranged on this bypass line, and this valve can hard to bear this control module control.
7. one kind has the air energy heat pump air-conditioning equipment of making high-temperature-hot-water and refrigerating capacity, it is characterized in that, comprising:
One compressor has an entrance and an outlet;
One expansion gear has an entrance and an outlet;
One hot water heating unit, comprise a condenser, a heat exchange cell body, a hot water storage tank, be provided with connecting pipeline between this heat exchange cell body and this hot water storage tank, this condenser has a first end and one second end, and the first end of this condenser connects the outlet of this compressor; And
One heat exchanger set, comprise one first heat exchanger and one second heat exchanger, this first heat exchanger has a first end and one second end, the first end of this first heat exchanger connects the second end of this condenser, and the second end of this first heat exchanger connects the entrance of this expansion gear, this second heat exchanger has a first end and one second end, and the first end of this second heat exchanger connects the entrance of this compressor, and the second end of this second heat exchanger connects the outlet of this expansion gear;
One control module is controlled this and is had the air energy heat pump air-conditioning equipment running of making high-temperature-hot-water and refrigerating capacity; And
One fan, this fan can make this air fluid pass through first this first heat exchanger, pass through this second heat exchanger again.
8. the air energy heat pump air-conditioning equipment with manufacturing high-temperature-hot-water and refrigerating capacity as claimed in claim 7 is characterized in that this control module can be according to this compressor of signal controlling and the fan running of the first temperature detecting device.
9. the air energy heat pump air-conditioning equipment with manufacturing high-temperature-hot-water and refrigerating capacity as claimed in claim 7 is characterized in that this first heat exchanger and this second heat exchanger connect as one.
10. as claimed in claim 7 have an air energy heat pump air-conditioning equipment of making high-temperature-hot-water and refrigerating capacity, it is characterized in that, have water in this heat exchange cell body, this condenser can be to this water heating, and this hot water storage tank has a water at low temperature entrance and a hot water outlet.
11. the air energy heat pump air-conditioning equipment with manufacturing high-temperature-hot-water and refrigerating capacity as claimed in claim 7, it is characterized in that, the second end of this condenser is connected by bypass line with the first end of this first heat exchanger, the entrance of this expansion gear is connected by bypass line with the second end of this first heat exchanger, valve is arranged on this bypass line, and this valve can hard to bear this control module control.
