Abstract

The utility model discloses an automatic water-saving system for a household. The automatic water-saving system comprises a lower water tank, wherein a water inlet is formed in the upper part of the lower water tank; a water outlet is formed in the lower part of the lower water tank; the water outlet is communicated with the water inlet of a water pump by a pipeline; the water outlet of the water pump is communicated with a water inlet formed in the upper part of an upper water tank; a water outlet formed in the lower part of the upper water tank is communicated with a toilet water tank of which the height is lower than that of the upper water tank; a water level controller is also arranged on the upper water tank; and the water level controller and the water pump are respectively connected with the controller. By the automatic water-saving system, the water for washing clothes, taking baths and the like are collected by the lower water tank, the stored water is pumped to the upper water tank by the water pump, and the upper water tank is communicated with the toilet water tank to realize a function of saving water; and in addition, the water level controller is arranged on the upper water tank and is used for controlling the water pump to open and close by the controller to realize an automatic control function. The automatic water-saving system has a simple structure, is obvious in water saving effect, and has high popularization application values.

Description

Household automatic water saving system
Technical field
The utility model relates to a kind of water-saving system, particularly a kind of automatic water-saving system for family.
Background technology
Water resource is the valuable source that the mankind depend on for existence.Although China's water resource is abundant because populous, per capita water resource only occupy for the world per capita 1/4th.Along with the continuous increase of population, the improving constantly of living standards of the people, the surge of domestic water for dwellers amount, water growing tension.Data show that in the urban residenital water demand, daily drinking-water only is 1.89 liters per capita, about 10 liters of drinkable waters, and about 70 liters of the personal clean environment water such as bathing everyone every days, and the water of at every turn doing washing then reaches the 150-170 liter.Family's flushing supply is a variable, the water tank for toilet that draws water that many families still use old-fashioned 8-10 to rise, usefulness be the tap water that meets drinking water standard through processing, this is very large waste.How the water after bathing, the laundry being collected, be used for the water closet bath, is the problem that is worth thinking, and this water saving to family is significant.
Summary of the invention
Have the problem of waste for overcoming domestic water, the utility model provides a kind of waters such as laundry, bathing of collecting, and is used for the automatic water-saving system of water closet bath.
The utility model technical scheme that adopts of dealing with problems is:
Household automatic water saving system, comprise lower header, described lower header top is provided with water inlet, the bottom is provided with delivery port, described delivery port is communicated with the water inlet of water pump by pipeline, and the delivery port of water pump is communicated with by the water inlet of pipeline with upper water box top, and the delivery port of described upper water box bottom is communicated with the water tank for toilet that is lower than the upper water box height, upper water box also is provided with water level controller, and described water level controller is connected with controller respectively with water pump.The utility model by lower header will do washing, the water such as bathing collects, and utilizes water pump that the water that lower header stores is pumped to upper water box, upper water box is communicated with toilet seat water tank, the secondary use of the waters such as realization laundry, bathing; In addition, at upper water box water level controller is set, water level controller opens and closes by controller control water pump, realizes the automatically function of control.
Further, described lower header inside is provided with screen pack, and described screen pack is on the position between lower header water inlet and the delivery port.Adopt screen pack to filter out the larger foul of volume in the water.
Further, be provided with gutter on the position between described lower header water inlet and the delivery port, be provided with recessed bent angle on the described gutter, gutter and water inlet are in the same side of screen pack.When cistern water level was too high instantly, water can directly be discharged by gutter, did not need to discharge water by upper water box, and convenient the use saved use cost simultaneously.
Further, also be provided with the strainer of cleanable on the pipeline between described lower header and the water pump.Adopt strainer to filter and can obtain more clean flushing supply, strainer adopts cleanable then to be convenient to the deposit of filter rinsed, improves filter effect.
Further, be provided with the pump switch valve on the pipeline between described water pump and the upper water box, pipeline between described pump switch valve and the upper water box and the device for cleaning pipeline piping between strainer and the water pump are interconnected, also be respectively arranged with upper water box switch valve and lower header switch valve on the pipeline, the pipeline between upper water box switch valve and the lower header switch valve is communicated with water supply pipe.Pump switch valve, upper water box switch valve and lower header switch valve are set, and are communicated with tap water, can come upper water box or lower header washes by controlling each switch valve, prolong the application life of system.
Further, the water inlet of described lower header is communicated with at least 2 sections water inlet pipes, is provided with recessed bent angle on the described water inlet pipe.Water inlet pipe is set conveniently to be connected with sewer pipes such as laundry, bathings.
Description of drawings
The utility model is described in further detail below in conjunction with drawings and Examples:

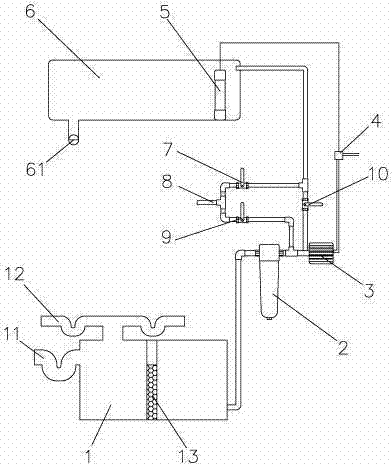

Fig. 1 is structural representation of the present utility model.
The specific embodiment
With reference to Fig. 1, Household automatic water saving system comprises lower header 1, described lower header 1 top is provided with water inlet, the bottom is provided with delivery port, and described lower header 1 inside is provided with screen pack 13, and described screen pack 13 is on the position between lower header 1 water inlet and the delivery port.Described delivery port is communicated with by the water inlet of pipeline with water pump 3, the delivery port of water pump 3 is communicated with by the water inlet of pipeline with upper water box 6 tops, the delivery port of described upper water box 6 bottoms is communicated with the water tank for toilet that is lower than upper water box 6 height, upper water box 6 also is provided with water level controller 5, and described water level controller 5 is connected with controller 4 respectively with water pump.In the present embodiment, controller 4 adopts relay, is provided with gutter 11 on the position between described lower header 1 water inlet and the delivery port, is provided with recessed bent angle on the described gutter 11, gutter 11 and the same side at screen pack 13, water inlet.Also be provided with the strainer 2 of cleanable on the pipeline between described lower header 1 and the water pump 3.The water inlet of described lower header 1 is communicated with 2 sections water inlet pipes 12, is provided with recessed bent angle on the described water inlet pipe 12.The quantity of water inlet pipe 12 arranges as required, except laundry and bath water, if there is other water to collect, and then can corresponding increase water inlet pipe quantity.
In the present embodiment, be provided with pump switch valve 10 on the pipeline between described water pump 3 and the upper water box 6, device for cleaning pipeline piping between pipeline between described pump switch valve 10 and the upper water box 6 and strainer 2 and the water pump 3 is interconnected, also be respectively arranged with upper water box switch valve 7 and lower header switch valve 9 on the pipeline, the pipeline between upper water box switch valve 7 and the lower header switch valve 9 is communicated with water supply pipe.Pump switch valve 10, upper water box switch valve 7 and lower header switch valve 9 are set, and are communicated with tap water, can come upper water box 6 or lower header 1 washes by controlling each switch valve.
During application, lower header 1 can be imbedded in the floor, upper water box 6 can be imbedded in the ceiling, reduces to take up an area the space.The water level controller of upper water box 6 is according to the variation of water level, and the switching of control water pump 3 realizes automatic control function.In addition, pump switch valve 10, upper water box switch valve 7 and lower header switch valve 9 are set also on the present embodiment pipeline, and are communicated with tap water, can realize system is cleaned.Powered-down during cleaning, when needs cleaned upper water box 6, switch off the pump switch valve 10 and lower header switch valve 9 were opened upper water box switch valve 7, and tap water directly flows to upper water box 6 and cleans; When cleaning lower header 1, switch off the pump switch valve 10 and upper water box switch valve 7 are opened lower header switch valve 9, tap water filter rinsed 2 and lower header 1, and from gutter 11 outflows.
The above is the better embodiment of the utility model, and it does not consist of the restriction to the utility model protection domain, so long as realize that with essentially identical means the purpose of this utility model all should belong to protection domain of the present utility model.

Claims (6)

1. Household automatic water saving system, comprise lower header (1), described lower header (1) top is provided with water inlet, the bottom is provided with delivery port, described delivery port is communicated with by the water inlet of pipeline with water pump (3), the delivery port of water pump (3) is communicated with by the water inlet of pipeline with upper water box (6) top, it is characterized in that: the delivery port of described upper water box (6) bottom is communicated with the water tank for toilet that is lower than upper water box (6) height, upper water box (6) also is provided with water level controller (5), and described water level controller (5) is connected with controller (4) respectively with water pump.
2. Household automatic water saving system according to claim 1 is characterized in that described lower header (1) inside is provided with screen pack (13), and described screen pack (13) is positioned on the position between lower header (1) water inlet and the delivery port.
3. Household automatic water saving system according to claim 2, it is characterized in that being provided with on the position between described lower header (1) water inlet and the delivery port gutter (11), described gutter is provided with recessed bent angle on (11), gutter (11) and the same side in screen pack (13), water inlet.
4. Household automatic water saving system according to claim 3 is characterized in that also being provided with on the pipeline between described lower header (1) and the water pump (3) strainer (2) of cleanable.
5. Household automatic water saving system according to claim 4, it is characterized in that being provided with pump switch valve (10) on the pipeline between described water pump (3) and the upper water box (6), device for cleaning pipeline piping between pipeline between described pump switch valve (10) and the upper water box (6) and strainer (2) and the water pump (3) is interconnected, also be respectively arranged with upper water box switch valve (7) and lower header switch valve (9) on the pipeline, the pipeline between upper water box switch valve (7) and the lower header switch valve (9) is communicated with water supply pipe.
6. Household automatic water saving system according to claim 1 is characterized in that the water inlet of described lower header (1) is communicated with at least 2 sections water inlet pipes (12), and described water inlet pipe is provided with recessed bent angle on (12).
