CN202750680U - Surfing-type soybean cleaning machine using circulating clear water - Google Patents
Surfing-type soybean cleaning machine using circulating clear water Download PDFInfo
- Publication number
- CN202750680U CN202750680U CN201220372946.7U CN201220372946U CN202750680U CN 202750680 U CN202750680 U CN 202750680U CN 201220372946 U CN201220372946 U CN 201220372946U CN 202750680 U CN202750680 U CN 202750680U
- Authority
- CN
- China
- Prior art keywords
- water
- groove
- beans
- washing
- clean
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 title claims abstract description 70
- 244000068988 Glycine max Species 0.000 title abstract description 12
- 235000010469 Glycine max Nutrition 0.000 title abstract description 12
- 238000004140 cleaning Methods 0.000 title abstract description 6
- 235000010627 Phaseolus vulgaris Nutrition 0.000 claims abstract description 84
- 244000046052 Phaseolus vulgaris Species 0.000 claims abstract description 84
- 238000005406 washing Methods 0.000 claims abstract description 32
- 239000007921 spray Substances 0.000 claims abstract description 6
- 238000004891 communication Methods 0.000 claims description 3
- 239000010865 sewage Substances 0.000 claims description 3
- 230000005484 gravity Effects 0.000 abstract description 2
- 239000000463 material Substances 0.000 description 6
- 238000004519 manufacturing process Methods 0.000 description 4
- 235000013527 bean curd Nutrition 0.000 description 3
- 238000005096 rolling process Methods 0.000 description 3
- 239000004575 stone Substances 0.000 description 2
- 230000005540 biological transmission Effects 0.000 description 1
- 230000000694 effects Effects 0.000 description 1
- 238000005516 engineering process Methods 0.000 description 1
- 235000013305 food Nutrition 0.000 description 1
- 238000012423 maintenance Methods 0.000 description 1
- 238000000034 method Methods 0.000 description 1
- 230000000737 periodic effect Effects 0.000 description 1
- 238000000746 purification Methods 0.000 description 1
- 239000002994 raw material Substances 0.000 description 1
- 238000004064 recycling Methods 0.000 description 1
- 230000002000 scavenging effect Effects 0.000 description 1
- 238000003756 stirring Methods 0.000 description 1
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02A—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE
- Y02A40/00—Adaptation technologies in agriculture, forestry, livestock or agroalimentary production
- Y02A40/90—Adaptation technologies in agriculture, forestry, livestock or agroalimentary production in food processing or handling, e.g. food conservation
Landscapes
- Beans For Foods Or Fodder (AREA)
Abstract
本实用新型公开了一种冲浪式循环水洗豆清水净豆机，解决了现有技术不能将大豆中比重相差悬殊的杂物去除的问题。在机架(1)上设置有洗豆槽(2)和净豆槽(18)，在洗豆槽(2)中设置有滚筒及封闭的循环网带，在水平段的网带(17)的上网带与下网带之间设置有喷水管(22)和高压冲浪喷嘴(23)，在洗豆槽(2)的侧壁上设置有溢流过滤槽(3)，洗豆槽(2)底部的出水口通过循环水出水管路(16)与过滤水箱(4)的入水口连通，在过滤水箱(4)中设置有过滤器，过滤水箱(4)的出水管(14)依次通过循环水泵(10)和过滤水进水管路(15)与喷水管(22)连通，在净豆槽(18)上方设置有山字型喷淋管(7)。本实用新型结构紧凑合理，操作简单方便。
The utility model discloses a surfing type circulating water washing bean cleaning machine, which solves the problem that the prior art cannot remove sundries with widely different specific gravity in soybeans. The bean washing tank (2) and the bean cleaning tank (18) are arranged on the frame (1). A drum and a closed circulating mesh belt are arranged in the bean washing tank (2). The mesh belt (17) in the horizontal section A water spray pipe (22) and a high-pressure surfing nozzle (23) are arranged between the upper net belt and the lower net belt, and an overflow filter tank (3) is arranged on the side wall of the bean washing tank (2), and the bean washing tank ( 2) The water outlet at the bottom communicates with the water inlet of the filtered water tank (4) through the circulating water outlet pipeline (16), and a filter is arranged in the filtered water tank (4), and the water outlet pipe (14) of the filtered water tank (4) is sequentially The circulating water pump (10) and the filtered water inlet pipeline (15) are communicated with the water spray pipe (22), and a mountain-shaped spray pipe (7) is arranged above the clean bean trough (18). The utility model has the advantages of compact and reasonable structure, simple and convenient operation.
Description
Technical field
The present invention relates to a kind of food processing machinery, particularly a kind of machinery that the raw soybeans of making bean product is cleaned.
Background technology
Soybean is the raw material of making bean product, when making various bean product, at first to clean it, and then for further processing.In raw soybeans, usually be doped with the little stone of proportion large volume and than the foreign material such as skin of beancurd of bean or pea light specific gravity, in existing matting, be difficult to these foreign material are removed, simultaneously, also there is the scavenging period that can not scientifically control soybean in existing cleaning equipment, and automated production linking and the solution that can not adapt to whole bean product production line are washed the clean beans of beans separately and water-saving problem.
Summary of the invention
The invention provides the clean beans machine of a kind of surfing type circulating water wash bean clear water, solved prior art the foreign material removal that proportion in the soybean can not be differed greatly and the technical problem that can't adapt to automated production.
The present invention solves above technical problem by the following technical programs:
The clean beans machine of a kind of surfing type circulating water wash bean clear water, comprise frame, be provided with at the left part of frame and wash the beans groove, right part in frame is provided with clean beans groove, the bottom is respectively arranged with roll left cylinder and turning roller group in the groove of washing the beans groove, top in the frame of washing beans groove and clean beans groove junction is provided with right cylinder, at the cylinder that rolls left, be provided with the guipure of annular on turning roller group and the right cylinder, the guipure that rolls left between cylinder and the turning roller group arranges along the left and right horizontal direction, the setting that is inclined upwardly of guipure between turning roller group and the right cylinder, the output shaft of right cylinder and drum drive motor is mechanically coupled together, drum drive motor is electrically connected with the electric controller case, between the upper guipure of the guipure of horizontal segment and lower guipure, be provided with sparge pipe along the left and right horizontal direction, be provided with the upwards high pressure Jet nozzle for wave producer of spray of direction at sparge pipe, be provided with the overflow lautertuns at the sidewall of washing the beans groove, the overflow lautertuns is by overflowing water port and the internal communication of washing the beans groove, the bottom delivery port of overflow lautertuns is communicated with the water inlet of water tank with strainer by the overflow water outlet pipe, the delivery port of washing the beans trench bottom is communicated with another water inlet of water tank with strainer by the circulating water outlet pipe road, in water tank with strainer, be provided with filter, the outlet pipe of water tank with strainer is communicated with sparge pipe by water circulating pump and filtered water inlet pipeline successively, water circulating pump is electrically connected with the electric controller case, above clean beans groove, be provided with mountain font shower, be provided with out the beans flashboard at clean beans groove, be provided with discharge outlet in the bottom of clean beans groove.
Left end in washing the beans groove is provided with the blanking slide plate, is provided with dirt discharge groove and sewage draining exit at the base plate of washing the beans groove.
It is reasonable that the present invention has compact conformation, simple to operation, removes in the soybean more thoroughly characteristics of foreign material, and can be connected cooperation with other automatic production line of bean product well.
Description of drawings

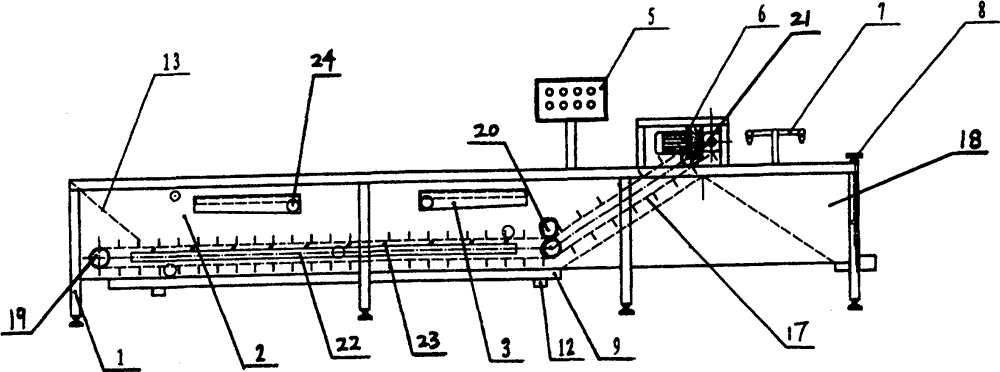

Fig. 1 is the structural representation of main apparent direction of the present invention;
Fig. 2 is the structural representation of overlooking direction of the present invention.
The specific embodiment
The clean beans machine of a kind of surfing type circulating water wash bean clear water, comprise frame 1, be provided with at the left part of frame 1 and wash beans groove 2, right part in frame 1 is provided with clean beans groove 18, soybean enters to wash the beans groove from the left end of machine washes beans with circulation surfing water, then being transferred guipure delivers in the clean beans groove 18 and cleans clean beans with clear water again, the bottom is respectively arranged with roll left cylinder 19 and turning roller group 20 in the groove of washing beans groove 2, top in the frame 1 of washing beans groove 2 and clean beans groove 18 junctions is provided with right cylinder 21, at the cylinder 19 that rolls left, be provided with the guipure 17 of annular on turning roller group 20 and the right cylinder 21, the guipure 17 that rolls left between cylinder 19 and the turning roller group 20 is horizontally disposed, the setting that is inclined upwardly of guipure 17 between turning roller group 20 and the right cylinder 21, right cylinder 21 is mechanically coupled together with the output shaft of drum drive motor 6, drum drive motor 6 is electrically connected with electric controller case 5, can regulate by electric controller case 5 rotating speed of drum drive motor 6 according to technological requirement, thereby the transmission speed of control guipure 17 reaches the purpose that the beans time is washed in control.Between the upper guipure of the guipure 17 of horizontal segment and lower guipure, be provided with sparge pipe 22 along the left and right horizontal direction, be provided with the upwards high pressure Jet nozzle for wave producer 23 of spray of direction at sparge pipe 22, the high pressure Jet nozzle for wave producer 23 of big-flow high-pressure power, water by the nozzle ejection, make the water of washing in the beans groove 2 not stop rolling, driving bean or pea stirs up and down, clean the bean or pea effect to reach, simultaneously, heavy stone drops to the bottom of washing beans groove 2 by the mesh on the guipure 17 in rolling, the foreign material such as skin of beancurd that proportion is little are floated to the top of washing beans groove 2 in the rolling of water.Be provided with overflow lautertuns 3 at the sidewall of washing beans groove 2, overflow lautertuns 3 is by overflowing water port 24 and the internal communication of washing beans groove 2, the foreign material such as skin of beancurd are discharged in the overflow lautertuns 3 by overflowing water port 24, the bottom delivery port of overflow lautertuns 3 is communicated with the water inlet of water tank with strainer 4 by overflow water outlet pipe 11, the delivery port of washing beans groove 2 bottoms is communicated with another water inlet of water tank with strainer 4 by circulating water outlet pipe road 16, in water tank with strainer 4, be provided with filter, the beans water of washing that is filtered in the water tank with strainer 4 is communicated with sparge pipe 22 by water circulating pump 10 and filtered water inlet pipeline 15 successively by outlet pipe 14, has realized recycling after washing beans water is cleaned.Water circulating pump 10 is electrically connected with electric controller case 5, is being provided with mountain font shower 7 above clean beans groove 18, cleans with the purification that the soybean of clean water after to previous cleaning carries out again.Be provided with out beans flashboard 8 at clean beans groove 18, after the bottom of clean beans groove 18 was provided with discharge outlet, opens out beans flashboard 8, soybean entered into next procedure.
Left end in washing beans groove 2 is provided with blanking slide plate 13, washes in the beans groove 2 to realize that soybean enters reposefully.Be provided with dirt discharge groove 9 and sewage draining exit 12 at the base plate of washing beans groove 2, with convenient periodic cleaning and maintenance to washing the beans groove.
Claims (2)
1. clean beans machine of surfing type circulating water wash bean clear water, comprise frame (1), be provided with at the left part of frame (1) and wash beans groove (2), right part in frame (1) is provided with clean beans groove (18), it is characterized in that, the bottom is respectively arranged with roll left cylinder (19) and turning roller group (20) in the groove of washing beans groove (2), top in the frame (1) of washing beans groove (2) and clean beans groove (18) junction is provided with right cylinder (21), at the cylinder (19) that rolls left, be provided with the guipure (17) of annular on turning roller group (20) and the right cylinder (21), the guipure (17) that rolls left between cylinder (19) and the turning roller group (20) arranges along the left and right horizontal direction, the setting that is inclined upwardly of guipure (17) between turning roller group (20) and the right cylinder (21), right cylinder (21) is mechanically coupled together with the output shaft of drum drive motor (6), drum drive motor (6) is electrically connected with electric controller case (5), between the upper guipure of the guipure (17) of horizontal segment and lower guipure, be provided with sparge pipe (22) along the left and right horizontal direction, be provided with the upwards high pressure Jet nozzle for wave producer (23) of spray of direction at sparge pipe (22), be provided with overflow lautertuns (3) at the sidewall of washing beans groove (2), overflow lautertuns (3) is by overflowing water port (24) and the internal communication of washing beans groove (2), the bottom delivery port of overflow lautertuns (3) is communicated with the water inlet of water tank with strainer (4) by overflow water outlet pipe (11), the delivery port of washing beans groove (2) bottom is communicated with another water inlet of water tank with strainer (4) by circulating water outlet pipe road (16), in water tank with strainer (4), be provided with filter, the outlet pipe (14) of water tank with strainer (4) is communicated with sparge pipe (22) by water circulating pump (10) and filtered water inlet pipeline (15) successively, water circulating pump (10) is electrically connected with electric controller case (5), be provided with mountain font shower (7) in clean beans groove (18) top, be provided with out beans flashboard (8) at clean beans groove (18), be provided with discharge outlet in the bottom of clean beans groove (18).
2. the clean beans machine of a kind of surfing type circulating water wash bean clear water according to claim 1, it is characterized in that, left end in washing beans groove (2) is provided with blanking slide plate (13), is provided with dirt discharge groove (9) and sewage draining exit (12) at the base plate of washing beans groove (2).
