Abstract
本实用新型公开了一种多级热管热泵复合系统，主要由一级热管热泵复合单元、二级热管热泵复合单元、三级热管热泵复合单元、蒸发器风扇、冷凝器风扇、热交换器、连接管道以及电路控制元件，可以根据需要做成4—N级热管热泵复合单元；所述一级热管热泵复合单元、二级热管热泵复合单元和三级热管热泵复合单元分别都是一个独立的循环回路，相互并联，其中所有蒸发器相互并排摆放，分别有自己的独立输入输出端，组装于同一个壳体内并且位于蒸发器风扇形成的风道内，共用一个蒸发器风扇；所有冷凝器互并排摆放，分别有自己的独立输入输出端，组装于同一个壳体内并且位于冷凝器风扇形成的风道内，共用一个冷凝器风扇；所述电路控制元件控制着系统的运行状态；这种多级热管热泵复合系统不仅使热管热泵制冷装置进行了融合，还解决了现有热管热泵制冷装置换热温差损失大和总换热效率低的问题。
The utility model discloses a multi-stage heat pipe heat pump compound system, which mainly consists of a first-stage heat pipe heat pump compound unit, a second-stage heat pipe heat pump compound unit, a third-stage heat pipe heat pump compound unit, an evaporator fan, a condenser fan, a heat exchanger, a connecting Pipelines and circuit control components can be made into 4-N-level heat pipe heat pump composite units according to needs; the first-level heat pipe heat pump composite unit, the second-stage heat pipe heat pump composite unit and the third-stage heat pipe heat pump composite unit are all an independent circulation loop , in parallel with each other, where all evaporators are placed side by side, each has its own independent input and output terminals, assembled in the same shell and located in the air duct formed by the evaporator fan, and share one evaporator fan; all condensers are placed side by side Each has its own independent input and output terminals, assembled in the same shell and located in the air duct formed by the condenser fan, sharing a condenser fan; the circuit control element controls the operating state of the system; this multi-stage heat pipe The heat pump composite system not only integrates the heat pipe heat pump refrigeration device, but also solves the problems of large heat exchange temperature difference loss and low total heat exchange efficiency of the existing heat pipe heat pump refrigeration device.
Description
技术领域 technical field
本实用新型属于冷热能量输运技术领域，涉及一种将热管系统和热泵系统系统相复合形成的进行冷热能量输运的多级热管热泵复合系统。 The utility model belongs to the technical field of cold and heat energy transportation, and relates to a multi-stage heat pipe heat pump compound system for cold and heat energy transportation formed by combining a heat pipe system and a heat pump system.
背景技术 Background technique
信息机房、基站类建筑中, 室内设备的发热量非常大, 达200~ 1000W/ m2。而且室内IT 设备全年8760h运行, 因此大多数情况下全年需要供冷, 其空调能耗非常大, 常占到信息机房、基站整体能耗的40%~50%。传统机房空调采用压缩机制冷方式全年运行, 而实际上在冬天或者过渡季节室外温度低于室内温度时, 完全可以利用室外低温空气作为冷源对室内供冷, 而不需要压缩机。热管换热器就是一种利用温差驱动制冷剂循环实现热量传递的设备, 由于其不需要压缩机, 可凭借制冷剂的蒸发和冷凝过程传递热量, 具有超导热性和等温特性, 被广泛应用于航天航空、空调、化工、炼油等领域。将热管换热器应用在只有显热传递的信 In information equipment rooms and base station buildings, the heat generated by indoor equipment is very large, reaching 200~1000W/m 2 . In addition, indoor IT equipment runs 8760h throughout the year, so cooling is required throughout the year in most cases, and its air conditioning consumes a lot of energy, often accounting for 40% to 50% of the overall energy consumption of information equipment rooms and base stations. Traditional computer room air conditioners use compressor cooling to run throughout the year. In fact, in winter or transitional seasons, when the outdoor temperature is lower than the indoor temperature, the outdoor low-temperature air can be used as a cold source to cool the room without a compressor. The heat pipe heat exchanger is a device that uses temperature difference to drive the refrigerant cycle to achieve heat transfer. Because it does not require a compressor, it can transfer heat by virtue of the evaporation and condensation of the refrigerant. It has superthermal conductivity and isothermal characteristics, and is widely used. Used in aerospace, air conditioning, chemical industry, oil refining and other fields. Applying heat pipe heat exchangers to signals where only sensible heat is transferred
息机房中, 可以大量减少压缩式制冷空调的运行时间, 其全年节能率可达50%。 In the computer room, the running time of the compression refrigeration air conditioner can be greatly reduced, and the annual energy saving rate can reach 50%.
申请人早先申请的专利申请号为201210266600.3、201210269424.9、201210273880.0和201210279193.X的专利为解决热泵系统中存在的能耗大问题，而给出了一种结构简单、实施容易、节能减排的热管热泵复合系统，根据室内外温度和室内负荷情况, 机组选择性地以热泵循环或热管循环模式运行, 在保证室内降温要求的前提下实现节能运行的目标，这种热管热泵复合系统不仅使热泵制冷热管传热技术相互融合, 实现两者优势互补，还解决了现有热泵制冷装置制冷时气液分离和循环不稳定上的一些弊端，提高了制冷传热效率，但是排风口的排放温度很高，热损失仍然很大。 The applicant’s earlier patent application numbers are 201210266600.3, 201210269424.9, 201210273880.0 and 201210279193.X. In order to solve the problem of large energy consumption in the heat pump system, a heat pipe heat pump with simple structure, easy implementation, energy saving and emission reduction is provided. Composite system, according to the indoor and outdoor temperature and indoor load, the unit selectively operates in the heat pump cycle or heat pipe cycle mode, and achieves the goal of energy-saving operation on the premise of ensuring indoor cooling requirements. This heat pipe heat pump composite system not only enables the heat pump to cool the heat pipe The heat transfer technology is integrated with each other to realize the complementary advantages of the two. It also solves some disadvantages of gas-liquid separation and unstable circulation during cooling of the existing heat pump refrigeration device, and improves the cooling heat transfer efficiency, but the discharge temperature of the exhaust port is very high. , the heat loss is still large.
热管换热器的总驱动温差为室内外温差, 单级热管换热器内部制冷剂的恒温特性导致热管换热装置热损失大, 本申请在前面的基础上，可通过增加热管级数将具有恒温特性的中间媒介改为具有变温特性的媒介和通过增加热泵级数的设计是实现减少换热温差损失和提高总换热效率的有效途径。单级热管换热器改为多级形式，每一级热管中的制冷剂均视为恒温流体, 则多级热管能实现变温效果的换热装置，且每级换热器的换热面积相同，最终排放温度接近于环境温度，从而最大限度的提高热能利用率；单级热泵系统改为多级形式的设计也能够更好地匹配制冷系统的动态冷负荷，并且所用整个系统装置结构简单，环境友好。 The total driving temperature difference of the heat pipe heat exchanger is the indoor and outdoor temperature difference. The constant temperature characteristic of the refrigerant inside the single-stage heat pipe heat exchanger leads to a large heat loss of the heat pipe heat exchange device. Based on the above, this application can increase the number of heat pipe stages to have Changing the intermediate medium with constant temperature characteristics to medium with variable temperature characteristics and increasing the number of heat pump stages are effective ways to reduce the loss of heat exchange temperature difference and improve the total heat exchange efficiency. The single-stage heat pipe heat exchanger is changed to a multi-stage form, and the refrigerant in each heat pipe is regarded as a constant temperature fluid, so the multi-stage heat pipe can realize a heat exchange device with a variable temperature effect, and the heat exchange area of each heat exchanger is the same , the final discharge temperature is close to the ambient temperature, thereby maximizing the utilization rate of heat energy; changing the single-stage heat pump system to a multi-stage design can also better match the dynamic cooling load of the refrigeration system, and the structure of the entire system is simple, Environment friendly.
发明内容 Contents of the invention
本实用新型的目的在于克服现有技术存在的缺点，为解决单级热管热泵系统中存在换热温差损失大和总换热效率低的问题。 The purpose of the utility model is to overcome the shortcomings of the prior art, and to solve the problems of large heat exchange temperature difference loss and low total heat exchange efficiency in a single-stage heat pipe heat pump system.
本实用新型解决技术问题采用如下技术方案： The utility model solves the technical problem and adopts the following technical solutions:
一种多级热管热泵复合系统，包括一级热管热泵复合单元、蒸发器风扇、冷凝器风扇、热交换器、储液稳流器、压缩机、循环泵、电磁阀、单向阀以及连接管道，还包括二级热管热泵复合单元以及三级热管热泵复合单元，可以根据需要做成4—N级热管热泵复合单元，其中一级热管热泵复合单元、二级热管热泵复合单元和三级热管热泵复合单元分别都是一个独立的循环回路，且相互并联；所述一级热管热泵复合单元、二级热管热泵复合单元和三级热管热泵复合单元的蒸发器相互并排摆放，分别有自己的独立输入输出端，组装于同一个壳体内并且位于蒸发器风扇形成的风道内，共用一个蒸发器风扇；所述一级热管热泵复合单元、二级热管热泵复合单元和三级热管热泵复合单元的冷凝器互并排摆放，分别有自己的独立输入输出端，组装于同一个壳体内并且位于冷凝器风扇形成的风道内，共用一个冷凝器风扇。 A multi-stage heat pipe heat pump composite system, including a primary heat pipe heat pump composite unit, an evaporator fan, a condenser fan, a heat exchanger, a liquid storage stabilizer, a compressor, a circulation pump, a solenoid valve, a one-way valve and connecting pipes , also includes two-stage heat pipe heat pump composite unit and three-stage heat pipe heat pump composite unit, which can be made into 4-N grade heat pipe heat pump composite units according to needs, including one-stage heat pipe heat pump composite unit, two-stage heat pipe heat pump composite unit and three-stage heat pipe heat pump The composite units are each an independent circulation loop and are connected in parallel; the evaporators of the first-stage heat pipe heat pump composite unit, the second-stage heat pipe heat pump composite unit and the third-stage heat pipe heat pump composite unit are placed side by side with each other, and each has its own independent The input and output ends are assembled in the same housing and located in the air duct formed by the evaporator fan, sharing one evaporator fan; the condensation of the first-stage heat pipe heat pump composite unit, the second-stage heat pipe heat pump composite unit and the third-stage heat pipe heat pump composite unit The condensers are placed side by side, each has its own independent input and output terminals, assembled in the same shell and located in the air duct formed by the condenser fan, and share a condenser fan.
以上所述单向阀二、单向阀四和单向阀六分别并联在每一级的压缩机上，每一级的循环泵和电磁阀串联的支路与单向阀和节流阀串联的支路并联，它们的输入端连接于储液稳流器，输出端连接于蒸发器；这样，所述循环泵、电磁阀、蒸发器、单向阀（即与每一级的压缩机并联的单向阀）、冷凝器以及储液稳流器通过连接管道每一级都按照上列顺序连接起来，组成了一个多级热管循环回路；所述压缩机、冷凝器、储液稳流器、单向阀（即与节流阀串联所在支路的单向阀）、节流阀以及蒸发器通过连接管道每一级都按照上列顺序连接起来，就组成了一个多级热泵循环回路。 The above-mentioned one-way valve two, one-way valve four and one-way valve six are respectively connected in parallel on the compressor of each stage, and the branch circuit of the circulation pump and the solenoid valve of each stage is connected in series with the one-way valve and the throttle valve. The branches are connected in parallel, their input ends are connected to the liquid storage stabilizer, and their output ends are connected to the evaporator; thus, the circulation pump, electromagnetic valve, evaporator, check valve (that is, the compressors connected in parallel with each stage One-way valve), condenser and liquid storage stabilizer are all connected in the order listed above through connecting pipes, forming a multi-stage heat pipe circulation loop; the compressor, condenser, liquid storage stabilizer, The one-way valve (that is, the one-way valve in the branch where the throttle valve is connected in series), the throttle valve and the evaporator are connected in the order listed above through the connecting pipeline to form a multi-stage heat pump cycle.
以上所述多级热泵制冷工作模式工作时，所有压缩机开启，单向阀一、单向阀三以及单向阀五处于导通状态，同时所有循环泵关闭，单向阀二、单向阀四、单向阀六以及所有电磁阀都处于关闭状态；所述多级热管换热工作模式工作时，所有压缩机关闭，单向阀一、单向阀三以及单向阀五也处于截止状态，所有循环泵开启，单向阀二、单向阀四、单向阀六以及所有电磁阀都处于导通状态。 When the above-mentioned multi-stage heat pump refrigeration working mode is working, all compressors are turned on, check valve 1, check valve 3 and check valve 5 are in conduction state, and all circulation pumps are turned off at the same time, check valve 2, check valve 4. Check valve 6 and all solenoid valves are in closed state; when the multi-stage heat pipe heat exchange working mode is working, all compressors are closed, check valve 1, check valve 3 and check valve 5 are also in cut-off state , all circulating pumps are turned on, check valve 2, check valve 4, check valve 6 and all solenoid valves are in conduction state.
以上所述一级热管热泵复合单元、二级热管热泵复合单元和三级热管热泵复合单元的蒸发器和冷凝器都是盘管翅片组成的热交换器或者微通道换热器，其结构相同，且每一级的热交换器都有各自输入和输出端。 The evaporators and condensers of the first-stage heat pipe heat pump composite unit, the second-stage heat pipe heat pump composite unit, and the third-stage heat pipe heat pump composite unit mentioned above are all heat exchangers composed of coil fins or microchannel heat exchangers, and their structures are the same , and each stage of the heat exchanger has its own input and output.
以上所述一级热管热泵复合单元、二级热管热泵复合单元和三级热管热泵复合单元分别都是一个独立的循环回路，它们有独立的压缩机和循环泵，其工作运行时相互不影响。 The first-stage heat pipe heat pump compound unit, the second-stage heat pipe heat pump compound unit and the third-stage heat pipe heat pump compound unit mentioned above are all independent circulation loops, they have independent compressors and circulation pumps, and their work and operation do not affect each other.
以上所述电路控制部分控制着整个装置的电路逻辑运算和设备运行开关，主要是通过一些温度检测设备监控着高温环境和低温环境的一些温度变化，选择性地运行多级热泵制冷工作模式或多级热管制冷工作模式，并且可以根据需要避免“大马拉小车”的情况，选择使热泵制冷工作模式或热管制冷工作模式的部分单元相互替代间歇性的工作，这样在一定程度上也延长了整个系统的使用寿命。 The above-mentioned circuit control part controls the circuit logic operation and equipment operation switch of the whole device, mainly through some temperature detection equipment to monitor some temperature changes in high-temperature environment and low-temperature environment, and selectively operate multi-stage heat pump refrigeration working mode or multi-stage heat pump heat pipe cooling working mode, and can avoid the situation of "big horse and small cart" according to the needs, and choose to make some units in the heat pump cooling working mode or heat pipe cooling working mode replace the intermittent work, which also prolongs the entire system to a certain extent. System life.
本实用新型与现有技术相比，通过单级热管换热器改为多级形式将具有恒温特性的中间媒介改为具有变温特性的媒介，每一级热管中的制冷剂均视为恒温流体, 则多级热管能实现变温效果的换热装置，通过单级热泵系统改为多级形式的设计，蒸发器或冷凝器的温差成逐级变化，还能够更好地匹配制冷系统的动态冷负荷，且每级换热器的换热面积相同，最终排放温度接近于环境温度，从而这种热管热泵复合系统能够减少换热温差损失和提高总换热效率，并且所用整个系统装置结构简单，环境友好。 Compared with the prior art, the utility model changes the intermediate medium with constant temperature characteristics into a medium with variable temperature characteristics by changing the single-stage heat pipe heat exchanger into a multi-stage form, and the refrigerant in each heat pipe is regarded as a constant temperature fluid , the multi-stage heat pipe can realize the heat exchange device with variable temperature effect. By changing the single-stage heat pump system to a multi-stage design, the temperature difference of the evaporator or condenser changes step by step, and it can better match the dynamic cooling of the refrigeration system. load, and the heat exchange area of each stage heat exchanger is the same, and the final discharge temperature is close to the ambient temperature, so this heat pipe heat pump composite system can reduce the loss of heat exchange temperature difference and improve the total heat exchange efficiency, and the structure of the whole system device is simple, Environment friendly.
附图说明 Description of drawings

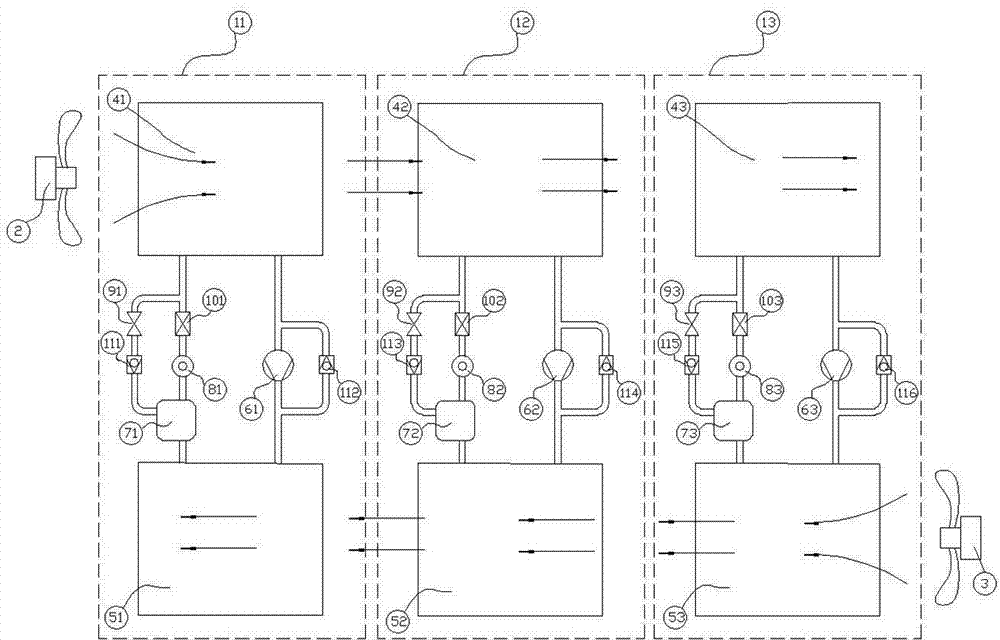

图1为多级热管热泵复合系统的实施方式结构示意图。 Fig. 1 is a schematic structural diagram of an embodiment of a multi-stage heat pipe heat pump composite system.
图中：（11）一级热管热泵复合单元；（12）二级热管热泵复合单元；（13）三级热管热泵复合单元；（2）蒸发器风扇；（3）冷凝器风扇；（41）蒸发器一；（42）蒸发器二；（43）蒸发器三；（51）冷凝器一；（52）冷凝器二；（53）冷凝器三；（61）压缩机一；（62）压缩机二；（63）压缩机三；（71）储液稳流器一；（72）储液稳流器二；（73）储液稳流器三；（81）循环泵一；（82）循环泵二；（83）循环泵三；（91）节流阀一；（92）节流阀二；（93）节流阀三；（101）电磁阀一；（102）电磁阀二；（103）电磁阀三；（111）单向阀一；（112）单向阀二；（113）单向阀三；（114）单向阀四；（115）单向阀五；（116）单向阀六。 In the figure: (11) first-stage heat pipe heat pump compound unit; (12) second-stage heat pipe heat pump compound unit; (13) third-stage heat pipe heat pump compound unit; (2) evaporator fan; (3) condenser fan; (41) Evaporator one; (42) Evaporator two; (43) Evaporator three; (51) Condenser one; (52) Condenser two; (53) Condenser three; (61) Compressor one; (62) Compression Machine Two; (63) Compressor Three; (71) Liquid Storage Stabilizer One; (72) Liquid Storage Stabilizer Two; (73) Liquid Storage Stabilizer Three; (81) Circulating Pump One; (82) Circulation pump two; (83) circulation pump three; (91) throttle valve one; (92) throttle valve two; (93) throttle valve three; (101) solenoid valve one; (102) solenoid valve two; ( 103) solenoid valve three; (111) one-way valve one; (112) one-way valve two; (113) one-way valve three; (114) one-way valve four; (115) one-way valve five; (116) one-way valve Direction valve six.
具体实施方式： Specific implementation methods :
图1所示一种多级热管热泵复合系统，包括一级热管热泵复合单元（11）；二级热管热泵复合单元（12）；三级热管热泵复合单元（13）；蒸发器风扇（2）；冷凝器风扇（3）；蒸发器一（41）；蒸发器二（42）；蒸发器三（43）；冷凝器一（51）；冷凝器二（52）；冷凝器三（53）；压缩机一（61）；压缩机二（62）；压缩机三（63）；储液稳流器一（71）；储液稳流器二（72）；储液稳流器三（73）；循环泵一（81）；循环泵二（82）；循环泵三（83）；节流阀一（91）；节流阀二（92）；节流阀三（93）；电磁阀一（101）；电磁阀二（102）；电磁阀三（103）；单向阀一（111）；单向阀二（112）；单向阀三（113）；单向阀四（114）；单向阀五（115）；单向阀六（116）以及连接管道和电路控制元件，整个系统可以根据需要做成4—N级热管热泵复合单元；所述压缩机（61；62；63）、冷凝器（51；52；53）、储液稳流器（71；72；73）、单向阀（111；113；115）、节流阀（91；92；93）以及蒸发器（41；42；43）通过连接管道每一级都按照上列顺序连接起来，就组成了一个多级热泵循环回路；所述每一级的单向阀（112；114；116）分别并联在压缩机（61；62；63）上，每一级的循环泵（81；82；83）和电磁阀（101；102；103）串联的支路与单向阀（111；113；115）和节流阀（91；92；93）串联的支路并联，它们的输入端连接于储液稳流器（71；72；73），输出端连接于蒸发器（41；42；43）；这样循环泵（81；82；83）、电磁阀（101；102；103）、蒸发器（41；42；43）、单向阀（112；114；116）、冷凝器（51；52；53）以及储液稳流器（71；72；73）通过连接管道每一级都按照上列顺序连接起来，组成了一个多级热管循环回路，这样这两个循环根据环境和需求进行交换工作就组成了一种多级热管热泵复合系统。 Figure 1 shows a multi-stage heat pipe heat pump composite system, including the first-stage heat pipe heat pump composite unit (11); the second-stage heat pipe heat pump composite unit (12); the third-stage heat pipe heat pump composite unit (13); the evaporator fan (2) Condenser fan (3); Evaporator one (41); Evaporator two (42); Evaporator three (43); Condenser one (51); Condenser two (52); Condenser three (53); Compressor 1 (61); Compressor 2 (62); Compressor 3 (63); Liquid storage stabilizer 1 (71); Liquid storage stabilizer 2 (72); Liquid storage stabilizer 3 (73) Circulation pump one (81); circulation pump two (82); circulation pump three (83); throttle valve one (91); throttle valve two (92); throttle valve three (93); solenoid valve one ( 101); solenoid valve two (102); solenoid valve three (103); one-way valve one (111); one-way valve two (112); one-way valve three (113); one-way valve four (114); The five-way valve (115); the six-way valve (116) and connecting pipes and circuit control components, the whole system can be made into a 4-N class heat pipe heat pump compound unit according to needs; the compressor (61; 62; 63), Condenser (51; 52; 53), liquid storage stabilizer (71; 72; 73), check valve (111; 113; 115), throttle valve (91; 92; 93) and evaporator (41; 42; 43) Each stage is connected in the order listed above through the connecting pipeline to form a multi-stage heat pump cycle; the check valve (112; 114; 116) of each stage is connected in parallel to the compressor ( 61; 62; 63), the circulation pump (81; 82; 83) and the solenoid valve (101; 102; 103) of each stage are connected in series with the branch circuit and the check valve (111; 113; 115) and the throttle valve (91; 92; 93) series branches are connected in parallel, their input ends are connected to the liquid storage stabilizer (71; 72; 73), and their output ends are connected to the evaporator (41; 42; 43); thus the circulation pump ( 81; 82; 83), solenoid valve (101; 102; 103), evaporator (41; 42; 43), check valve (112; 114; 116), condenser (51; 52; 53) and liquid storage The flow stabilizers (71; 72; 73) are connected in the order listed above through connecting pipes to form a multi-stage heat pipe circulation loop, so that the two circulations exchange work according to the environment and demand to form a Multi-stage heat pipe heat pump composite system.
当使用多级热泵制冷工作模式时，压缩机（61；62；63）开启，单向阀（111；113；115）处于导通状态，同时循环泵（81；82；83）关闭，电磁阀（101；102；103）和单向阀（112；114；116）处于关闭状态，由于压缩机（61；62；63）的抽压力，单向阀（112；114；116）所在支路几乎没有制冷工质的通过，这样液态冷凝剂在蒸发器（41；42；43）中吸热降低室内温度，吸热后的液态冷凝剂变成气态，通过压缩机（61；62；63）压缩气态制冷剂变成高温高压状态，高温高压气态制冷剂通过冷凝器（51；52；53）导气管进入冷凝器（51；52；53）中，然后高温高压气态制冷剂在冷凝器（51；52；53）中散热变成液态制冷剂，液态制冷剂在高压气态制冷剂的推动下进入储液稳流器（71；72；73）中，气液制冷中间介质根据各自物理性质在储液罐内分离，高压液态中间介质经单向阀（111；113；115）进入节流阀（91；92；93），进行减压节流进入到蒸发器（41；42；43）中进行下一次循环。 When the multi-stage heat pump cooling mode is used, the compressor (61; 62; 63) is turned on, the one-way valve (111; 113; 115) is in the conduction state, and the circulation pump (81; 82; 83) is turned off at the same time, the solenoid valve (101; 102; 103) and the one-way valve (112; 114; 116) are in the closed state, due to the suction pressure of the compressor (61; 62; 63), the branch where the one-way valve (112; 114; 116) is located is almost There is no passage of refrigerant, so that the liquid condensing agent absorbs heat in the evaporator (41; 42; 43) to reduce the indoor temperature, and the liquid condensing agent after absorbing heat becomes gaseous and compressed by the compressor (61; 62; 63) The gaseous refrigerant turns into a high-temperature and high-pressure state, and the high-temperature and high-pressure gaseous refrigerant enters the condenser (51; 52; 53) through the air guide pipe of the condenser (51; 52; 53), and then the high-temperature and high-pressure gaseous refrigerant enters the condenser (51; 52; 53), the heat dissipation becomes liquid refrigerant, and the liquid refrigerant enters the liquid storage stabilizer (71; 72; 73) under the push of the high-pressure gas refrigerant, and the gas-liquid refrigeration intermediate medium is in the liquid storage according to their physical properties. Separation in the tank, the high-pressure liquid intermediate medium enters the throttle valve (91; 92; 93) through the check valve (111; 113; 115), and enters the evaporator (41; 42; 43) for decompression and throttling. one cycle.
使用多级热管制冷工作模式时，压缩机（61；62；63）关闭，单向阀（111；113；115）也处于截止状态，循环泵（81；82；83）开启，电磁阀（101；102；103）和单向阀（112；114；116）处于导通状态，循环泵（81；82；83）从储液稳流器（71；72；73）内抽取配有一定比例的二相流制冷工质，经电磁阀（101；102；103）进入蒸发器（41；42；43），蒸发器（41；42；43）与高温热源接触，液态工作介质在蒸发器（41；42；43）内受高温热源的加热而蒸发为气体，并吸收热量，蒸发形成的气体和部分没有蒸发的液体中间介质在高速流动中相互混合形成气液二相流体，它们从蒸发器（41；42；43）中输出，经单向阀（112；114；116）进入冷凝器（51；52；53），冷凝器（51；52；53）与低温热源接触，气态工作介质在冷凝器（51；52；53）内受低温热源的冷却而冷凝为液体，并放出热量，冷凝形成的液体工作介质在循环泵（81；82；83）的抽压力作用下，经冷凝器（51；52；53）导液管进入储液稳流器（71；72；73）中，其进行气液分离、储存与分流，进行下一次循环。 When the multi-stage heat pipe cooling mode is used, the compressor (61; 62; 63) is closed, the one-way valve (111; 113; 115) is also in the cut-off state, the circulation pump (81; 82; 83) is opened, and the solenoid valve (101 ; 102; 103) and the one-way valve (112; 114; 116) are in the conduction state, and the circulation pump (81; 82; 83) draws a certain proportion of The two-phase flow refrigerant enters the evaporator (41; 42; 43) through the solenoid valve (101; 102; 103), and the evaporator (41; 42; 43) is in contact with a high-temperature heat source, and the liquid working medium is in the evaporator (41 ; 42; 43) is heated by a high-temperature heat source to evaporate into a gas and absorb heat. The gas formed by evaporation and part of the liquid intermediate medium that has not evaporated are mixed with each other in high-speed flow to form a gas-liquid two-phase fluid. They flow from the evaporator ( 41; 42; 43), enter the condenser (51; 52; 53) through the check valve (112; 114; 116), and the condenser (51; 52; 53) is in contact with the low-temperature heat source, and the gaseous working medium is condensed Cooled by the low-temperature heat source in the container (51; 52; 53), it condenses into a liquid and releases heat. The liquid working medium formed by condensation passes through the condenser (51) under the pumping pressure of the circulating pump (81; 82; 83). ; 52; 53) The catheter enters the liquid storage stabilizer (71; 72; 73), which performs gas-liquid separation, storage and diversion, and performs the next cycle.
这样这种多级热管热泵复合系统可以根据室内所需设定温度和室外温度的差异，选择性地运行多级热泵制冷工作模式或多级热管制冷工作模式，并且可以根据需要避免“大马拉小车”的情况，选择使热泵制冷工作模式或热管制冷工作模式的部分单元相互替代间歇性的工作，在保证室内降温要求的前提下达到节能运行；当室外温度较高或者室内负荷过大时，多级热管热泵复合系统运行热泵制冷工作模式，工作原理与一般变频或者非变频空调相同，室内的热量通过蒸汽压缩制冷循环散至室外空间，达到室内空间的降温冷却效果；当室外温度低于室内温度一定值时，压缩机组关闭，机组自动进入热管制冷工作模式，通过热管节能模块把气态制冷剂带至冷凝器中冷凝放热，最后成为冷凝液，冷凝液又在热管节能模块作用下流至蒸发器吸收热量，整个系统通过热管节能模块将室内热量向室外传递。 In this way, this multi-stage heat pipe heat pump composite system can selectively operate the multi-stage heat pump cooling mode or the multi-stage heat pipe cooling mode according to the difference between the indoor required set temperature and the outdoor temperature, and can avoid "big horses" as needed. In the case of small cars”, choose to make some units in heat pump cooling mode or heat pipe cooling mode replace intermittent work, and achieve energy-saving operation under the premise of ensuring indoor cooling requirements; when the outdoor temperature is high or the indoor load is too large, The multi-stage heat pipe heat pump composite system operates in the heat pump refrigeration mode. The working principle is the same as that of general inverter or non-inverter air conditioners. The heat in the room is dissipated to the outdoor space through the vapor compression refrigeration cycle to achieve the cooling effect of the indoor space; When the temperature reaches a certain value, the compressor unit is turned off, and the unit automatically enters the heat pipe cooling mode. The gaseous refrigerant is brought to the condenser by the heat pipe energy-saving module to condense and release heat, and finally becomes condensate, which then flows to evaporation under the action of the heat pipe energy-saving module. The heat absorber absorbs heat, and the whole system transmits the indoor heat to the outdoor through the heat pipe energy-saving module.
