Abstract
Provided is a bleeding-stop device, comprising a flexible belt body, a bleeding-stop machine having a finger pressure member, and a pad body. A longitudinal center part of the bleeding-stop machine is provided with a sleeve part, and a pressing part of the flexible belt body is disposed on the sleeve part. The bleeding-stop machine can move freely around the pressing part, and the pad body is disposed at one end of a flexible belt body connection part. The flexible belt body winds around skin of the wounded and is positioned at an appropriate position through a connection part. A user adjusts the position of the bleeding-stop machine to the wound by observing the pressing part of the flexible belt body. The bleeding-stop machine is pressurized, and thereby the finger pressure member presses against the wound, stopping the bleeding. With the support of the pad body, the wounded can have quite a good sense of comfort.
Description
Technical field
This utility model relates to a kind of hemostasis device, thereby relates in particular to a kind of function that alleviates patient's discomfort and keep hemostasis device by improving its finger pressure member, and can adjust movably the hemostasis device of haemostat pressing position.
Background technology
When health has wound or undergos surgery, all can therefore bleed, the method for using for the minimizing blood loss is called hemostasis.Hemostasis commonly used is respectively: hemostasis with tourniquet, affected part are raised hemostasis and direct weighting hemostasis, and these are hemostasiss that common people can use in daily life; Wherein the direct weighting hemostasis is the easiest the most frequently used in daily life hemostasis mode, it is by covering gauze the wound and can stopping blooding to the wound pressurization, during pressurization according to the size of blood vessel, pressurize and cooperate with " four fingers " or " palm " and raise injured limbs, make the injury be higher than the effect that heart reaches hemostasis.
Hemostasis with tourniquet is mainly used in larger arteries and breaks, and just adopts when of no avail with other Hemostasis.When using tourniquet, should tie up above the extremity bleeding wounds (take the energy staunch blood as main), will suffer from advance limb and raise several minutes, the upper towel of local pad or other soft tissue thing abrade with preventing tissue.Because with behind the tourniquet, the tissue blood supply discontinuity of below, ligation position of long duration easily causes tissue ischemia, necrosis, so it is unsuitable long to tie up the time of tourniquet, should loosen once every 30 minutes, and each approximately half point to a minute is so that blood circulation.For this reason, should there be clear and definite labelling in the place of all use tourniquets, indicates and ties up the tourniquet time, so that transhipment, recruiting unit is with reference to this labelling ability tourniquet released, and work necessity is processed.
Yet, when arteriorrhexis, traditional tourniquet can't be fixed and dress and the performance anastalsis, still need with the sand pocket Pressur hemostatic, the healthcare givers was pressed on the wound direct weighting 8 hours with sand pocket, and the wounded then needed to lie low 6-8 hour for this, because the limbs during arbitrarily bending is pressurizeed, patient almost can't move, inconvenience very and uncomfortable, and environment is subject to processing discarded puzzlement of polluting sand pocket.
The utility model content
The purpose of this utility model is to provide a kind of hemostasis device, and its fastening power and haemostat by flexible belt body pressurizes to the wound, reaches the effect of wound hemostasis.
Another purpose of the present utility model is to provide a kind of hemostasis device, the pressing part of described flexible belt body can be transparent or semitransparent shape, the effective analgesia sense of pad, easily observe with the position of adjusting haemostat and be located at the wound, reach good haemostatic effect, reduce simultaneously the uncomfortable of sufferer and reduce other complication.
Can realize above-mentioned utility model purpose hemostasis device, comprise:
Flexible belt body, it is to make by being transparent or semitransparent flexible and extendable material, and described both sides are provided with the connecting portion of mutual correspondence, and is formed with pressing part between the connecting portion of correspondence;
Haemostat, it is to be made by hard material, and is provided with the finger pressure member that soft material is made at the haemostat apical margin, is provided with sleeve through part along haemostat longitudinal center place, the pressing part of flexible belt body is arranged on the sleeve through part, so that haemostat can be freely movable on pressing part;
Pad, it is to be made by soft material, is arranged at flexible belt body connecting portion one end.
Thus, flexible belt body is surrounded on the wounded's the limbs, by connecting portion flexible belt body is positioned the appropriate location, the pressing part adjustment haemostat that user is observed flexible belt body is positioned on the wound, to haemostat pressurization and then make the finger pressure member be pressed in the effect that reaches hemostasis on the wound, and support by pad and to make the wounded that better comfort be arranged.
Description of drawings

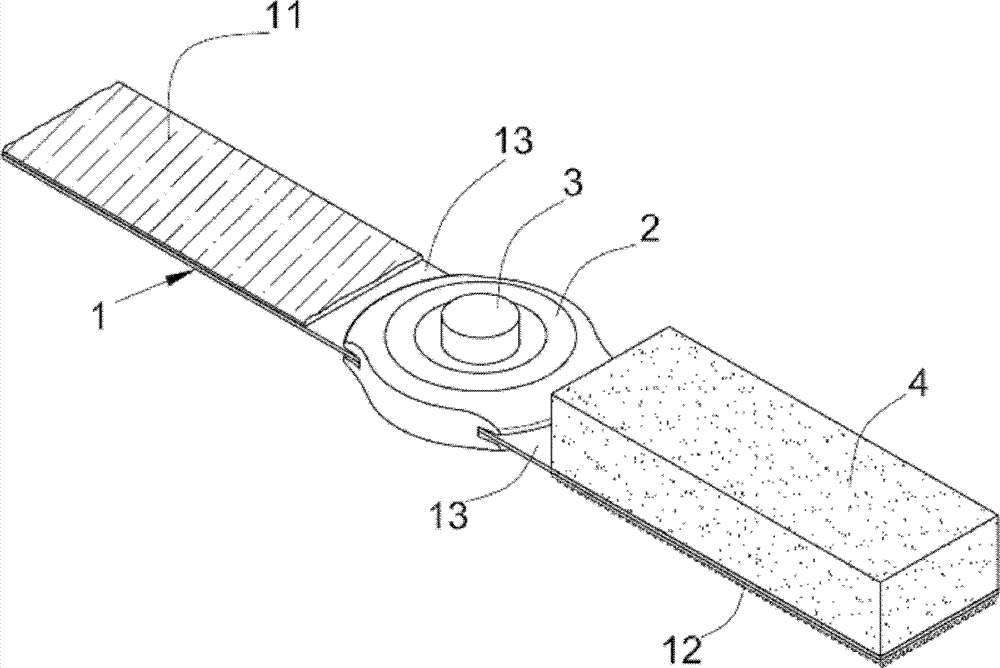

Fig. 1 is the axonometric chart of this utility model the first preferred embodiment;
Fig. 2 is another visual angle axonometric chart of Fig. 1;
Fig. 3 is the side view of Fig. 1;
Fig. 3 A is the part sectioned view of Fig. 3 haemostat;
Fig. 4 is the use schematic diagram of the first preferred embodiment, illustrates that connector is linking tape;
Fig. 5 is the use schematic diagram of the first preferred embodiment, illustrates that connector is rivet fastener;
Fig. 6 is the axonometric chart of this utility model the second preferred embodiment;
Fig. 7 is another visual angle axonometric chart of Fig. 6;
Fig. 8 is the side view that at least one surface of pad is formed with the comfortableness curved surface;
Fig. 9 is the side view that at least one surface of pad is formed with sag and swell;
Figure 10 is the generalized section that described pad is formed with many air-vents;
Figure 11 is the generalized section that described pad is formed with many air-vents;
Figure 12 is the generalized section that described pad is formed with many air-vents
Figure 13 is the combination schematic diagram, and big up and small down step-like of wherein said finger pressure member is formed with the combination bore of the assembled portion of corresponding described finger pressure member on the described haemostat;
Figure 14 is the decomposing schematic representation of described finger pressure member and haemostat;
Figure 15 is the schematic diagram that pad is changed by the combination section.
Description of reference numerals
1: flexible belt body 11,12: connecting portion
13: pressing part 2: haemostat
21: sleeve through part 22: combination bore
3: finger pressure member 31: assembled portion
4: pad 41: combination section
42: air-vent
The specific embodiment
Please refer to Fig. 1 to Fig. 3, hemostasis device provided by the utility model mainly comprises: flexible belt body 1, haemostat 2 and pad 4, it is applied to radial artery, femoral artery, cardiac catheter coronary artery and washes kidney
The Pressur hemostatic of the wounds such as pipe puncture zone.
Described flexible belt body 1 is to be made by the flexible and extendable material (such as silica gel or polymeric material) or the gas permeable material that are the transparency (as for transparent or semitransparent) of predetermined length, wound site or hemostasis state that it is observable the wounded that user sees through flexible belt body 1, described flexible belt body 1 left and right sides is provided with the connecting portion 11 of mutual correspondence, 12, described connecting portion 11,12 can use as shown in Figure 4 linking tape and the parts such as rivet fastener as shown in Figure 5 that flexible belt body 1 both sides are interconnected, and at mutually corresponding connecting portion 11, be formed with pressing part 13 between 12.
Described haemostat 2 is to be made by hard material, and its axial upper edge is provided with the finger pressure member 3 that soft material is made.When user pressurizeed to haemostat 2, finger pressure member 3 was used for the compressing wound.Please refer to Fig. 3 A, be provided with sleeve through part 22 along haemostat 2 longitudinal center place, the pressing part 13 of flexible belt body 1 is arranged on the sleeve through part, make haemostat 2 freely activity on pressing part 13, it is worth mentioning that because haemostat 2 can be freely movable on pressing part 13, so thereby user is observed wound and then pressurization that the position of flexible belt body 1 adjustment finger pressure member 3 is positioned at the wounded, this can more effective realization hemostasia effect.
Described pad 4 is to be made by the flexible ventilating material, and it is arranged at flexible belt body 1 connecting portion 11,12 any ends, for the wounded's in spite of wound mouth appendage body provides support, and then makes the wounded that better comfort be arranged; Furthermore, the materials such as described flexible ventilating material such as flexible foamed body, natural emulsion, middle-high density foam, flexiplast body, and, available flexible ventilating material internal structure is the pore shape or bee slot shape can be ventilated, the plane colloid of its fiber surface can dispel the heat, limbs are discharged steam when the wounded lies low, can steam be pushed toward pad 4 internal layers because of the heat transfer principle, and then the cold and hot air in the pad 4 is circulated, so when the wounded's injured limb is supported on the pad 4, the uncomfortable situations such as sultry can not occur.
Thus, flexible belt body 1 is surrounded on the wounded's the injured limb, by connecting portion 11,12 flexible belt body 1 is positioned the appropriate location, the pressing part 13 adjustment haemostat 2 that user is observed flexible belt body 1 are positioned on the wound, to haemostat 2 pressurization and then make finger pressure member 3 be pressed in the effect that the wound reaches hemostasis, and make the wounded that better comfort be arranged by the support of pad 4.
Next above-mentioned each parts and the assembling mode thereof of having introduced the hemostasis device of the preferred embodiment that this utility model provides introduce its handling characteristics again.
Please refer to Fig. 4 and Fig. 5, at first, the appearance of described flexible belt body 1 is curved, comparatively convenient when mounted, utilize the connecting portion 11 of flexible belt body 1,12 with this utility model be looped around need constraint limbs (such as arm, thigh, shank etc.) or on the suitable position, because haemostat 2 can be freely movable on pressing part 13, therefore, the pressing part 13 adjustment haemostat 2 that user is observed flexible belt body 1 are positioned on the wound, and to haemostat 2 pressurization and then make finger pressure member 3 be pressed in the effect that the wound reaches hemostasis, can not produce the wounded's limbs has the obstructed phenomenon of blood flow, and makes the wounded that better comfort be arranged by the support of pad 4.The profile of described finger pressure member can be the shapes such as rectangle, ellipse also, as long as can provide the wound hemostasis function all can use except circle as shown in the figure; In addition, the wound can be raised and be positioned at the position that is higher than heart, this can realize better hemostasia effect.
Fig. 6 is to Figure 7 shows that another preferred embodiment of the present utility model, and described pad 4 at least one surfaces are formed with arcuation, and described pad 4 with arcuation surface provides the fixedly position of haemostat, thereby prevents the haemostat displacement; As shown in Figure 8, described pad 4 at least one surfaces are formed with comfortableness curved surface (comfort curve) shape, when fixed limb, support described comfortableness curve form by pad 4 and provide better comfort level for the wounded places limbs.
As shown in Figure 9, described pad 4 at least one surfaces are formed with sag and swell (concave-convex structure), and described pad 4 with sag and swell surface provides breathability for limbs.And for example Figure 10 is to shown in Figure 12, and described pad 4 is formed with many air-vents 42 (air vent), and described pad 4 with air-vent 42 provides breathability for limbs.
Position or wound size according to the human body wound, the mode that described finger pressure member 3 can be designed to assemble is fixed on the haemostat 2, as shown in figure 13, big up and small down step-like of described finger pressure member 3, described finger pressure member 3 forms assembled portion 31 with haemostat 2 combination parts, is formed with in addition the combination bore 22 of corresponding described assembled portion 31 on the haemostat 2.As shown in figure 14, the assembled portion 31 of described finger pressure member 3 also can lengthen, and when finger pressure member 3 was arranged in the combination bore 22 of haemostat 2, its size for compression strength provided adjustment.When finger pressure member 3 protrudes haemostat 2 length than long time, its strength that stresses on the wound is larger; As protruding haemostat 2 length more in short-term when finger pressure member 3, its strength that stresses on the wound is less.
Please refer to Figure 15, hemostasis device of the present utility model is when hemostasis, blood can be infected with described pad 4 unavoidably, consider in the situation of health, between described flexible belt body 1 and the pad 4 and then comprise combination section 41, make up with parts such as being used for connecting portion 11,12 linking tape or rivet fastener described combination section 41, when pad 4 is subjected to blood contamination, user utilizes combination section 41 to change pad 4, except reaching hygienic requirements, reusable this utility model of while, thus save cost payout and meet economic benefit.
The use hemostasis device when stopping blooding peripheral nerve paralysis can occur and blood flow is obstructed even the danger of limb necrosis, pays particular attention to following item during use:
1, hemostasis device lies in wound upper end, can not tension, and also can not be excessively loose;
2, annotate on the wounded's forehead with " T " visible marking, will fill out bright hemostasis device service time on the wounded's label, note at any time for nursing, first-aid personnel and other people;
3, expose hemostasis device, can not cover any object or wrapping thereon, in order to avoid other rescuer ignores the existence of hemostasis device;
4, enjoin the escort, when meeting medical personnel, informed hemostasis device.
Hemostasis device provided by the utility model when mutually comparing with other prior art, has more following advantage:
1, the fastening power of the design of flexible belt body and connecting portion can apply rapidly described device in the wound, avoids the patient to bleed in a large number or misses rescue opportunity.
2, the human engineering of haemostat design for nursing, first-aid personnel and other people provide convenient pressurization to the wound, realizes the effect of wound hemostasis, and the situation that can not cause blood flow to have some setbacks.
3, the pressing part of flexible belt body can be transparent or semitransparent shape, and the position of adjusting haemostat is positioned on the wound, reaches good haemostatic effect.
4, the design of pad for the wounded's limbs provide support, and then makes the wounded that better comfort be arranged.
5, processing ease can be the wounded's hemostasis at any time when meeting accident, hold the prime time of first aid.
6, the design of finger pressure member, the personnel that can conveniently apply avoid oppressing other blood vessel or tremulous pulse to the petechia direct weighting, produce the problems such as paralysis, stasis of blood green grass or young crops and swelling.
7, the removable design of pad, except reaching hygienic requirements, reusable this utility model also, thus save cost payout and meet economic benefit.
Above explanation is just illustrative for this utility model; and nonrestrictive, those of ordinary skills understand, in the situation that does not break away from the spirit and scope that claim limits; can carry out many modifications, variation or alternative, but all will fall within the protection domain of the present utility model.
Claims (7)
1. hemostasis device reaches the effect of hemostasis in order to interim wrapping the wounded's wound, it is characterized in that, described hemostasis device comprises:
Flexible belt body, it is to make by being transparent or semitransparent flexible and extendable material, and described both sides are provided with the connecting portion of mutual correspondence, and is formed with pressing part between the connecting portion of correspondence;
Haemostat, it is to be made by hard material, and is provided with the finger pressure member that soft material is made at the apical margin of haemostat, is provided with sleeve through part along haemostat longitudinal center place, and the pressing part of flexible belt body is worn thereon, haemostat can freely be active in pressing part;
Pad, it is to be made by soft material, is arranged at flexible belt body connecting portion one end.
2. a kind of hemostasis device as claimed in claim 1 is characterized in that at least one surface of described pad forms arcuation, and described pad with arcuation surface is provided for the fixedly position of haemostat, prevents the haemostat displacement.
3. a kind of hemostasis device as claimed in claim 2 is characterized in that at least one surface of described pad is formed with curve form, and when by the pad fixed limb, described curve form increases the limbs comfort level.
4. a kind of hemostasis device as claimed in claim 1 is characterized in that at least one surface of described pad is formed with sag and swell, and described pad with sag and swell surface provides breathability for limbs.
5. a kind of hemostasis device as claimed in claim 1 is characterized in that described pad is formed with many air-vents, and described pad with air-vent provides breathability for limbs.
6. a kind of hemostasis device as claimed in claim 1 is characterized in that big up and small down step-like of described finger pressure member, and described finger pressure member and haemostat combination part form assembled portion, are formed with in addition the combination bore of corresponding described assembled portion on the haemostat.
7. a kind of hemostasis device as claimed in claim 1 is characterized in that between described flexible belt body and the pad and then comprises the combination section, changes pad by described combination section.
