Abstract
本实用新型涉及一种水培装置，尤其是涉及一种装配式水培槽。一种装配式水培槽，包括底板，其特征在于所述的底板上架设有多根支架杆构成水培槽体，所述的水培槽体外层敷设有园艺地布，所述的水培槽体上方架设有盖板，所述的盖板上开设有若干个种植孔。本实用新型具有能够实现大规模水培植物、结构简单、种植效率高、拆装方便、成本较低等特点。
The utility model relates to a hydroponic device, in particular to an assembled hydroponic tank. An assembled hydroponic tank, comprising a bottom plate, characterized in that a plurality of support rods are erected on the bottom plate to form a hydroponic tank body, the outer layer of the hydroponic tank is covered with gardening ground cloth, and the hydroponic tank A cover plate is erected above the tank body, and several planting holes are opened on the cover plate. The utility model has the characteristics of being able to realize large-scale hydroponic plants, simple structure, high planting efficiency, convenient disassembly and assembly, and low cost.
Description
Technical field
The utility model relates to a kind of hydroponic device, especially relates to a kind of assembled water planting groove.
Background technology
As everyone knows, increasing plants and flowers selects the water planting mode to plant, hydroponic device is the production facility that is used for hydroponic plant of commonly using, solution culture facilities in the market adopts special mixing cement structure mostly, can not move after the construction, performance construction cost is high, and is lower to the land utilization rate in greenhouse, and the water conservation heat insulating ability is relatively poor.In addition, the water planting flower case that also has in the market utilizes the plastic box transformation of the way to form, and cost is higher, easily aging, the planting plants survival rate is also lower, and can't realize the function of extensive hydroponic plant, plantation efficient is not high, and most of water plantings flower casees can't dismounting, carrying inconvenience.
Summary of the invention
The utility model mainly is for the existing above-mentioned technical problem of prior art, provides a kind of and can realize extensive hydroponic plant, simple in structure, high, the easy accessibility of plantation efficient, lower-cost assembled water planting groove.
Above-mentioned technical problem of the present utility model is mainly solved by following technical proposals: a kind of assembled water planting groove, comprise base plate, it is characterized in that described base plate is added is provided with many cradling pieces and consists of the water planting cell bodies, described water planting cell body skin is laid with gardening ground cloth, cover plate has been set up in described water planting cell body top, offers several implantation hole on the described cover plate.Be assembled into the water planting cell body by many coating steel pipes, its easy accessibility, simple in structure; Water filling in the water planting cell body, hydroponic plant carries out water planting by the implantation hole of offering on the cover plate,, plantation efficient is high.
As preferably, described water planting cell body is provided with several and is with reeded steel pipe, is provided with in the described groove for the fixing curved spring of gardening ground cloth.Tighten gardening ground cloth by curved spring, gardening ground cloth is laid in around the cell body, play waterproof thermal-insulated effect.
As preferably, described cradling piece is coating steel pipe.Intensity is high, long service life.
As preferably, described cover plate is extruded sheet.Manufacturing cost is relatively cheap, and makes easy.
As preferably, the height of described water planting cell body is 20cm-50cm; The width of described water planting cell body is 30cm-100cm.
Therefore, the utlity model has and to realize the characteristics such as extensive hydroponic plant, simple in structure, high, the easy accessibility of plantation efficient, cost are lower.
Description of drawings

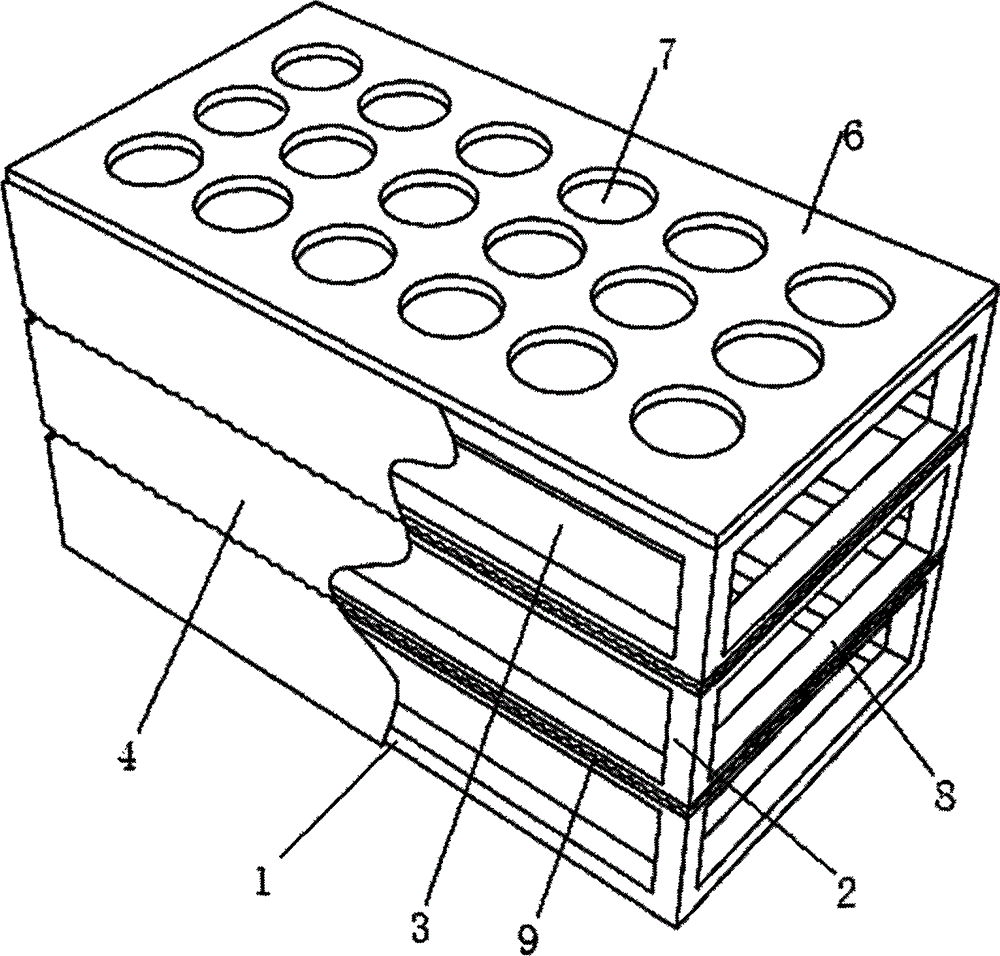

Accompanying drawing 1 is a kind of structural representation of the present utility model.
Embodiment
Below by embodiment, and by reference to the accompanying drawings, the technical solution of the utility model is described in further detail.
Embodiment 1:
Shown in Figure of description 1, a kind of assembled water planting groove comprises base plate 1, the base plate 1 added many cradling pieces 2 that are provided with consist of water planting cell body 3, water planting cell body skin is laid with gardening ground cloth 4, and cover plate 6 has been set up in water planting cell body top, offers several implantation hole 7 on the cover plate.The water planting cell body is provided with several and is with reeded steel pipe 8, is provided with in the groove for the fixing curved spring 9 of gardening ground cloth.Cradling piece 2 is coating steel pipe.Cover plate 6 is extruded sheet.The height of water planting cell body 3 is 20cm-50cm; The width of water planting cell body is 30cm-100cm.
Be assembled into the water planting cell body by many coating steel pipes, its easy accessibility, simple in structure; Water filling in the water planting cell body, hydroponic plant carries out water planting by the implantation hole of offering on the cover plate,, plantation efficient is high.Tighten gardening ground cloth by curved spring, gardening ground cloth is laid in around the cell body, play waterproof thermal-insulated effect.
Should be understood that this embodiment only is used for explanation the utility model and is not used in the scope of the present utility model that limits.Should be understood that in addition those skilled in the art can make various changes or modifications the utility model after the content of having read the utility model instruction, these equivalent form of values fall within the application's appended claims limited range equally.
Claims (5)
1. assembled water planting groove, comprise base plate (1), it is characterized in that the added many cradling pieces (2) that are provided with of described base plate (1) consist of water planting cell body (3), described water planting cell body skin is laid with gardening ground cloth (4), cover plate (6) has been set up in described water planting cell body top, offers several implantation hole (7) on the described cover plate.
2. assembled water planting groove according to claim 1 is characterized in that described water planting cell body is provided with several and is with reeded steel pipe (8), is provided with in the described groove for the fixing curved spring (9) of gardening ground cloth.
3. assembled water planting groove according to claim 1 and 2 is characterized in that described cradling piece (2) is coating steel pipe.
4. assembled water planting groove according to claim 1 and 2 is characterized in that described cover plate (6) is extruded sheet.
5. assembled water planting groove according to claim 1 and 2, the height that it is characterized in that described water planting cell body (3) is 20cm-50cm; The width of described water planting cell body is 30cm-100cm.
