本实用新型涉及一种连板螺丝松动器,它是由固定器和松动器组成的,所述的固定器包括有机轮扳子和卡环,机轮扳子的前端设置有调节孔,卡环通过调节孔与机轮扳子活动连接;所述的松动器包括有机轮扳子,机轮扳子的尾端设置有孔,孔上连接有绝缘绳。本实用新型可把卡环固定在导线压接管上,卡环位置可根据所需长度随意调整,安装后,既可打开锈死的螺丝,减小了打开锈死螺丝的难度,减小体力消耗,最大限度提高工作效率。

Figure 201220354894

The utility model relates to a connecting plate screw loosener, which is composed of a fixer and a loosener. The fixer includes a wheel wrench and a snap ring. The front end of the wheel wrench is provided with an adjustment hole, and the snap ring is adjusted The hole is movably connected with the wheel wrench; the loosener includes a wheel wrench, the tail end of the wheel wrench is provided with a hole, and an insulating rope is connected to the hole. The utility model can fix the snap ring on the wire crimping tube, and the position of the snap ring can be adjusted according to the required length. After installation, the rusted screw can be opened, which reduces the difficulty of opening the rusted screw and reduces physical exertion. , to maximize work efficiency.

Figure 201220354894

Description

连板螺丝松动器Connecting plate screw loosener

技术领域 technical field

本实用新型涉及一种在带电断接引作业中针对锈死的连板螺丝所使用的连板螺丝松动器。 The utility model relates to a connecting plate screw loosener used for rusted connecting plate screws in live disconnection and leading operation.

背景技术 Background technique

现有技术中,对于锈死的连板螺丝,没有较好的工具能够将其取下。 In the prior art, there is no better tool to remove the rusted connecting plate screws.

实用新型内容 Utility model content

本实用新型要解决的技术问题是提供一种连板螺丝松动器,该松动器是打开锈死的联板螺丝的作业用具。 The technical problem to be solved by the utility model is to provide a connecting plate screw loosener, which is an operating tool for opening rusted connecting plate screws.

为了解决现有技术存在的问题,本实用新型采用的技术方案是: In order to solve the problems existing in the prior art, the technical solution adopted by the utility model is:

连板螺丝松动器,是由固定器和松动器组成的,所述的固定器包括有机轮扳子和卡环,机轮扳子的前端设置有调节孔,卡环通过调节孔与机轮扳子活动连接;所述的松动器为机轮扳子,机轮扳子的尾端设置有孔,孔上连接有绝缘绳。 The connecting plate screw loosener is composed of a fixer and a loosener. The fixer includes a wheel wrench and a snap ring. The front end of the wheel wrench is provided with an adjustment hole, and the snap ring is movably connected with the wheel wrench through the adjustment hole. ; The loosener is a wheel wrench, the tail end of the wheel wrench is provided with a hole, and an insulating rope is connected to the hole.

所述的卡环包括有固定环与活动环,固定环与活动环的一端通过轴活动连接在一起,固定环与活动环的另一端通过螺栓活动连接在一起。 The snap ring includes a fixed ring and a movable ring, one end of the fixed ring and the movable ring are movably connected together through a shaft, and the other ends of the fixed ring and the movable ring are movably connected together through bolts.

本实用新型所具有的优点与效果是: The advantages and effects that the utility model has are:

本实用新型连板螺丝松动器由于具有如下结构:由固定器和松动器组成,所述的固定器包括有机轮扳子和卡环,机轮扳子的前端设置有调节孔,卡环通过调节孔与机轮扳子活动连接;所述的松动器包括有机轮扳子,机轮扳子的尾端设置有孔,孔上连接有绝缘绳,因此,可把卡环固定在导线压接管上,卡环位置可根据所需长度随意调整,安装后,既可打开锈死的螺丝,减小了打开锈死螺丝的难度,减小体力消耗,最大限度提高工作效率。 The utility model connecting plate screw loosener has the following structure: it is composed of a fixator and a loosener, the fixer includes an organic wheel wrench and a snap ring, the front end of the wheel wrench is provided with an adjustment hole, and the snap ring passes through the adjustment hole and The machine wheel wrench is movably connected; the loosener includes a machine wheel wrench, the tail end of the machine wheel wrench is provided with a hole, and an insulating rope is connected on the hole, so the snap ring can be fixed on the wire crimping tube, and the position of the snap ring can be adjusted. According to the required length, it can be adjusted at will. After installation, the rusted screw can be opened, which reduces the difficulty of opening the rusted screw, reduces physical exertion, and maximizes work efficiency.

附图说明 Description of drawings

图1为本实用新型中的固定器的结构示意图; Fig. 1 is the structural representation of fixator in the utility model;

图2为本实用新型中的松动器的结构示意图; Fig. 2 is the structural representation of loosener in the utility model;

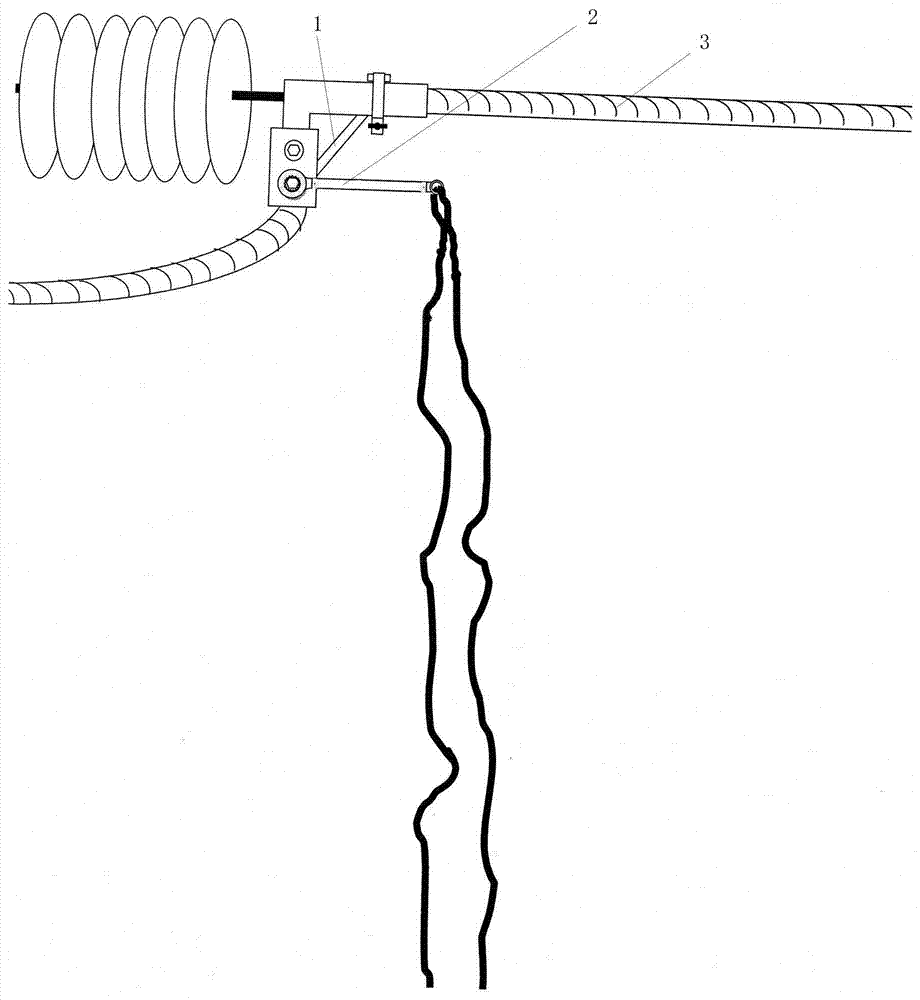

图3为本实用新型使用状态示意图。 Fig. 3 is a schematic view of the utility model in use.

图中:固定器1、松动器2、机轮扳子11、卡环12、调节孔13、螺栓14、机轮扳子21、孔22、绝缘绳23、固定环121、活动环122、轴123、轴124、螺栓125、导线压接管3。 Among the figure: retainer 1, loosener 2, wheel wrench 11, snap ring 12, adjustment hole 13, bolt 14, wheel wrench 21, hole 22, insulating rope 23, fixed ring 121, movable ring 122, shaft 123, Shaft 124, bolt 125, wire crimping tube 3.

具体实施方式 Detailed ways

下面结合附图对本实用新型作进一步详述: Below in conjunction with accompanying drawing, the utility model is described in further detail:

如图1-3所示,本实用新型连板螺丝松动器,是由固定器1和松动器2组成的,需要固定器1和松动器2配合使用。所述的固定器1包括有机轮扳子11和卡环12,机轮扳子11的前端设置有若干个调节孔13,卡环12通过螺栓14和调节孔13与机轮扳子11连接在一起;所述的卡环12包括有固定环121与活动环122,固定环121与活动环122的一端通过轴123活动连接在一起,固定环121与活动环122的另一端通过螺栓125活动连接在一起。 As shown in Figure 1-3, the utility model connecting plate screw loosener is composed of a fixer 1 and a looser 2, and the fixer 1 and the looser 2 need to be used together. The fixer 1 includes a wheel wrench 11 and a snap ring 12, the front end of the wheel wrench 11 is provided with several adjustment holes 13, and the snap ring 12 is connected with the wheel wrench 11 through bolts 14 and adjustment holes 13; The snap ring 12 described above includes a fixed ring 121 and a movable ring 122 , one end of the fixed ring 121 and the movable ring 122 are movably connected together by a shaft 123 , and the other ends of the fixed ring 121 and the movable ring 122 are movably connected together by a bolt 125 .

所述的松动器2包括有机轮扳子21,机轮扳子21的尾端设置有孔22,孔22上连接有绝缘绳23。 The loosener 2 includes a wheel wrench 21, the tail end of the wheel wrench 21 is provided with a hole 22, and an insulating rope 23 is connected to the hole 22.

本实用新型的使用方法如下: The using method of the present utility model is as follows:

等电位人员将固定器1上的卡环12固定在导线压接管3上,将固定器1上的机轮扳子11固定在连板螺丝的一端,卡环位置可根据所需长度随意调整,用松动器2上的机轮扳子21卡紧连板螺丝后直接操作或借助绝缘绳23完成工作要求。 The equipotential personnel fix the snap ring 12 on the fixer 1 on the wire crimping tube 3, and fix the wheel wrench 11 on the fixer 1 to one end of the connecting plate screw. The position of the snap ring can be adjusted according to the required length. Wheel wrench 21 on the loosener 2 clamps the connecting plate screw and directly operates or completes the work requirement by means of insulating rope 23.
