The utility model discloses couple bicycles, comprising a bicycle A and a bicycle B. According to the utility model, a recession and a bulge capable of being engaged are added on the mutually close handlebars of the bicycle A and the bicycle B respectively; and a connection bar capable of being in hard connection with the bicycle B is added on the rear fork of the bicycle A, one end of the connection bar is connected with the bicycle A, and the other end of the connection bar can be buckled with the rear fork of the bicycle B via a buckling lock. When the couple bicycles are ridden in parallel, the front wheel of the bicycle B with the bulge is suspended, the running direction is mastered by the bicycle A, and a power can be applied by the two bicycles simultaneously. The couple bicycles are free in disassembly and assembly, and increased in riding pleasure.

Description

Lovers' bicycle
Technical field
The utility model relates to technical field of bicycles, relates in particular to a kind of lovers' bicycle.
Background technology
Bicycle is still people's a kind of vehicle and transportation means not, but also can be used as the amusement and recreation instrument.In order to increase the amusement and recreation atmosphere between the lovers in the cycling process, many researchers make great efforts to attempt to develop can the double bicycle that uses simultaneously side by side.For example " a kind of novel four-wheel lovers bicycle (Granted publication CN201842186U) " proposed the quadricycle structure in order to realize parallel purpose of riding, and uses separately but this quadricycle can't be separated into two two-wheeled cycles." leisure lovers' bicycles (Granted publication CN201245207Y) ", have only been considered " the parallel setting " although be to the improvement of two ordinary bicycles, lack often separation and consolidation problem in two cyclings of consideration.And " compound type lovers bicycle (Granted publication CN2649465Y) " anabolic process need be fixed 7 attaching partss at least, and " can accomplish in 10 minutes " still shows numerous and diverse.
Summary of the invention
The utility model proposes a kind of lovers' bicycle to problems such as existing lovers' bicycle structure complicacy and inconvenient installation.This lovers' bicycle is made up of two bicycles, can make up easily at any time or separate.
The measure that the utility model is taked is: increase respectively on the handlebar that first bicycle and second bicycle is adjacent to each other can interlock recess and protruding place; The back vent of first bicycle increase by one can with the hardwired pitman of second bicycle, an end of pitman links to each other with the first bicycle, the other end can interlock through the back vent of padlock and second bicycle.When riding jointly side by side, the front-wheel with the second bicycle at protruding place will be grasped direct of travel by the first bicycle, and can apply power simultaneously by two cars by built on stilts.
The beneficial effect of the utility model is: two bicycles can be ridden separately, also can twist together side by side and ride.Dismounting increases the enjoyment of riding freely.
Description of drawings
Below in conjunction with accompanying drawing and embodiment the utility model is done further explanation.

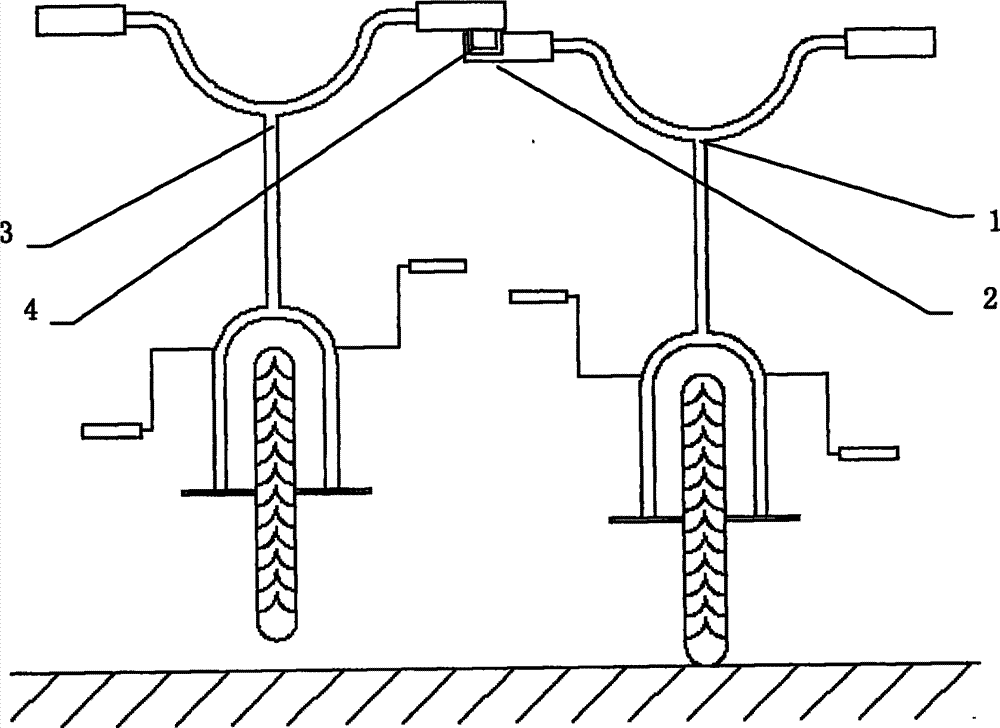

Fig. 1 is the forward sight structural representation of the utility model.
Fig. 2 is the backsight structural representation of the utility model.
Fig. 3 is the side-looking structural representation of the utility model.
Among the figure, 1. first bicycle, 2. recess, 3. second bicycle, 4. protruding place, 5. pitman rotates end, 6. first back fork of bicycle, 7. pitman snap close end, 8. second back fork of bicycle.
The specific embodiment
As shown in the figure; On the handlebar of first bicycle (1), make a recess (2); On the handlebar of second bicycle (3), make a protruding place (4), and pitman rotation end (5) is fixed on the first back fork of bicycle (6), pitman snap close end (7) is preparing with second back fork of bicycle (8) and is linking to each other.
First bicycle and second bicycle can independently use at ordinary times.When needing to ride together side by side, only need the convex-concave place to interlock, put down the pitman snap close end of first bicycle again, and be locked on the second back fork of bicycle and get final product.
Those skilled in the art's simple change and replacement are all within the protection domain of the utility model.

Claims (1)

1. lovers' bicycle comprises first bicycle and second bicycle, it is characterized in that: increase respectively on first bicycle and the second bicycle handlebar adjacent to each other can interlock recess and protruding place.
