Abstract
本实用新型公开了一种可移动型防火电缆，包括数根导体，数根导体外分别包裹有双面合成云母带重叠绕包构成绝缘层，绝缘层外采用耐高温聚酯带重叠绕包构成防潮层，包裹防潮层的数根导体相互绞合构成缆芯，缆芯外绕包有二层高温无机玻璃纤维带构成的绕包层，缆芯与绕包层之间、缆芯中心均布置有无机填充绳构成的填充层，位于缆芯中心的填充层开有通孔，绕包层外侧依次包裹有陶瓷花硅橡胶挤塑成型的内护套层、铝合金带连锁构成铠装层、低烟无卤弹性体材料挤塑成型为外护套层。本实用新型提高电缆的电气绝缘、防火性能，解决了电缆的绝缘线芯或缆芯在生产过程中因无机云母带吸潮而导致绝缘电阻降低的质量问题。
The utility model discloses a movable fireproof cable, which comprises a plurality of conductors, the plurality of conductors are respectively wrapped with double-sided synthetic mica tapes to form an insulating layer, and the insulating layer is formed by overlapping and wrapping high-temperature-resistant polyester tapes Moisture-proof layer, several conductors wrapped in the moisture-proof layer are twisted with each other to form a cable core, and the cable core is wrapped with a wrapping layer composed of two layers of high-temperature inorganic glass fiber tapes. There is a filling layer composed of inorganic filling ropes. The filling layer located in the center of the cable core has a through hole, and the inner sheath layer formed by extruding ceramic flower silicon rubber is wrapped in turn around the outside of the cladding layer, and the aluminum alloy belt is interlocked to form an armor layer. The low-smoke halogen-free elastomer material is extruded as the outer sheath layer. The utility model improves the electrical insulation and fireproof performance of the cable, and solves the quality problem that the insulation resistance of the cable insulation wire core or cable core is reduced due to the moisture absorption of the inorganic mica tape during the production process.
Description
Technical field
The utility model relates to fireproof cable, relates in particular to a kind of movable-type fireproof cable.
Background technology
Along with developing rapidly of Chinese national economy and improving constantly of living standards of the people, the requirement of quickening city special purpose power grid construction is urgent day by day.The people that make that cause fire incident because of cable press for a kind of special cable that can tackle strong fire damage capability of development.For the higher cable use occasion of fire protection requirement; The level of common in the past organic material fire-resisting cable exists tangible incompatibility, so national correlation department such as the Fire-Fighting Bureau under the Ministry of Public Security and other enterprises and institutions put on planning to the high performance fire-resisting cable of development for a long time.
Over nearly 20 years, people have carried out research extensively and profoundly to the fire-retardant and fire resistance of organic insulation or sheath material electric wire, and the fire-retardant and fire-resisting cable product of many superior performances is succeeded in developing in succession.Regrettably, these organic materials more or less still can discharge pernicious gas and produce thick smoke in combustion process, and are difficult to guarantee that some important electric wirings carry out work normally in fire process.In the last few years; Research for the inorganic fire cable obtains significant progress; Inorganic insulation fire resistant cable is the very good safety-type cable of performance; Its fire prevention, explosion-proof, high temperature resistant, aging, initiation fire or propagate kindling material not; And the characteristic of not burning, can not discharge any pernicious gas and smog around under the ignition condition, be specially adapted to that environment is abominable, the extra high place of security requirement or position, especially be applicable to the fire-fighting system circuit that under fire, will guarantee safe power supply.
Exploitation for the inorganic fire cable at present mainly contains two kinds of forms, and a kind of is the fireproof cable of magnesia mineral insulation, and a kind of is the fireproof cable that insulate with inorganic mica tape; Although the former excellent product performance; But because complex process, equipment investment are high, cable cost is high, be difficult in market, extensively promote, the latter has high temperature resistant fire-resistant and mica tape with insulation property as insulating material for adopting multilayer; Replace the magnesia insulating material, play the good insulation electric property equally.Product is because of having the higher metallic sheath of fire resistance; Can guarantee when possessing magnesia mineral insulated cable characteristic; Can also have preferably flexiblely, be particularly suitable for moving the demand in the place that the fire resistance of occasion has relatively high expectations, this kind cable manufacturing process is simple relatively simultaneously; Equipment investment cost and cable production cost are relatively low, have good market prospects.
Based on analyses such as above performance of products, market prospects, the utility model designs with a kind of mobility fireproof cable, can address the above problem effectively.
The utility model content
In order to remedy the deficiency of prior art, the purpose of the utility model provides a kind of movable-type fireproof cable, and reasonable in design has improved fireproofing of cable, fire-resistant, moisture barrier properties comprises greatly, has improved the structural strength of cable.
The technical scheme of the utility model is following:
The movable-type fireproof cable; Comprise several conductors, it is characterized in that: described several conductors are enclosed with the overlapping wrapped formation insulating barrier of two-sided synthetic mica tape outward respectively, and wrapped Duplication is not less than 45%; Insulating barrier adopts the overlapping wrapped formation damp-proof layer of high temperature resistance polyester band outward; Wrapped Duplication scope 20%～36%, the mutual stranded formation cable core of several conductors of parcel damp-proof layer, cable core is surrounded with the lapping layer that two floor height temperature inorganic glass fiber bands constitute outward; Duplication scope 20%～36%; Between cable core and the lapping layer, the cable core center all is furnished with the packed layer that inorganic gasket for packing constitutes, the packed layer that is positioned at the cable core center has through hole, the chain formation armour of inner restrictive coating, aluminum alloy strip, low smoke and zero halogen elastomeric material extrusion moulding that the lapping layer outside is enclosed with pottery flower silicon rubber extrusion moulding successively are external sheath layer.
Described movable-type fireproof cable; It is characterized in that: described several conductors adopt the stranded copper wire conductor of stipulating among the GB/T2953-2008 of multiply (5 types); The stranded copper wire conductor is general adopt in the same way once bundle to close structure or with Shu Hehou as strand, carry out the compound lay configuration of secondary in the same way then.
The beneficial effect of the utility model:
1, adopts the insulating barrier of inorganic synthetic mica tape and resistant to elevated temperatures polyester belt combination; Outside cable core, squeeze simultaneously=wrap in one deck potteryization fire-resistant silicon rubber and protect; When improving the electrical insulation properties of cable, insulated wire cores or the cable core that has solved cable is in process of production owing to change under the situation such as preface time length, humid environment, storage the quality problems that cause the insulation resistance reduction because of the inorganic mica tape moisture absorption.
2, protect new structure with the combination of the chain armouring sheath of aluminium alloy in the potteryization fire-resistant silicon rubber; Fireproofing of cable, grease proofing, anticorrosion, moistureproof fail safe had both been realized; The shielding properties that has good overcurrent proof magnetic disturbance simultaneously, this has in the place of electromagnetic shielding requirement used cable advantage particularly evident again for existing fire prevention conditional request.
3, because cable has adopted inorganic insulation, all-in-one-piece chain metallic sheath structure; Cable does not burn, does not prolong combustion, explosion-proof under the fire condition; Do not produce poisonous, harmful flue gas; Within a certain period of time can operate as normal, be specially adapted to that environment is abominable, the extra high place of security requirement or position, especially be applicable to the fire-fighting system circuit that under fire, will guarantee safe power supply or control system.
Description of drawings

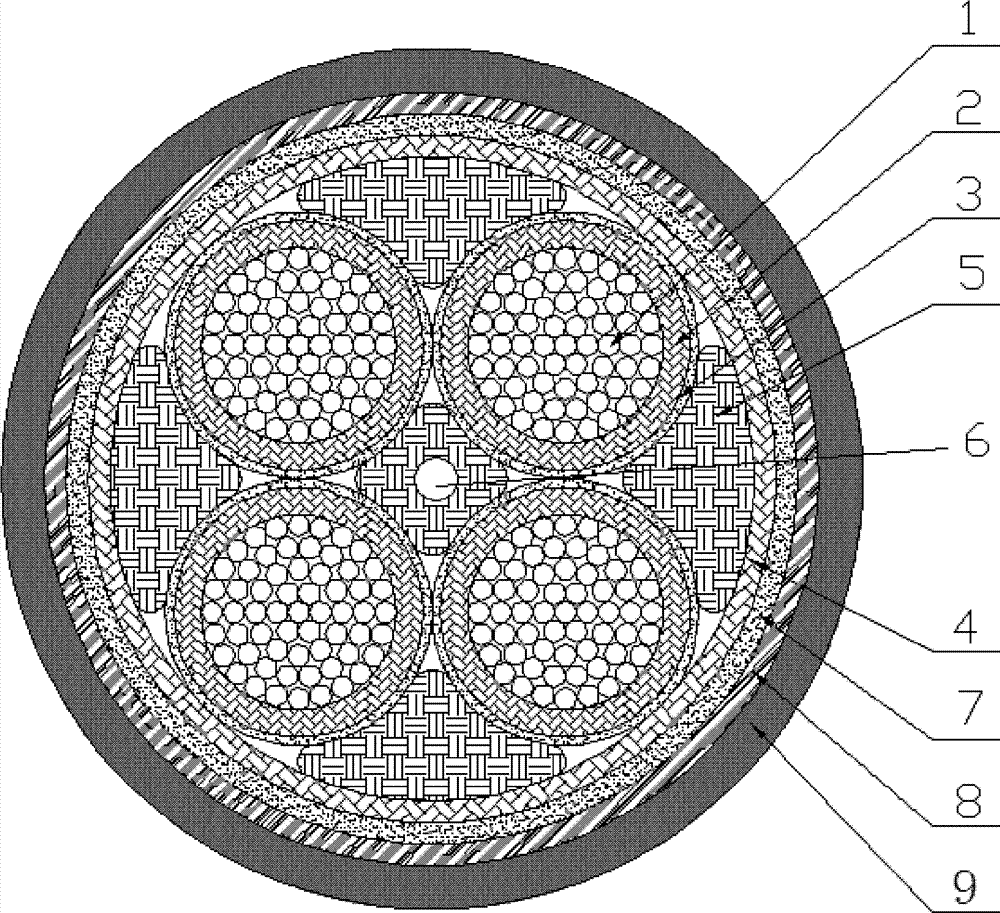

Fig. 1 is the structural representation of the utility model.
Embodiment
The movable-type fireproof cable; Comprise several conductors 1, be enclosed with the overlapping wrapped formation insulating barrier 2 of two-sided synthetic mica tape respectively outside several conductors 1, wrapped Duplication is not less than 45%; The insulating barrier 2 outer overlapping wrapped formation damp-proof layers 3 of high temperature resistance polyester band that adopt; Wrapped Duplication scope 20%～36%, several conductors 1 mutual stranded formation cable core of parcel damp-proof layer 3, cable core is surrounded with the lapping layer 4 that two floor height temperature inorganic glass fiber bands constitute outward; Duplication scope 20%～36%; Between cable core and the lapping layer, the cable core center all is furnished with the packed layer 5 that inorganic gasket for packing constitutes, the packed layer 5 that is positioned at the cable core center has through hole 6, lapping layer 4 outsides are enclosed with the chain formation armour of inner restrictive coating 7, the aluminum alloy strip of pottery flower silicon rubber extrusion moulding 8 successively, low smoke and zero halogen elastomeric material extrusion moulding is an external sheath layer 9.
The structural design of concrete each layer:
1, several conductors: adopt multiply (5 types) stranded conductor of stipulating among the GB/T2953-2008, the multiply conductor is general adopt in the same way once bundle to close structure or with the conductor of Shu Hehou as strand, carry out the compound lay configuration of secondary in the same way then.
2, insulating barrier: two-sided synthetic mica tape is adopted in insulation, and wrapped on conductor, its wrapped number of plies is no less than three layers, and Duplication is controlled at more than 45%, and the insulated wire cores after wrapped should be through the spark test of 10kV.
3, damp-proof layer: adopt high temperature resistance polyester band or similar material, wrapped Duplication is controlled at about 20%～36% outside the mica tape insulation, and the insulation resistance of wrapped back core should be not less than 500 Ω km.
4, stranding: the core after will insulating carries out stranding, and fills inorganic high-temp gasket for packing (like the inorganic glass fiber rope etc.) cable core is filled rounding, its outer wrapped two floor height temperature inorganic glass fiber bands, and Duplication is controlled at about 20%～36%.
5, inner restrictive coating: the cable core behind the stranding extrudes one deck potteryization fire-resistant silicon rubber outward as its sheath.
6, the chain armouring sheath of aluminium alloy: cable adopts the chain armouring technology of aluminum alloy strip, forms the sheathed structure of locking continuously.
7, external sheath layer: to metal (copper) sheath be corrosive can the place; Cable can be according to the requirement of use occasion; Outside cable metal sheath, increase one deck low smoke and zero halogen elastomeric material, but be used for protecting metallic sheath in its environment for use mechanical damage that is not corroded.
Claims (2)
1. movable-type fireproof cable; Comprise several conductors, it is characterized in that: described several conductors are enclosed with the overlapping wrapped formation insulating barrier of two-sided synthetic mica tape outward respectively, and wrapped Duplication is not less than 45%; Insulating barrier adopts the overlapping wrapped formation damp-proof layer of high temperature resistance polyester band outward; Wrapped Duplication scope 20%～36%, the mutual stranded formation cable core of several conductors of parcel damp-proof layer, cable core is surrounded with the lapping layer that two floor height temperature inorganic glass fiber bands constitute outward; Duplication scope 20%～36%; Between cable core and the lapping layer, the cable core center all is furnished with the packed layer that inorganic gasket for packing constitutes, the packed layer that is positioned at the cable core center has through hole, the chain formation armour of inner restrictive coating, aluminum alloy strip, low smoke and zero halogen elastomeric material extrusion moulding that the lapping layer outside is enclosed with pottery flower silicon rubber extrusion moulding successively are external sheath layer.
2. movable-type fireproof cable according to claim 1; It is characterized in that: described several conductors adopt the strands copper wire conductor of stipulating among the GB/T2953-2008; The stranded copper wire conductor is general adopt in the same way once bundle to close structure or with Shu Hehou as strand, carry out the compound lay configuration of secondary in the same way then.
