Abstract
本实用新型公开了一种超耐高温柔性防火电力电缆，包括数根导体，数根导体外分别依次包裹有聚四氟乙烯膜绕包构成的绝缘层、两层煅烧云母带之间设有一层聚醚醚酮树脂带重叠绕包构成的耐火层，绕包重叠率不小于45%，包裹耐火层的数根导体相互绞合成束构成缆芯，缆芯外绕包有煅烧云母带构成的防火层，绕包重叠率不小于55%，防火层外依次包裹有内护套层、外护套层，内护层与外护层之间设有数根腰形的弹性绳。本实用新型采用两层煅烧云母带之间设有一层聚醚醚酮树脂带重叠绕包构成耐火层，缆芯外包裹有防火层，重叠率逐渐增大，提高了电缆的防火、耐火性能，内外护套层之间设有腰形的弹性绳，提高了电缆的结构强度，延长了电缆的使用寿命。
The utility model discloses a super high-temperature-resistant flexible fireproof power cable, which comprises several conductors, and the outer parts of the several conductors are successively wrapped with an insulating layer composed of polytetrafluoroethylene film wrapping, and a layer is arranged between two layers of calcined mica tapes. The refractory layer composed of polyetheretherketone resin tapes is overlapped and wrapped. The overlapping rate of the wrap is not less than 45%. Several conductors wrapped in the refractory layer are twisted into bundles to form a cable core. The overlapping rate of wrapping is not less than 55%. The fireproof layer is wrapped with an inner sheath layer and an outer sheath layer in turn. There are several waist-shaped elastic ropes between the inner sheath layer and the outer sheath layer. The utility model adopts a layer of polyether ether ketone resin tape overlapping and wrapping to form a fire-resistant layer between two layers of calcined mica tapes. There is a waist-shaped elastic rope between the inner and outer sheath layers, which improves the structural strength of the cable and prolongs the service life of the cable.
Description
Technical field:
The utility model relates to lv power cable, relates in particular to a kind of thermostable fire resistant flexible power cable.
Background technology:
Safe fire electricity line is the important development direction of modern safety electric energy drive technology; In recent years; There is very big development in the China that is applied in of various flame resistant cables, low-smoke halogen-free cable, and has obtained good effect, and a large amount of low-smoke bittern-free highly fire-proof electric wires has just been adopted in the construction of Guangzhou Underground passage; We can say that safe fire electricity line has spread all over each mainly the crowd is dense the district.
But above-mentioned said cable; Along with industrial height is rapid; Like the popularization of bullet train, the construction of offshore oil platform; The environment for use of cable is more and more abominable, and fire prevention temperature grade is low, the cable additional materials reaches the restriction of materials used more and can't be used in above-mentioned occasion in a large number because receive for traditional fireproof cable.
For this reason,, designed novel, unique thermostable flexible fire-proof cable, fire resistance rating has been promoted to more than 950 ℃, satisfied the cable fire-proof performance demands simultaneously from structure and technology mode through analysis to the used cable of this type of occasion.
The utility model content:
In order to remedy the deficiency of prior art, the purpose of the utility model provides a kind of thermostable fire resistant flexible power cable, has solved in the high temperature occasion existing cable deadly defect of continuous service for a long time.
The technical scheme of the utility model is following:
Thermostable fire resistant flexible power cable; Comprise several conductors; It is characterized in that: described several conductors are enclosed with the flame retardant coating that is provided with the overlapping wrapped formation of one deck polyether-ether-ketone resin band between the insulating barrier of the wrapped formation of poly tetrafluoroethylene, the two-layer calcining mica tape respectively outward successively, and wrapped Duplication is not less than 45%, and the mutual stranded bunchy of several conductors of parcel flame retardant coating constitutes cable core; Cable core is surrounded with the fireprotection layer that the calcining mica tape constitutes outward; Wrapped Duplication is not less than 55%, and fireprotection layer is enclosed with inner restrictive coating, external sheath layer outward successively, is provided with the elastic threads of several waist shapes between sheath and the outer jacket.
Described thermostable fire resistant flexible power cable is characterized in that: described several conductors adopt the tinned copper wire flexible conductor.
The beneficial effect of the utility model is:
The utility model adopts and is provided with the overlapping wrapped formation flame retardant coating of one deck polyether-ether-ketone resin band between the two-layer calcining mica tape; Cable core is wrapped with fireprotection layer; Duplication increases gradually, has improved fireproofing of cable, fire resistance, is provided with the elastic threads of waist shape between the interior external sheath layer; Improve the structural strength of cable, prolonged the useful life of cable.
Description of drawings:

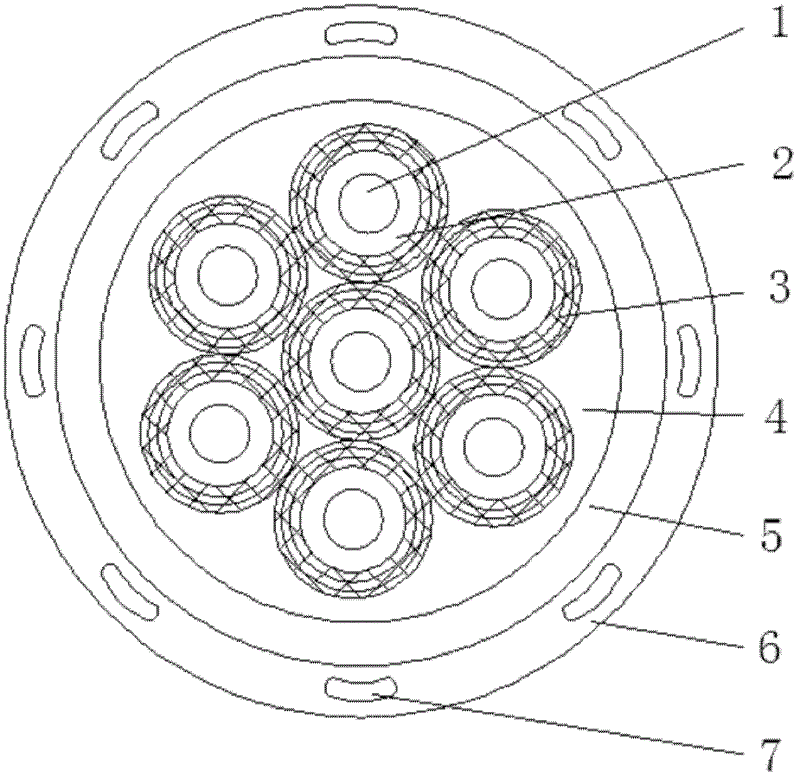

Fig. 1 is the structural representation of the utility model.
Embodiment:
Referring to Fig. 1:
Thermostable fire resistant flexible power cable; Comprise several conductors 1; Be enclosed with the flame retardant coating 3 that is provided with the overlapping wrapped formation of one deck polyether-ether-ketone resin band between the insulating barrier 2 of the wrapped formation of poly tetrafluoroethylene, the two-layer calcining mica tape respectively successively outside several conductors 1, wrapped Duplication is not less than 45%, and several conductors 1 mutual stranded bunchy of parcel flame retardant coating 3 constitutes cable core; Cable core is surrounded with the fireprotection layer 4 that the calcining mica tape constitutes outward; Wrapped Duplication is not less than 55%, is enclosed with inner restrictive coating 5, external sheath layer 6 successively outside the fireprotection layer 4, is provided with the elastic threads 7 of several waist shapes between sheath 5 and the outer jacket 6.
Several conductors 1 adopt the tinned copper wire flexible conductor.
Claims (2)
1. thermostable fire resistant flexible power cable; Comprise several conductors; It is characterized in that: described several conductors are enclosed with the flame retardant coating that is provided with the overlapping wrapped formation of one deck polyether-ether-ketone resin band between the insulating barrier of the wrapped formation of poly tetrafluoroethylene, the two-layer calcining mica tape respectively outward successively, and wrapped Duplication is not less than 45%, and the mutual stranded bunchy of several conductors of parcel flame retardant coating constitutes cable core; Cable core is surrounded with the fireprotection layer that the calcining mica tape constitutes outward; Wrapped Duplication is not less than 55%, and fireprotection layer is enclosed with inner restrictive coating, external sheath layer outward successively, is provided with the elastic threads of several waist shapes between sheath and the outer jacket.
2. thermostable fire resistant flexible power cable according to claim 1 is characterized in that: described several conductors adopt the tinned copper wire flexible conductor.
