Abstract

The utility model discloses an evaporative cooling ventilation air-conditioner window with shutters and utilizing solar energy. The evaporative cooling ventilation air-conditioner window comprises interconnected air-conditioner windows and a solar panel. The structure of the air-conditioner window is as follows: an air intake and an air supply outlet are respectively arranged on opposite side walls at the outside of an air-conditioner window case; the shutters are arranged outside the air intake; and the air-conditioner window case is internally and sequentially provided with a filter screen, an axial flow fan, a direct evaporative cooler and a water fender according to the air intake direction. In the utility model, the solar panel and the direct evaporative cooker are organically combined; the direct evaporative cooking function facilitates the solar energy to be in functional complementation with the filler, fully plays the leading role of the evaporative cooling, at the meantime, relieves the power stress in peak period, and enables the fresh air window to have the advantages of green environment protection, energy conservation, purification and high efficiency.

Description

Have the evaporative cooling air conditioner window that blinds utilizes solar energy
Technical field
The utility model belongs to air conditioner technical field, relates to a kind of air conditioning window, is specifically related to a kind of evaporative cooling air conditioner window that blinds utilizes solar energy that has.
Background technology
Along with the scarcity of fossil energy and the arrival of global energy crisis, increasing regenerative resource receives people's attention and application.At present, the most air-conditioning equipment of China remains the electric energy operation that relies on thermal power plant to provide, and power consumption is bigger in the whole service process.And in some solar energy resourceses abundant area comparatively; People press for a kind of air-conditioning equipment that renewable solar energy is combined with the vaporation cooling refrigeration mode of low energy consumption; Such air-conditioning equipment can not only be realized cooling, humidification, purification, efficient operation to air effectively; And can also reduce power consumption effectively, meet the energy-saving and emission-reduction strategic direction of country more.
Summary of the invention
The purpose of the utility model is to provide a kind of evaporative cooling air conditioner window that blinds utilizes solar energy that has; Solar panel is combined with devaporizer; Make a solar energy and a pouring filler have complementary functions; Not only realize air in the room is carried out the requirement of fast cooling, humidification and purification, but also effectively utilized this renewable resource of solar energy, reduced power consumption.
The technical scheme that the utility model adopted is; Have the evaporative cooling air conditioner window that blinds utilizes solar energy; Comprise the air conditioning window and the solar panel that are connected; The structure of air conditioning window is: be respectively arranged with air inlet and air outlet on the outside relative sidewall of air conditioning window cabinet, the outer setting of air inlet has blinds, and the direction that gets into by air in the air conditioning window cabinet is disposed with screen pack, axial flow blower, direct evaporative cooler and water fender.
The characteristics of the utility model also are,
Wherein the structure of direct evaporative cooler is: the dripping of the downward spray that is provided with by the header tank of filler, filler bottom, filler top drenched a nozzle and formed, and header tank is connected with a pouring nozzle through the low pressure feed pipe, and the low pressure feed pipe is provided with water circulating pump.
Wherein be provided with water filter in the header tank, water filter is connected with a pouring nozzle through the low pressure feed pipe.
The thickness of water fender is 1/3 of depth of packing.
Solar panel is connected with water circulating pump in the direct evaporative cooler through electric wire and axial flow blower.
Compare with the air conditioning window of prior art, the air conditioning window of the utility model has following characteristics:
1) before air inlet, be provided with blinds, but the flexible air output is big or small.
2) utilize the driving force of green energy resource solar energy, practiced thrift electric energy greatly as blower fan in the Evaporative Cooling Air Conditioning and water pump.
3) can realize in summer aeration-cooling to the room can realizing humidification in the winter time to the room.
4) can carry out purified treatment to outdoor new wind, remove pellet and pernicious gas, improve indoor environmental quality.
Description of drawings
Fig. 1 is the structural representation of the utility model evaporative cooling air conditioner window;

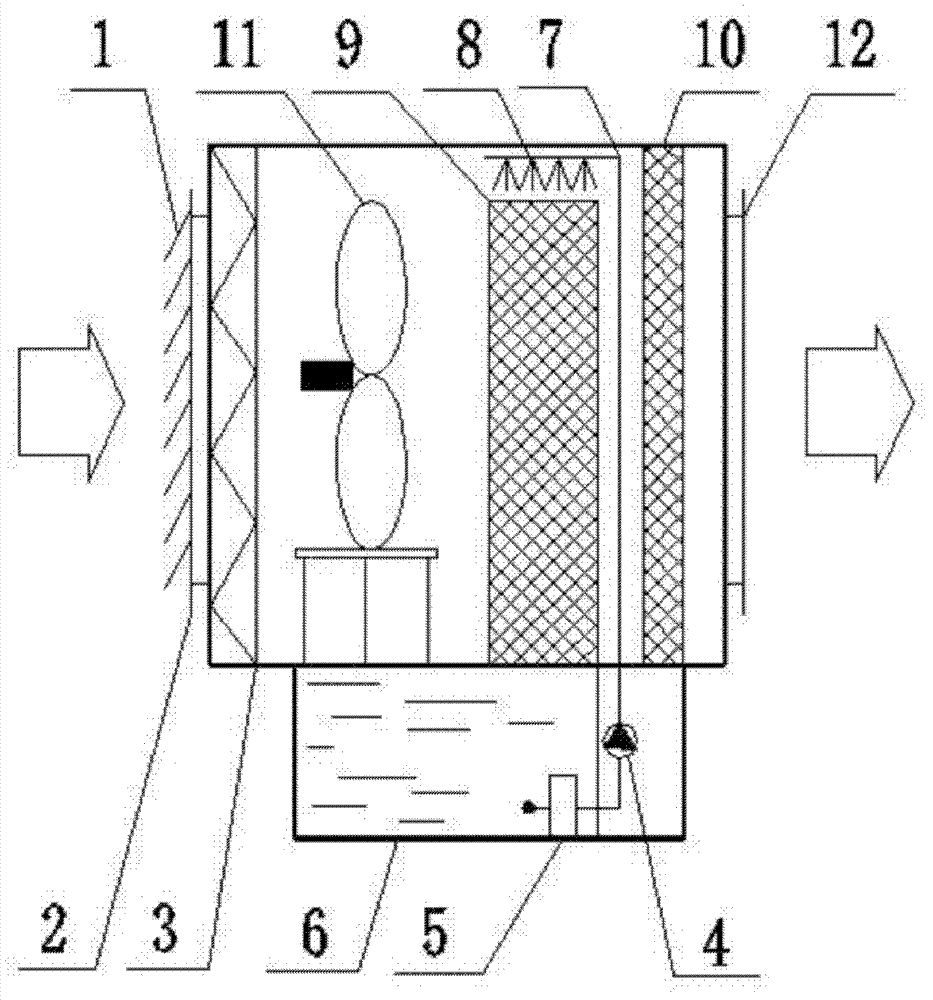

Fig. 2 is the structural representation of direct evaporative cooler in the utility model evaporative cooling air conditioner window.
Wherein: 1. blinds, 2. air inlet, 3. screen pack, 4. water circulating pump, 5. water filter; 6. header tank, 7. low pressure feed pipe 8. droplet drenches nozzle, 9. filler, 10. water fender; 11. axial flow blower, 12. air outlets, 13. direct evaporative coolers, 14. solar panels.
The specific embodiment
Below in conjunction with the accompanying drawing and the specific embodiment the utility model is elaborated.
The utility model has blinds and utilizes the evaporative cooling air conditioner window construction of solar energy as shown in Figure 1; Comprise air conditioning window and solar panel 14; The structure of air conditioning window is as shown in Figure 2: on the outside relative sidewall of air conditioning window cabinet, be respectively arranged with air inlet 2 and air outlet 12; The outer setting of air inlet 2 has blinds 1; The direction that gets into by air in the air conditioning window housing is disposed with screen pack 3, axial flow blower 11 and direct evaporative cooler 13, and the rear portion of direct evaporative cooler 13 is provided with water fender 10.
The structure of direct evaporative cooler 13 is: the dripping of the downward spray that is provided with by the header tank 6 of filler 9, filler 9 bottoms, filler 9 tops drenched a nozzle 8 and formed; Header tank 6 is connected with a pouring nozzle 8 through low pressure feed pipe 7, and low pressure feed pipe 7 is provided with water circulating pump 4.Be provided with water filter 5 in the header tank 6; Water filter 5 is connected with a pouring nozzle 8 through low pressure feed pipe 7; Water fender 10 is to be that the filler of filler 9 thickness 1/3 constitutes by a thickness, and solar panel 14 is connected with water circulating pump 4 in the devaporizer 13 through electric wire and axial flow blower 11.
The utility model has the evaporative cooling air conditioner window that blinds utilizes solar energy; Solar panel 14 is arranged on the roof during use; Direct evaporative cooler 13 is arranged on the abutment wall; Through electric wire solar panel 14 and axial flow blower 11 are connected with water circulating pump 4 in the direct evaporative cooler 13, make electric power that sun the subject of knowledge and the object of knowledge produces driving force as blower fan and water pump.Direct evaporative cooler 13 adopts the structure of water and the hot device for heat/moist exchange of filler direct contact type, filler 9, low pressure feed pipe 7 and be located at header tank 6, water circulating pump 4, the water filter 5 of filler 9 belows and drip and drench a nozzle 8 formation direct evaporative coolers 13.
The utility model has blinds and utilizes the evaporative cooling air conditioner window of solar energy to adopt a direct evaporative cooler 13; Utilize water circulating pump 4 to spray the water that purified through water filter 5 in the header tank 6 through 7 pairs of fillers of low pressure feed pipe 9; Water leans on the gravity effect to dirty wetting filler 9; And form very thin moisture film on its surface and carry out with air that heat is wet to be exchanged, reach the humidification purpose of lowering the temperature.
Water fender 10 is trickle not, can form moisture film on water fender 10 surfaces through the water droplet that carries in the air of filler 9, further strengthens direct transpiration-cooled efficient; Water fender 10 can be isolated the water droplet that carries in the air, is processed the water yield of taking away in the air with minimizing.
Screen pack 3 can purify outdoor air, and filler 9 is played the proofing dust and protecting effect, to improve the efficiency of damp and hot exchanging of moisture film and air.
Water in the header tank 6 will pass through water filter 5 and handle, and drenches nozzle delivery port blockage phenomenon to prevent water circulating pump with dripping.
Axial flow blower 11 is the air that is processed to be sent into through air outlet 12 indoor wet process is lowered the temperature, added to room air.
The course of work of the utility model air conditioning window:
Outdoor air gets in the air conditioning window through blinds 1, air inlet 2; After process screen pack 3 filters dust; Carry by axial flow blower 11; Behind direct evaporative cooler 13 (directly drip and drench packing section), the effect of water dependence gravity is to dirty wetting filler 9 surfaces and form moisture film, and the air along continuous straight runs that is processed carries out the wet exchange of heat through filler 9 with it wet process is lowered the temperature, added to air.The water fender 10 of direct evaporative cooler 13 rear sections can make to be processed and can reduce the water yield of carrying secretly in the air after the water droplet that carries in the air gets into the dash filler, improves evaporative cooling efficient, sends into the air that is processed indoor through air outlet 12 at last.

Claims (5)

1. have the evaporative cooling air conditioner window that blinds utilizes solar energy; It is characterized in that; Comprise the air conditioning window and the solar panel (14) that are connected; The structure of air conditioning window is: be respectively arranged with air inlet (2) and air outlet (12) on the outside relative sidewall of air conditioning window cabinet, the outer setting of air inlet (2) has blinds (1), and the direction by the air entering in the air conditioning window cabinet is disposed with screen pack (3), axial flow blower (11), direct evaporative cooler (13) and water fender (10).
2. according to claim 1ly have an evaporative cooling air conditioner window that blinds utilizes solar energy; It is characterized in that; The structure of said direct evaporative cooler (13) is: the dripping of the downward spray that is provided with by the header tank (6) of filler (9), filler (9) bottom, filler (9) top drenched a nozzle (8) and formed; Header tank (6) is connected with a pouring nozzle (8) through low pressure feed pipe (7), and low pressure feed pipe (7) is provided with water circulating pump (4).
3. according to claim 2ly have an evaporative cooling air conditioner window that blinds utilizes solar energy, it is characterized in that, be provided with water filter (5) in the said header tank (6), water filter (5) drenches a nozzle (8) and is connected with dripping through low pressure feed pipe (7).
4. according to claim 2ly have an evaporative cooling air conditioner window that blinds utilizes solar energy, it is characterized in that the thickness of said water fender (10) is 1/3 of filler (9) thickness.
5. according to claim 2ly have an evaporative cooling air conditioner window that blinds utilizes solar energy, it is characterized in that, described solar panel (14) is connected with water circulating pump (4) in the direct evaporative cooler (13) through electric wire and axial flow blower (11).
