Abstract
The utility model relates to a stove and particularly relates to a coal-fired energy saving stove. The coal-fired energy saving stove mainly comprises a stove body, a stove core, a cover head, a water inlet, a water outlet, a gas inlet, a smoke exhaust port and the like. The coal-fired energy saving stove is characterized in that three water rings are arranged around and above the stove core, so that the heat conversion efficiency can be effectively increased; a gap is formed between an upper layer water ring and a middle layer water ring, a gap is formed between a cover plate and the middle layer water ring, and flame can move along the upper part of the middle layer water ring and the gap between the middle layer water ring and the upper layer water ring due to the blockage of the cover plate, so that the heated areas of the upper layer water ring and the middle layer water ring are increased; and the cover head and the stove core are respectively connected with a gas inlet pipe and a blast blower, so that the combustion is sufficient.
Description
Technical field
The utility model relates to a kind of stove and accessory, specifically is a kind of coal-fired energy-saving stove.
Background technology
At present, the most of families in rural area heat up water, cook, old-fashioned stove is still adopted in heating, this stove lump coal that can only burn, and the heat conversion ratio is low, wastes energy.
Summary of the invention
The purpose of the utility model is the deficiency that overcomes above-mentioned prior art, provides that a kind of heating heating surface area is big, the coal-fired energy-saving stove of energy-conserving and environment-protective.
The utility model is realized through following mode.A kind of coal-fired energy-saving stove mainly is made up of body of heater, combustion chamber, capouch, water inlet, delivery port, air inlet pipe, exhaust opening etc.The bottom of body of heater is an ash bin, and ash bin has ash hole, and ash bin communicates with combustion chamber through grate, and combustion chamber is up big and down small taper, and the bottom of combustion chamber is a grate.The toroidal cavity that forms between body of heater and the combustion chamber is lower floor's hydrosphere, and lower floor's hydrosphere has water inlet; There is capouch the body of heater top, the middle level hydrosphere is built on stilts is positioned between upper strata hydrosphere and the capouch; Between middle level hydrosphere and upper strata hydrosphere, capouch, the cover plate space is arranged, lower floor's hydrosphere and upper strata hydrosphere have the ten days tube connector to be communicated with, to be communicated with through inner connection tube between upper strata hydrosphere and the middle level hydrosphere.The upper strata hydrosphere has delivery port, and capouch is in the hydrosphere of middle level, and the circumferencial direction of capouch is porose; There is cover plate the top of capouch, and cover plate is an annular, and the internal diameter through annular cover plate can be positioned over tegillum on the capouch; Tegillum is the dome that four convexities are arranged at a bottom; When tegillum covers, between tegillum and the middle level hydrosphere space is arranged, combustion chamber and capouch have air inlet pipe to link to each other with air blast respectively.
Compared with prior art, the utility model has three big technical characterstics:
1, combustion chamber the periphery and above be provided with three hydrospheres, can effectively promote the heat transformation efficiency;
2, the middle level hydrosphere is built on stilts is positioned between upper strata hydrosphere and the capouch; Between middle level hydrosphere and upper strata hydrosphere, capouch, the cover plate space is arranged; The space is also arranged between tegillum and the capouch; When covering tegillum, flame will be moved along the space between middle level hydrosphere below and middle level hydrosphere and the upper strata hydrosphere by stopping of tegillum and cover plate, increase the heating surface area of upper strata hydrosphere and middle level hydrosphere;
3, capouch has air inlet pipe to link to each other with air blast respectively with combustion chamber, helps abundant burning.
The beneficial effect of the utility model is that firing rate is fast, the thermal efficiency is high.
Description of drawings

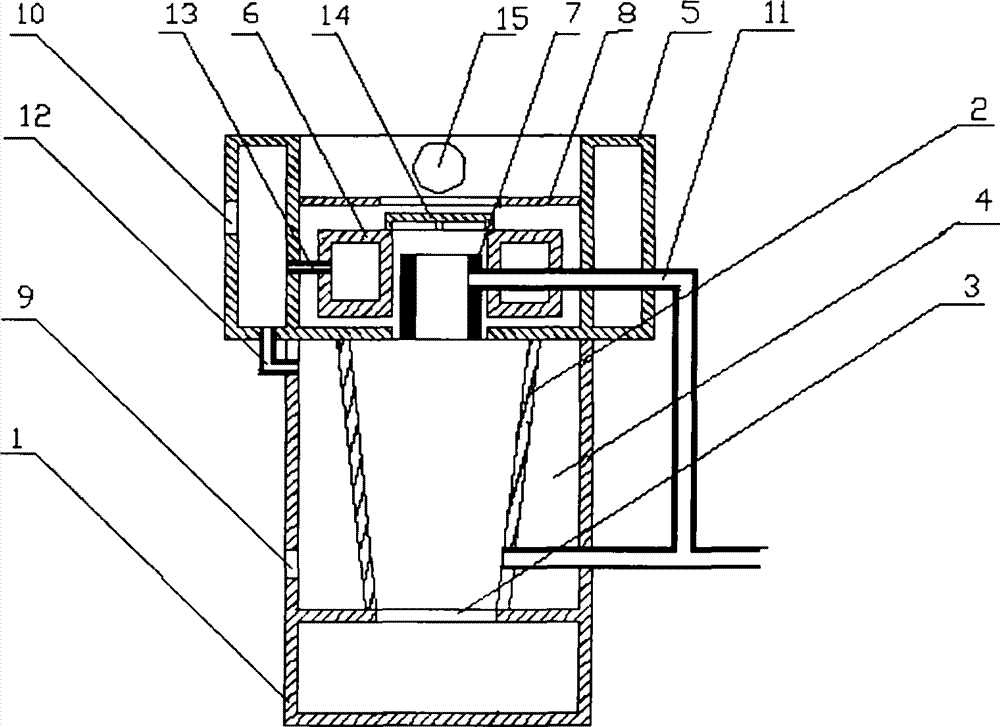

Fig. 1 is the structural representation of the utility model coal-fired energy-saving stove.
Among the figure, the outer connecting piece 13-inner connection tube 14-tegillum 15-exhaust opening of hydrosphere 6-middle level, 1-body of heater 2-combustion chamber 3-grate 4-lower floor hydrosphere 5-upper strata hydrosphere 7-capouch 8-cover plate 9-water inlet 10-water outlet 11-air inlet pipe 12-
The specific embodiment
Be described further below in conjunction with the concrete technical scheme of accompanying drawing the utility model.
As shown in Figure 1; A kind of coal-fired energy-saving stove is made up of body of heater (1), combustion chamber (2), grate (3), lower floor's hydrosphere (4), upper strata hydrosphere (5), middle level hydrosphere (6), capouch (7) cover plate (8), water inlet (9), delivery port (10), air inlet pipe (11), outer connecting pipe (12), inner connection tube (13) and tegillum (14) and exhaust opening (15).Body of heater (1) is the cylindrical tube of steel plate weldering knot, and a cavity is arranged at the bottom of cylindrical shell is ash bin, and ash bin has ash hole and ash hole door.Grate (3) is arranged between ash bin and the combustion chamber (2); Combustion chamber (2) is a up big and down small divergent-cone wall; Combustion chamber (2) has air inlet pipe to be connected with air blast, and the toroidal cavity that forms between combustion chamber (2) outer wall and body of heater (1) inwall is lower floor's hydrosphere (4), and lower floor's hydrosphere (4) has water inlet (9).The top of body of heater (1) is an annular upper strata hydrosphere (5), and upper strata hydrosphere (5) has outer connecting pipe (12) to be communicated with lower floor's hydrosphere (4), and upper strata hydrosphere (5) has the external heating installation of delivery port, and upper strata hydrosphere (5) has exhaust opening (15)) be connected with flue.Middle level hydrosphere (6) and capouch (7) are arranged in the top of combustion chamber (2), and middle level hydrosphere (6) places between upper strata hydrosphere (5) and the capouch (7), and is built on stilts fixing through inner connection tube (13) and air inlet pipe (11); So; Middle level hydrosphere (6) and upper strata hydrosphere (5), capouch have the space between (7), and middle level hydrosphere (6) has inner connection tube (13) to be communicated with upper strata hydrosphere (5), and capouch (7) is a cylindrical shape; Circumferencial direction distributes porose, and capouch (7) has air inlet pipe (11) to be connected with air blast.Cover plate (8) is an annular iron plate, and internal diameter is greater than the external diameter of tegillum (14), and tegillum (14) is positioned over the top of capouch (7) through the endoporus of cover plate (8), and tegillum (14) has four convexities, when covering tegillum, between tegillum (14) and the capouch (7) space is arranged.
Compared with prior art, the utility model lump coal that not only can burn, the broken coal that can also burn, and the 40-50% that economizes on coal.
Claims (3)
1. a coal-fired energy-saving stove mainly is made up of body of heater (1), combustion chamber (2), capouch (7), water inlet (9), delivery port (10), air inlet pipe (11) etc., it is characterized in that there are three hydrospheres the periphery of combustion chamber (2) and top.
2. a kind of according to claim 1 coal-fired energy-saving stove; It is characterized in that middle level hydrosphere (6) is built on stilts is positioned between upper strata hydrosphere (5) and the capouch (7); Middle level hydrosphere (6) and upper strata hydrosphere (5), capouch (7), cover plate have the space between (8), between tegillum (14) and the capouch (7) space are arranged also.
3. a kind of according to claim 1 coal-fired energy-saving stove is characterized in that capouch (7) and combustion chamber (2) have air inlet pipe (11) to link to each other with air blast respectively.
