Abstract
本实用新型克服现有技术的不足，创新地提出了一种高密度大容量存储服务器机柜，该机柜正面和背面各布有数排硬盘插槽，背面合适位置设置有存储主板模块组，主板模块组由若干块主板模块组成，每个主板模块可安放若干低功耗主板，在实际使用中每块主板连接若干硬盘槽，支持硬盘槽中硬盘热插拔。主板模块下方，为存储系统管理服务器插槽，管理服务器管理着整套机柜的存储系统。管理服务器插槽与机柜背面上半部硬盘槽之间是交换机托盘，放置整个机柜存储系统的交换机硬件。机柜背面下方，设置有电源模块，用于集中放置系统电源。
The utility model overcomes the deficiencies of the prior art, and innovatively proposes a high-density and large-capacity storage server cabinet. The front and back of the cabinet are respectively equipped with several rows of hard disk slots, and a storage motherboard module group and a motherboard module group are arranged at a suitable position on the back. It consists of several motherboard modules, each motherboard module can accommodate several low-power motherboards, and in actual use, each motherboard is connected to several hard disk slots to support hot swapping of hard disks in the hard disk slots. Below the mainboard module is the storage system management server slot, and the management server manages the storage system of the entire cabinet. Between the management server slot and the hard disk slot in the upper half of the back of the cabinet is a switch tray, which houses the switch hardware of the entire cabinet storage system. Below the back of the cabinet, there is a power module for centrally placing the system power supply.
Description
Technical field
The utility model relates to a kind of server cabinet, specifically is a kind of high density high capacity storage server rack.
Background technology
Along with the fast development of infotech, the every mistake of global metadata total amount will be doubled in 18 months, and for adapting to the mass data storage needs, people set up data storage and computing center in a large number.In conventional data centers, usually multiple servers device node is packed in the standardized rack simultaneously, so both be convenient to management and also be beneficial to many machine collaborative works.Yet in this standardization rack, heat radiation normally further promotes the bottleneck of storage density and processing power; Because server in the course of the work; Can produce great amount of heat, pile up under the intensive situation, heat is difficult to effectively distribute; Make the scale level of storage server can't further improve density, promote performance.The mainboard of each node and hard disk all can give out a large amount of heats in the course of the work, owing to reasons such as heat radiation, structuring deployment, are difficult to further improve the deployment density scale.
Summary of the invention
Goal of the invention: the utility model with the problem that cabinet exists, provides a kind of energy-conservation, high density, the high capacity storage server rack of high integration to existing storage.
Technical scheme: the technical scheme of the utility model is: a kind of high density high capacity storage server rack, profile comprises front cabinet door, left plate, right plate, rear cabinet door, upper cover plate, base.Cabinet front entire area and back side most area respectively are provided with number row hard disk slot, in use can place full hot plug hard disk.
A kind of high density high capacity storage server rack, rear of cabinet correct position are concentrated and are provided with storage mainboard module group, and the mainboard module group is made up of several mainboard modules, and each mainboard module can be laid some low-power consumption mainboards.Each mainboard is connecting several hdd slots in actual use, and the hard disk that each mainboard is being managed respective numbers respectively is a memory capacity.
Preferably, mainboard module is arranged on first half hdd slot below, and this position is beneficial to staff's operation, adjusting module group particular location as required in the practical application.
A kind of high density high capacity storage server rack; The mainboard module below is provided with switch slot and system management memory server slot, and is preferred, and switch slot and system management memory server slot are arranged on mainboard module group below; Lower Half hdd slot top; Equally, this position is beneficial to staff's operation, can adjust switch slot and storage managing server slot position as required in the practical application.
A kind of high density high capacity storage server rack is positioned at rear of cabinet and is provided with the system power supply module in the below, is used for concentrating the place system power supply.
The utility model has reduced the heat radiation power consumption of storage system main based on energy-conservation low-power consumption ARM mainboard, makes total system reduce greatly aspect the heat radiation power consumption, can more place hard disk more, improves the integration density and the total storage capacity of system.
Description of drawings

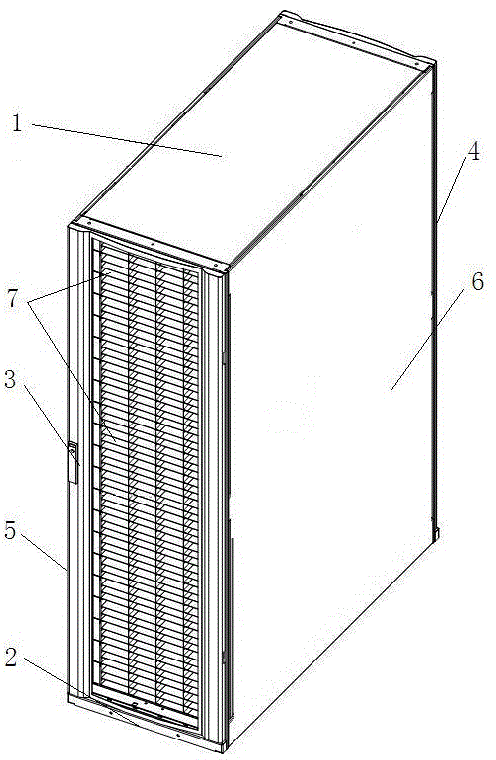

Fig. 1 is a kind of high density high capacity of the utility model storage server rack overall appearance figure.
Fig. 2 removes side plate front appearance figure for a kind of high density high capacity of the utility model storage server rack.
Fig. 3 removes side plate back appearance figure for a kind of high density high capacity of the utility model storage server rack.
Embodiment
Below in conjunction with accompanying drawing the utility model is done further description.
As shown in Figure 1, a kind of high density high capacity storage server rack, it comprises by 1 upper cover plate, 2 lower covers; 3 front cabinet doors, 4 rear cabinet doors, 5 left plates; The cabinet that 6 right plates are formed, its inner structure mainly comprises 7 hdd slots like Fig. 2, shown in 3; 8 mainboard module groups, 9 switch slots, 10 management server slots and 11 power module groups.Wherein 7 hdd slots are arranged on cabinet front entire area and the rear of cabinet first half and Lower Half; 8 mainboard module groups are arranged on 7 hdd slots below; 9 switch slots and 10 management server slots are arranged in the middle of 8 mainboard module groups and Lower Half 7 hdd slots; Lower Half 7 hdd slots belows, promptly rear of cabinet is provided with 11 power module groups in the below.
The utility model provides a kind of high density high capacity storage server rack; The method and the approach of concrete this technical scheme of realization are a lot, and the above only is the preferred implementation of the utility model, should be understood that; For those skilled in the art; Under the prerequisite that does not break away from the utility model principle, can also make some improvement and retouching, these improvement and retouching also should be regarded as the protection domain of the utility model.The all available prior art of methodological function not clear and definite in the present embodiment realizes.
Claims (6)
1. high density high capacity storage server rack is characterized in that: front and back respectively is furnished with number row hard disk slots, and back side correct position is provided with storage mainboard module group; The mainboard module group is made up of some mainboard modules, and each mainboard module can be laid some low-power consumption mainboards, and every mainboard connects some hdd slots in actual use; Support hard disk hot-plug in the hdd slot; The mainboard module below is switch slot and system management memory server slot, and the management service management the storage system of a whole set of rack, the rear of cabinet below; Be provided with power module, concentrate the place system power supply.
2. a kind of high density high capacity storage server rack according to claim 1, it is characterized in that: the whole area of cabinet front all is set to the hard disk slot, and the back side first half and Lower Half are provided with number row hard disk slot respectively.
3. a kind of high density high capacity storage server rack according to claim 1 is characterized in that: mainboard module is arranged on rear of cabinet first half hdd slot below.
4. a kind of high density high capacity storage server rack according to claim 1 is characterized in that: the mainboard module below is provided with switch slot and system management memory server slot.
5. a kind of high density high capacity storage server rack according to claim 1 is characterized in that: be positioned at rear of cabinet and be provided with the system power supply module in the below, be used for concentrating the place system power supply.
6. a kind of high density high capacity storage server rack according to claim 1, it is characterized in that: the used mainboard of storage system is a low-power consumption ARM mainboard.
