Abstract
The utility model discloses a rotary liquid floating oil collection and discharge device. The rotary liquid floating oil collection and discharge device comprises an oil-containing sewage collection regulation tank and a fast sedimentation and separation cavity tank, wherein the fast sedimentation and separation cavity tank is provided with a rotary liquid separator and a floating oil automatic collection and discharge device, an oil-containing sewage inlet, a water outlet and an overflow port are arranged on the rotary liquid separator, the floating oil collection and discharge device is arranged above the rotary liquid separator, the floating oil automatic collection and discharge device comprises a floating oil automatic collection disk and a floating cylinder, a sleeve type telescopic oil guide pipe is arranged at the lower part of the floating oil automatic collection floating disk, and a U-shaped water discharge pipe is arranged on the periphery of the fast sedimentation and separation cavity tank. A better separation effect can be achieved by utilizing the action of centrifugal force of rotary liquid, floating oil can be automatically collected and discharged, the investment is reduced, separation pretreatment of oil-containing sewage can be simultaneously performed during the collection of the sewage, and the rotary liquid floating oil collection and discharge device can not only regulate water quantity, but also adjust water quality, reduce the oil content in the discharged water and ensure the quality of sewage treatment.
Description
Technical field
The utility model relates to a kind of device that is separated that utilizes spinning liquid centrifugal sedimentation principle with different densities in the non-homogeneous mixture, relates in particular to a kind of spinning liquid floating oil collecting discharge equipment.
Background technology
In the prior art; The collection of oil-polluted water adopts oil-polluted water collecting pit or oil-polluted water collecting tank to handle, and adopts the method for natural subsidence to carry out the preliminary treatment and the water yield adjusting of oil-polluted water, wherein; Sewage collecting pool is the advection oil separation tank shape, leans on natural subsidence to separate in the oil interceptor; When adopting the oil-polluted water collecting tank, use two collecting tank interleaved collection oil-polluted waters, larger volume in the collecting tank; The same natural subsidence of leaning on is separated, and the artificial overflow valve of opening of come-up oil require is emitted, so the water-oil separating time is longer; Power consumption is bigger, and the maintenance difficulty is big, and the pond floor space is big simultaneously; Oil gas can cause secondary pollution, and the silt of sedimentation also need depend on the labor cleaning in the pond.
The utility model content
The purpose of the utility model is in order to overcome the problems referred to above, a kind of spinning liquid floating oil collecting discharge equipment to be provided.
For achieving the above object; The method that the utility model adopts is: a kind of spinning liquid floating oil collecting discharge equipment; Comprise oil-polluted water collection regulating tank; Described oil-polluted water is collected in the regulating tank and is provided with a rapid subsidence split cavity jar, and described rapid subsidence split cavity jar is provided with cyclone hydraulic separators and oil slick automatic collecting device, and described cyclone hydraulic separators is provided with an oil-polluted water inlet, a delivery port and an overfall; Described floating oil collecting discharge equipment is arranged on the top of described cyclone hydraulic separators; Described oil slick is collected discharge equipment automatically and is made up of automatic catch tray of oil slick and floating drum, and the bottom that described oil slick is collected floating plate automatically is provided with the flexible oil guide pipe of a socket type, is provided with U type drainpipe at the peripheral part of described rapid subsidence split cavity jar.
As a kind of improvement of the utility model, described U type drainpipe is provided with ventilation and destroys pipe.
As a kind of improvement of the utility model, described cyclone hydraulic separators is fixed in the described rapid subsidence split cavity jar through support.
As a kind of improvement of the utility model, described rapid subsidence split cavity jar is fastened in the described oil-polluted water collecting tank through base plate.
The beneficial effect of the utility model is:
The utility model and oil-polluted water collecting pit of the prior art or oil-polluted water collecting tank contrast, and collect discharge equipment automatically through in the oily water collecting tank, having adopted cyclone hydraulic separators and oil slick, so can utilize action of centrifugal force; Reach separating effect preferably, can realize single jar of operation continuously, oil slick can be collected discharge automatically; Reduce investment, carry out the separation preliminary treatment of oil-polluted water when realizing sewage collecting, can regulating pondage; Can adjust water quality again, reduce the oil content in the discharge water, simultaneously through U type drainpipe is set; And ventilation is set on U type drainpipe destroys pipe, can be in time with the discharge of the water in the rapid subsidence split cavity jar, again can guaranteed water level; Realize permanent water level collection oil slick, guaranteed the quality of sewage disposal.
Description of drawings

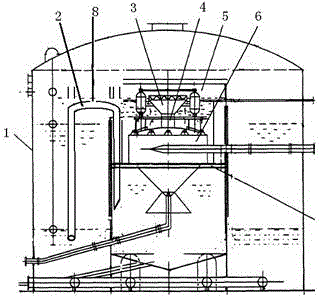

Fig. 1 is the structural representation of the utility model;
Fig. 2 is the cyclone hydraulic separators of the utility model and the structural representation of oil slick automatic collecting device;
Wherein each parts is:
1, oil-polluted water collecting tank 2, U type drainpipe
3, oil slick is collected discharge equipment 4, the flexible oil guide pipe of socket type automatically
5, rapid subsidence split cavity jar 6, cyclone hydraulic separators
7, support 8, destruction pipe
31, oil slick is collected floating plate 32, floating drum automatically
61, oil-polluted water inlet 62, delivery port
63, overfall.
The specific embodiment
Do bright specifically below in conjunction with accompanying drawing to the utility model;
As shown in Figure 1; A kind of spinning liquid floating oil collecting discharge equipment of the utility model; Comprise oil-polluted water collecting tank 1; In described oil-polluted water collecting tank 1, be provided with a rapid subsidence split cavity jar 5; Described rapid subsidence split cavity jar 5 is fastened in the oil-polluted water collecting tank 1 through base plate, in described rapid subsidence split cavity jar 5, is provided with cyclone hydraulic separators 6 and oil slick automatic collecting device 3, and described cyclone hydraulic separators 6 is fixed in the described rapid subsidence split cavity jar 5 through support.Described cyclone hydraulic separators 6 is provided with oil-polluted water 61, delivery ports 62 of inlet and an overfall 63; Described floating oil collecting discharge equipment 3 is arranged on the top of described cyclone hydraulic separators 6; Described floating oil collecting discharge equipment 3 is collected floating plate 31 automatically by oil slick and is formed with floating drum 32; The bottom that described oil slick is collected floating plate 31 automatically is provided with the flexible oil guide pipe 4 of a socket type; The flexible oil guide pipe 4 of described socket type passes from described cyclone hydraulic separators 6, and is connected in the sump oil collecting tank of oil-polluted water collecting tank 1 outside.
A kind of preferred as present embodiment; Peripheral part at described rapid subsidence split cavity jar 5 is provided with U type drainpipe 2; Be used for the liquid of rapid subsidence split cavity jar 5 bottoms is discharged rapid subsidence split cavity jar 5 apace; Described U type drainpipe 2 is provided with ventilation and destroys pipe 8, is used to stop 2 drainings of U type drainpipe, and is constant with the water level of keeping rapid subsidence split cavity jar 5.
The workflow of the utility model is: from the various oil-polluted waters in oil plant, oil field extracted water, harbour, harbour, oil depot, irrigated area; Get in the cyclone hydraulic separators 6 in the rapid subsidence split cavity jar 5 in the utility model through the reducing sewage conveying tube by the sewage transport pump or by certain gravity; Oil-polluted water produces the rotation of certain speed in cyclone hydraulic separators 6; Oil produces the different centrifugal forces field with water different densities difference, utilizes action of centrifugal force that oil-polluted water is carried out the preliminary treatment of water-oil separating, light oily mutually after separating through the waterpower spinning liquid through described overfall 63 floating upward quicklies to the water surface of rapid subsidence chamber jar 5; Automatically collecting floating plate 31 by the oil slick that is arranged on cyclone hydraulic separators 6 tops collects; Described oil slick is collected floating plate 31 automatically and is floated on the surface by described floating drum 32 picking-ups, and the oil slick of collection passes from described cyclone hydraulic separators 6 through the flexible oil guide pipe 4 of the socket type of the bottom of floating plate 31, and is connected in the sump oil collecting tank of oil-polluted water collecting tank 1 outside; Simultaneously; Because of oil-polluted water can produce secondary rising flow in cyclone hydraulic separators 6, therefore, beyond cyclone hydraulic separators not only can separate two mutual insoluble profits; Also can quicken the rapid subsidence of solid phase in the profit, water and solid formation are discharged in the rapid subsidence split cavity jar 5 from the delivery port 62 of cyclone hydraulic separators 6 bottoms.
The utility model and oil-polluted water collecting pit of the prior art or oil-polluted water collecting tank contrast, and collect discharge equipment automatically through in the greasy dirt collecting tank, having adopted cyclone hydraulic separators and oil slick, so can utilize action of centrifugal force; Reach separating effect preferably, can realize single jar of operation continuously, oil slick can be collected discharge automatically; Reduce investment, carry out the separation preliminary treatment of oil-polluted water when realizing sewage collecting, can regulating pondage; Can adjust water quality again, reduce the oil content in the discharge water, simultaneously through U type drainpipe is set; And ventilation is set on U type drainpipe destroys pipe, can be in time with the discharge of the water in the rapid subsidence split cavity jar, again can guaranteed water level; Realize permanent water level collection oil slick, guaranteed the quality of sewage disposal.
The above; It only is the preferred embodiment of the utility model; Be not to be the utility model to be done the restriction of any other form, and, still belong to the utility model scope required for protection according to any modification or equivalent variations that the technical spirit of the utility model is done.
Claims (4)
1. spinning liquid floating oil collecting discharge equipment; Comprise oil-polluted water collection regulating tank; It is characterized in that: described oil-polluted water is collected in the regulating tank and is provided with a rapid subsidence split cavity jar; Be provided with cyclone hydraulic separators in the described rapid subsidence split cavity jar and oil slick is collected discharge equipment automatically; Described cyclone hydraulic separators is provided with oil-polluted water inlet, a delivery port and an overfall, and described oil slick is collected the top that discharge equipment is arranged on described cyclone hydraulic separators automatically, and described oil slick collects automatically that discharge equipment is collected floating plate automatically by oil slick and floating drum is formed; The bottom that described oil slick is collected floating plate automatically is provided with the flexible oil guide pipe of a socket type, is provided with U type drainpipe at the peripheral part of described rapid subsidence split cavity jar.
2. a kind of spinning liquid floating oil collecting discharge equipment according to claim 1 is characterized in that: described U type drainpipe is provided with ventilation and destroys pipe.
3. a kind of spinning liquid floating oil collecting discharge equipment according to claim 1 and 2 is characterized in that: described cyclone hydraulic separators is fixed in the described rapid subsidence split cavity jar through support.
4. a kind of spinning liquid floating oil collecting discharge equipment according to claim 1 and 2 is characterized in that: described rapid subsidence split cavity jar is fastened on described oil-polluted water through base plate and collects in the regulating tank.
