Abstract
The utility model relates to a multifunctional chair for leisure and fitness. The multifunctional chair comprises a rotatable supporting and fixing device, a backrest with a sliding channel, a pair of arc handrails, a sliding channel supporting plate, a front fixed supporting leg, a rear movable supporting leg and a leg muscle exerciser, wherein the rotatable supporting and fixing device adopts a special supporting structure; the backrest is connected with the supporting plate by an indexing structure and adjusted according to a backrest angle; the arc handrails are embedded with arm stretchers; and the leg exerciser adopts a spring structure. The multifunctional chair has the advantages of reasonable structure, convenience and practicality, low manufacturing cost, beautiful appearance, leisure and fitness, and the like.
Description
Technical field:
The utility model belongs to recreation and body-building and furniture chair art, relates to a kind of multifunctional chair, and this chair both can have been realized household or the common seat function of handling official business, and can make people again after the work fatigue, reaches the purpose of recreation and body-building through each item function of utilizing this chair.
Background technology:
General chair, backrest, gripper shoe all are securing.When the people has sat of a specified duration on chair with descendant's easy fatigue, the angle between backrest and the gripper shoe can not be regulated, and has reduced the comfortableness of chair widely, and this type chair can only satisfy the function of sitting and leaning on, and body-building function does not almost have.And the limitation of ab lounge is stronger in the gymnasium, often can only be used for functions such as single massage or body-building, lacks home-use chair, the office function with chair.
Summary of the invention:
The utility model technical issues that need to address are, overcome disadvantages of background technology, provide a kind of simple in structure, both can realize household or the common seat function of handling official business, and can be used for chair---the multifunctional chair of recreation and body-building purpose again.
As above design, the technical scheme of the utility model is:
A kind of multifunctional chair moves supporting leg by rotatable supporting adn fixing device, backrest, gripper shoe, slideway backrest, a pair of circular arc handrail, slideway gripper shoe, preceding fixing supporting legs, back and the leg muscle exerciser is formed.Described rotatable supporting adn fixing device adopts special supporting construction, the built-in stretching chest-developer of described circular arc handrail.
As further improvement to the utility model, adopt the calibration structure to be connected between described backrest and the gripper shoe, adjust according to backrest angle.
As the further improvement to the utility model, described leg muscle exerciser adopts spring structure.
The utlity model has following advantage and good effect:
1, at first, on multifunctional chair, reach the purpose of gymnasium recreation and body-building.As utilize the built-in stretching chest-developer of circular arc handrail can temper arm muscle, utilize the leg exercises device can temper leg muscle, hold rotary fixing device in hand and cooperate the leg exercises device to use to do sit-up movement etc.Secondly, this multifunctional chair possesses the function of conventional chair, carries out backrest, has increased the comfortableness of chair if make the user have different angles through the adjusting indexing mechanism.In addition, when backrest angle reaches 180 °, can be used as bed and use, also can carry out body-building when being used as the bed use through using rotation supporting adn fixing device or stretching chest-developer.
2, this device has advantages such as rational in infrastructure, convenient and practical, that elegant shape is attractive in appearance.
Description of drawings:

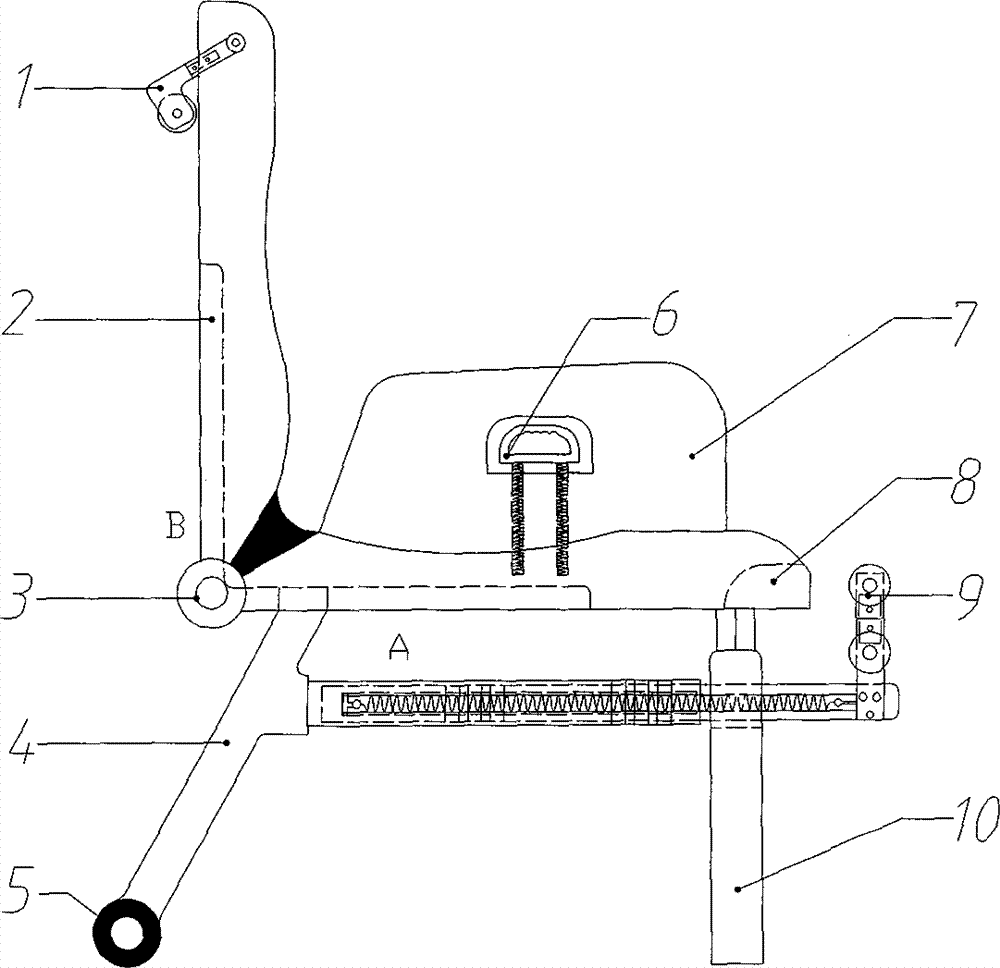

Fig. 1 is the structure left part sketch map of the utility model.
Fig. 2 is the positive portion of the structure of a utility model sketch map.
Fig. 3 is the structure of the utility model formula structure chart of lying.
Fig. 4 is the positive portion sketch map of Figure 1A portion enlarged drawing.
Fig. 5 is the left part sketch map of Figure 1A portion enlarged drawing.
Fig. 6 is the positive portion sketch map of Figure 1B portion enlarged drawing.
Fig. 7 is the left part sketch map of Figure 1B portion enlarged drawing.
Fig. 8 is Fig. 3 C place truncation surface sketch map.
Among the figure: 1 rotation supporting adn fixing device; 2 slideway backrests; 3 backrests are connected the calibration structure with gripper shoe; Supporting leg is moved in 4 backs; Supporting leg is moved in 5 backs; 6 stretching chest-developers; 7 circular arc handrails; 8 grooves; 9 leg muscle exercisers; Fixing supporting legs before 10.
The specific embodiment:
As shown in the figure: multifunctional chair moves supporting leg by rotatable supporting adn fixing device, backrest, gripper shoe, slideway backrest, a pair of circular arc handrail, slideway gripper shoe, preceding fixing supporting legs, back and the leg muscle exerciser is formed.Rotatable supporting adn fixing device adopts special supporting construction; Backrest adopts the calibration structure to be connected with gripper shoe, adjusts according to backrest angle; The built-in stretching chest-developer of circular arc handrail; The leg exercises device adopts spring structure.
The operation principle of the utility model is: the people is sitting on the gripper shoe; Being connected calibration structure 3 with gripper shoe through the adjusting backrest makes people's backrest that a comfortable angle arranged; Take out 9 leg muscle exercisers from groove 8 and can temper leg muscle, hold rotation supporting adn fixing device 1 and can carry out sit-up movement.Hand steered circular arc handrail 7 is opened stretching chest-developer 6 and can be tempered the muscles of the arm; When sub-degree angle reaches 180 °, can make the back move supporting leg 5 scratches as the bed use; If be placed on rotation supporting adn fixing device 1 to pin; The stretching chest-developer of opening in the circular arc handrail 76 carries out the arm stretching, and the anti-body of crossing can carry out the push-up training.
Claims (3)
1. multifunctional chair; It is characterized in that: multifunctional chair moves supporting leg by rotatable supporting adn fixing device, backrest, gripper shoe, slideway backrest, a pair of circular arc handrail, slideway gripper shoe, preceding fixing supporting legs, back and the leg muscle exerciser is formed; Described rotatable supporting adn fixing device adopts special supporting construction, the built-in stretching chest-developer of described circular arc handrail.
2. multifunctional chair according to claim 1 is characterized in that: adopt the calibration structure to be connected between described backrest and the gripper shoe, adjust according to backrest angle.
3. multifunctional chair according to claim 1 is characterized in that: described leg muscle exerciser adopts spring structure.
