Abstract
The utility model discloses a sputum aspirating device, relating to the field of medical instruments. The sputum aspirating device comprises a sputum storing container, a sputum aspirating pipe and a pipe head which is arranged above the sputum storing container and is used for being connected with a negative pressure pipe, wherein the sputum aspirating pipe is arranged on the side wall of the sputum storing container; an opening in one end of the sputum aspirating tube is positioned inside the sputum storing container; and the volume of the sputum storing container is 40-100ml. Due to the adoption of the sputum storing container with smaller volume, the sputum aspirating device disclosed by the utility model is especially suitable for patients needing aspirating the sputum for several times after general anesthesia operations; and according to the sputum aspirating device, the cost can be reduced and the air pollution caused by excessive accumulation of the sputum in the sputum storing container is also avoided.
Description
Technical field
This utility model relates to medical instruments field, particularly a kind of sputum aspirator.
Background technology
In clinical treatment, many patients can't independently cough, and need the artificial auxiliary expectorant of inhaling, and to keep the unobstructed of respiratory tract, are convenient to pulmonary ventilation.
At present, inhaling disposable sputum aspirator that expectorant uses to patient is to connect two suction catheters inhaling the sputum bottle top movable, and wherein one links to each other with sputum aspirator tube; And connection patient's breath road; Another root is connected with the negative pressure pipe, and is connected to negtive-pressure implement, and the volume of inhaling sputum bottle is generally about 2 liters; This sputum aspirator is thrown away used sputum aspirator tube at every turn after sucking expectorant for patient, in the time of need inhaling expectorant once more, refill new sputum aspirator tube, and sputum is stored in to be inhaled in the sputum bottle.This sputum aspirator need repeatedly be installed sputum aspirator tube because to inhale the volume of sputum bottle bigger, not only cost of idleness, increase medical personnel's work, also can be because of inhaling the easy breed bacteria of expectorant that can not in time handle in the sputum bottle, thus contaminated air.
The utility model content
The purpose of this utility model is: the problems referred to above to prior art exists, and provide a kind of and not only practice thrift cost, and the sputum aspirator of environmental protection.
To achieve these goals, the technical scheme of this utility model employing is:
A kind of sputum aspirator; Comprise storage expectorant container, sputum aspirator tube and be arranged at the tube head that storage expectorant container top is used to be connected the negative pressure pipe; Said sputum aspirator tube is arranged at storage expectorant container side wall, and an end opening of sputum aspirator tube is in storage expectorant internal tank, and the volume of said storage expectorant container is the 40-100 milliliter.
The sputum aspirator tube that is arranged at the sidewall of storage expectorant container is more conducive to patient's expectorant entering storage expectorant container; Little volumetrical storage expectorant container can be thrown away after using once, neither causes the waste of unnecessary sputum aspirator tube, also can avoid storing up the tired air pollution that too much causes of accumulation of phlegm in the expectorant container, has also reduced the work of changing sputum aspirator tube, has improved work efficiency.
As the preferred version of this utility model, in the above-mentioned sputum aspirator, also be connected with the communicating pipe that is used to connect negtive-pressure implement on the said tube head, also be provided with switch on said communicating pipe.Switch on this communicating pipe is used to control the size and the switching of negative pressure.
As the preferred version of this utility model, in the above-mentioned sputum aspirator, said sputum aspirator tube is provided with two side openings at the end away from storage expectorant container.Said side opening is used to be communicated with patient's pore, makes things convenient for the collection of sputum.
The method for using of this utility model: switch opens that will be on communicating pipe also connects negative pressure, and sputum aspirator tube is put into patient's nose, makes it to be communicated with patient's air flue; Open negative pressure, close the switch on communicating pipe, through the expectorant sucking-off of negtive-pressure implement patient.
In sum, owing to adopted technique scheme, the beneficial effect of this utility model is:
Because this utility model adopts little volumetrical storage expectorant container; Only need inhale the patient of expectorant several times behind the suitable especially general anesthesia operation; Promptly practice thrift cost, also can avoid storing up the tired too much breed bacteria of accumulation of phlegm in the expectorant container, and owing to do not need repeatedly to change sputum aspirator tube; Reduce nursing work load, improved work efficiency.
Description of drawings
Fig. 1 is the structural representation of this utility model sputum aspirator.

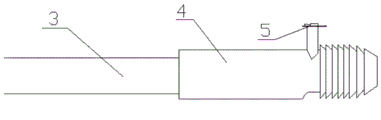

Fig. 2 is the structural representation of communicating pipe in this utility model sputum aspirator.
Fig. 3 is the structural representation of sputum aspirator tube in this utility model sputum aspirator.
Labelling among the figure: 1-storage expectorant container, 2-sputum aspirator tube, 3-tube head, 4-communicating pipe, 5-switch, 6-side opening.
The specific embodiment
Below in conjunction with accompanying drawing, this utility model is done detailed explanation.
For the purpose, technical scheme and the advantage that make this utility model is clearer,, this utility model is further elaborated below in conjunction with accompanying drawing and embodiment.Should be appreciated that specific embodiment described herein only in order to explanation this utility model, and be not used in qualification this utility model.
A kind of sputum aspirator; As shown in Figure 1; Comprise sputum aspirator tube 2, storage expectorant container 1 and be arranged at the tube head 3 that storage expectorant container 1 top is used to be connected the negative pressure pipe; Said sputum aspirator tube 2 is arranged at storage expectorant container 1 sidewall, and an end opening of sputum aspirator tube 2 is in storage expectorant container 1 inside, and the volume of said storage expectorant container 1 is 50 milliliters.The sputum aspirator tube 2 that is arranged at the inboard of storage expectorant container 1 is more conducive to patient's expectorant entering storage expectorant container 1; Said little volumetrical storage expectorant container 1 can be thrown away after using once, neither causes the waste of material, also can avoid storing up the tired air pollution that too much causes of accumulation of phlegm in the expectorant container 1.
As shown in Figure 2, also be connected with the communicating pipe 4 that is used to connect negtive-pressure implement on the said tube head 3, also be provided with switch 5 on said communicating pipe 4.Switch 5 on said communicating pipe 4 is used to control the connection of negative pressure.
As shown in Figure 3, said sputum aspirator tube 2 is provided with two side openings 6 at the end away from storage expectorant container 1, and said side opening is used to be communicated with patient's pore.
A kind of sputum aspirator; As shown in Figure 1; Comprise sputum aspirator tube 2, storage expectorant container 1 and be arranged at the tube head 3 that storage expectorant container 1 top is used to be connected the negative pressure pipe; Said sputum aspirator tube 2 is arranged at storage expectorant container 1 sidewall, and an end opening of sputum aspirator tube 2 is in storage expectorant container 1 inside, and the volume of said storage expectorant container 1 is 80 milliliters.The sputum aspirator tube 2 that is arranged at the inboard of storage expectorant container 1 is more conducive to patient's expectorant entering storage expectorant container 1; Said little volumetrical storage expectorant container 1 can be thrown away after using once, neither causes the waste of material, also can avoid storing up the tired air pollution that too much causes of accumulation of phlegm in the expectorant container 1.
As shown in Figure 2, also be connected with the communicating pipe 4 that is used to connect negtive-pressure implement on the said tube head 3, also be provided with switch 5 on said communicating pipe 4.Switch 5 on said communicating pipe 4 is used to control the connection of negative pressure.As shown in Figure 3, said sputum aspirator tube 2 is provided with two side openings 6 at the end away from storage expectorant container 1, and said side opening is used to be communicated with patient's pore.
The above is merely the preferred embodiment of this utility model; Not in order to restriction this utility model; Any modification of being done within all spirit and principles at this utility model, be equal to replacement and improvement etc., all should be included within the protection domain of this utility model.
Claims (3)
1. sputum aspirator; Comprise storage expectorant container, sputum aspirator tube and be arranged at the tube head that storage expectorant container top is used to be connected the negative pressure pipe; It is characterized in that; Said sputum aspirator tube is arranged at storage expectorant container side wall, and an end opening of sputum aspirator tube is in storage expectorant internal tank, and the volume of said storage expectorant container is the 40-100 milliliter.
2. sputum aspirator according to claim 1 is characterized in that, also is connected with the communicating pipe that is used to connect negtive-pressure implement on the said tube head, also is provided with switch on said communicating pipe.
3. sputum aspirator according to claim 1 is characterized in that, said sputum aspirator tube also is provided with two side openings at the end away from storage expectorant container.
