Abstract
The utility model discloses a business type small computer case. The business type small computer case comprises a case body, a mainboard, a hard disk and a power supply, the mainboard, the hard disk and the power supply are arranged in the case body, the case body comprises a front plate, a back plate, a bottom plate, a top plate, a left side plate and a right side plate, and the power supply is a direct-current power supply and is mounted on the same side plate with the mainboard vertically side by side. Therefore, compared with a computer case adopting an alternating-current power supply in the prior art, the business type small computer case is smaller in size by designing the power supply to be the direct-current power supply. Additionally, the direct-current power supply and the mainboard are arranged on the same side plate, and the direct-current power supply is arranged below the mainboard, so that an assembly structure is more compact by the arrangement, the space inside the case is well utilized, and the business type small computer case is smaller in integral occupied space and better meets requirements of people on compact performance on business type small computer cases.
Description
Technical field
The utility model relates to the computer housing art, refers in particular to the little cabinet of a kind of commercial type computer.
Background technology
Commercial affairs type computer little cabinet relies on it to occupy advantages such as the space is little; More and more receive favor to the consumer; Simultaneously, people are also increasingly high to the requirement of its small and exquisite property, and the factor of decision host computer size mainly contains two aspects; The one, the mainboard in the computer housing, power supply equidimension size, the 2nd, the arrangement of inner each element of computer housing.
At present, in the industry the little cabinet of commercial type computer generally through special mainboard (ITX) is set, power supply waits and reduces size; Yet normally used power supply is an AC power, and its overall dimensions is difficult to reduce, and can't utilize the cabinet inside space when causing arranging other element effectively.
Therefore, how working out the little cabinet of commercial type computer of small occupied space has more become and has demanded the problem improving and solve in the industry urgently.
The utility model content
In view of this; The utility model is to the disappearance of prior art existence, and its fundamental purpose provides the little cabinet of a kind of commercial type computer, and it is through rationally being provided with arranging of power supply and mainboard; Effectively reduce them the cabinet overall space is taken, make host computer more microminiaturized.
For realizing above-mentioned purpose, the utility model adopts following technical scheme:
The little cabinet of a kind of commercial type computer; Comprise cabinet and the mainboard, hard disk and the power supply that are arranged in the cabinet, wherein, this cabinet comprises header board, back plate, base plate, top board and left and right side plate; This power supply is a direct supply, and this power supply and the nearly upper-lower position of mainboard are installed on the same side plate side by side.
Preferably, said power supply and mainboard are installed on the right plate, and said hard disk is installed on the left plate.
Preferably, be provided with a fixed mount to aforementioned hard disk, this fixed mount comprises substrate, the gusset plate of one-body molded connection and is connected otic placode, and this gusset plate extends to the right perpendicular to the substrate lateral margin and forms, and this connection otic placode stretches out from the substrate lateral margin and forms; Aforementioned hard disk is placed on this substrate, and locks and connects with the gusset plate, and connects otic placode and aforementioned left plate locks and connects.
Preferably; Said top board comprises first top board and second top board that branch is body formed; Said base plate comprises first base plate and second base plate that branch is body formed; And this first top board and the one-body molded respectively upper and lower ora terminalis that is connected in aforementioned left plate of first base plate, the one-body molded respectively upper and lower ora terminalis that is connected in aforementioned right plate of this second top board and second base plate.
Preferably, offer some louvres on the said top board.Offer some louvres on the said base plate.Offer some louvres on the said left plate.
The utility model compared with prior art has tangible advantage and beneficial effect, particularly, can be known by technique scheme, and it mainly is through this power supply being designed to direct supply, comparing the AC power of conventional art, and its volume is littler; And this direct supply and mainboard are arranged on the same side plate; And direct supply is arranged at the mainboard below; Arrange that so its package assembly is more compact, has utilized the space of cabinet inside well; Make should the little cabinet integral body of commercial affairs type computer to take up room forr a short time, more can satisfy the demand of people the small and exquisite performance of the little cabinet of commercial type computer.
Be architectural feature and the effect of more clearly setting forth the utility model, come the utility model is elaborated below in conjunction with accompanying drawing and specific embodiment.
Description of drawings
Fig. 1 is the package assembly synoptic diagram of the preferred embodiment of the utility model;
Fig. 2 is the package assembly synoptic diagram of another angle of preferred embodiment of the utility model;

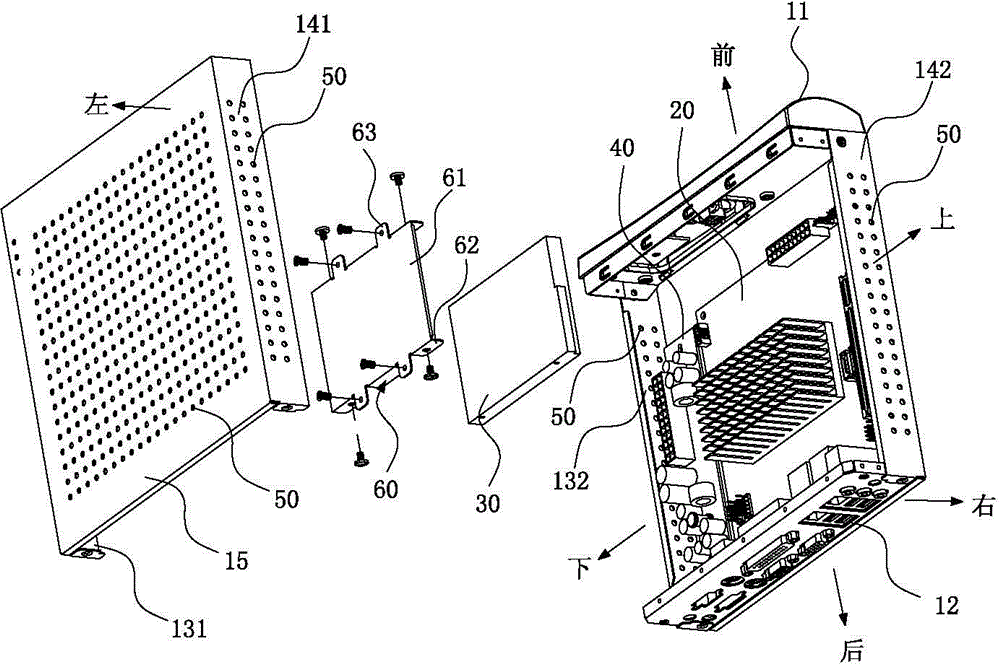

Fig. 3 is the decomposition texture synoptic diagram of the preferred embodiment of the utility model;
Fig. 4 is the arrangement synoptic diagram of power supply and mainboard in the preferred embodiment of the utility model;
Fig. 5 is another decomposition texture synoptic diagram of the preferred embodiment of the utility model.
The accompanying drawing identifier declaration:
10, cabinet 11, header board
12, back plate 13, base plate
131, first base plate 132, second base plate
141, first top board 142, second top board
15, left plate 16, right plate
20, mainboard 30, hard disk
40, power supply 50, louvre
60, fixed mount 61, substrate
62, gusset plate 63, connection otic placode.
Embodiment
Please referring to figs. 1 through shown in Figure 5, the concrete structure that it has demonstrated the preferred embodiment of the utility model comprises cabinet 10 and the mainboard 20, hard disk 30 and the power supply 40 that are arranged in the cabinet 10.
Wherein, this cabinet 10 comprises header board 11, back plate 12, base plate 13, top board, left plate 15 and right plate 16; This top board comprises first top board 141 and second top board 142 that branch is body formed, and this base plate bag 13 is drawn together the first body formed base plate 131 of branch and second base plate 132; The one-body molded respectively upper and lower ora terminalis that is connected in aforementioned left plate 15 of this first top board 141 and first base plate 131 is to form approximate U-shaped structure; The one-body molded respectively upper and lower ora terminalis that is connected in aforementioned right plate 16 of this second top board 142 and second base plate 132 is to form approximate U-shaped structure.In present embodiment, all offer some louvres 50 on aforementioned top board, base plate 13 and the left plate 15.
This power supply 40 is a direct supply, and its volume is less, and this power supply 0 is arranged on the right plate 16 with aforementioned mainboard 20; And power supply 40 is arranged at mainboard 20 belows (like Fig. 3 and shown in Figure 4); Arrange that so its package assembly is more compact, has utilized cabinet 10 volume inside well.
This hard disk 30 is installed on the left plate 15, and concrete mounting structure is following:
Be provided with a fixed mount 60 to aforementioned hard disk 30; This fixed mount 60 comprises substrate 61, the gusset plate 62 of one-body molded connection and is connected otic placode 63; This gusset plate 62 extends to the right perpendicular to substrate 61 lateral margins and forms, and this connection otic placode 63 stretches out from substrate 61 lateral margins and forms, and aforementioned hard disk 30 is placed on the substrate 61; And lock and connect, and connect otic placode 63 and lock and connect with aforementioned left plate 15 with gusset plate 62.
Comprehensive, the design focal point of the utility model is, mainly is through this power supply is designed to direct supply, compares the AC power of conventional art, and its volume is littler; And this direct supply and mainboard are arranged on the same side plate; And direct supply is arranged at the mainboard below; Arrange that so its package assembly is more compact, has utilized the space of cabinet inside well; Make should the little cabinet integral body of commercial affairs type computer to take up room forr a short time, more can satisfy the demand of people the small and exquisite performance of the little cabinet of commercial type computer.
The above; It only is the preferred embodiment of the utility model; Be not that the technical scope of the utility model is done any restriction; So every technical spirit according to the utility model all still belongs in the scope of the utility model technical scheme any trickle modification, equivalent variations and modification that above embodiment did.
Claims (7)
1. little cabinet of commercial type computer; Comprise cabinet and the mainboard, hard disk and the power supply that are arranged in the cabinet; Wherein, This cabinet comprises header board, back plate, base plate, top board and left and right side plate, and it is characterized in that: this power supply is a direct supply, and this power supply and the nearly upper-lower position of mainboard are installed on the same side plate side by side.
2. the little cabinet of commercial type computer according to claim 1, it is characterized in that: said power supply and mainboard are installed on the right plate, and said hard disk is installed on the left plate.
3. the little cabinet of commercial type computer according to claim 2; It is characterized in that: be provided with a fixed mount to aforementioned hard disk; This fixed mount comprises substrate, the gusset plate of one-body molded connection and is connected otic placode; This gusset plate extends to the right perpendicular to the substrate lateral margin and forms, and this connection otic placode stretches out from the substrate lateral margin and forms; Aforementioned hard disk is placed on this substrate, and locks and connects with the gusset plate, and connects otic placode and aforementioned left plate locks and connects.
4. the little cabinet of commercial type computer according to claim 1; It is characterized in that: said top board comprises first top board and second top board that branch is body formed; Said base plate comprises first base plate and second base plate that branch is body formed; And this first top board and the one-body molded respectively upper and lower ora terminalis that is connected in aforementioned left plate of first base plate, the one-body molded respectively upper and lower ora terminalis that is connected in aforementioned right plate of this second top board and second base plate.
5. the little cabinet of commercial type computer according to claim 1 is characterized in that: offer some louvres on the said top board.
6. the little cabinet of commercial type computer according to claim 1 is characterized in that: offer some louvres on the said base plate.
7. the little cabinet of commercial type computer according to claim 1 is characterized in that: offer some louvres on the said left plate.
