Abstract
本实用新型公开了一种易散热的紧凑式电源安装结构，能实现多块电源的同时安装，包含一矩形电源分配板和一盖板，所述分配板由矩形底板和左右侧板组成，所述底板的一对对应边分别向上垂直延伸形成所述左右侧板，左右侧板与底板共同形成容置电源的收容空间，所述电源分配板上能前后对称放置电源，所述盖板的尺寸与所述分配板的尺寸相一致，且盖板的中部设置有通风区域。通过该紧凑式电源安装结构，能实现在最小区域内多个电源的紧凑安装，同时在盖板设有通风区域，保证了电源的有效散热。
The utility model discloses a compact power supply installation structure that is easy to dissipate heat, which can realize the simultaneous installation of multiple power supplies, and comprises a rectangular power supply distribution board and a cover board. The distribution board is composed of a rectangular bottom board and left and right side boards. A pair of corresponding sides of the base plate extend vertically upwards respectively to form the left and right side plates, and the left and right side plates and the base plate jointly form a storage space for accommodating the power supply, and the power supply can be symmetrically placed on the power distribution plate. It is consistent with the size of the distribution plate, and the middle part of the cover plate is provided with a ventilation area. Through the compact power supply installation structure, the compact installation of multiple power supplies in the smallest area can be realized, and at the same time, a ventilation area is provided on the cover plate to ensure effective heat dissipation of the power supplies.
Description
Technical field
The utility model relates to field of computer technology, the compact power suppliy mounting structure of a kind of easy heat radiation specifically.
Background technology
In the water-cooled rack, the space is very limited, assembling when the existing power supply mounting means is difficult to realize the polylith power supply.Yet along with the needs of each assembly high speed operation in the rack, become development trend for the interior polylith power supply that is equipped with of rack.
The utility model content
The utility model discloses a kind of compact power suppliy mounting structure of easy heat radiation at the weak point that prior art exists.
The compact power suppliy mounting structure of easy heat radiation disclosed in the utility model, install when can realize the polylith power supply, its technical scheme is as follows: comprise a rectangle power distribution plate and a cover plate, described distribution plate is made up of rectangular base plate and left side plate, the a pair of corresponding sides of described base plate upwards vertically extend to form described left side plate respectively, the common receiving space that forms ccontaining power supply of left side plate and base plate, can the front and back symmetry place power supply on the described power distribution plate, the size of described cover plate is consistent with the size of described distribution plate, and the middle part of cover plate is provided with aerated area.
Further, the left side plate top of described power distribution plate all inwardly is provided with the connecting plate that is parallel to base plate, and described connecting plate is provided with screw.
Further, position corresponding with screw on the connecting plate on the plate face of described cover plate has screw, uses screw to connect by screw cover plate is fixed on power distribution plate top.
Further, the length of described power distribution plate is at least the length of two block power supplies, and the width of described power distribution plate is at least the width of a block power supply, and the left side plate height of described power distribution plate is with power supply height unanimity.
Further, the aerated area of described cover plate adopts latticed design, and also is provided with ventilation hole on the cover plate.
The beneficial effect that the compact power suppliy mounting structure of the disclosed easy heat radiation of the utility model has is: by this compact power suppliy mounting structure, the compactness that can be implemented in a plurality of power supplys in the Minimum Area is installed, simultaneously be provided with aerated area at cover plate, guaranteed the efficiently radiates heat of power supply.
Description of drawings

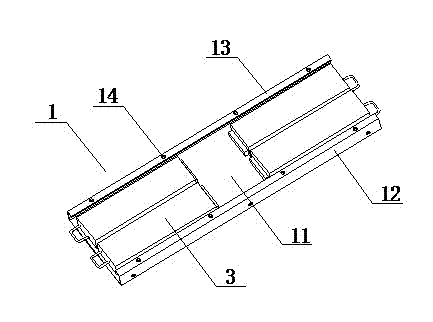

Accompanying drawing 1 is the structural representation of the utility model embodiment of assembling power supply;
Accompanying drawing 2 is the scheme of installation of the utility model embodiment;
Accompanying drawing marking explanation: 1, power distribution plate; 2, cover plate; 3, power supply; 4, screw; 11, base plate; 12, side plate; 13, connecting plate; 14, screw; 21, aerated area; 22, ventilation hole.
Embodiment
Below in conjunction with drawings and Examples, the compact power suppliy mounting structure of easy heat radiation disclosed in the utility model is described in further details.
Embodiment:
This uses the compact power suppliy mounting structure of novel selected embodiment, as illustrated in fig. 1 and 2.This power supply mounting structure, comprise a rectangle power distribution plate 1 and a cover plate 2, described power distribution plate 1 is made up of base plate 11 and left side plate 12, described left side plate 12 is extended upward by a pair of long limit of base plate 11 and forms, like this base plate 11 and the left side plate 12 common receiving spaces of placing power supplys that form; Further, the length of base plate described in the present embodiment is greater than the length of two block power supplies, and width is set to the width of two block power supplies, can the front and back symmetry place four block power supplies in the power distribution plate 1 like this; Described cover plate 2 is consistent with the size of base plate 11, and cover plate 2 middle parts are provided with rectangle aerated area 21, and further, described aerated area 21 adopts mesh design, also is provided with ventilation hole 22 on the cover plate 2 simultaneously.Except situation described in the utility model, the aerated area on the cover plate also can be designed to circle or Long Circle, and the mesh shape that adopts also has multiple choices.
In the present embodiment, the left side plate 12 of described power distribution plate 1 inwardly is provided with the connecting plate 13 that is parallel to base plate, and connecting plate 13 is provided with screw 14; Simultaneously the position corresponding with the screw 14 of connecting plate 13 is provided with screw on the described cover plate 2, is connected and fixed the screw of cover plate 2 and the screw of connecting plate by screw, and cover plate 2 is fixed on power distribution plate 1 top.By this power supply mounting structure, the compactness that can be implemented in polylith power supply in the minimum space is installed, because the top cover plate is provided with bigger aerated area, has improved the radiating effect of internal electric source simultaneously.
Except technical characterictic described in the utility model, be the known technology of those skilled in the art.
