CN202480536U - Screen for silk screen printing in solar battery production - Google Patents
Screen for silk screen printing in solar battery production Download PDFInfo
- Publication number
- CN202480536U CN202480536U CN2012201435670U CN201220143567U CN202480536U CN 202480536 U CN202480536 U CN 202480536U CN 2012201435670 U CN2012201435670 U CN 2012201435670U CN 201220143567 U CN201220143567 U CN 201220143567U CN 202480536 U CN202480536 U CN 202480536U
- Authority
- CN
- China
- Prior art keywords
- screen
- half tone
- solar battery
- screen printing
- battery production
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Lifetime
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02P—CLIMATE CHANGE MITIGATION TECHNOLOGIES IN THE PRODUCTION OR PROCESSING OF GOODS
- Y02P70/00—Climate change mitigation technologies in the production process for final industrial or consumer products
- Y02P70/50—Manufacturing or production processes characterised by the final manufactured product
Landscapes
- Photovoltaic Devices (AREA)
Abstract
The utility model discloses a screen for silk screen printing in solar battery production. The middle of the screen is a pattern region, a seal layer is arranged all around the pattern region on a surface of the screen, and the surface of the screen is not contacted by the printing paste. The screen for the silk screen printing in the solar battery production can effectively prevent the printing paste from leaking, and can reduce production cost.
Description
Technical field
The utility model relates to a kind of half tone that is used for manufacture of solar cells, the screen printing screens in particularly a kind of manufacture of solar cells.
Background technology
At present, solar cell is a kind of extensive now clean energy resource that uses.In the manufacturing production process of solar cell, in the service life of how to improve half tone, reduction manufactures a finished product, and has all done a large amount of work from area research workers such as crystal silicon raw material, battery structure, battery process, cell sizes.In the process of existing manufacture of solar cells serigraphy, the damaged situation of half tone occurs through regular meeting and cause spillage,, then can increase the manufacture of solar cells cost widely as just changing half tone at this moment.
Summary of the invention
The utility model technical problem to be solved provides the screen printing screens in a kind of manufacture of solar cells, effectively prevents spillage to reduce production costs.
The technical scheme that the utility model technical solution problem adopts is: the screen printing screens in a kind of manufacture of solar cells, and said half tone middle part is a pattern area, the one side of non-printing slurry contact is provided with one deck sealant around the pattern at said half tone middle part.
As a kind of preferred, the thickness of said sealant is not more than 0.1mm.
The half tone of the utility model can be used as anodal half tone or a backplane half tone or a back of the body half tone; The screen cloth of half tone can be stainless (steel) wire or V net or polyester webs, and the sealant in the utility model can be coloured glue band or adhesive tape.
The beneficial effect of the utility model is: is provided with one deck sealant at the half tone back side, can effectively prevents the half tone spillage, and simple to operate, reduce production costs.
Description of drawings

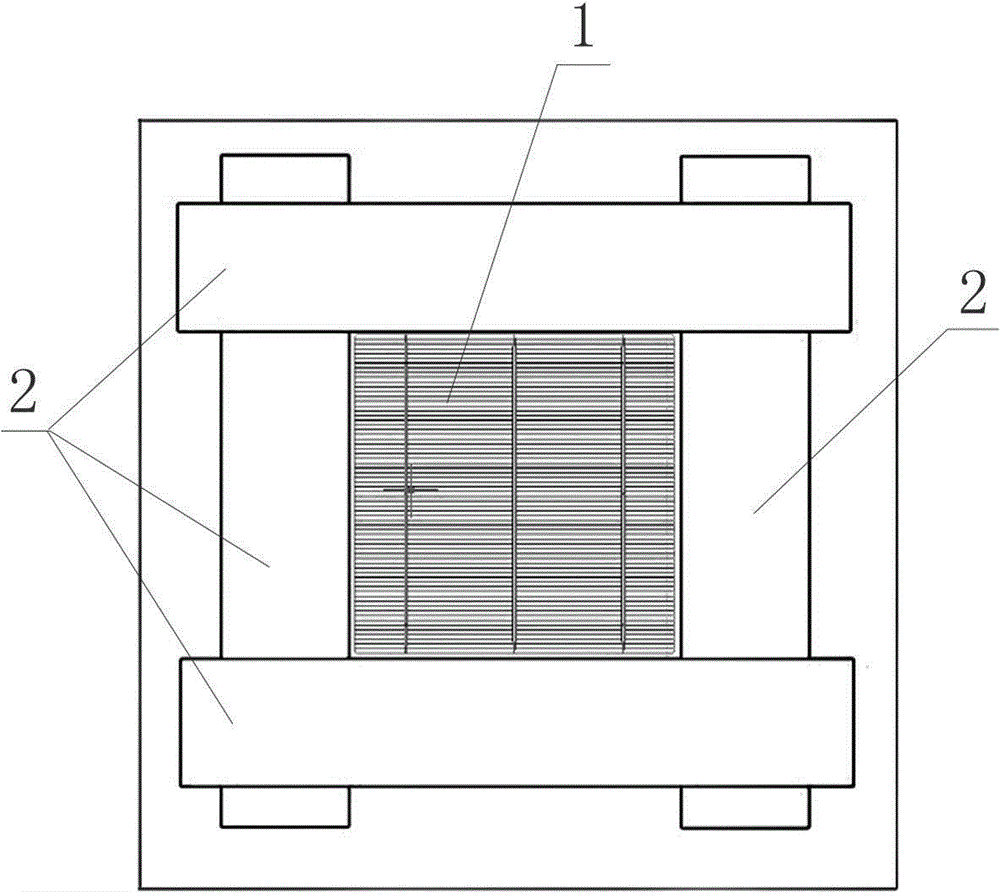

Fig. 1 is the structural representation of the utility model embodiment.
Below in conjunction with accompanying drawing the utility model is further specified.
The specific embodiment
As shown in Figure 1; Screen printing screens in a kind of manufacture of solar cells, the middle part of half tone are pattern area 1, and the one side of non-printing slurry contact is provided with layer of transparent adhesive tape 2 around the pattern at half tone middle part; This adhesive tape thickness is 0.08mm, can effectively prevent the half tone spillage like this.
Claims (2)
1. the screen printing screens in the manufacture of solar cells, said half tone middle part be pattern area (1), it is characterized in that: the one side that non-printing slurry contacts around the pattern at said half tone middle part is provided with one deck sealant (2).
2. the screen printing screens in a kind of manufacture of solar cells as claimed in claim 1 is characterized in that: the thickness of said sealant (2) is not more than 0.1mm.
