The utility model discloses a household dual-purpose electronic oven for steaming and baking. The electronic oven comprises a casing; a baking chamber is arranged in the casing; a warm-keeping insulation layer warps the baking chamber; heating devices are arranged in the warm-keeping insulation layer, and a ceramic heat insulation plate is arranged outside the warm-keeping insulation layer; the heating devices are electromagnetic inductors; and at least two electromagnetic inductors are arranged in the warm-keeping insulation layer. According to the utility model, the advanced electromagnetic inductors are adopted, so that the electronic oven can satisfy the use of families, restaurants, bars, entertainment places and the like and is suitable for various barbecues, and the electronic oven can be manufactured into different sizes according to specific sizes required by restaurants, hotels and families; and the electronic oven has the characteristics of higher heating rate, reduced cost, increased profit, automation in temperature control, liquid crystal display and the like, can provide convenient and safe baked food for families, and has the advantages that various foods can be baked, the functions are complete, temperature is controlled digitally, and the operation is simple and convenient.

Description

A kind of family expenses are scorched dual-purpose electric oven
Technical field
The utility model relates to a kind of electric oven, relates in particular to a kind of family expenses and scorches dual-purpose electric oven, belongs to the electronic product field.
Background technology
At present, the heating of most electric oven all is to adopt the resistance wire heating, has that firing rate is slow, power consumption big, temperature control is bad etc. and cause that power consumption is big, expense is high, and the electric heating tube that has directly is placed in the furnace chamber, is prone to cause dangerous accidents such as electric leakage.
The utility model content
To the deficiency that prior art exists, the utility model technical problem to be solved is, provides a kind of family expenses to scorch dual-purpose electric oven, safety and sanitation, and simple in structure, easy to use, production cost is low.
For solving the problems of the technologies described above; The technical scheme that the utility model is taked is that a kind of family expenses are scorched dual-purpose electric oven, comprise shell; Be provided with baking vessel in the shell; Its baking vessel is wrapped with the insulation insulating barrier, is provided with heater in the insulation insulating barrier, and the insulation insulating barrier is outside equipped with ceramic heat-insulation board; Said heater is an electromagnetic inductor, and electromagnetic inductor is provided with two at least in the insulation insulating barrier; Said enclosure also is provided with the vapours generating means, and the vapor evolution end of vapours generating means stretches in the baking vessel, and the vapor evolution end is provided with mesh grille; Said electromagnetic inductor is connected in variable-frequency power sources and the central control board in the shell.
Optimize, above-mentioned family expenses are scorched dual-purpose electric oven, and its outer casing inner wall is provided with the electro-magnetic screen layer of anti-electromagnetic radiation.
Optimize, above-mentioned family expenses are scorched dual-purpose electric oven, and its vapours generating means is a miniature boiler, and the middle part is provided with the filler, and the bottom connects natural gas line.
Optimize, above-mentioned family expenses are scorched dual-purpose electric oven, and its miniature boiler is provided with steam pressure gauge.
The utility model with use compared with techniques at present, its beneficial effect is: the utility model can satisfy the use of different occasions such as family, dining room, bar and amusement owing to adopt advanced electromagnetic inductor; Be suitable for barbecue kind miscellaneous, and the big I of electric oven uses concrete sized by hotels and family, eat the people of baked foods for frequent love; This is undoubtedly a kind of best heating tool, after the operator uses electric oven, firing rate is accelerated; Lowered expense, increased profit, characteristics such as convenience is automatic temperature-controlled with the baked foods of safety, liquid crystal display also are provided for family simultaneously; Can roast multiple food; Multiple functional, digital control temperature, easy and simple to handle.
Description of drawings
Below in conjunction with accompanying drawing and embodiment to the utility model further explain;

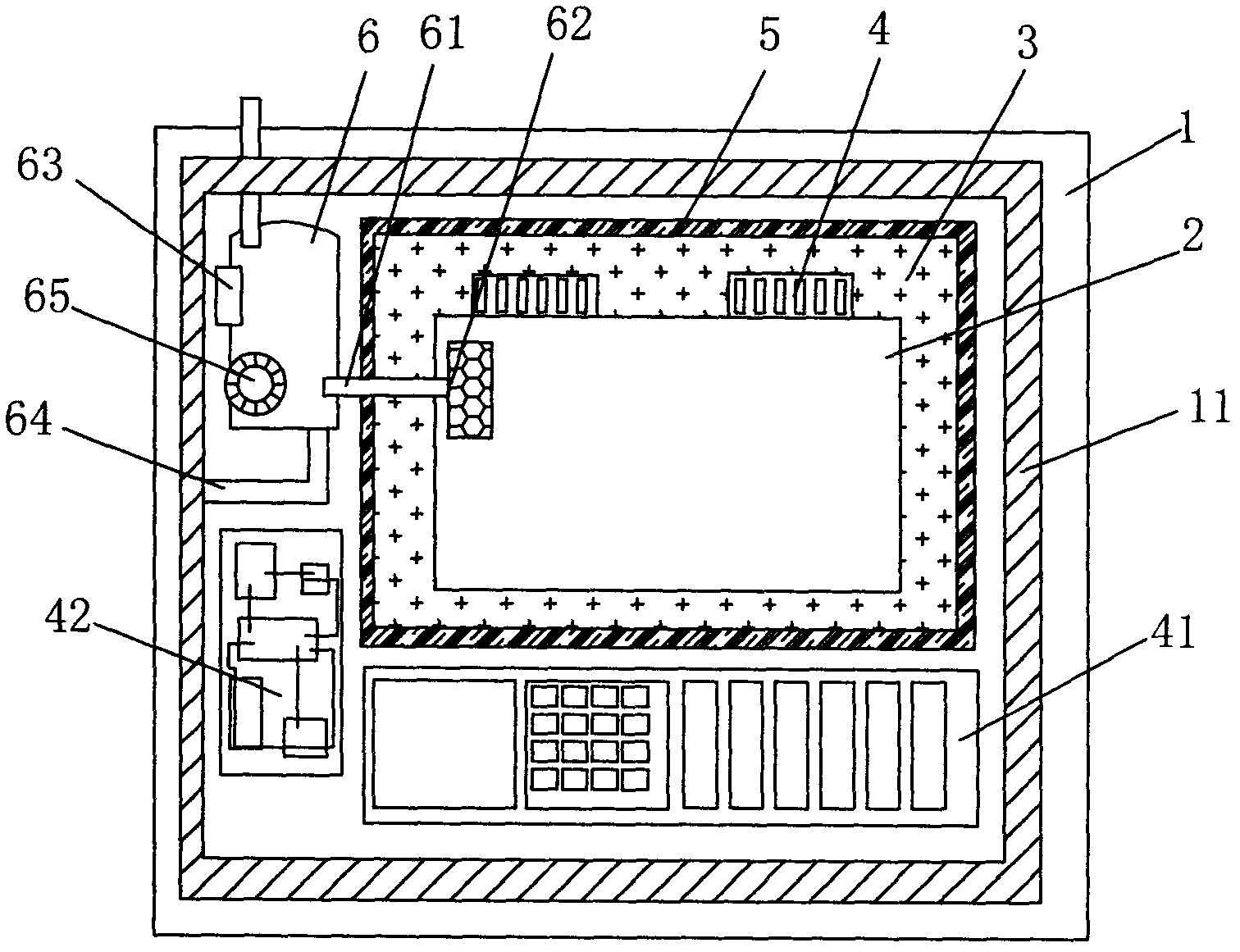

Fig. 1 is the structural representation of the utility model.
The specific embodiment
As shown in Figure 1, the utility model is that a kind of family expenses are scorched dual-purpose electric oven, comprises shell 1; Be provided with baking vessel 2 in the shell 1; Its baking vessel 2 is wrapped with insulation insulating barrier 3, is provided with heater 4 in the insulation insulating barrier 3, and insulation insulating barrier 3 is outside equipped with ceramic heat-insulation board 5; Said heater 4 is an electromagnetic inductor, and electromagnetic inductor is provided with two at least in insulation insulating barrier 3; Said shell 1 inside also is provided with vapours generating means 6, and the vapor evolution end 61 of vapours generating means 6 stretches in the baking vessel 2, and vapor evolution end 61 is provided with mesh grille 62; Said electromagnetic inductor is connected in the variable-frequency power sources 41 and central control board 42 in the shell 1.Shell 1 inwall is provided with the electro-magnetic screen layer 11 of anti-electromagnetic radiation.Vapours generating means 6 is a miniature boiler, and the middle part is provided with filler 63, and the bottom connects natural gas line 64.Miniature boiler is provided with steam pressure gauge 65.The utility model can satisfy the use of different occasions such as family, dining room, bar and amusement owing to adopt advanced electromagnetic inductor, is suitable for barbecue kind miscellaneous; And the big I of electric oven is used concrete sized by hotels and family, eats the people of baked foods for frequent love, and this is undoubtedly a kind of best heating tool; After the operator uses electric oven, firing rate is accelerated, lowered expense; Increase profit, characteristics such as convenience is automatic temperature-controlled with the baked foods of safety, liquid crystal display also are provided for family simultaneously, can roast multiple food; Multiple functional, digital control temperature, easy and simple to handle.
Certainly, above-mentioned explanation is not to be the restriction to the utility model, and the utility model also is not limited to above-mentioned giving an example; Those skilled in the art; In the essential scope of the utility model, the variation of making, remodeling, interpolation or replacement all should belong to the protection domain of the utility model.

Claims (4)

1. family expenses are scorched dual-purpose electric oven, comprise shell, are provided with baking vessel in the shell, it is characterized in that: said baking vessel is wrapped with the insulation insulating barrier, is provided with heater in the insulation insulating barrier, and the insulation insulating barrier is outside equipped with ceramic heat-insulation board; Said heater is an electromagnetic inductor, and electromagnetic inductor is provided with two at least in the insulation insulating barrier; Said enclosure also is provided with the vapours generating means, and the vapor evolution end of vapours generating means stretches in the baking vessel, and the vapor evolution end is provided with mesh grille; Said electromagnetic inductor is connected in variable-frequency power sources and the central control board in the shell.
2. family expenses according to claim 1 are scorched dual-purpose electric oven, it is characterized in that: said outer casing inner wall is provided with the electro-magnetic screen layer of anti-electromagnetic radiation.
3. family expenses according to claim 2 are scorched dual-purpose electric oven, it is characterized in that: said vapours generating means is a miniature boiler, and the middle part is provided with the filler, and the bottom connects natural gas line.
4. family expenses according to claim 3 are scorched dual-purpose electric oven, it is characterized in that: said miniature boiler is provided with steam pressure gauge.
