Abstract
本实用新型所设计的一种蓄电池极板水洗装置，解决了目前蓄电池极板水洗成本高，极板间易相互粘贴的技术问题。本实用新型包括水洗槽，其特征是所述的水洗槽有多个且呈阶梯排布，所述的水洗槽上部连通一导管，所述导管的另一管口设置在处于上述洗水槽低位的相邻水洗槽内，处于最高位的水洗槽内装有进水管，处于最低位的水洗槽内装有排水管。本实用新型得到的一种蓄电池极板水洗装置，极板表面及孔内的硫酸洗涤效果好，避免在极板干燥及贮存过程中产生过量的硫酸铅“钝化”层；极板的电性能影响小；并且缩短水洗时间，清洗用水量少，工作效率高。
The battery pole plate water washing device designed by the utility model solves the technical problems that the current battery pole plate washing cost is high and the pole plates are easy to stick to each other. The utility model includes a water washing tank, which is characterized in that there are multiple water washing tanks arranged in steps, the upper part of the water washing tank is connected with a conduit, and the other nozzle of the conduit is arranged at the lower position of the above washing water tank. In the adjacent washing tanks, the highest washing tank is equipped with a water inlet pipe, and the lowest washing tank is equipped with a drain pipe. The battery pole plate water washing device obtained by the utility model has good sulfuric acid washing effect on the surface of the pole plate and in the hole, and avoids excessive lead sulfate "passivation" layer during the drying and storage of the pole plate; the electrical properties of the pole plate The impact is small; and the washing time is shortened, the washing water consumption is less, and the work efficiency is high.
Description
技术领域 technical field
本实用新型涉及蓄电池加工技术领域，尤其是一种蓄电池极板水洗装置。 The utility model relates to the technical field of battery processing, in particular to a battery plate washing device.
背景技术 Background technique
在铅酸蓄电池的极板生产过程中，化成后极板要进行水洗，首先将盛装极板的架子放入有水的槽中，冲洗后开始捞极板，由于工人在捞极板时，很多极板整叠整叠的往架子上放，从而极板没有保持应有的间距，这样很难洗去极板表面硫酸及其他杂物，更不用说洗去极板孔内残留的硫酸了，同时还会发生板与板之间的局部粘贴，并且清洗用纯水量较大，增加了极板制造过程中的成本。 In the production process of the lead-acid battery plates, the plates should be washed with water after forming. First, put the rack containing the plates into the tank with water, and start to pick up the plates after washing. When workers are picking up the plates, many The plates are stacked on the shelf, so that the plates are not kept at the proper distance, which makes it difficult to wash off the sulfuric acid and other impurities on the surface of the plates, let alone the residual sulfuric acid in the holes of the plates. At the same time, local sticking between the plates will also occur, and the amount of pure water used for cleaning is relatively large, which increases the cost in the manufacturing process of the plates.
实用新型内容 Utility model content
本实用新型的目的是为了解决上述现有技术的不足而提供一种蓄电池极板水洗装置，阶梯式间隔清洗，避免极板间的粘接，并且洗涤均匀，清洗所需水量少。 The purpose of this utility model is to provide a storage battery pole plate washing device in order to solve the above-mentioned deficiencies in the prior art, step-by-step interval cleaning, avoiding the bonding between the pole plates, and washing evenly, less water required for cleaning.
为了达到上述目的，本实用新型所设计的一种蓄电池极板水洗装置，包括水洗槽，其特征是所述的水洗槽有多个且呈阶梯排布，所述的水洗槽上部连通一导管，所述导管的另一管口设置在处于上述洗水槽低位的相邻水洗槽内，处于最高位的水洗槽内装有进水管，处于最低位的水洗槽内装有排水管。 In order to achieve the above purpose, a battery plate washing device designed by the utility model includes a washing tank, which is characterized in that there are multiple washing tanks arranged in steps, and the upper part of the washing tank is connected to a conduit. The other nozzle of the conduit is arranged in the adjacent washing tank at the lower position of the washing tank, the highest washing tank is equipped with a water inlet pipe, and the lowest washing tank is equipped with a drain pipe.
化成后的极板可放入的水洗槽内，纯水通过进水管从最高阶梯上的水洗槽中输入，灌满后，其溢出的水，通过导管流入下一个水洗槽内，依次类推，直至流到最后一个水洗槽，并且溢出的酸水通过排水管可流到酸水处理站进行处理，洗涤效果好，清洗用纯水量小，降低清洗时间，提高工作效率，并且节约成本。 The formed plate can be put into the washing tank on the highest step, and the pure water is input from the washing tank on the highest step through the water inlet pipe. After it is filled, the overflowing water flows into the next washing tank through the conduit, and so on until It flows to the last washing tank, and the overflowing acid water can flow to the acid water treatment station for treatment through the drain pipe. The washing effect is good, the amount of pure water used for cleaning is small, the cleaning time is reduced, the work efficiency is improved, and the cost is saved.
作为上述结构的进一步完善和补充，本实用新型还包含以下附加技术特征或这些特征的任意组合： As a further improvement and supplement to the above structure, the utility model also includes the following additional technical features or any combination of these features:
所述的水洗槽底部开有压力气孔，进入的压力气体搅拌水洗槽中的水，从而带动极板轻微晃动，这样既达到酸度均匀，又能冲洗掉极板表面杂质。 There is a pressure hole at the bottom of the washing tank, and the pressure gas that enters stirs the water in the washing tank, thereby driving the plate to shake slightly, so that the acidity is uniform and impurities on the surface of the plate can be washed away.
所述的洗水槽呈均匀下降的阶梯结构，各压力气孔通过一通气管连通，所述的通气管连接一气泵，统一控制，调控方便。 The washing tank is in a uniformly descending ladder structure, and each pressure air hole is connected through a ventilation pipe, and the ventilation pipe is connected with an air pump, which is uniformly controlled and easy to regulate.
所述水洗槽靠导管侧装有挡板，所述的挡板上端与水洗槽槽口齐平且下端与水洗槽底面距离8-15cm，增加水洗槽内的容水高度至槽口，通过此结构溢出的水中硫酸等杂质含量高，有效排除杂质，洗涤效果好。 The water washing tank is equipped with a baffle on the side of the conduit, the upper end of the baffle plate is flush with the notch of the water washing tank and the distance between the lower end and the bottom surface of the water washing tank is 8-15 cm, so as to increase the height of the water in the washing tank to the notch, and through this Sulfuric acid and other impurities are high in the water overflowed from the structure, which effectively removes impurities and has a good washing effect.
本实用新型得到的一种蓄电池极板水洗装置，极板表面及孔内的硫酸洗涤效果好，避免在极板干燥及贮存过程中产生过量的硫酸铅“钝化”层；极板的电性能影响小；并且缩短水洗时间，清洗用水量少，工作效率高。 The battery pole plate water washing device obtained by the utility model has good sulfuric acid washing effect on the surface of the pole plate and in the hole, and avoids excessive lead sulfate "passivation" layer during the drying and storage of the pole plate; the electrical properties of the pole plate The impact is small; and the washing time is shortened, the washing water consumption is less, and the work efficiency is high.
附图说明 Description of drawings

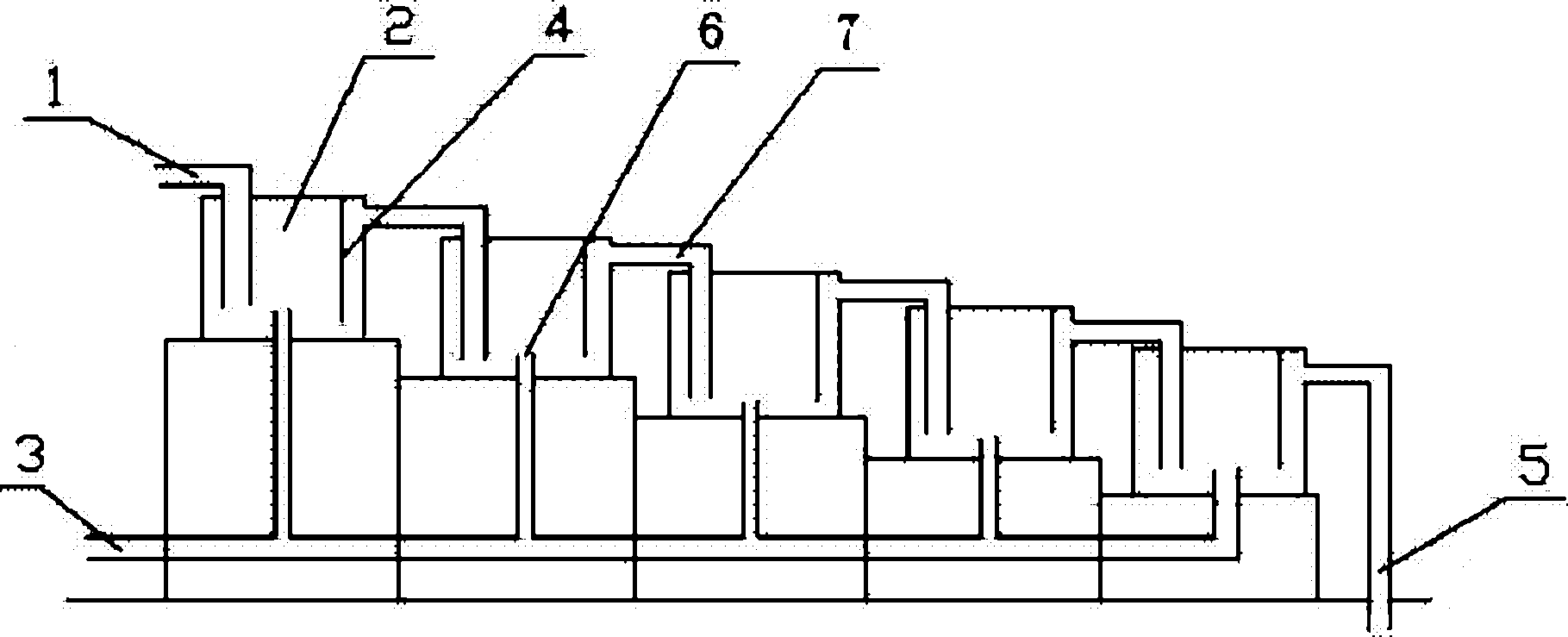

图1是本实用新型的结构示意图。 Fig. 1 is the structural representation of the utility model.
图中：1-进水管、2-水洗槽、3-通气管、4-挡板、5-排水管、6-压力气孔、7-导管。 Among the figure: 1-water inlet pipe, 2-water washing tank, 3-ventilating pipe, 4-baffle plate, 5-drainage pipe, 6-pressure air hole, 7-conduit.
具体实施方式 Detailed ways
下面通过实施例结合附图对本实用新型作进一步的描述。 Below by embodiment in conjunction with accompanying drawing, the utility model is further described.
如图1所示，本实施例描述的一种蓄电池极板水洗装置，包括水洗槽2，所述的水洗槽2有多个且呈阶梯排布，所述的水洗槽2上部连通一导管7，所述导管7的另一管口设置在处于上述洗水槽低位的相邻水洗槽内，处于最高位的水洗槽2内装有进水管1，处于最低位的水洗槽2内装有排水管5。 As shown in Figure 1, a battery plate washing device described in this embodiment includes a washing tank 2, and there are multiple washing tanks 2 arranged in steps, and the upper part of the washing tank 2 is connected to a conduit 7 , the other nozzle of described conduit 7 is arranged in the adjacent washing tank that is in the low position of above-mentioned washing tank, water inlet pipe 1 is housed in the washing tank 2 of the highest position, and drainage pipe 5 is housed in the washing tank 2 of the lowest position.
所述的水洗槽2底部开有压力气孔6。所述的洗水槽2呈均匀下降的阶梯结构，各压力气孔6通过一通气管3连通，所述的通气管3连接一气泵。所述水洗槽2靠导管侧装有挡板4，所述的挡板4上端与水洗槽2槽口齐平且下端与水洗槽2底面距离8cm-15cm。 The bottom of the washing tank 2 is provided with a pressure air hole 6 . The washing tank 2 is in a stepped structure with uniform descent, and each pressure air hole 6 is communicated through a ventilation pipe 3, and the ventilation pipe 3 is connected to an air pump. Described washing tank 2 is equipped with baffle plate 4 by the conduit side, and the upper end of described baffle plate 4 is flush with the notch of washing tank 2 and the distance between the lower end and the bottom surface of washing tank 2 is 8cm-15cm.
先将水洗槽2清理干净，极板从出化成槽到入水洗槽2的时间尽量短，尤其是负极板，减小氧化程度，将极板挂在极板架上，然后整理极板，保证极板平整并保持一定间距，洗去极板表面硫酸及其它杂物，整理完后，将极板架放入各放满纯水的水洗槽2中，然后开启气泵和放入纯水，纯水量要求能够完全淹没极板，要求极板洗至无酸性，一般情况下用PH试纸在水洗槽2的顶部取水检测，当检测水的PH值大于5时，则认为极板已基本洗净，此种水洗方式，总的洗涤时间大概为30分钟。 Clean up the washing tank 2 first, and the time for the plates to enter the washing tank 2 from the chemical formation tank should be as short as possible, especially for the negative plate, to reduce the degree of oxidation, hang the plates on the plate holder, and then arrange the plates to ensure The plates are flat and kept at a certain distance, and sulfuric acid and other sundries on the surface of the plates are washed away. The amount of water is required to completely submerge the plate, and the plate is required to be washed until it is acid-free. Generally, use pH test paper to take water from the top of the washing tank 2 for testing. When the pH value of the tested water is greater than 5, it is considered that the plate has been basically washed. , This washing method, the total washing time is about 30 minutes.
Claims (4)
