Abstract
A restraining glove comprises a palm surface and a back surface. A hand holding cavity is arranged between the palm surface and the back surface, each of the palm surface and the back surface is provided with a hand end and a wrist end, one side of the hand end of the palm surface is connected with one side of the hand end of the back surface via a hinge, the other side of the hand end of the palm surface is connected with the other side of the hand end of the back surface via a thread gluing strap and a thread gluing strap ring, two sides of the wrist end of the palm surface are connected with two sides of the wrist end of the back surface via thread gluing straps and thread gluing strap rings, the hand ends are ellipsoidal, the wrist ends are cylindrical, air holes are arranged on the palm surface and the back surface, and a front finger opening is arranged on each hand end. Both hands of a patient are movably limited in restraining gloves, so that medical risks are reduced, normal medical activity is guaranteed, and the restraining glove has the advantages of simple structure, convenience in use, low cost and the like.
Description
Technical field
This utility model belongs to medical assistant product field, relates in particular to a kind of constraint gloves.
Background technology
In hospital's medical nursing work, often run into the patient that psychological problem, disturbance of consciousness can not cooperate the doctor to check and treat.Patient usually pulls tube for transfusion, cardiac monitoring electrode to take off, and brings great trouble for treatment, monitoring.Severe patient more, patient may pull venous duct, catheter, tracheal intubation and cause massive hemorrhage or life danger.Care method to this type of patient is that patient's trick is fixing on one's sick bed with the restraining belt constraint at present; There are a lot of shortcomings in this way: one; Patient lacks autoprotection consciousness under the situation of obnubilation, firmly pull repeatedly and draw restraining belt may cause skin to dampen; Joint injury is brought extra damage to patient.Two, trick in bond fixing after, patient's limbs and trunk are movable to be reduced, long-term bed has the possibility of bringing out pressure ulcer.In addition, for the patient that nervous system disease is arranged, like patients with cerebral apoplexy, constrained fixed limb, restriction limb activity may bring out unusual motor pattern, increase the weight of muscle spasm, are unfavorable for the rehabilitation of patient's limb function.Three: the binding effect of restraining belt is unsatisfactory, has untwisting voluntarily to occur, and patient unties the phenomenon of knot with tooth.Four: after patient's constraint, be not easy to the doctor patient is carried out a medical examination and the motor function evaluation.Five: patient's trick is fixing with the restraining belt constraint, lack concern with humanization to patient.Be prone to patient is caused shade, bring unhappyly to family members, be unfavorable for that patient, family numbers of patients cooperate the medical worker to treat.
Summary of the invention
The purpose of this utility model provides constraint gloves, can patient be retrained effectively, does not disturb patient's limb activity again, makes things convenient for medical personnel to carry out medical care precess.
In order to solve the problems of the technologies described above; The technical scheme of this utility model is: a kind of constraint gloves, comprise palmar aspect and the back of the hand face, and be provided with the hand placement cavity between said palmar aspect and the back of the hand face; Palmar aspect and the back of the hand face are equipped with hand end and wrist end; Hand end one side of palmar aspect and the back of the hand face is connected through the hinge, and opposite side is connected with the cingulum ring through magic tape, and the wrist end both sides of palmar aspect and the back of the hand face all are connected with the cingulum ring through magic tape.
Said hand end is an elliposoidal, and the wrist end is a cylindrical shape.
Be equipped with pore on said palmar aspect and the back of the hand face.
Before being provided with, said hand end refers to opening.
The constraint gloves that this utility model provides in glove, has been avoided the both hands activity restriction psychological problem, obnubilation patient grab and has been pulled medical apparatus and instruments; The generation of the own phenomenon of hurting sb.'s feelings; Reduced medical-risk, guaranteed normally carrying out of curative activity, it is movable not influence both hands and upper limb again; Has advantage light, that wearing is convenient, easy and simple to handle, with low cost.
Description of drawings
Below in conjunction with accompanying drawing and embodiment this utility model is described further.

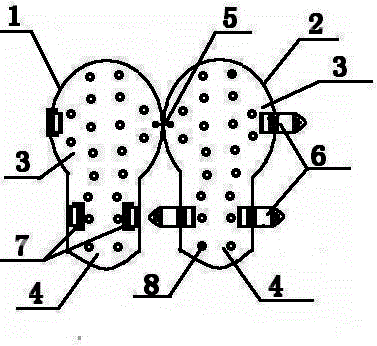

Fig. 1 is the structural representation of this utility model;
Fig. 2 is the side view of this utility model.
The specific embodiment
As shown in Figure 1; This utility model comprises palmar aspect 1 and the back of the hand face 2; Be provided with the hand placement cavity between said palmar aspect 1 and the back of the hand face 2, palmar aspect 1 is equipped with hand end 3 and wrist end 4 with the back of the hand face 2, and hand end 3 one sides of palmar aspect and the back of the hand face are connected through hinge 5; Opposite side is connected with cingulum ring 7 through magic tape 6, and the wrist end both sides of palmar aspect 1 and the back of the hand face 2 all are connected with cingulum ring 7 through magic tape 6.
Said hand end 3 is an elliposoidal, and wrist end 4 is a cylindrical shape.
Be equipped with pore 8 on said palmar aspect 1 and the back of the hand face 2.
Before being provided with, said hand end 3 refers to opening 9.
The exterior material of this utility model selects for use rigid plastics or canvas to process, and inside is provided with the lint lining, when using this utility model, earlier patient's hand and wrist is put between palmar aspect 1 and the back of the hand face 2, magic tape 6 is passed cingulum ring 7 tighten up and get final product.Finger can be through the glove end preceding finger opening 9 activities, these glove can be with the both hands activity restriction in glove, avoid the patient of psychological problem, obnubilation to grab and pull medical apparatus and instruments, hurt sb.'s feelings or the generation of autolesionism, and it are movable can not influence both hands and upper limb.
Claims (4)
1. constraint gloves; Comprise palmar aspect (1) and the back of the hand face (2); Be provided with the hand placement cavity between said palmar aspect and the back of the hand face; It is characterized in that: palmar aspect (1) and the back of the hand face (2) are equipped with hand end (3) and wrist end (4); Hand end (3) one sides of palmar aspect and the back of the hand face are connected through hinge (5), and opposite side is connected with cingulum ring (7) through magic tape (6), and the wrist end both sides of palmar aspect (1) and the back of the hand face (2) all are connected with cingulum ring (7) through magic tape (6).
2. a kind of constraint gloves according to claim 1 is characterized in that: said hand end (3) is an elliposoidal, and wrist end (4) is a cylindrical shape.
3. a kind of constraint gloves according to claim 1 is characterized in that: be equipped with pore (8) on said palmar aspect (1) and the back of the hand face (2).
4. a kind of constraint gloves according to claim 1 is characterized in that: refer to opening (9) before said hand end is provided with.
