Abstract

The utility model discloses a simple rehabilitation-training wheel chair, and belongs to wheel chairs. The rehabilitation-training wheel chair is characterized in that a walking frame is arranged at the front of a wheel chair frame; one side of the wheel chair frame and one side of the walking frame are connected into a whole by virtue of a handrail, and a movable handrail is connected between the other side of the wheel chair frame and the other side of the walking frame; a chair seat and a backrest are connected at the middle position of the wheel chair frame; the upper end of the wheel chair frame is connected with a pushing handle; the rear end of the bottom of the wheel chair frame is connected with a fixed main wheel; the front end of the wheel chair frame is connected with balance universal wheels; pedals are connected to the wheel chair frame below a chair seat; the two sides of the chair seat are connected with armrests; the upper end of the walking frame is provided with an arc-shaped armrest, and the lower end of the walking frame is connected with a front guide wheel connector which is connected with a front guide wheel; positioning pin holes are respectively arranged on the front guide wheel connector and the front guide wheel; and positioning pins are arranged in the positioning pin holes. The simple rehabilitation-training wheel chair has the advantages that the simple rehabilitation-training wheel chair not only can be used as a common wheel chair, but also can assist a patient in training of self standing and walking; the movement of the wheel chair is smooth and stable, the armrests are easy to grab, the activity space is reasonable, the cost is low and the simple and practical effects are achieved.

Description

Easy rehabilitation training wheelchair
Technical field
This utility model relates to the wheelchair of a kind of apoplexy or wounded or disabled patient use, particularly a kind of easy rehabilitation training wheelchair.
Background technology
Apoplexy or wounded or disabled patient recover the stage in body function, and the present straightforward procedure that adopts of people is that wheelchair is assisted and used in manual work in.Present known correlation technique; Like patented technologies such as " the rehabilitation two-use wheel chairs of riding instead of walk " 200920010984.6; Be applicable to that user oneself drives the wheelchair instead of walking, the double physical fitness training of doing upper and lower extremities, the basic function recovery that is not suitable for helping patient to stand voluntarily and walks; Other correlation techniques such as walking stick, elbow cane, axil battle, and various walking frame, walk help thick stick etc., the required function of taking when lacking removing patient, the rehabilitation training manual work amount of assisting in is bigger, and the patient body consumes greatly.
The utility model content
The purpose of this utility model is that a kind of easy rehabilitation training wheelchair will be provided; Solve apoplexy or wounded or disabled patient body functional rehabilitation stage and various walking frame, walk help thick stick; The required function of taking when lacking removing patient, the rehabilitation training manual work amount of assisting in is bigger, and the patient body consumes big problem.
The purpose of this utility model is achieved in that this training wheelchair comprises: wheelchair frame, seat support, backrest, pedal, trammer handle, handrail, walking frame, curved handrail, movable railing, movable railing revolving bed, fixedly main wheel, balance universal wheel, front jocket wheel, alignment pin and railing;
There is walking frame in the place ahead at wheelchair frame, and a side of wheelchair frame and walking frame connects as one through railing, is connected with movable railing between the opposite side; Be connected with seat support and backrest in the centre position of wheelchair frame; Upper end at wheelchair frame is connected with trammer handle, is connected with fixedly main wheel in the rear end of wheelchair frame bottom, is connected with the balance universal wheel at the front end of wheelchair frame; On the wheelchair frame below the seat support, be connected with pedal, be connected with handrail in two sides of seat support; There is curved handrail the upper end of walking frame, is connected with the front jocket wheel connector in the lower end of walking frame, on the front jocket wheel connector, is connected with front jocket wheel, and dowel hole is all arranged on front jocket wheel connector and front jocket wheel, and alignment pin is arranged on dowel hole.
Beneficial effect: owing to adopted such scheme, seat support, backrest, trammer handle, patient's handrail and fixing main wheel are set on wheelchair frame.Pedal can turn round the below that is recovered to seat support.In wheelchair the place ahead walking frame is set, balance universal wheel and front jocket wheel are installed in the walking frame below, and front jocket wheel is controlled by alignment pin, can present two kinds of forms of universal wheel and fast pulley, are universal wheels when doing the wheelchair use, are fast pulley when doing rehabilitation training.Curved handrail and railing are installed in the walking frame top, and movable railing is installed on the movable railing revolving bed, can upwards turn round and open, and patients is come in and gone out.Curved handrail and two lateral rails are done the walk help handrail when patient walks training, two lateral rails are done when patient stands and helped stand hand rail.Solved apoplexy or wounded or disabled patient body functional rehabilitation stage and various walking frame, walk help thick stick, the required function of taking when lacking removing patient, the rehabilitation training manual work amount of assisting in is bigger, and the patient body consumes big problem, has reached the purpose of this utility model.
Advantage: advantage is both to have can be used as common wheelchair to use, the training that can help patient to stand voluntarily and walk again, and body movement is steady, and handrail is easy to hold, and activity space is reasonable, and cost is low, and is simple and practical.
Description of drawings

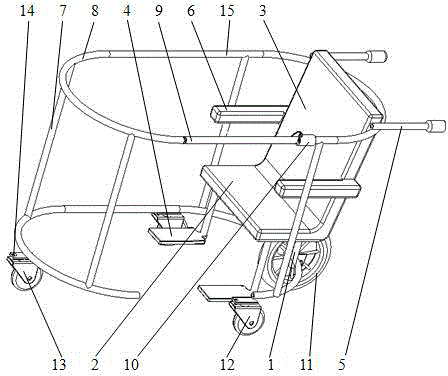

Fig. 1 is the structure chart of this utility model.
Among the figure, 1, wheelchair frame; 2, seat support; 3, backrest; 4, pedal; 5, trammer handle; 6, patient's handrail; 7, walking frame; 8, curved handrail; 9, movable railing; 10, movable railing revolving bed; 11, fixing main wheel; 12, balance universal wheel; 13, front jocket wheel; 14, alignment pin; 15, railing.
The specific embodiment
Embodiment 1: this training wheelchair comprises: wheelchair frame 1, seat support 2, backrest 3, pedal 4, trammer handle 5, handrail 6, walking frame 7, curved handrail 8, movable railing 9, movable railing revolving bed 10, fixedly main wheel 11, balance universal wheel 12, front jocket wheel 13, alignment pin 14 and railing 15;
In the place ahead of wheelchair frame 1 walking frame 7 is arranged, a side of wheelchair frame 1 and walking frame 7 connects as one through railing 15, is connected with movable railing 9 between the opposite side; Be connected with seat support 2 and backrest 3 in the centre position of wheelchair frame 1; Be connected with trammer handle 5 in the upper end of wheelchair frame 1, be connected with fixedly main wheel 11, be connected with balance universal wheel 12 at the front end of wheelchair frame 1 in the rear end of wheelchair frame 1 bottom; On the wheelchair frame below the seat support 21, be connected with pedal 4, be connected with handrail 6 in two sides of seat support 2; There is curved handrail 8 upper end of walking frame 7, is connected with the front jocket wheel connector in the lower end of walking frame 7, on the front jocket wheel connector, is connected with front jocket wheel 13, and dowel hole is all arranged on front jocket wheel connector and front jocket wheel, and alignment pin 14 is arranged on dowel hole.
This utility model relates to a kind of rehabilitation training and uses the walk help wheelchair, has the dual-use function of rehabilitation training equipment and wheelchair concurrently, supplies apoplexy or wounded or disabled patient to use, and replaces manual work to assist, alleviate patient body's consumption in.Utilize the primary structure form such as medicated cushion, backrest, wheelchair frame, pedal, trammer handle, patient's handrail of common wheelchair; Set up walking frame in wheelchair the place ahead, set of wheels by 1 fixedly main wheel, 2 balance universal wheels and 1 front jocket wheel form, fixedly main wheel is positioned at car body below; The balance universal wheel is positioned at the car body both sides; Front jocket wheel is positioned at car body the place ahead, and front jocket wheel is a universal wheel when the wheelchair function, when the rehabilitation training function, is fixed into fast pulley with alignment pin.Walking frame two lateral rails have 2 effects: do when patient stands and help stand hand rail; When walking training, patient does the walk help handrail with the bow of front.Wherein a lateral rail can upwards turn round and open, and patients is come in and gone out.Satisfying under the functional requirement prerequisite, making every effort to simple in structure and convenient and practical.

Claims (1)

1. easy rehabilitation training wheelchair, it is characterized in that: this training wheelchair comprises: wheelchair frame, seat support, backrest, pedal, trammer handle, handrail, walking frame, curved handrail, movable railing, movable railing revolving bed, fixedly main wheel, balance universal wheel, front jocket wheel, alignment pin and railing;
There is walking frame in the place ahead at wheelchair frame, and a side of wheelchair frame and walking frame connects as one through railing, is connected with movable railing between the opposite side; Be connected with seat support and backrest in the centre position of wheelchair frame; Upper end at wheelchair frame is connected with trammer handle, is connected with fixedly main wheel in the rear end of wheelchair frame bottom, is connected with the balance universal wheel at the front end of wheelchair frame; On the wheelchair frame below the seat support, be connected with pedal, be connected with handrail in two sides of seat support; There is curved handrail the upper end of walking frame, is connected with the front jocket wheel connector in the lower end of walking frame, on the front jocket wheel connector, is connected with front jocket wheel, and dowel hole is all arranged on front jocket wheel connector and front jocket wheel, and alignment pin is arranged on dowel hole.
