Abstract
The utility model discloses an energy-saving and environment-friendly door and window with a generating function. The energy-saving and environment-friendly door and window comprises a sash and a glass leaf, wherein the glass leaf consists of an amorphous silicon film solar cell panel of which the outer layer has a light-transmitting effect and inner layer glass; periphery of the amorphous silicon film solar cell panel and the periphery of the inner layer glass are fixed by an aluminum partition strip of a molecular sieve; the inner layer glass is single-layer glass or dual-layer hollow glass or multi-layer hollow glass; a terminal box groove is formed in an upper frame, a lower frame, a left frame or a right frame; a terminal box of the amorphous silicon film solar cell panel is arranged in the terminal box groove; an outgoing line hole which is communicated with the terminal box groove is formed in the upper frame, the lower frame, the left frame or the right frame; and an outgoing line of the terminal box is led out of an outgoing line hole in the sash. By the energy-saving and environment-friendly door and window, the aims of fire and electricity conservation, energy conservation and environment friendliness are fulfilled, the effects of indoor sunscreen and temperature reduction are achieved, and the energy consumption of air conditioners is reduced.
Description
Technical field
The utility model relates to a kind of door and window for building, relates in particular to a kind of energy-conserving and environment-protective door and window.
Background technology
Energy crisis and problem of environmental pollution are more and more serious at present; Various circles of society are to the sustainable development pay attention to day by day of energy consumption; The regeneration green energy obtains people's attention and favor; And the utilization of solar energy is one of direction trend of green novel energy source development, and existing photo-voltaic power generation station, solar street light, solar traffic light all are the equipment that utilizes solar electrical energy generation.Every day all accepted irradiation of sunlight, especially summer by building, and under the irradiation of outdoor sunlight, interior temperature is very high, can only utilize air-conditioning to lower the temperature, and the use of air-conditioning brought huge energy consumption, has increased CO
2Discharge value, the fluorine contaminant of its generation destroys the ozone layer in the atmosphere, makes ultraviolet penetration capacity more and more stronger; In order to improve these problems; Country advocates the air-conditioning serviceability temperature is controlled at more than 26 ℃, and aspect door and window, the airtight performance that removes to improve door and window of then trying one's best; Reach better thermal insulation performance, how to go to utilize the research of then having no talent of these solar energy.
The utility model content
The purpose of the utility model is exactly to solve the problems referred to above that exist in the prior art; A kind of energy-conserving and environment-protective door and window that electricity generate function is arranged is provided; Use this door and window directly a part of conversion of solar energy that shines on the door and window to be electric energy; Both reached the use of saving thermoelectricity, and can reach indoor cooling effect again.
For realizing above-mentioned purpose, the technical solution of the utility model is:
A kind of energy-conserving and environment-protective door and window that electricity generate function is arranged, it comprises doorframe and window frame and glass fan, and doorframe and window frame comprises upper ledge, lower frame, left frame and right frame, and glass fan is fixed in upper ledge, lower frame, left frame and the right frame; Glass fan is made up of amorphous silicon thin-film solar cell plate and inner layer glass that skin has translucent effect, and the aluminium parting bead by molecular sieve around amorphous silicon thin-film solar cell plate and the inner layer glass is fixed together; Inner layer glass is single-glass or double layer glass or multiple glazing; Have the junction box groove in upper ledge, lower frame, left frame or the right frame; The junction box of amorphous silicon thin-film solar cell plate is installed in the junction box groove; Upper ledge, lower frame, left frame or right frame also have the lead-out wire hole that is connected with the junction box groove, and the lead-out wire of junction box is drawn through the lead-out wire hole on the doorframe and window frame.
A kind of energy-conserving and environment-protective door and window that electricity generate function is arranged, it comprises doorframe and window frame, bar frame and glass fan, and doorframe and window frame comprises upper ledge, lower frame, left frame and right frame, and the bar frame comprises fan frame, lower casement frame, left side fan frame and right wing frame; Glass fan is fixed in fan frame, lower casement frame, left side fan frame and the right wing frame and forms bar, and bar can be fixed in the doorframe and window frame by axle with opening; Glass fan is made up of amorphous silicon thin-film solar cell plate and inner layer glass that skin has translucent effect, and the aluminium parting bead by molecular sieve around amorphous silicon thin-film solar cell plate and the inner layer glass is fixed together; Inner layer glass is single-glass or double layer glass or multiple glazing; On an end that is connected by axle with doorframe and window frame, have the junction box groove in fan frame or the lower casement frame; The junction box of amorphous silicon thin-film solar cell plate is installed in the junction box groove; Last fan frame and upper ledge or lower casement frame and the corresponding position of lower frame also have the lead-out wire hole that is connected with the junction box groove, and the lead-out wire of junction box is drawn through the lead-out wire hole on the doorframe and window frame.
Because the utility model has adopted such scheme; Amorphous silicon thin-film solar cell plate with translucent effect has been installed at the outermost layer of glass fan; It can be an electric energy with the conversion of solar energy that shines on the door and window; Directly be stored in the electricity consumption of the interior confession of battery building perhaps to mains supply, the peak power of having releived demand has great social benefit.Like this, the utility model had both reached the use of saving thermoelectricity, and the purpose of energy-saving and environment friendly can reach again indoor sun-proof cooling effect, has reduced the power consumption of air-conditioning.
Description of drawings

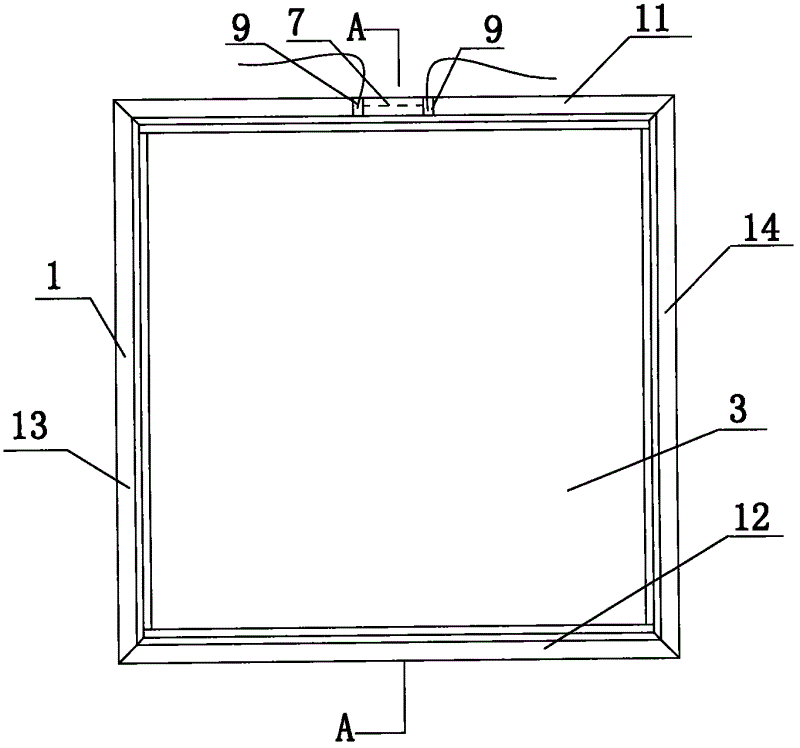

Fig. 1 is the front view of indoor of first kind of embodiment of the utility model;
Fig. 2 is the AA sectional view of Fig. 1;
Fig. 3 is the front view of indoor of second kind of embodiment of the utility model;
Fig. 4 is the BB sectional view of Fig. 3;
Fig. 5 is the front view of the outside of glass fan in the utility model;
Fig. 6 is the CC structure for amplifying sketch map of Fig. 5.
The specific embodiment
Below in conjunction with accompanying drawing and specific embodiment the utility model is done further description.
Like Fig. 1, Fig. 2, Fig. 5 and embodiment 1 shown in Figure 6, present embodiment comprises doorframe and window frame 1 and glass fan 3, and doorframe and window frame 1 comprises upper ledge 11, lower frame 12, left frame and right frame, and glass fan 3 is fixed in upper ledge 11, lower frame 12, left frame 13 and the right frame 14.Glass fan 3 is made up of with inner layer glass 5 the amorphous silicon thin-film solar cell plate 4 that skin has translucent effect, and amorphous silicon thin-film solar cell plate 4 is fixed together by the aluminium parting bead 6 of molecular sieve with inner layer glass 5 all around; Inner layer glass 5 is a single-glass.Have junction box groove 8 in the upper ledge 11, the junction box 7 of amorphous silicon thin-film solar cell plate is installed in the junction box groove 8, also has the lead-out wire hole 9 that is connected with junction box groove 8 on the upper ledge 11, and the lead-out wire 10 of junction box is drawn through the lead-out wire hole 9 on the doorframe and window frame.
Like Fig. 3, Fig. 4, Fig. 5 and embodiment 2 shown in Figure 6; Present embodiment comprises doorframe and window frame 15, bar frame 2 and glass fan 3; Doorframe and window frame 15 comprises upper ledge 151, lower frame 152, left frame 153 and right frame 154, and bar frame 2 comprises fan frame 21, lower casement frame 22, left side fan frame 23 and right wing frame 24.Glass fan 3 is fixed in fan frame 21, lower casement frame 22, left side fan frame 23 and the right wing frame 24 and forms bar, and bar can be fixed in the doorframe and window frame 15 by axle with opening.Glass fan 3 is made up of with inner layer glass 5 the amorphous silicon thin-film solar cell plate 4 that skin has translucent effect, and amorphous silicon thin-film solar cell plate 4 is fixed together by the aluminium parting bead 6 of molecular sieve with inner layer glass 5 all around.Inner layer glass 6 is a single-glass.In the lower casement frame 22 of an end that is connected by axle with doorframe and window frame 15, have junction box groove 8; The junction box 7 of amorphous silicon thin-film solar cell plate is installed in the junction box groove 8; Lower casement frame 22 also has the lead-out wire hole 9 that is connected with junction box groove 8 with lower frame 152 corresponding positions, and the lead-out wire 10 of junction box is drawn through the lead-out wire hole 9 on the doorframe and window frame.
Claims (2)
1. energy-conserving and environment-protective door and window that electricity generate function is arranged, it comprises doorframe and window frame and glass fan, and doorframe and window frame comprises upper ledge, lower frame, left frame and right frame, and glass fan is fixed in upper ledge, lower frame, left frame and the right frame; It is characterized in that: glass fan is made up of amorphous silicon thin-film solar cell plate and inner layer glass that skin has translucent effect, and the aluminium parting bead by molecular sieve around amorphous silicon thin-film solar cell plate and the inner layer glass is fixed together; Inner layer glass is single-glass or double layer glass or multiple glazing; Have the junction box groove in upper ledge, lower frame, left frame or the right frame; The junction box of amorphous silicon thin-film solar cell plate is installed in the junction box groove; Upper ledge, lower frame, left frame or right frame also have the lead-out wire hole that is connected with the junction box groove, and the lead-out wire of junction box is drawn through the lead-out wire hole on the doorframe and window frame.
2. energy-conserving and environment-protective door and window that electricity generate function is arranged, it comprises doorframe and window frame, bar frame and glass fan, and doorframe and window frame comprises upper ledge, lower frame, left frame and right frame, and the bar frame comprises fan frame, lower casement frame, left side fan frame and right wing frame; Glass fan is fixed in fan frame, lower casement frame, left side fan frame and the right wing frame and forms bar, and bar can be fixed in the doorframe and window frame by axle with opening; It is characterized in that: glass fan is made up of amorphous silicon thin-film solar cell plate and inner layer glass that skin has translucent effect, and the aluminium parting bead by molecular sieve around amorphous silicon thin-film solar cell plate and the inner layer glass is fixed together; Inner layer glass is single-glass or double layer glass or multiple glazing; On an end that is connected by axle with doorframe and window frame, have the junction box groove in fan frame or the lower casement frame; The junction box of amorphous silicon thin-film solar cell plate is installed in the junction box groove; Last fan frame and upper ledge or lower casement frame and the corresponding position of lower frame also have the lead-out wire hole that is connected with the junction box groove, and the lead-out wire of junction box is drawn through the lead-out wire hole on the doorframe and window frame.
