Abstract
The utility model relates to an antibody accommodating device of a dyeing instrument. The existing sampling device is time-consuming in sampling, and cross contamination can be caused easily. The antibody accommodating device comprises antibody tubes and a tube rack. Each antibody tube comprises a tube body, the lower end of the tube body is connected with a liquid feeding head, and a head sleeve is sleeved on the liquid feeding heads; and a piston is arranged in each tube body and is connected with a pull rod through threads, the upper part of the sidewall of the tube body is provided with threads, and the sidewall of the tube body is provided with limit pins and scale marks. The tube rack comprises a platform and a platform bracket vertical to the platform, the platform is provided with a plurality antibody tube insertion ports, the edge of each antibody tube insertion port is provided with a limit slot, and a head sleeve jack is arranged beside each antibody tube insertion port. Each antibody is arranged in one antibody tube, samples are directly sucked and fed through the antibody tubes, no additional sampling needle needs to be used, the efficiency is increased, and cross contamination is avoided.
Description
Technical field
The utility model belongs to the checkout equipment technical field, and what be specifically related to is to be applied to the antibody apparatus for placing in the employed immunohistochemical staining instrument in the histopathologic slide of hospital, is the matching component of dyeing instrument.
Background technology
The laboratory method of " immunohistochemical staining " is a very rigorous laboratory work, generally uses instrument in developed country, and domestic owing to be subjected to the expensive influence of import instrument, is manual operations at present substantially.The problem of manual main existence is: 1. consuming time: dyeing each time needs more than 4-5 consuming time hour; 2. make mistakes easily: because the used antibody of each " immunohistochemical staining " and reagent type reach tens of kinds manually add the easy mistake of reagent add or forget add, the reaction time can not effectively control; 3. can not accomplish standardization and standardized laboratory room managing.The mode that the at present external dyeing instrument antibody that uses holds has a variety of, mainly adopts bottledly, inhales sample, application of sample with sampling probe during use.After adopting this mode to inhale sample, a kind of antibody of application of sample, must clean sampling probe, time-consuming on the one hand, if cleaning is unclean on the other hand, cause cross pollution easily.
Summary of the invention
The purpose of this utility model is exactly at the deficiencies in the prior art, and a kind of apparatus for placing of dyeing instrument antibody is provided.
The utility model comprises antibody pipe and pipe support.
The antibody pipe comprises body, and the lower end of body is connected with the liquid feeding head, and the liquid feeding headgear has headgear; Be provided with piston in the body, piston and pull bar are by being threaded, and the top of the sidewall of body has screw thread, and the sidewall of body is provided with spacer pin and scale mark.
Pipe support comprises platform and the platform support vertical with platform, has a plurality of antibody pipe sockets on the platform, and a plurality of antibody pipe sockets are arranged; The edge of each antibody pipe socket has stopper slot, and each antibody pipe socket limit has the headgear socket, and a plurality of headgear sockets are arranged.The stopper slot of pipe support is corresponding with the spacer pin shape, after the antibody pipe inserts antibody pipe socket, guarantees that body can not rotate.
Every kind of antibody device is directly inhaled sample, application of sample with the antibody pipe, and is not needed additionally to use sampling probe in an antibody pipe in the utility model, and not only efficient is improved, and has avoided cross pollution.
Description of drawings

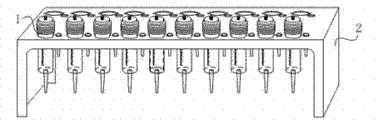

Fig. 1 is a structural representation of the present utility model;
Fig. 2 is the structural representation of antibody pipe among Fig. 1;
Fig. 3 is the structural representation of pipe support among Fig. 1.
Embodiment
As shown in Figure 1, a kind of dyeing instrument antibody apparatus for placing comprises antibody pipe 1 and pipe support 2.
As shown in Figure 2, antibody pipe 1 comprises body 1-5, and the lower end of body 1-5 is connected with liquid feeding head 1-6, and liquid feeding head 1-6 is with headgear 1-7.Be provided with piston 1-2 in the body 1-5, piston 1-2 and pull bar 1-1 are by being threaded, and the top of the sidewall of body 1-5 has screw thread 1-3, and the sidewall of body 1-5 is provided with spacer pin 1-4 and scale mark.
As shown in Figure 3, pipe support 2 comprises platform 2-1 and the platform support 2-2 vertical with platform, has a plurality of antibody pipe socket 2-3 on the platform 2-1, and a plurality of antibody pipe socket 2-3 are arranged; The edge of each antibody pipe socket 2-3 has stopper slot 2-4, and each antibody pipe socket 2-3 limit has headgear socket 2-5, and a plurality of headgear socket 2-5 are arranged.The stopper slot 2-4 of pipe support is corresponding with the spacer pin 1-4 shape of antibody pipe, after the antibody pipe inserts antibody pipe socket, guarantees that antibody pipe 1 can not rotate.
In the work, at first pull bar 1-1 is connected on the piston 1-2, extracts antibody, screw off pull bar 1-1 then, body 1-5 is inserted in the antibody pipe socket 2-3 of pipe support, spacer pin 1-4 pegs graft in the stopper slot 2-4 simultaneously during insertion.If headgear 1-7 is taken off in sampling, insert in the headgear socket 2-5 on this antibody pipe socket 2-3 limit, guarantee the corresponding antibody pipe 1 of each headgear 1-7, avoid cross pollution.Utilize the sampler of dyeing instrument to utilize the screw thread 1-3 rotation of body 1-5 sidewall to take out that the antibody pipe is taken a sample, application of sample then.
Claims (1)
1. a dyeing instrument antibody apparatus for placing comprises antibody pipe and pipe support, it is characterized in that:
Described antibody pipe comprises body, and the lower end of body is connected with the liquid feeding head, and the liquid feeding headgear has headgear; Be provided with piston in the body, piston and pull bar are by being threaded, and the top of the sidewall of body has screw thread, and the sidewall of body is provided with spacer pin and scale mark;
Described pipe support comprises platform and the platform support vertical with platform, has a plurality of antibody pipe sockets on the platform, and a plurality of antibody pipe sockets are arranged; The edge of each antibody pipe socket has stopper slot, and each antibody pipe socket limit has the headgear socket, and a plurality of headgear sockets are arranged.
