The utility model discloses combined angle steel, which comprises a first steel plate, a second steel plate and a third steel plate, wherein the first steel plate and the second steel plate are mutually vertical and are connected in an end-to-end way, one end of the third steel plate is connected with the common end of the first steel plate and the second steel plate, and the integral cross section of the first steel plate, the second steel plate and the third steel plate is in a Y shape. The combined angle steel effectively overcomes the defects that deformation of the traditional combined angle steel is incongruous, and the stress of each section of angle steel is not uniform. In addition, the dimension of the third steel plate is flexible and variable, and the regulation is convenient, so the adverse influence of torsional buckling caused when the symmetrical section axes is pressed can be effectively weakened. In addition, the steel consumption and the work load can also be saved, so the cost for building electric transmission line iron towers is reduced. Simultaneously, the utility model also discloses an electric transmission line iron tower with the combined angle steel.

Description

A kind of combination angle steel and a kind of iron tower of power transmission line
Technical field
The utility model relates to a kind of angle steel, especially a kind of combination angle steel, and a kind of iron tower of power transmission line with this combination angle steel.
Background technology
Existing self-supporting iron tower of power transmission line generally adopts the angle steel structure, continuous rising and the many times construction of tower circuit altogether along with electric pressure, the size of iron tower of power transmission line, load are increasing, and therefore, Q345 commonly used, the intensity and the specification of Q420 hot rolling single angle have been difficult to satisfy instructions for use.For head it off, the general combination angle steel that adopts.The cross sectional representation of combination angle steel commonly used as shown in Figure 1, it is made up of " cross " fill plate 8 and two angle steel 9 being connected two diagonal angles of fill plate.Though the intensity of combination angle steel can meet design requirement, there is following shortcoming in it: (1) this combination angle steel is stressed go up to exist to be out of shape shortcomings such as inharmonious, each root angle steel unbalance stress and antitorque commentaries on classics poor performance; (2) because combination angle steel wind carrier model coefficient is bigger, and rod member quantity and specification are many, the joint structure complexity, and also junction plate, structure plate, auxiliary material use quantity are many, cause the shaft tower steel quantity consumption bigger; (3) owing to adopt fill plate to connect, there is a large amount of boring, makes that processing and construction are complicated.
Summary of the invention
For the problems referred to above that the angle steel that overcomes prior art exists, the purpose of this utility model is to provide a kind of compatibility of deformation, stressed even, antitorque commentaries on classics performance is good, steel using amount is little and construction volume is few combination angle steel.
Another purpose of the present utility model is to provide a kind of iron tower of power transmission line with combinations thereof angle steel.
A kind of combination angle steel that the utility model provides, it comprise orthogonal, with first steel plate and second steel plate of end-to-end link, also comprise the 3rd steel plate, one end of the 3rd steel plate is connected with the common ends of described first steel plate and described second steel plate, and the whole shape of cross section of this first steel plate, this second steel plate and the 3rd steel plate is Y-shaped.
Preferably, described the 3rd steel plate is provided with along the reverse extending line of the angular bisector of described first steel plate and described second steel plate.
Preferably, described the 3rd steel plate and described first steel plate and described second steel plate welding.
Preferably, described the 3rd steel plate is identical with the material of described first steel plate and described second steel plate.
Preferably, described first steel plate is identical with the width of described second steel plate, and described first steel plate and described second steel plate are one-body molded.
A kind of iron tower of power transmission line that the utility model provides, it comprises the combination angle steel of forming body of the tower, that this combination angle ladle is drawn together is orthogonal, with first steel plate and second steel plate of end-to-end link, also comprise the 3rd steel plate, one end of the 3rd steel plate is connected with the common ends of described first steel plate and described second steel plate, and the whole shape of cross section of this first steel plate, this second steel plate and the 3rd steel plate is Y-shaped.
Preferably, described the 3rd steel plate is provided with along the reverse extending line of the angular bisector of described first steel plate and described second steel plate.
Preferably, described the 3rd steel plate and described first steel plate and described second steel plate welding.
Preferably, described the 3rd steel plate is identical with the material of described first steel plate and described second steel plate.
Preferably, described first steel plate is identical with the width of described second steel plate, and described first steel plate and described second steel plate are one-body molded.
Compared with prior art, the utlity model has following advantage:
(1) combination angle steel of the present utility model has effectively overcome the conventional combination angle steel and has been out of shape shortcoming inharmonious, each root unbalance stress; And, because the size of the 3rd steel plate is flexible and changeable, be convenient to regulate the adverse effect that torsional buckling causes in the time of therefore can effectively weakening the symmetrical section axial compression;
(2) combination angle steel of the present utility model can improve the stress performance of body of the tower master material, saves body of the tower master material steel consumption about 3%;
(3) the 3rd steel plate of combination angle steel of the present utility model and first steel plate and second steel plate welding not only can be saved the fill plate quantity of material that is used to construct in the combination angle steel, but also can be avoided a large amount of boring labor content of fill plate;
(4) adopt combination angle steel of the present utility model, can dwindle single construction weight significantly, be more conducive to mountain construction.
Description of drawings

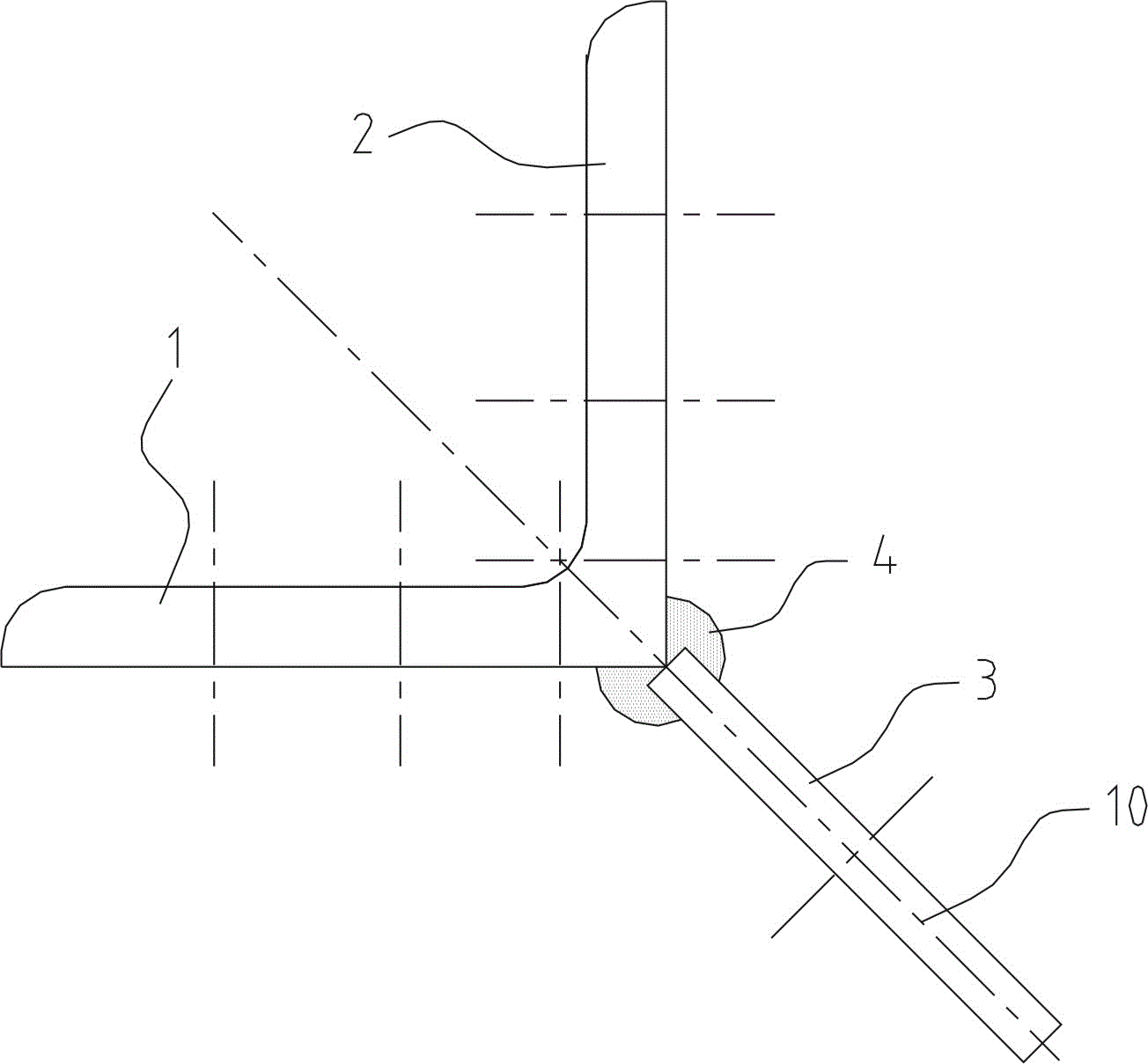

Fig. 1 is the structural representation of the combination angle steel of prior art.
Fig. 2 is the structural representation of the combination angle steel of the utility model embodiment.
Fig. 3 is the partial schematic diagram of the iron tower of power transmission line of the utility model embodiment.
Fig. 4 is the sectional drawing along A-A line among Fig. 3.
The reverse extending line of the angular bisector of description of reference numerals: 1-first steel plate, 2-second steel plate, 3-the 3rd steel plate, 4-welding rod, 5-joint, 6-bolt, 7-cant beam, 8-" cross " fill plate, 9-angle steel, 10-first steel plate and second steel plate.
The specific embodiment
Below in conjunction with accompanying drawing embodiment of the present utility model is elaborated.
The structural representation of one of them embodiment of combination angle steel of the present utility model as shown in Figure 1, the combination angle steel mainly is made up of first steel plate 1, second steel plate 2 and the 3rd steel plate 3, wherein, first steel plate 1 is orthogonal with second steel plate 2 and be connected with end-to-end one.Preferably, first steel plate 1 is identical with the width of second steel plate 2.The common ends of one end of the 3rd steel plate 3 and first steel plate 1 and second steel plate 2 welds together through welding rod 4, and the whole shape of cross section of this first steel plate 1, this second steel plate 2 and the 3rd steel plate 3 is Y-shaped.Preferably, the 3rd steel plate 3 is provided with along the reverse extending line 10 of the angular bisector of first steel plate 1 and second steel plate 2.Preferably, described the 3rd steel plate is identical with the material of described first steel plate 1 and described second steel plate 2.
Fig. 2 and 3 is depicted as the structural representation that combination angle steel of the present utility model is applied to iron tower of power transmission line, and the body of the tower of iron tower of power transmission line comprises combination angle steel and cant beam 7, is connected with bolt 6 by joint 5 between adjacent two sections combination angle steel.Iron tower of power transmission line adopts combination angle steel of the present utility model to have the following advantages:
(1) can effectively overcome the conventional combination angle steel and be out of shape shortcoming inharmonious, each root unbalance stress; And, because the size of the 3rd steel plate is flexible and changeable, be convenient to regulate the adverse effect that torsional buckling causes in the time of therefore can effectively weakening the symmetrical section axial compression;
(2) can improve the stress performance of body of the tower master material, save body of the tower master material steel consumption about 3%;
(3) the 3rd steel plate 3 of combination angle steel and first steel plate 1 and 2 welding of second steel plate can be saved the fill plate quantity of material that is used to construct in the combination angle steel;
(4) can dwindle single construction weight significantly, be more conducive to mountain construction.
Only be specific embodiment of the utility model below, do not limit protection domain of the present utility model with this; Any replacement and the improvement done on the basis of not violating the utility model design all belong to protection domain of the present utility model.

Claims (10)

1. one kind is made up angle steel, it comprise orthogonal, with first steel plate and second steel plate of end-to-end link, it is characterized in that: also comprise the 3rd steel plate, one end of the 3rd steel plate is connected with the common ends of described first steel plate and described second steel plate, and the whole shape of cross section of this first steel plate, this second steel plate and the 3rd steel plate is Y-shaped.
2. combination angle steel according to claim 1 is characterized in that: described the 3rd steel plate is provided with along the reverse extending line of the angular bisector of described first steel plate and described second steel plate.
3. combination angle steel according to claim 1 is characterized in that: described the 3rd steel plate and described first steel plate and the welding of described second steel plate.
4. according to each described combination angle steel of claim 1 to 3, it is characterized in that: described the 3rd steel plate is identical with the material of described first steel plate and described second steel plate.
5. combination angle steel according to claim 4 is characterized in that: described first steel plate is identical with the width of described second steel plate, and described first steel plate and described second steel plate are one-body molded.
6. iron tower of power transmission line, it comprises the combination angle steel of forming body of the tower, that this combination angle ladle is drawn together is orthogonal, with first steel plate and second steel plate of end-to-end link, it is characterized in that: also comprise the 3rd steel plate, one end of the 3rd steel plate is connected with the common ends of described first steel plate and described second steel plate, and the whole shape of cross section of this first steel plate, this second steel plate and the 3rd steel plate is Y-shaped.
7. iron tower of power transmission line according to claim 6 is characterized in that: described the 3rd steel plate is provided with along the reverse extending line of the angular bisector of described first steel plate and described second steel plate.
8. iron tower of power transmission line according to claim 6 is characterized in that: described the 3rd steel plate and described first steel plate and the welding of described second steel plate.
9. according to each described iron tower of power transmission line of claim 6 to 8, it is characterized in that: described the 3rd steel plate is identical with the material of described first steel plate and described second steel plate.
10. iron tower of power transmission line according to claim 9 is characterized in that: described first steel plate is identical with the width of described second steel plate, and described first steel plate and described second steel plate are one-body molded.
