Abstract
The utility model relates to a soilless stereoscopic cultivating device on a wall surface, which comprises a plastic foam lining plate, a sponge, a planting cup, non-woven fabric, water permeable holes, a plastic foam vertical plate, a cultivating trough and nutrient solution and is characterized in that the plastic foam lining plate, the sponge, the non-woven fabric and the plastic foam vertical plate form a wall surface body; the sponge is arranged between the plastic foam lining plate and the non-woven fabric; the non-woven fabric is arranged between the sponge and the plastic foam vertical plate; nine rows of water permeable holes are arranged on the non-woven fabric and the plastic foam vertical plate; the water permeable holes are connected with the sponge; the planting cup is arranged on the plastic foam vertical plate corresponding to the water permeable holes; the lower end of the wall surface body formed by the plastic foam lining plate, the sponge, the non-woven fabric and the plastic foam vertical plate is arranged in the cultivating trough; and the nutrient solution is filled in the cultivating trough. The cultivating device has the advantages that the soil utilization ratio is greatly improved, the yield is increased, the small-sized wall-type soilless cultivation does not need power and utilizes the siphon action of capillaries to realize the supply of the nutrient solution, so that the operating investment is saved, and the cultivating device is especially applicable to families and experiments by students.
Description
Technical field
The utility model relates to the metope soiless and three-dimensional culture device of flower planting.
Background technology
The plantation of indoor and outdoor flowers generally is to adopt potted plantly in the prior art, and pot flowers has is positioned over ground, and what have is suspended on body of wall, and shortcoming is to take up room, and puts inconvenience.
Summary of the invention
Technical problem to be solved in the utility model is to overcome the deficiencies in the prior art, a kind of novel wall surface soiless and three-dimensional culture device is provided, utility model solves the technical scheme that its technical problem adopts: structure of the present utility model comprises the plastic foam liner plate, sponge, planting cup, nonwoven, permeable hole, the plastic foam riser, cultivating groove, nutrient solution, it is characterized in that the plastic foam liner plate, sponge, nonwoven, the plastic foam riser is combined into the metope body, sponge is arranged between plastic foam liner plate and the nonwoven, nonwoven is arranged between sponge and the plastic foam riser, nonwoven and plastic foam riser are provided with nine row's permeable holes, permeable hole is connected with sponge, the plastic foam riser corresponding with permeable hole is provided with planting cup, the plastic foam liner plate, sponge, nonwoven, the lower end of the metope body that the plastic foam riser is combined into is arranged in the cultivating groove, is provided with nutrient solution in the cultivating groove.
Using method: metope body lower end is arranged in the cultivating groove, and planting plants and flowers in the planting cup utilizes the siphon pipe principle, and nutrient solution enters sponge from the permeable hole of bottom, infiltrates planting cup from sponge by permeable hole again, reaches the plant nutrition supply.
The beneficial effects of the utility model are, the utility model has not only improved land utilization rate greatly, increase output, can also be according to collocation and the shape turriform of cultivation body of wall own by the different colours plant, various patterns of assembling combination and moulding, the not working power of small-sized wall type soilless culture utilizes capillary siphoning to finish the supply of nutrient solution, saves running and drops into; The manufacturing materials cost is lower, and the facility volume is little, and convenient management is particularly suitable for family and student experimenting and uses.
Description of drawings

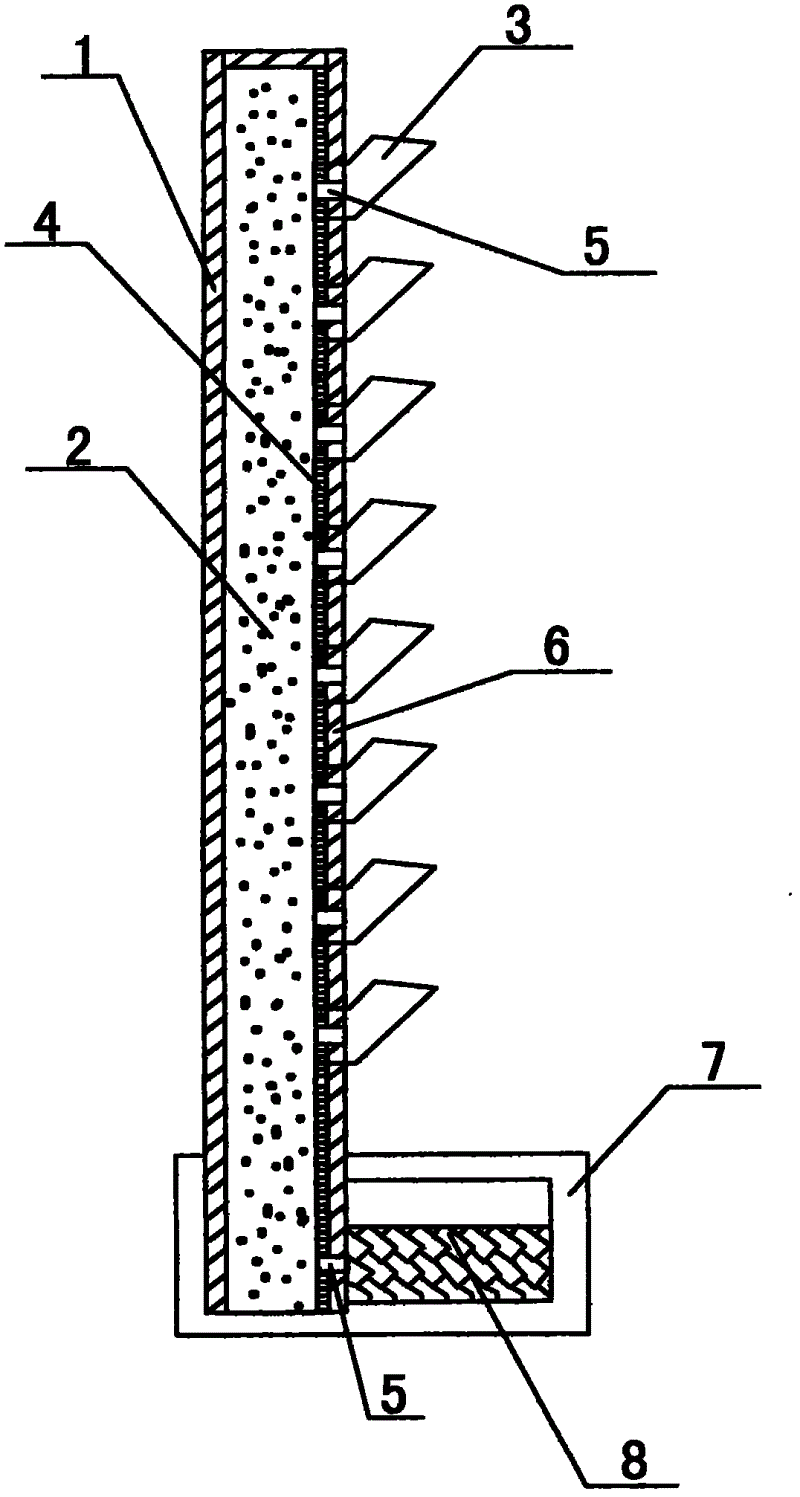

Fig. 1: the utility model embodiment looks cross-sectional view in a left side;
Fig. 2: the utility model embodiment plastic foam riser and permeable hole structural representation;
Among the figure: plastic foam liner plate 1, sponge 2, planting cup 3, nonwoven 4, permeable hole 5, plastic foam riser 6, cultivating groove 7, nutrient solution 8.
Embodiment
With reference to description of drawings the utility model is done following concrete detailed description; As shown in drawings, structure of the present utility model comprises plastic foam liner plate 1, sponge 2, planting cup 3, nonwoven 4, permeable hole 5, plastic foam riser 6, cultivating groove 7, nutrient solution 8, it is characterized in that plastic foam liner plate 1, sponge 2, nonwoven 4, plastic foam riser 6 is combined into the metope body, sponge 2 is arranged between plastic foam liner plate 1 and the nonwoven 4, nonwoven 4 is arranged between sponge 2 and the plastic foam riser 6, nonwoven 4 and plastic foam riser 6 are provided with nine row's permeable holes 5, permeable hole 5 is connected with sponge 2, the plastic foam riser 6 corresponding with permeable hole 5 is provided with planting cup 3, plastic foam liner plate 1, sponge 2, nonwoven 4, the lower end of the metope body that plastic foam riser 6 is combined into is arranged in the cultivating groove 7, is provided with nutrient solution 8 in the cultivating groove 7.
Using method: metope body lower end is arranged in the cultivating groove 7, and planting plants and flowers in the planting cup 3 utilizes the siphon pipe principle, and nutrient solution 8 enters sponge 2 from the permeable hole 5 of bottom, infiltrates planting cup 3 from sponge 2 by permeable hole 5 again, reaches the plant nutrition supply.
Embodiment recited above is described preferred implementation of the present utility model; be not that design of the present utility model and scope are limited; under the prerequisite that does not break away from the utility model design concept; common engineers and technicians make the technical solution of the utility model in this area various modification and improvement; all should fall into protection domain of the present utility model; the technology contents that the utility model is asked for protection all is documented in claims.
Claims (1)
1. metope soiless and three-dimensional culture device, comprise plastic foam liner plate (1), sponge (2), planting cup (3), nonwoven (4), permeable hole (5), plastic foam riser (6), cultivating groove (7), nutrient solution (8), it is characterized in that plastic foam liner plate (1), sponge (2), nonwoven (4), plastic foam riser (6) is combined into the metope body, sponge (2) is arranged between plastic foam liner plate (1) and the nonwoven (4), nonwoven (4) is arranged between sponge (2) and the plastic foam riser (6), nonwoven (4) and plastic foam riser (6) are provided with nine row's permeable holes (5), permeable hole (5) is connected with sponge (2), the plastic foam riser (6) corresponding with permeable hole (5) is provided with planting cup (3), plastic foam liner plate (1), sponge (2), nonwoven (4), the lower end of the metope body that plastic foam riser (6) is combined into is arranged in the cultivating groove (7), is provided with nutrient solution (8) in the cultivating groove (7).
