CN201807588U - Rotating device for vertical bottle washing machine - Google Patents
Rotating device for vertical bottle washing machine Download PDFInfo
- Publication number
- CN201807588U CN201807588U CN2010205645749U CN201020564574U CN201807588U CN 201807588 U CN201807588 U CN 201807588U CN 2010205645749 U CN2010205645749 U CN 2010205645749U CN 201020564574 U CN201020564574 U CN 201020564574U CN 201807588 U CN201807588 U CN 201807588U
- Authority
- CN
- China
- Prior art keywords
- upset
- pivoting support
- washing machine
- spline housing
- pinion
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Cleaning In General (AREA)
Abstract
The utility model discloses a rotating device for a vertical bottle washing machine. A pinion shaft seat is provided with a spline housing, a spline shaft is arranged in the spline housing, and pinions are arranged on the spline shaft. A lifting screw is provided with a rotating bearing; the rotating bearing is in an inner race/outer race structure; the inner race of the rotating bearing is fixed on the lifting screw; the upper end of the outer race of the rotating bearing is provided with a rotary table; the lower end of the outer race of the rotating bearing is provided with an annular gear; the rotary table is provided with a rotating shaft seat; the rotating shaft seat is provided with a bottle clamping manipulator and an overturning table; the inner race of the rotating bearing is provided with an overturning track; and overturning rollers are arranged on the overturning track. By using the rotating device in the novel structure, the rotary table of the vertical bottle washing machine can easily realize smooth rotation and is convenient for processing.
Description
Technical field
The utility model relates to field of pharmaceutical machinery, particularly relates to a kind of a kind of vertical bottle washing machine slewing equipment that is used for traffic cycle smooth rotation on the vertical bottle washing machine.
Background technology
Vertical bottle washing machine for existing market, what all adopt is ironcasting, pts wt is heavy, processed complex is loaded down with trivial details, the difficulty of processing large period is long, and unreasonable the causing of overall structure vibrated greatly the noise height in operation process, the stability of rotation poor performance is to the behavior in service of entire machine with great influence is arranged service life.
The utility model content
Technical problem to be solved in the utility model provides a kind of in light weight, processes easyly, and the process-cycle is short, running steadily, it is low to rotate noise, greatly a kind of vertical bottle washing machine slewing equipment in hoisting machine service life.
In order to solve the problems of the technologies described above, a kind of vertical bottle washing machine slewing equipment that the utility model provides, comprise the pinion axle bed, spline housing, splined shaft, pinion, lifting screw, pivoting support, rotating disk, ring gear, shaft seat, folder bottle manipulator, the upset dish, the upset track, the upset roller, on the described pinion axle bed spline housing is installed, described spline housing one end is connected with the transmission mechanism of vertical bottle washing machine, splined shaft is installed in the described spline housing, on the described splined shaft pinion is installed, described pinion and ring gear engagement, described pivoting support is the Internal and external cycle structure, one side of the inner ring of described pivoting support is fixed on the lifting screw, outer ring one side of described pivoting support and the engagement of described rotating disk, the outer ring opposite side of described pivoting support and the engagement of described ring gear, described rotating disk is provided with shaft seat, folder bottle manipulator and upset dish are installed on the described shaft seat, and the opposite side of the inner ring of described pivoting support is provided with the upset track, and described upset track is provided with the upset roller.
Adopting said structure, the utility model is that a kind of traffic cycle that makes vertical bottle washing machine can smooth operation, effectively alleviates the rotation noise in the operation process, greatly a kind of vertical bottle washing machine slewing equipment in hoisting machine service life.
Description of drawings
The vertical view that Fig. 1 arranges for the utility model annular;

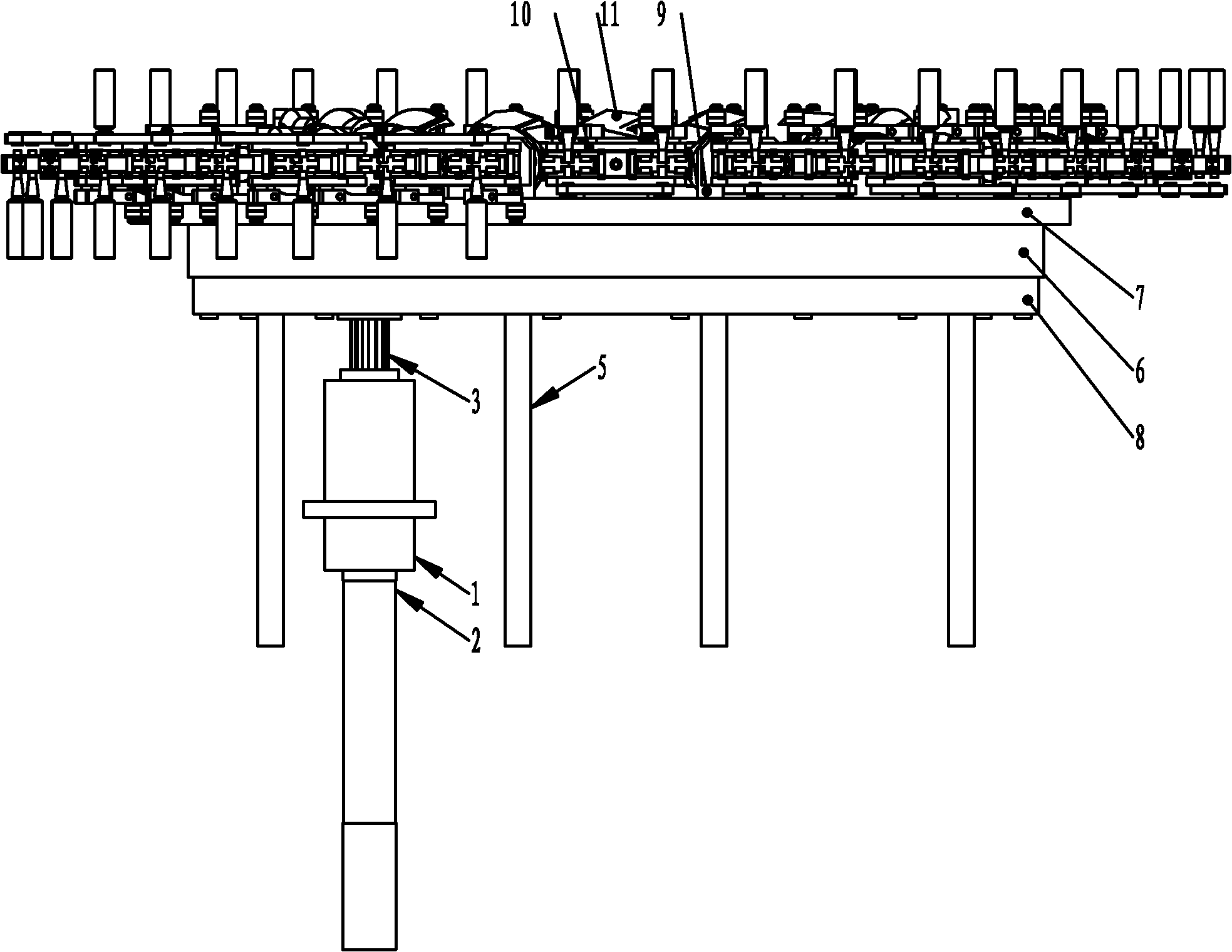

Fig. 2 is a structural representation of the present utility model;
Fig. 3 is a cutaway view of the present utility model.
In the accompanying drawing 1,2,3,1---pinion axle bed, 2---spline housing, 3---splined shaft, 4---pinion, 5---lifting screw, 6---pivoting support, 7---rotating disk, 8---ring gear, 9---shaft seat, a 10---folder bottle manipulator, 11---upset dish, 12---upset track, the 13---roller that overturns.
The specific embodiment
Below in conjunction with the drawings and specific embodiments the utility model is further described.
Referring to Fig. 1,2,3, comprise pinion axle bed 1, spline housing 2, splined shaft 3, pinion 4, lifting screw 5, pivoting support 6, rotating disk 7, ring gear 8, shaft seat 9, folder bottle manipulator 10, upset dish 11, upset track 12, upset roller 13 is characterized in that: spline housing 2 is installed on the described pinion axle bed 1, in the described spline housing 2 splined shaft 3 is installed, on the described splined shaft 3 pinion 4 is installed, described pinion 4 and ring gear 8 engagements, described pivoting support 6 is the Internal and external cycle structure, one side of the inner ring of described pivoting support 6 is fixed on the lifting screw 5, outer ring one side of described pivoting support 6 and 7 engagements of described rotating disk, the outer ring opposite side of described pivoting support 6 and 8 engagements of described ring gear, described rotating disk 7 is provided with shaft seat 9, folder bottle manipulator 10 and upset dish 11 are installed on the described shaft seat 9, the opposite side of the inner ring of described pivoting support 6 is provided with upset track 12, and described upset track 12 is provided with upset roller 13.
Described spline housing 2 lower ends are connected with the transmission mechanism of vertical bottle washing machine, splined shaft 3 is contained in the spline housing 2, spline housing 2 is connected with the drive disk assembly of bottle washing machine, the pinion 4 that spline housing 2 drives on the splined shaft 3 rotates, pinion 4 and ring gear 8 engagements, ring gear 8 is connected with the outer ring of pivoting support 6, the outer ring of pivoting support 6 is connected with rotating disk 7 simultaneously, then ring gear 8 promptly drives rotating disk 7 rotations, folder bottle manipulator 10 and upset dish 11 are housed on the rotating disk 7, and rotating disk 7 rotates, and drives folder bottle manipulator 10 and upset dish 11 continuous smooth rotation, in rotation process, upset dish 11 motion on upset track 12 is turned over turnback during upset dish 11 process upset rollers 13, and upset dish 11 links to each other with folder bottle manipulator 10, upset dish 11 promptly drives folder bottle manipulator and turns over turnback, the function of bottle upset when realizing wash bottle.
The inner ring of pivoting support 6 is fixed on the lifting screw 5, when needs are adjusted the height of rotating disk 7, rotating lifting screw 5 can make the rotating disk of upper end, pivoting support 6 outer rings realize moving up and down, the ring gear of pivoting support 6 lower ends also can move up and down simultaneously, spline 3 is connected by the inner ring of bearing with pivoting support 6, when pivoting support 6 moved up and down, splined shaft 3 can move up and down in spline housing 2, thus the adjustment of implementation specification.
Claims (1)
1. vertical bottle washing machine slewing equipment, comprise pinion axle bed (1), spline housing (2), splined shaft (3), pinion (4), lifting screw (5), pivoting support (6), rotating disk (7), ring gear (8), shaft seat (9), folder bottle manipulator (10), upset dish (11), upset track (12), upset roller (13), it is characterized in that: described pinion axle bed (1) is gone up spline housing (2) is installed, described spline housing (2) one ends are connected with the transmission mechanism of vertical bottle washing machine, splined shaft (3) is installed in the described spline housing (2), pinion (4) is installed on the described splined shaft (3), described pinion (4) and ring gear (8) engagement, described pivoting support (6) is the Internal and external cycle structure, one side of the inner ring of described pivoting support (6) is fixed on the lifting screw (5), outer ring one side of described pivoting support (6) and described rotating disk (7) engagement, the outer ring opposite side of described pivoting support (6) and described ring gear (8) engagement, described rotating disk (7) is provided with shaft seat (9), folder bottle manipulator (10) and upset dish (11) are installed on the described shaft seat (9), the opposite side of the inner ring of described pivoting support (6) is provided with upset track (12), and described upset track (12) is provided with upset roller (13).
