Abstract
The utility model relates to the technical field of production machinery, in particular to a tyre shredder which is used for shredding block tyre after primary crushing. The tyre shredder comprises a motor, a shredding chamber and a cutter shaft; the motor is arranged on a rack and drives a belt pulley which is connected with the cutter shaft to rotate by a belt; the cutter penetrates through the shredding chamber transversely; a feeding hopper is connected at the upper end of the shredding chamber, and a discharge hole at the lower end of the shredding chamber is provided with a screen; a conveying belt is arranged under the screen and is provided with a magnetic separation device; the left end and the right end of the shredding chamber are respectively provided with a cooling device; and the front and rear inner side surfaces of the shredding chamber are provided with fixed cutters opposite to each other, and the cutter shaft is provided with movable cutters matched with the fixed cutters for shredding. The tyre shredder has the advantages of being compact and reasonable in structure, and convenient for manufacture and assembly; due to the full-closed structure and reasonable internal combination, the noise can be effectively reduced, and the cooling devices are utilized for cooling shredded colloidal particles in real time to prevent the colloidal particles from adhering to one another due to over high temperature in the high-speed shredding process, thus achieving smooth discharging effect.
Description
Technical field:
The utility model relates to the manufacturing machine technical field, refers in particular to a kind of tire shredder to pulverizing through the block tire after the primary crushing.
Background technology:
At present, society had a large amount of waste rubber products to produce last every year, and comprising non-tire rubber goods and tire, these waste rubber products need to handle, and handle these waste materials, and traditional method has normal temperature crushing up and cryogenic freezing comminuting method.Wherein, normal temperature crushing up includes traditional employing secondary rolling and produces, making scrap rubber production is the rubber powder of 0.31～1.4mm (48 orders～15 orders) particle diameter, and the normal-temperature continuous comminuting method developed of Japanese kobe steel (claiming the CTC technology), through rubber powder thick, that the broken two procedures of fine powder is produced above-mentioned same particle diameter.
Tire shredder is a kind of plant equipment of pulverizing through the block tire after the primary crushing, and there is structure complicated in traditional tire shredder, uses noise to reach short defective in service life greatly.For this reason, the applicant utilizes its professional eye and professional knowledge because the disappearance and the inconvenience of known tire shredder are being adhered to the spirit that research is innovated, kept on improving, and works out a kind of applied range, meets the tire shredder that industry is utilized.
Summary of the invention:
The purpose of this utility model is to overcome the defective of prior art, and a kind of compact conformation, reasonable is provided, and makes and tire shredder easy to assembly.
The utility model again a purpose to provide a kind of use noise little, can give in real time and pulverize the micelle cooling, prevent the micelle adhesion, reach discharging tire shredder smoothly.
For achieving the above object, the utility model adopts following technical scheme:
A kind of tire shredder, include motor, pulverizing chamber, cutter shaft, motor is installed on the frame, motor drives the belt pulley that is connected with cutter shaft by belt and rotates, cutter shaft crosses pulverizing chamber, and the pulverizing chamber upper end is connected with material bin, and the discharging opening place of pulverizing chamber lower end is provided with screen cloth, the screen cloth below is provided with conveyer belt, and conveyer belt is provided with concentration equipment; In about pulverizing chamber end, be that the traversing through end that penetrates of cutter shaft is provided with cooling device; Medial surface is provided with relative stationary knife in the front and back of pulverizing chamber, and the moving knife that cooperates stationary knife to pulverize is installed on the cutter shaft.
Described material bin has double-deck interstitital texture.
The section configuration of described cutter shaft is a regular hexagon, and every have two groups of available cutting edges to moving knife, and stationary knife has four groups of available cutting edges.
Described cooling device is interior recirculated water cooling structure.
Be compared with the prior art, the utlity model has compact conformation, reasonable, make and advantage easy to assembly, full-enclosed structure and reasonably inner combination, can effectively reduce noise, and utilize cooling device to give in real time and pulverize the micelle cooling, prevent that micelle from sticking together owing to temperature is too high in the high speed crushing process, it is smooth and easy to reach discharging.
The utility model advantage again is to adopt the toothed tool that special tool steel is made, and is simple in structure, wear-resistant, every have two groups of available cutting edges to moving knife, and stationary knife has four groups of available cutting edges, and interchangeable another group continues to use behind one group of cutting edge blunt, can prolong the service life of cutter.
Description of drawings:
Accompanying drawing 1 is a fundamental diagram of the present utility model;

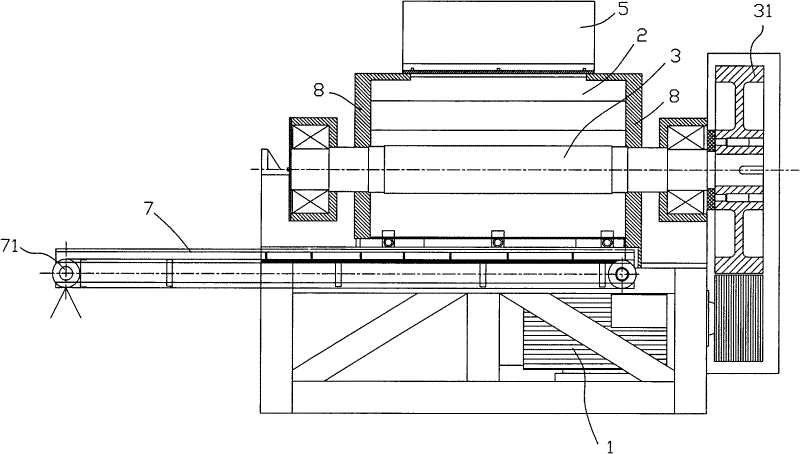

Accompanying drawing 2 is the utility model one example structure schematic diagram;
The specific embodiment:
Below in conjunction with accompanying drawing the utility model is further specified:
Consult shown in Fig. 1～3, a kind of tire shredder described in the utility model, include motor 1, pulverizing chamber 2, cutter shaft 3, motor 1 is installed on the frame 4, motor drives the belt pulley 31 that is connected with cutter shaft 3 by belt 11 and rotates, and cutter shaft 3 crosses pulverizing chamber 2, and pulverizing chamber 2 upper ends are connected with material bin 5, material bin 5 has double-deck interstitital texture, and inside can be filled with quieter material; And the discharging opening place of pulverizing chamber 2 lower ends is provided with screen cloth 6, and screen cloth 6 belows are provided with conveyer belt 7, and conveyer belt 7 is provided with concentration equipment 71; In about pulverizing chamber 2 end, be that the traversing through end that penetrates of cutter shaft 3 is provided with cooling device 8; Medial surface is provided with relative stationary knife 21 in the front and back of pulverizing chamber 2, and the moving knife 32 that cooperates stationary knife 21 to pulverize is installed on the cutter shaft 3.
The section configuration of described cutter shaft 3 is a regular hexagon, and adopts the toothed tool that special tool steel is made, and is simple in structure, wear-resistant; Every have two groups of available cutting edges to moving knife 32, and stationary knife 21 has four groups of available cutting edges, and interchangeable another group continues to use behind one group of cutting edge blunt, can prolong the service life of cutter.
Described cooling device 8 is interior recirculated water cooling structure, and cooling device 8 can reduce pulverizing chamber and bearing bag temperature, avoids micelle to stick together owing to temperature is too high in the high speed crushing process, and it is smooth and easy to reach discharging.Interior recirculated water cooling, easily assembling is implemented, and environmental protection.
The utility model is to be used for further tearing and shearing by toothed tool through the block tyre stock of 50 * 50mm after the tyre crusher fragmentation, is ground into the particle about 25 * 25mm.During work, the block tyre stock of 50 * 50mm is sent into pulverizing chamber 2 through material bin 5, motor 1 is sent to power on the belt pulley 31 that is connected with cutter shaft 3 by belt 11, thereby driving cutter shaft 3 rotates, the moving knife 32 of plurality of tooth-shaped is installed on the cutter shaft 3, moving knife 32 cooperates with stationary knife 21 on pulverizing chamber 2 medial surfaces and tears and shear, block tyre stock is pulverized in realization, simultaneously most steel wire in the sizing material is separated, pulverize the back less than spilling with the micelle that equals 25 * 25mm and steel wire mesh by screen cloth 6, and drop on the conveyer belt 7 and carry out, and conveyer belt 7 is provided with concentration equipment 71, as magnetic roller etc., by concentration equipment 71 micelle is separated with steel wire, the micelle after the separation is then sent into next procedure and is handled.In the present embodiment, screen cloth 6 adopts the high hardness wear-resisting steel alloy, and in the service life of having improved screen cloth greatly, screen cloth 6 semicircle ring types are coated on the discharging opening place of pulverizing chamber 2 lower ends, and are easy to assembly, also are convenient to maintenance.Concentration equipment 71 is distributed on the conveyer belt 7, can fully isolate steel wire, can prolong the service life of follow-up equipment cutter and screen cloth thus.
Claims (4)
1. tire shredder, include motor (1), pulverizing chamber (2), cutter shaft (3), motor (1) is installed on the frame (4), motor drives the belt pulley (31) that is connected with cutter shaft (3) by belt (11) and rotates, it is characterized in that: cutter shaft (3) crosses pulverizing chamber (2), and pulverizing chamber (2) upper end is connected with material bin (5), and the discharging opening place of pulverizing chamber (2) lower end is provided with screen cloth (6), screen cloth (6) below is provided with conveyer belt (7), and conveyer belt (7) is provided with concentration equipment (71); In about pulverizing chamber (2) end, be that the traversing through end that penetrates of cutter shaft (3) is provided with cooling device (8); Front and back medial surface in pulverizing chamber (2) is provided with relative stationary knife (21), and the moving knife (32) that cooperates stationary knife (21) to pulverize is installed on the cutter shaft (3).
2. a kind of tire shredder according to claim 1 is characterized in that: material bin (5) has double-deck interstitital texture.
3. a kind of tire shredder according to claim 1 is characterized in that: the section configuration of cutter shaft (3) is a regular hexagon, and every have two groups of available cutting edges to moving knife (32), and stationary knife (21) has four groups of available cutting edges.
4. a kind of tire shredder according to claim 1 is characterized in that: cooling device (8) is interior recirculated water cooling structure.
