Abstract
The utility model relates to automatic necking machines on both ends of the outer barrel of a solar water heater, which comprise necking machines; each necking machine comprises a case, an upper necking wheel, a lower necking wheel and a gear cylinder; the necking machines are characterized in that two necking machines are arranged, and the bottom parts of the cases of the two necking machines are arranged on a slide rail and the sides of the two necking wheels are over against each other; the necking machines also comprise a first plate chain conveying device, a second plate chain conveying device, a gantry frame, and a first vacuum suction device and a second vacuum suction device which are arranged on the gantry frame; the first plate chain conveying device corresponds to the position between the two necking machines, is vertical to the slide rail and is arranged on one side of the slide rail; the second plate chain conveying device and the first plate chain conveying device are symmetrically arranged on the other side of the slide rail; and the first and the second vacuum suction devices are arranged along the conveying direction of the first plate chain conveying device at intervals and can move along the direction. The automatic necking machines on both ends of the outer barrel of the solar water heater can simultaneously neck both ends of the solar water heater, are convenient to operate and improve the working efficiency.
Description
Technical field
The utility model relates to the outer bucket of a kind of solar water heater production equipment, specifically is the automatic necking machines in a kind of solar water heater outer bucket two ends.
Background technology
Development along with the solar water heater industry, require more and more higher to equipment automatization, the employed production equipment of outer bucket reducing of solar water heater all can only be realized an end reducing at present, after then the outer bucket of solar water heater being unloaded again clamping again to other end reducing, complex operation like this, efficient is very low.
The utility model content
In order to overcome the shortcoming that above-mentioned prior art exists, the purpose of this utility model is to provide a kind of solar water heater outer bucket two ends automatic necking machine, and it can carry out reducing simultaneously to the two ends of solar water heater, has improved operating efficiency.
For addressing the above problem, the utility model by the following technical solutions: the automatic necking machine in this solar water heater outer bucket two ends, comprise necking machine, described necking machine comprises cabinet, goes up the reducing wheel, reducing wheel, gear cylinder down; Described necking machine is provided with two, and the cabinet bottom of two necking machines all is arranged on the slide rail and both reducings wheel side is oppositely arranged; Also comprise: the first plate chain lines conveying equipment, corresponding with the position between two necking machines, perpendicular to described slide rail and be positioned at a side of slide rail; The second plate chain lines conveying equipment is symmetricly set on the opposite side of described slide rail with the described first plate chain lines conveying equipment; Gantry stand and be arranged on first vacuum chuck device, second vacuum chuck device on the gantry stand; First vacuum chuck device, second vacuum chuck device are provided with at interval and can move in the direction along the throughput direction of the described first plate chain lines conveying equipment.
As further technical scheme of the present utility model:
In the automatic necking machine in bucket two ends, described first vacuum chuck device, second vacuum chuck device comprise two groups of suckers, two groups of cylinders respectively outside this solar water heater.
The beneficial effects of the utility model are: it can carry out reducing simultaneously to the two ends of solar water heater, and easy to operate, has improved operating efficiency.
Description of drawings
Below in conjunction with drawings and Examples the utility model is described further:

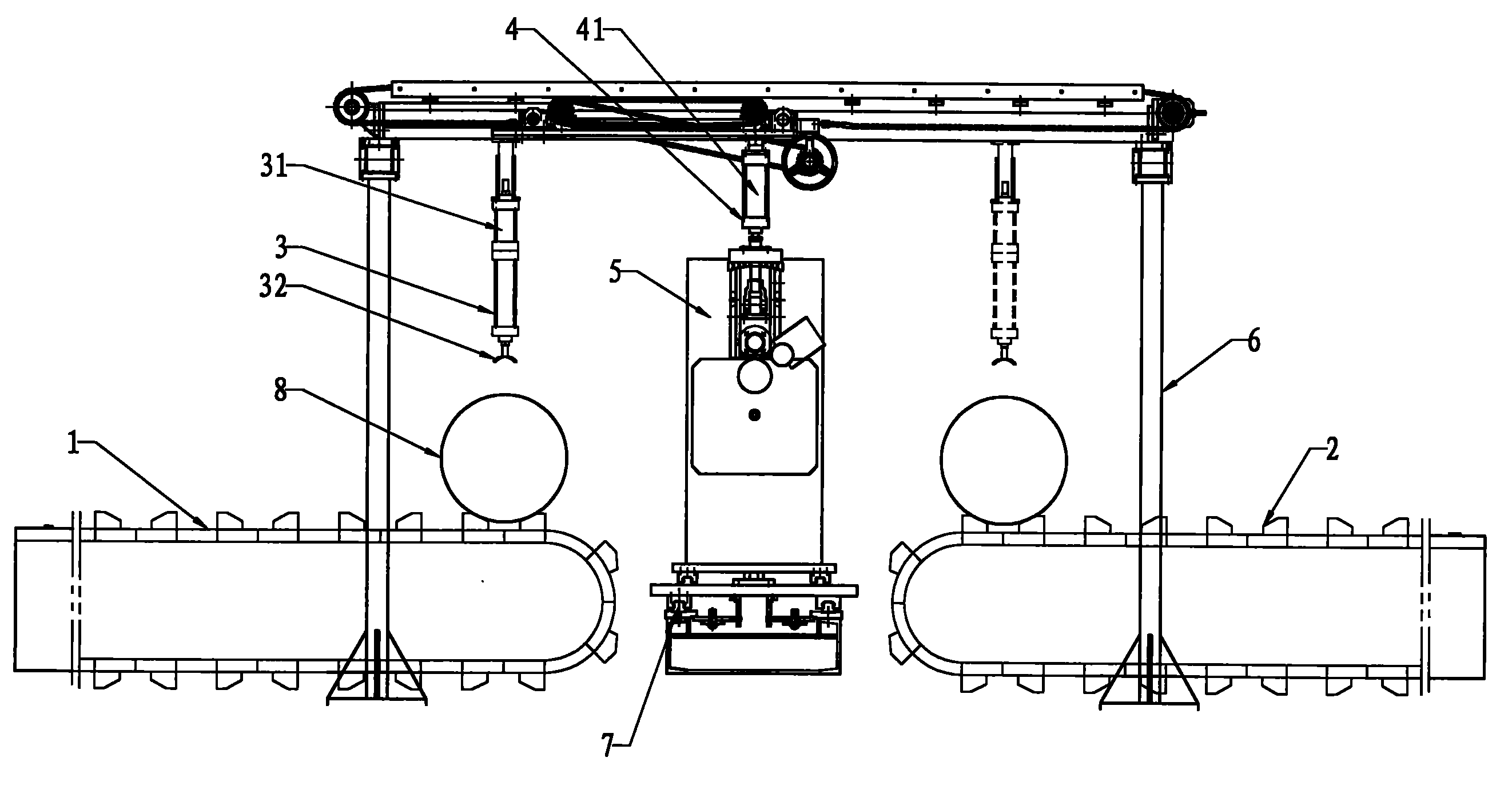

Fig. 1 is the structural representation of the utility model embodiment;
Fig. 2 is the side view of the utility model embodiment;
Among the figure: 1 first plate chain lines conveying equipment, 2 second plate chain lines conveying equipments, 3 first vacuum chuck devices, 31 first cylinders, 32 first suckers, 4 second vacuum chuck devices, 41 second cylinders, 5 necking machines, reducing wheel on 51,52 times reducings wheel, 53 gear cylinders, 54 cabinets, 6 gantry stands, 7 slide rails, the outer bucket of 8 solar water heaters.
The specific embodiment
As shown in Figure 1, 2, the automatic necking machine in this solar water heater outer bucket two ends comprises:
Two necking machines 5, every necking machine comprises cabinet 54, last reducing wheel 51, following reducing wheel 52, gear cylinder 53.Cabinet 54 bottoms of two necking machines all are arranged on the slide rail 7 and both reducings wheel side is oppositely arranged.
Also comprise: the first plate chain lines conveying equipment 1, corresponding with the position between two necking machines 5, perpendicular to described slide rail 7 and be positioned at a side of slide rail.The second plate chain lines conveying equipment 2 is symmetricly set on the opposite side of described slide rail 7 with the described first plate chain lines conveying equipment 1.
Also comprise: gantry stand 6 and be arranged on first vacuum chuck device 3, second vacuum chuck device 4 on the gantry stand; First vacuum chuck device 3, second vacuum chuck device 4 are provided with at interval and can move in the direction along the throughput direction of the described first plate chain lines conveying equipment 1.First vacuum chuck device 3 comprises first sucker 32 and controls first cylinder 31 of the first sucker work, and first sucker 32, first cylinder 31 be provided with two groups, and two suckers can adsorb the two ends of the outer bucket of solar water heater, adsorb more reliable.Second vacuum chuck device 4 comprises second sucker and controls second cylinder 41 of the second sucker work, and second sucker, second cylinder 41 also are provided with two groups.
In the work the outer bucket 8 of solar water heater is placed on the first plate chain lines conveying equipment 1, after the outer bucket of solar water heater is carried and is put in place, first cylinder 31 of first vacuum chuck device 3 is opened, first sucker 32 descends and holds the two ends of the outer bucket 8 of solar water heater, and the outer bucket 8 of solar water heater is delivered to necking machine 5 places; The cabinet 54 of two necking machines is drawn close toward the centre, and back first sucker 32 that puts in place unclamps promptly returns original position after the outer bucket of solar water heater 8, the first vacuum chuck devices 3 are delivered to necking machine with the outer bucket of solar water heater, transports the outer bucket of next solar water heater in order to absorption.The servomotor of two necking machines 5 obtains outer barrel of signal that puts in place of solar water heater and promptly starts with parabolic, reducing wheel 51, reducing wheel 52 rotations down in the drive, top gear cylinder 53 is opened, with the interlock of upper and lower reducing wheel, drive the outer bucket 8 of solar water heater and rotate, realize reducing.
After reducing is finished, the work of second cylinder 41, will contract good mouthful the outer bucket 8 of solar water heater of second vacuum chuck device 4 is delivered to the second plate chain lines conveying equipment 2.Simultaneously, first vacuum chuck device 3 is delivered to necking machine 5 places with the outer bucket of next solar water heater again, work on, and the like, realize uninterruptedly producing.
Claims (2)
1. the automatic necking machine in solar water heater outer bucket two ends, comprise necking machine, described necking machine comprises cabinet, last reducing wheel, following reducing wheel, gear cylinder, it is characterized in that: described necking machine is provided with two, and the cabinet bottom of two necking machines all is arranged on the slide rail and both reducings wheel side is oppositely arranged; Also comprise: the first plate chain lines conveying equipment, corresponding with the position between two necking machines, perpendicular to described slide rail and be positioned at a side of slide rail; The second plate chain lines conveying equipment is symmetricly set on the opposite side of described slide rail with the described first plate chain lines conveying equipment; Also comprise gantry stand and be arranged on first vacuum chuck device, second vacuum chuck device on the gantry stand; First vacuum chuck device, second vacuum chuck device are provided with at interval and can move in the direction along the throughput direction of the described first plate chain lines conveying equipment.
2. the automatic necking machine in a kind of solar water heater according to claim 1 outer bucket two ends, it is characterized in that: described first vacuum chuck device, second vacuum chuck device comprise two groups of suckers, two groups of cylinders respectively.
