The utility model belongs to the ship ballast water processing device field, in particular to a low voltage high-strength UV ship ballast water processing device. An inflow pipe reducer is connected with a device shell through a connection flange. A supporting disc is arranged in the device shell close to the inflow pipe reducer. The center of the supporting disc is provided with a supporting disc central shaft and a device central shaft connecting the supporting disc and a device end cover. Low voltage high-strength UV tubes are arranged between the device central shaft and the device shell in groups. The ballast water enters the device from a device water inlet arranged at the front end of the inflow pipe reducer and then is discharged out of a water outlet arranged at the bottom of the device shell after being sterilized by UV. The utility model has the advantages of high automation degree, compact structure, stable work, high sterilization efficiency and has good ballast water sterilization effect.
Description
Technical field
The utility model belongs to the ship ballast water treatment device field, particularly a kind of low-pressure high-strength ultraviolet ship ballast water treatment device.
Background technology
Oceangoing vessel generally all adopt the increase of water ballast or reduce regulate boats and ships center of gravity to keep mooring stability.When boats and ships are transported for long-distance, when particularly carrying out on long voyage, will take microorganism in the new environment to, the bigger threat of ocean environment safety formation of other countries and regions by water ballast.The microorganism invasion problem that has caused by water ballast since the nearly more than ten years causes that international community shows great attention to.In order to control the external source biotic intrusion problem that ocean vessel ballast water causes, International Maritime Organizaton (IMO) has formulated strict ballast water treatment regulation, but sophisticated ballast water treatment system is very few.
Main patent about the ocean vessel ballast water treatment system has at present: patent 02140632.4, and the heat heating water ballast that the waste gas heat exchange back that utilizes ship to produce produces carries out disinfection; Patent 03133447.4 applies voltage between the discharge electrode of radical generator and earthing pole, form highfield and discharge between discharge electrode and earthing pole, ionization, decomposes the oxygen G﹠W, forms O
3With hydroxyl etc., form radical solution by the ejector dissolving again, add in the water ballast transport pipe, kill the microorganism in the water ballast; Patent 200510046991.8 adopts the electrolytic system processing ballast, produces oxygenant by electrolysis, comprises chlorine, hypochlorous acid molecule, dioxide peroxide etc. and kill microorganism in the water jointly together with effect of electric field; Patent 200580040948.9 adopts electrolytic process to produce the hypochlorous acid processing ballast; Patent 200680015713.9, by combination have jet flow, the cavitation erosion effect mechanical killing method and ozone treatment method processing ballast; Patent 200680016920.6 adopts electromagnetic technique that water ballast is heated to kill the microorganism in the water; Patent 200680020730.1, employing adding sterilant in water ballast is killed the microorganism in the water; Patent 200710010653.8, method of microorganism in the high-level oxidation technology processing ballast of use sulphuric acid free radical; Patent 200710010538.0, employing microwave treatment technology is killed the microorganism in the water ballast.
Summary of the invention
The utility model is at the deficiency of ultraviolet ballast water sterilization equipment on the domestic and international market, a kind of equipment that utilizes the ultraviolet ray of high dosage low pressure to the water ballast disinfection is provided, it is characterized in that, water inlet taper(ed)pipe 2 is connected by joint flange 3 with apparatus casing 9, in apparatus casing 9, supporting disk 4 is set near water inlet taper(ed)pipe 2 places, the center of supporting disk 4 is provided with supporting disk central shaft 5, and the equipment center axle 6 that connects between supporting disk 4 and the equipment end cap is set, the low-pressure high-strength degree quartz burner 7 that equidistantly distributes is installed between equipment center axle 6 and apparatus casing 9, packet mode is adopted in the control of fluorescent tube rectifier, every group of six roots of sensation is with the evenly temper ultraviolet dosage; The power of low-pressure high-strength degree quartz burner 7 is the 200-400w/ lamp, and the ultraviolet dosage of generation is 100-400mJ/cm
2Water inlet taper(ed)pipe 2 front ends are provided with equipment water-in 1, and apparatus casing 9 bottoms set out the mouth of a river 10.
The described low-pressure high-strength degree quartz burner 7 outer quartz socket tubes 8 that are provided with.
The fluorescent tube spacing of described low-pressure high-strength degree quartz burner 7 is 5～10cm.
Described apparatus casing 9 adopts the 1Cr18Ni9Ti material.
The beneficial effects of the utility model are:
1. use the low-pressure high-strength ultraviolet fluorescent tube, disinfection by ultraviolet light dosage: 100-400mJ/cm can be provided
2, can produce the high dosage ultraviolet ray, can save power consumption again.
2. marine alga and other planktonic organism of existence had deactivation efficiently during native system was handled ocean vessel ballast water.
3. bacterium in the seawater, virus and other there is better deactivation to the deleterious adventive of marine ecology.
4. do not need to add any active substance, do not produce environmentally harmful active substance.
5. automation degree of equipment height, floor space is little, compact construction, working stability, efficient height.
Description of drawings

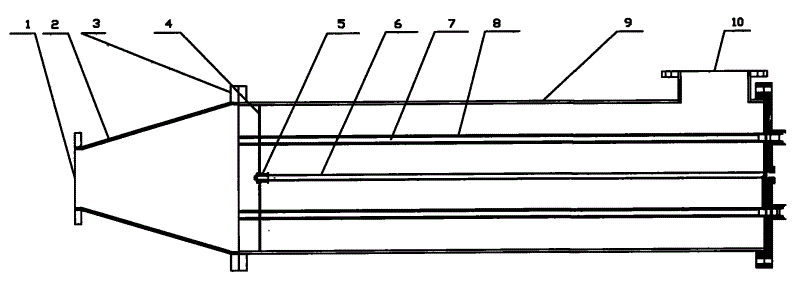

Fig. 1 is an integral construction synoptic diagram of the present utility model;
Fig. 2 is the internal layout of quartz burner.
Number in the figure:
1-equipment water-in; The 2-taper(ed)pipe of intaking; The 3-joint flange; The 4-supporting disk; 5-supporting disk central shaft; 6-equipment center axle; 7-low-pressure high-strength ultraviolet fluorescent tube; The 8-quartz socket tube; 9-equipment outer wall; The 10-water outlet.
Embodiment
The utility model provides a kind of equipment that utilizes the ultraviolet ray of high dosage low pressure to the water ballast disinfection, below by description of drawings and embodiment the utility model is described further.
Fig. 1 is an integral construction synoptic diagram of the present utility model.Water inlet taper(ed)pipe 2 and material are that the apparatus casing 9 of 1Cr18Ni9Ti is connected by joint flange 3, in apparatus casing 9, supporting disk 4 is set near water inlet taper(ed)pipe 2 places, the center of supporting disk 4 is provided with supporting disk central shaft 5, and the equipment center axle 6 that connects between supporting disk 4 and the equipment end cap is set, 36 low-pressure high-strength degree quartz burners 7 equidistantly arranging are installed between equipment center axle 6 and apparatus casing 9, spacing between per two fluorescent tubes is 7cm, and outside every low-pressure high-strength degree quartz burner 7, quartz socket tube 8 being set, the power of single low-pressure high-strength degree quartz burner 7 is 300w; Water inlet taper(ed)pipe 2 front ends are provided with equipment water-in 1, and apparatus casing 9 bottoms set out the mouth of a river 10.
During the utility model work, water ballast enters this equipment by equipment water-in 1, through behind the ultraviolet quick sterilization of device interior, is discharged by water outlet 10.This automation degree of equipment height does not need artificial control and management, and uitraviolet intensity is monitored in real time by online light intensity instrument, in time reflects the size of the sterilization dose of equipment, and the ultraviolet dosage of generation is 100-400J/cm
2And the running condition of every quartz burner all reflects in real time by electronic control equipment, and is normal with the operation of assurance equipment.
Claims (3)
1. low-pressure high-strength ultraviolet ship ballast water treatment device, it is characterized in that, water inlet taper(ed)pipe (2) is connected by joint flange (3) with apparatus casing (9), in apparatus casing (9), locate to be provided with supporting disk (4) near water inlet taper(ed)pipe (2), the center of supporting disk (4) is provided with supporting disk central shaft (5), and the equipment center axle (6) that connects between supporting disk (4) and the equipment end cap is set, the low-pressure high-strength degree quartz burner (7) that equidistantly distributes is installed between equipment center axle (6) and apparatus casing (9), packet mode, every group of six roots of sensation are adopted in the control of fluorescent tube rectifier; The power of low-pressure high-strength degree quartz burner (7) is the 200-400w/ lamp, and the ultraviolet dosage of generation is 100-400mJ/cm
2Water inlet taper(ed)pipe (2) front end is provided with equipment water-in (1), and apparatus casing (9) bottom sets out the mouth of a river (10).
2. a kind of low-pressure high-strength ultraviolet ship ballast water treatment device according to claim 1 is characterized in that, the outer quartz socket tube (8) that is provided with of described low-pressure high-strength degree quartz burner (7).
3. a kind of low-pressure high-strength ultraviolet ship ballast water treatment device according to claim 1 is characterized in that, the fluorescent tube spacing of described low-pressure high-strength degree quartz burner (7) is 5～10cm.
