一种粘板型昼夜灭虫灯，属于物理灭虫器械技术领域，旨在解决现有物理诱灭虫器构造繁复、仅能在夜晚无雨天使用，造成诱杀虫效果差的问题。它设有灭虫灯灯体、诱虫灯和粘虫板，灭虫灯灯体是尖顶草帽形，主体顶部装有灯口装连着诱虫灯、并在灯主体的外沿水平外延装设有3～9根均布悬挂有带诱虫颜色粘虫板的带挂钩连杆的灭虫灯灯体。其结构新颖，经济实用，适用于农田、林果地、园林、城市绿地等诱杀害虫。
A sticky board type day and night insect extermination lamp belongs to the technical field of physical insect exterminators and aims to solve the problem that existing physical insect traps have complicated structures and can only be used at night when there is no rain, resulting in poor trapping and killing insect effects. It is equipped with an insect-killing lamp body, an insect-trap lamp and a sticky insect board. There are 3 to 9 insect-killing lamp bodies with hooks and connecting rods that are evenly distributed and hung with insect-attracting color sticky insect plates. Its structure is novel, economical and practical, and it is suitable for trapping and killing insects in farmland, forest fruit fields, gardens, urban green spaces, etc.
Description
Technical field
The utility model belongs to a kind of physical control of insects lamp that utilizes light trap and haftplatte in the physical control of insects apparatus technical field.
Background technology
Along with being showing improvement or progress day by day and the continuous development of nuisanceless green agricultural of agricultural modernization, lure the technical merit of the harmful insect apparatus that goes out also to require more and more higher to physics.In known technology, the physical control of insects apparatus of existing instead of chemical agricultural chemicals mainly is a phototaxis of utilizing insect, the high-pressure electrostatic formula physical insect killer that the physical insect killer of employing mainly is made up of load photoelectric source circuit board connection light trap and high-voltage fence in the deinsectization lamp body.But the technological core of this physical insect killer is to use the high-pressure electrostatic deinsectization, limit by its structure, and its structure is complicated, the cost height, big energy-consuming only can not have the rainy day at night and uses, and particularly high-pressure electrostatic has a strong impact on environment, application is subjected to constraint, make to apply to be restricted, trapping worm weak effect, the also handy chemical pesticide after carrying out physical control of insects that has is wiped out and treated insect pests and plant diseases, bring inconvenience to use, await constantly developing novel physical insect killer.
Summary of the invention
In order to overcome the deficiencies in the prior art, solve existing physics lure the insect killer structure complicated, only can not have the rainy day and use at night, cause the problem of trapping worm weak effect.The purpose of the utility model provides a kind of novel structure, and design innovation is economical and practical, cost is low, power consumption is few, can use round the clock, and no high-pressure electrostatic does not influence environment, applied range, the trapping worm is effective, just can reach deinsectization effect, energy saving without chemical pesticide fully, longer service life, new-type physics easy to use lures insect killing lamp.
The technical scheme in the invention for solving the above technical problem is:
A kind of haftplatte type is insect killing lamp round the clock, it is provided with: insect killing lamp lamp body, light trap and insect-sticking plate, insect killing lamp lamp body are that straw hat shape main body top, pinnacle is equipped with the socket load and light trap and be equiped with the insect killing lamp lamp body that 3～9 uniform connecting bands lure the connecting rod of worm color insect-sticking plate in the horizontal extension in the outer of lamp main body.
Above-mentioned haftplatte type is insect killing lamp round the clock, and the described insect killing lamp lamp body or the top heart are the insect killing lamp lamp body of the alms bowl shape main body of semi-round ball; Or the insect killing lamp lamp body of umbrella main body; Or the insect killing lamp lamp body of trumpet type main body; And the insect killing lamp lamp body of other suitable type.
Above-mentioned haftplatte type is insect killing lamp round the clock, connecting rod the best of described insect killing lamp lamp body be 3～5 uniform, and on connecting rod, be equiped with the hook that connects insect-sticking plate, connection folder etc.
Above-mentioned haftplatte type is insect killing lamp round the clock, and described insect-sticking plate is preferably yellow, and intersects the green that hangs, blueness and other and be suitable for luring the insect-sticking plate of worm look.
When the utility model uses, the extension haftplatte formula that this is novel physical control of insects lamp round the clock is hanging to desired location, such as farmland, woods fruit ground, gardens, urban green space etc., connect the light trap power supply, worm, daytime had yellow insect-sticking plate lure to draw moth class and other become light class pest, carry out insect-killing trapping operation by luminous the luring of light trap night.When insect-sticking plate uses a period of time mythimna separata effect to reduce, can exchange old for new easily.
Because technique scheme has been adopted in the utility model design, efficiently solve existing physics lure the insect killer structure complicated, only can not have the rainy day and use at night, cause the problem of trapping worm weak effect.Show that through testing result on trial for several times it compared with prior art has novel structure, design innovation, cost is low, and power consumption is few, can use round the clock, no high-pressure electrostatic does not influence environment, applied range, the trapping worm is effective, just can reach deinsectization effect, energy saving without chemical pesticide fully, longer service life, advantage such as easy to use is applicable to insect-killing trappings such as farmland, woods fruit ground, gardens, urban green space, has good practicality and broad prospect for its application.
Description of drawings
Below in conjunction with drawings and Examples the utility model is described in further detail.

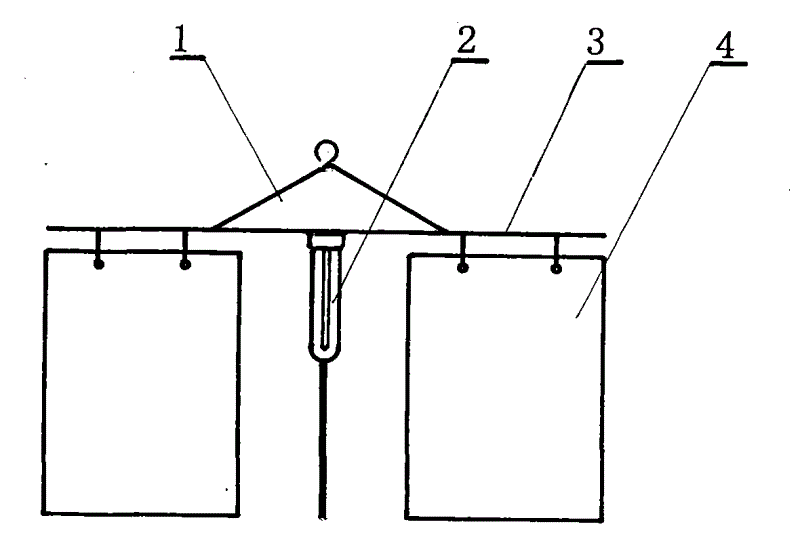

Fig. 1 is the utility model embodiment concrete structure sketch.
Fig. 2 is Fig. 1 embodiment upward view.
Each label is in the accompanying drawing: 1 insect killing lamp lamp body; 2 light traps; 3 band hook connecting rods; 4 yellow insect-sticking plates.
Embodiment
As accompanying drawing 1, embodiment illustrated in fig. 2, the utility model is provided with: insect killing lamp lamp body 1, light trap 2 and 3 insect-sticking plates 3, light trap lamp body 1 are that the light trap lamp bodies that the socket load light trap 2 and is equiped with 3 uniform bands hook connecting rods 3 that are hung with 3 yellow insect-sticking plates 4 in the horizontal extension in the outer of lamp main body are equipped with at straw hat shape main body top, pinnacle.
Claims (4)
1, a kind of haftplatte type insect killing lamp round the clock, it is provided with: insect killing lamp lamp body, light trap, it is characterized in that, also be provided with insect-sticking plate (4), the insect killing lamp lamp body is that socket is equipped with at its top of straw hat shape main body, pinnacle, light trap in load on the socket, and is equiped with 3～9 uniform connecting rods (3) on the outer of the horizontal extension of lamp main body, and connecting rod (3) is gone up the insect-sticking plate (4) that connecting band lures the worm color.
2, haftplatte type according to claim 1 insect killing lamp round the clock is characterized in that, the connecting rod of insect killing lamp lamp body (3) the best be 3～5 uniform, and on connecting rod (3), be equiped with hook, the connection folder that connects insect-sticking plate (4).
3, haftplatte type according to claim 1 insect killing lamp round the clock is characterized in that the insect killing lamp lamp body is that the top heart is the alms bowl shape main body of semi-round ball.
4, haftplatte type according to claim 1 insect killing lamp round the clock is characterized in that insect-sticking plate is yellow insect-sticking plate (4).
