Abstract

The utility model relates to a high efficiency electric-bag dust remover, which comprises an electric dust removing unit and a bag-type dust removing unit, and an air flow distribution device is arranged at an air inlet of the dust remover. The air flow distribution device is in a structure of uniformly arranged perforated plates; a guide plate is arranged between the electric dust removing unit and the bag-type dust removing unit; and an upper opening of a filter bag framework adopts a structure of a protective sleeve, and the protective sleeve contacts with a patterned plate through a gasket and is fixed through a bolt. An inductor is installed at the lower part of a blowing dust cleaning system. Compared with the prior, the high efficiency electric-bag dust remover has the advantages of thorough dust cleaning, high dust removing efficiency, low energy consumption and long service life.

Description

A kind of efficient electric bag dust collector
Technical field
The utility model relates to a kind of electric bag dust collector.
Background technology
Electricity-bag complex type dust remover is a kind of cleaner that grew up in recent years.It is made up of two unit, i.e. electric precipitation unit and bag-type dust unit.Generally speaking, an electric field is arranged in the electric precipitation unit.Electric back pkt. before this electricity-bag complex type dust remover, both having brought into play electric cleaner can reduce the concentration that enters filter bag 80%~90% dust collection in the flue gas greatly, and the resistance of filter bag reduces, cleaning cycle strengthens, thereby prolong the life-span of cloth bag.It is insensitive to coal to have brought into play sack cleaner again, and fine dust collection efficiency height advantages such as (99.9%) can guarantee to reach the discharge standard of 50mg/m3.Electricity-bag complex type dust remover is a kind of novel, the deduster efficiently by the combination of electric precipitation and bag-type dust.
Along with the strictness day by day of national environmental standard, country has issued new " thermal power plant's atmosphere pollutants emission standards ", and grassroot project has been proposed higher emission request.But the deduster of present existing electricity bag combination also can't reach desirable deashing ability, efficiency of dust collection and long service life because of its structure Design.
Summary of the invention
The purpose of this utility model provides that a kind of rational in infrastructure, dedusting is efficient, the efficient electric bag dust collector of long service life.
For achieving the above object, the utility model is achieved through the following technical solutions:
A kind of efficient electric bag dust collector, the electric precipitation unit that comprises air inlet, housing, constitutes by cathod system, anode system, rapping apparatus, silicon rectifying transformer, ash bucket, by bag-type dusting unit, air outlet, ash bucket that pulse valve, jetting deashing system, filter bag, dust chamber, air-purifying chamber, ash bucket constitute, be provided with airflow distribution device at the air inlet place of device.
Described airflow distribution device is the perforated plate construction of evenly arranging.
Between electric precipitation unit and bag-type dusting unit, be provided with the deflector that dust-contained airflow is play the guiding role.
Described Filter-bag carcass employing protective sleeve suitable for reading structure, this protective sleeve contacts with card by pad, passes through bolting.
Described protective sleeve adopts Venturi tube.
Described jetting deashing system bottom is equipped with persuader, is positioned at filter bag top; Be made of fixation clamp, induction tunnel, clip, air deflector, fixation clamp is positioned at the induction tunnel upper end, and induction tunnel is fixedlyed connected with air deflector by clip.
Described air deflector is horn-like.
Compared with prior art, the utility model has the advantages that:
1) the dust removal combined structure of locellus of employing electric precipitation and bag-type dust satisfies service requirement under the different working conditions, and deashing is efficiently thorough; Prime electric precipitation efficiency of dust collection height is collected 80%~90% Dust Capacity; Back level bag-type dust is collected grain dust, guarantees the low concentration discharging.
2) the air inlet place is provided with airflow distribution device, and the dirt pocket internal gas flow is evenly distributed; Air-flow is distributed both guaranteed not reduce electric cleaner efficient, can satisfy sack cleaner again, prolonged life of bag filter the requirement that air-flow distributes;
3) Filter-bag carcass employing protective sleeve suitable for reading structure, the air-flow deflection that prevents to jet is washed away filter bag, for the organosilicon preservative treatment of skeleton, protect filter bag fully, prolongs life-span of the filter bag.
4) described jetting deashing system bottom is equipped with persuader, and it is far away to have jet length, and spray angle such as can control at characteristics; Make that deashing is thorough, drag losses is little, the winding-up bleed pressure is low, and energy consumption is low; The winding-up cycle is long, pulse width is narrow;
5), select the rational utmost point to join form, the efficient of the raising electric precipitation of employing sub-district power supply maximum possible and the security reliability of operation according to the dust characteristic.
6) running resistance is low, and life of bag filter is long, and energy consumption is little, and operation, maintenance cost is low.
Description of drawings

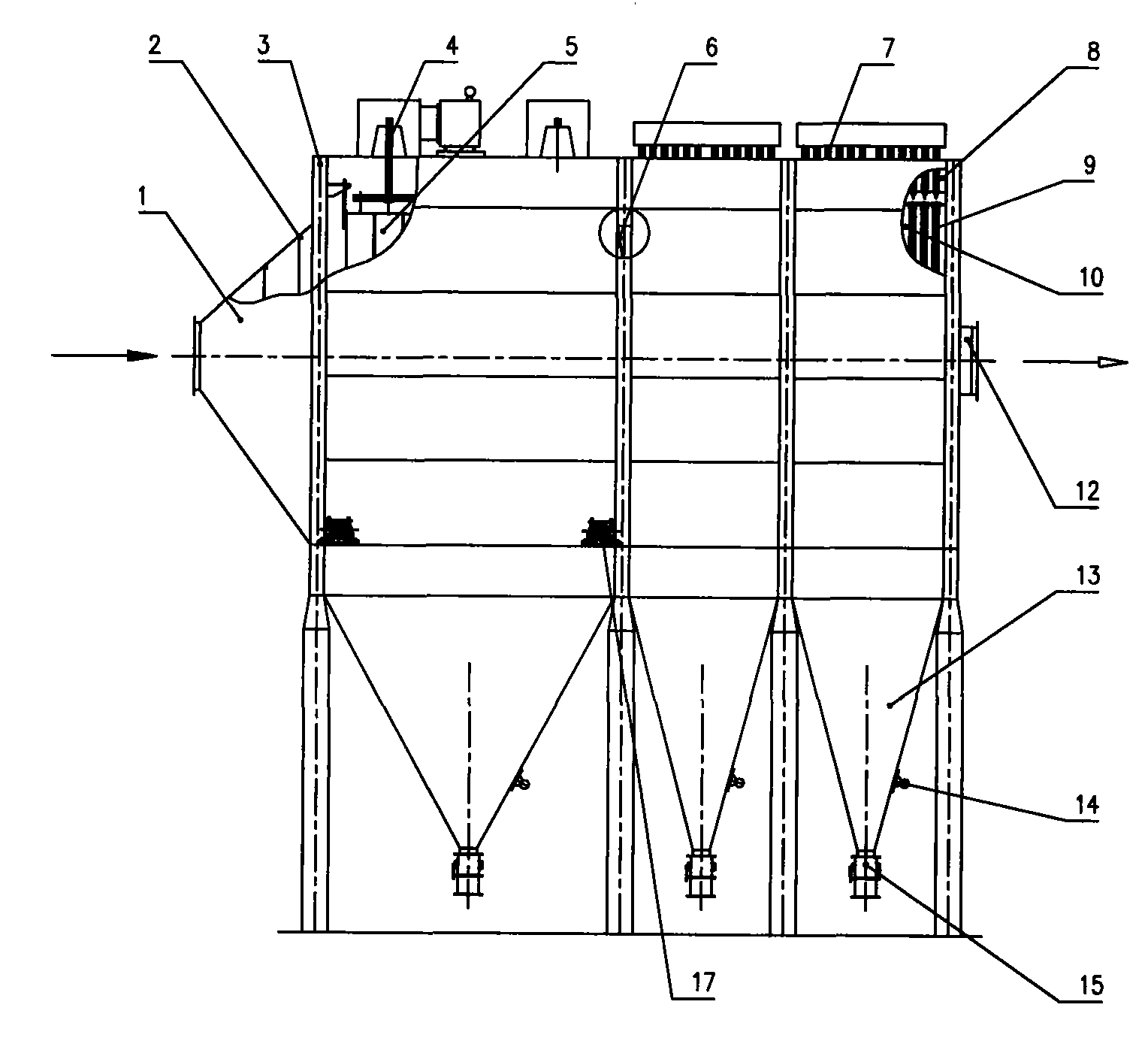

Fig. 1 is the main TV structure figure of electric bag dust collector;
Fig. 2 is the right TV structure figure of electric bag dust collector;
Fig. 3 is the plan structure figure of electric bag dust collector;
Fig. 4 is the structural representation of airflow distribution device;
Fig. 5-the 1st, the structural representation of deflector;
Fig. 5-the 2nd, the structural representation of the another kind of form of deflector;
Fig. 6 is a filter bag structural representation suitable for reading;
Fig. 7 is the structural representation of jetting deashing system bottom persuader.
The specific embodiment
See Fig. 1, Fig. 2, Fig. 3, a kind of efficient electric bag dust collector, the mode that this deduster adopts electric precipitation and bag-type dust to combine, cleaning efficiency height, long service life.The deduster air inlet connects the electric precipitation unit, and air outlet connects the bag-type dusting unit.Air inlet 1 place of electric precipitation unit is provided with airflow distribution device 2, sees Fig. 4, and airflow distribution device 2 is perforated plate constructions of evenly arranging.Electric precipitation unit housing 3 tops are provided with cathod system 4 and anode system 5, and the bottom is provided with ash bucket; Silicon rectifying transformer 18 is positioned at electric precipitation unit housings top.
In order to produce electric field, with anode system 5 ground connection, by silicon rectifying transformer 18 cathod system 4 (dust collecting electrode) is applied high voltage, irregularly shaped generation non-uniform electric field by negative electrode, make charged grit by its electrically charged not opposite polarity in the same way electrode movement separately, stressed and be captured at electric field.Grit after the capture is deposited on the dust collecting electrode (cathod system 4), and rapping apparatus 17 carries out rapping every some cycles to it, and the rapping power and the dust collecting electrode that produce by rapping apparatus break away from, and fall into the bottom ash bucket by the self gravitation sedimentation.
Then continue to move through flue gas and fine particle wherein after the electric field preliminary purification along the flow of flue gas direction, be folded to the electric field bottom at the electric field rear portion by deflector 6 (or 6 ') (two kinds of forms shown in Fig. 5-1, Fig. 5-2), the ventilating opening through the bottom enters the bagroom 10 of bag-type dusting unit.
Bagroom 10 tops are provided with jetting deashing system 7 and pulse valve 16, and inside is provided with filter bag 9, and air outlet 12 sides are provided with 8 air-purifying chambers, and the bottom is provided with ash bucket 13, and the ash bucket sidewall is provided with hopper wall vibrator 14, and the bottom is provided with unloading valve 15.Bagroom 10 air outlets 12 places are provided with lifting device 11, and lifting device is realized the open and-shut mode of air outlet 12 by the lifting of control valve plate.
See Fig. 6, Filter-bag carcass 5 employing protective sleeve structures suitable for reading, protective sleeve adopts Venturi tube 19, and Venturi tube 19 contacts with card 21 by pad 20, passes through bolting.
See Fig. 7, jetting deashing system 7 bottoms are equipped with persuader, are positioned at filter bag 9 tops; Be made of fixation clamp 23, induction tunnel 24, clip 25, air deflector 26, fixation clamp 23 is positioned at induction tunnel 24 upper ends, and induction tunnel 24 is fixedlyed connected with air deflector 26 by clip 25, and air deflector 26 is horn-like, is positioned at filter bag 9 tops.
The bottom-up motion of flue gas in dust chamber 10, comprehensive effects such as inertia, collision, sieving, interception and static by filter bag 9 surfaces, make dust settling on filter bag surface and form dust layer, purified gas enters air-purifying chamber 8, is drawn by air outlet 12 by lifting device 11 backs.
After a period of time, at this moment the thickening of filter bag surface dust layer need to carry out deashing.Pulse valve 16 in the jetting deashing system 7 is opened, compressed air in the gas bag is by the aperture of pulse valve on the winding-up pipe, eject the injection air-flow of one high speed and high pressure to filter pocket mouths, form one induced drafts suitable and injection airflow volume several times, together enter in the filter bag, make to occur the moment malleation in the filter bag, sharply expand, be deposited on the dust releasing in the filter bag outside, fall in the ash bucket, reach the deashing purpose.
When the dust stratification in the ash bucket acquires a certain degree, need unload ash.Produce vibration by the hopper wall vibrator 14 that is installed on the ash bucket, dust is discharged by unloading valve 15 smoothly, be transported to the appointed place.

Claims (7)

1, a kind of efficient electric bag dust collector, the electric precipitation unit that comprises air inlet, housing, constitutes by cathod system, anode system, rapping apparatus, silicon rectifying transformer, ash bucket, the bag-type dusting unit, air outlet, the ash bucket that constitute by pulse valve, jetting deashing system, filter bag, dust chamber, air-purifying chamber, ash bucket, it is characterized in that, be provided with airflow distribution device at the air inlet place of device.
2, a kind of efficient electric bag dust collector according to claim 1 is characterized in that, described airflow distribution device is the perforated plate construction of evenly arranging.
3, a kind of efficient electric bag dust collector according to claim 1 is characterized in that, is provided with the deflector that dust-contained airflow is play the guiding role between electric precipitation unit and bag-type dusting unit.
4, a kind of efficient electric bag dust collector according to claim 1 is characterized in that, described Filter-bag carcass employing protective sleeve suitable for reading structure, and this protective sleeve contacts with card by pad, passes through bolting.
5, a kind of efficient electric bag dust collector according to claim 4 is characterized in that, described protective sleeve adopts Venturi tube.
6, a kind of efficient electric bag dust collector according to claim 1 is characterized in that, described jetting deashing system bottom is equipped with persuader, is positioned at filter bag top; Be made of fixation clamp, induction tunnel, clip, air deflector, fixation clamp is positioned at the induction tunnel upper end, and induction tunnel is fixedlyed connected with air deflector by clip.
7, a kind of efficient electric bag dust collector according to claim 1 is characterized in that described air deflector is horn-like.
