Abstract
一种超高温屏蔽控制电缆，它由导体包裹绝缘层，再绕包或包裹铜丝屏蔽层和内护层组成单芯屏蔽线，数根单芯屏蔽线按同心圆环排列绞合成缆芯，缆芯外依次绕包或包裹保护层，内护套、总屏蔽层，耐火层，隔热防火层，耐火层，最后包裹外护套。它采用由导体包裹绝缘层，再绕包或包裹屏蔽层和内护层组成单芯屏蔽线，数根单芯屏蔽线按同心圆环排列绞合成缆芯，缆芯外依次绕包或包裹保护、内护、总屏蔽、耐火、隔热防火、耐火和外护等多层的技术方案，解决了现有电缆不能满足在特殊环境及使用场所的耐高温冲击、耐火、耐寒、耐磨等多功能要求的问题。它适合使用环境复杂恶劣等场合用超高温屏蔽控制电缆。特别适合瞬时高温环境中用超高温屏蔽控制电缆。
An ultra-high temperature shielded control cable, which consists of a conductor wrapped with an insulating layer, and then wrapped or wrapped with a copper wire shield and an inner sheath to form a single-core shielded wire. Several single-core shielded wires are arranged in concentric rings and twisted into a cable core. The outer sheath of the cable core is wrapped or wrapped in sequence, the inner sheath, the total shielding layer, the refractory layer, the heat insulation and fireproof layer, the refractory layer, and finally the outer sheath. It uses a single-core shielded wire wrapped by a conductor wrapped in an insulating layer, and then wrapped or wrapped around the shielding layer and the inner sheath. Several single-core shielded wires are arranged in concentric circles and twisted into a cable core. , internal protection, total shielding, fire resistance, heat insulation and fire protection, fire resistance and external protection and other multi-layer technical solutions solve the problem that the existing cables cannot meet the high temperature shock resistance, fire resistance, cold resistance, wear resistance, etc. in special environments and places of use. Question about feature requirements. It is suitable for ultra-high temperature shielded control cables used in complex and harsh environments. It is especially suitable for ultra-high temperature shielded control cables in instantaneous high temperature environments.
Description
Technical field
The utility model relates to a kind of cable, relates in particular to the shielding conductor be made up of conductor outer wrapping insulating barrier, screen and sheath and cable core and the superhigh temperature shielding control cable of wrapped more cold-resistant multilayer protection such as fire-resistant outside cable core.
Background technology
The existing electrical equipment that is used for some special control appliance connects and shields control cable with superhigh temperature, at first can be abominable because of environment such as fields of employment, have high temperature resistant impact, fire-resistant, cold-resistant, wear-resisting etc. more multi-functional when requiring cable work; Secondly, cable can satisfy instructions for use at aspects such as flexibility, insulating properties.But the weak point that in use exists of this type of cable product is at present: one, product is produced by a plurality of supporting enterprises, and transportation range is far away, and intermediate link is many, makes the production cycle lengthening, product subject to damage in transportation simultaneously, difficult quality guarantee; Two, the existing cable that uses adopts manual coiling multi-layer high-temperature band on the heat-insulating, fire-preventing layer, and this high temperate zone costs an arm and a leg, and causes product cost to improve, and makes by hand because of employing again, and operation is many, the time is long, and the production cycle is increased; Three, the existing cable that uses, its single-core shielding line adopts the copper wire braid, constitute the cross network structure, single core shielding external diameter increases, the entire outer diameter of cable is strengthened, and flexibility is poor, again because of the influence of copper wire joint, under the twisting force of follow-up stranding operation strand system, easily cause damage, influence product quality insulating; Four, the existing cable that uses, its heat-insulating, fire-preventing layer is the wrapped structure that adopts manual coiling multi-layer high-temperature band, it or not entity closely, gapped between band and the band, Duplication and surface quality can be affected when manual coiling, and can cause coming off easily under the effect of high temperature and high speed gas-flow and have a strong impact on the heat-insulating, fire-preventing effect.
Summary of the invention
At above-mentioned situation, the purpose of this utility model is to provide a kind of superhigh temperature shielding control cable, and it had both had high temperature resistant preferably impact, fire-resistant, cold-resistant, wear-resisting etc. more multi-functional; Flexibility, insulating properties are preferably arranged again; And work simplification, the production cycle shortens, manufacturing cost reduction, steady quality, safe and reliable, heat-insulating, fire-preventing is effective, can bear TRANSIENT HIGH TEMPERATURE and impact.
To achieve these goals; a kind of superhigh temperature shielding control cable; the conductor wrap insulate layer that it is formed by stranded copper wire strand system, and outer wrapped copper wire screen of insulating barrier and outsourcing tack plastic film sheath composition single-core shielding line, several single-core shielding lines are arranged by donut and are twisted into cable core; the wrapped successively outward protective layer of cable core; parcel inner sheath, total screen, wrapped flame retardant coating, parcel heat-insulating, fire-preventing layer; wrapped flame retardant coating wraps up oversheath at last.
For implementation structure optimization, its further step is:
Single-core shielding line is more than three and three.
Inner sheath is the cold resistance polyvinyl chloride layer.
Total screen is the tinned copper wire layer.
The heat-insulating, fire-preventing layer is the polymeric layer that contains metal hydrate.
Oversheath is the flame-proof polyvinyl chloride layer.
Protective layer comprises wrapped one deck mica tape and one deck glass tape, wrapped again two layers of F4 film.
Flame retardant coating comprises wrapped one deck mica tape and one deck glass tape.
Flame retardant coating comprises wrapped one deck mica tape and one deck high flame retardant glass tape.
The utility model adopts the conductor wrap insulate layer of being made by the stranded copper wire strand; wrapped again or parcel screen and sheath are formed single-core shielding line; several single-core shielding lines are arranged by donut and are twisted into cable core; the wrapped successively outward or parcel protection of cable core; in protect; total shielding; fire-resistant; heat-insulating, fire-preventing; the technical scheme of multilayer such as fire-resistant and protect has outward solved existing superhigh temperature shielding control cable and can not satisfy high temperature resistant impact in particular surroundings and field of employment; fire-resistant; cold-resistant; multi-functional requirement such as wear-resisting and to flexibility; insulating properties has the problem of special instructions for use.
The beneficial effect that the utility model is produced compared to existing technology:
(a) adopt conductor outer wrapping or wrapped thinwalled insulation layer and copper wire screen to form single-core shielding line, make that the total body diameter of cable reduces, softness improves, install lay simple and easy, convenient;
(b) multiple layer refractory, fire prevention and protection make the heat-insulating, fire-preventing better effects if, can bear TRANSIENT HIGH TEMPERATURE and impact;
(c) work simplification, with short production cycle, low cost of manufacture, steady quality, safe and reliable.
The utility model is fit to the environment for use complexity, occasion such as abominable shields control cable with superhigh temperature, is particularly suitable for shielding control cable with superhigh temperature in high temperature and high speed gas-flow and the TRANSIENT HIGH TEMPERATURE environment.
Below in conjunction with drawings and Examples the utility model is described in further detail.
Description of drawings

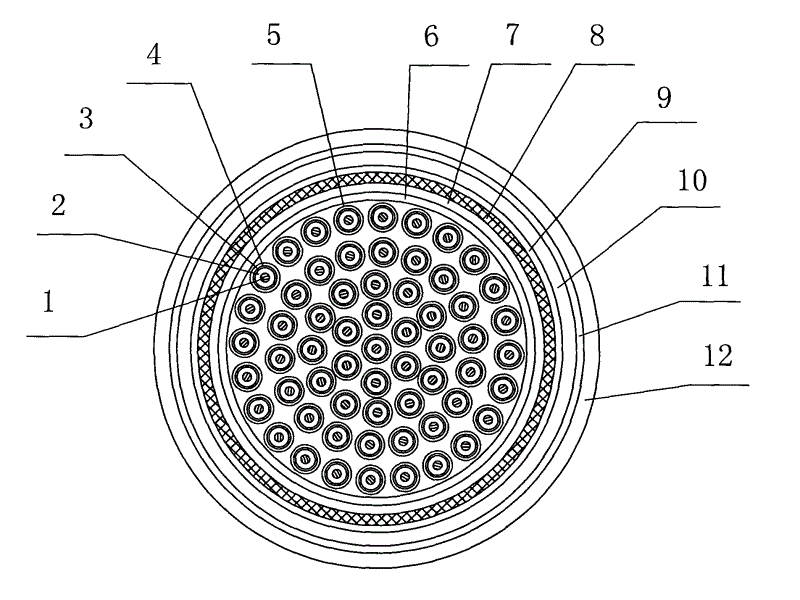

Fig. 1 is the structural representation of superhigh temperature shielding control cable of the present utility model.
Among the figure: 1, conductor, 2, insulating barrier, 3, screen, 4, sheath, 5, single-core shielding line, 6, protective layer, 7, inner sheath, 8, total screen, 9, flame retardant coating, 10, the heat-insulating, fire-preventing layer, 11, flame retardant coating, 12, oversheath.
Embodiment
Referring to accompanying drawing; a kind of superhigh temperature shielding control cable; the conductor 1 wrap insulate layer 2 that it is formed by stranded copper wire strand system; insulating barrier 2 outer wrapped copper wire screens 3; copper wire screen 3 outsourcing tack plastic film sheaths 4 are formed single-core shielding line 5; three and three above single-core shielding lines 5 are arranged by donut and are twisted into cable core; the wrapped successively outward one deck mica tape of cable core and one deck glass tape; wrapped again two layers of F4 thinfilm protective coating 6; parcel cold resistance polyvinyl chloride layer inner sheath 7; the total screen 8 of tinned copper wire layer; wrapped one deck mica tape and one deck glass tape flame retardant coating 9; parcel contains the polymeric layer heat-insulating, fire-preventing layer 10 of metal hydrate; wrapped one deck mica tape and one deck high flame retardant glass tape flame retardant coating 11 wrap up flame-proof polyvinyl chloride layer oversheath 12 at last.
Below only be preferred embodiment of the present utility model, according to above-mentioned design of the present utility model, those skilled in the art also can make various modifications and conversion to this.For example, between conductor and the oversheath increase of level and with copper wire screen, the mutually combining and modification and conversion of heat-insulating, fire-preventing layer, flame retardant coating etc.Yet similar this conversion and modification all belong to essence of the present utility model.
Claims (9)
1, a kind of superhigh temperature shielding control cable; it is characterized in that conductor (1) the wrap insulate layer (2) that it is formed by stranded copper wire strand system; and outer wrapped copper wire screen (3) of insulating barrier (2) and outsourcing tack plastic film sheath (4) are formed single-core shielding line (5); several single-core shielding lines (5) are arranged by donut and are twisted into cable core; the wrapped successively outward protective layer of cable core (6); parcel inner sheath (7), total screen (8); wrapped flame retardant coating (9); parcel heat-insulating, fire-preventing layer (10); wrapped flame retardant coating (11) wraps up oversheath (12) at last.
2, superhigh temperature shielding control cable according to claim 1 is characterized in that single-core shielding line (5) is more than three and three.
3, superhigh temperature shielding control cable according to claim 1 is characterized in that inner sheath (7) is the cold resistance polyvinyl chloride layer.
4, superhigh temperature shielding control cable according to claim 1 is characterized in that total screen (8) is the tinned copper wire layer.
5, superhigh temperature shielding control cable according to claim 1 is characterized in that heat-insulating, fire-preventing layer (10) is for containing the polymeric layer of metal hydrate.
6, superhigh temperature shielding control cable according to claim 1 is characterized in that oversheath (12) is the flame-proof polyvinyl chloride layer.
7, superhigh temperature shielding control cable according to claim 1 is characterized in that protective layer (6) comprises wrapped one deck mica tape and one deck glass tape, wrapped again two layers of F4 film.
8, superhigh temperature shielding control cable according to claim 1 is characterized in that flame retardant coating (9) comprises wrapped one deck mica tape and one deck glass tape.
9, superhigh temperature shielding control cable according to claim 1 is characterized in that flame retardant coating (11) comprises wrapped one deck mica tape and one deck high flame retardant glass tape.
