Abstract

The utility model discloses an internal filter which is mainly suitable for transporting liquid containing granule such as silt, and the like and plays the role of filtering and purifying the liquid. The internal filter comprises a liquid inlet tube 1, a locknut 2, a joint washer 3, a filter upper cover 4, a filter lower cover 5 and a filter screen 6 connected with the filter upper cover 4. The internal filter is characterized in that the outer wall of the liquid inlet tube 1 is provided with a lug boss which is connected with the filter upper cover through the locknut 2; the joint washer 3 is arranged between the liquid inlet tube 1 and the locknut 2 so as to play the role of sealing the liquid; the filter screen 6 is arranged inside the filter lower cover 5 and is connected with the filter upper cover 4 through a bolt, and the filter upper cover 4 is also connected with the filter lower cover 5 through a bolt; the liquid containing granules flows into the filter from the liquid inlet tube and is filtered through the filter screen 6, so the granules are kept inside the filter screen, and the filtered liquid flows out of the filter passing through a side outlet on the filter lower cover 5, thereby achieving the purpose for filtering the granules in the liquid.

Description

A kind of inward flow filtration-type filter
Affiliated technical field
The utility model relates to a kind of filter of liquid-solid separation, is mainly used in to carry the liquid that contains solid particulate matter.
Background technology
The liquid occasion middle filtrator that contains particle in conveying is widely used, and these filters are solid particulate matters such as the silt in the filter liquide, wooden cave preferably, and existing most filter mostly is pressure filtration, as cartridge filter, vacuum filter etc.Present most filter all is by filter screen particle in the liquid to be isolated in the filter screen outside, as the Chinese utility model patent of patent No. ZL97204064.1 (CN2298052Y), just announced this filter, the liquid after the filtration flows out from filter screen is inner, filter screen stops up easily, having much also needs complicated actuating unit, and these filter plants mostly are large-scale and complicated structure, and energy consumption is big, equipment manufacturing cost is very high, filter screen flushing cost height, operating cost is huge, and economic benefit is low.
Summary of the invention
In order to overcome existing filtration device structure complexity, filter screen cleans relatively difficulty, and the actuating unit of a lot of complexity is arranged, energy consumption is big, equipment manufacturing cost is very high, filter screen flushing cost height, and operating cost is huge, shortcomings such as economic benefit is low, the utility model discloses a kind of inward flow filtration-type filter, this filtration device structure is simple, and operating cost is low, the filter screen flushing is convenient, but and recycling rate of waterused advantages of higher.
The technical scheme that its technical problem that solves the utility model adopts is: a kind of inward flow filtration-type filter, and mainly be applicable to and carry the liquid that contains particles such as silt, play a part to filter and decontaminating liquid.It comprises feed tube 1, locking nut 2, seal washer 3, filter cover 4, filter lower cover 5, the filter screen 6 that links to each other with filter cover 4.It is characterized by: feed tube 1 outer wall has boss, link to each other with filter cover 4 by locking nut 2, between feed tube 1 and locking nut 2, seal washer 3 is arranged, play the seal fluid effect, filter screen 6 is in filter lower cover (5) inside, link to each other with filter cover 4 by bolt, filter cover 4 also is to link to each other by bolt with filter lower cover 5, the liquid of band particle is from feed tube 1 inflow filter, filtration through filter screen 6, make particle be retained in filter screen inside, the liquid behind the filtration, purification passes through the side exit outflow filter on the filter lower cover 5, thereby reaches the effect of particle in the filter liquide.This type filter is simple in structure, easy accessibility, advantage such as operating cost is low, and filter screen flushing is convenient, and the strainer filtering area is big.
The beneficial effects of the utility model are, compare with existing technology, and this type filter apparatus configuration is simple, and is easy for installation, good filtration effect, and also the strainer filtering area is big, is difficult for advantages such as obstruction.
Description of drawings
Below in conjunction with drawings and Examples the utility model is further specified.

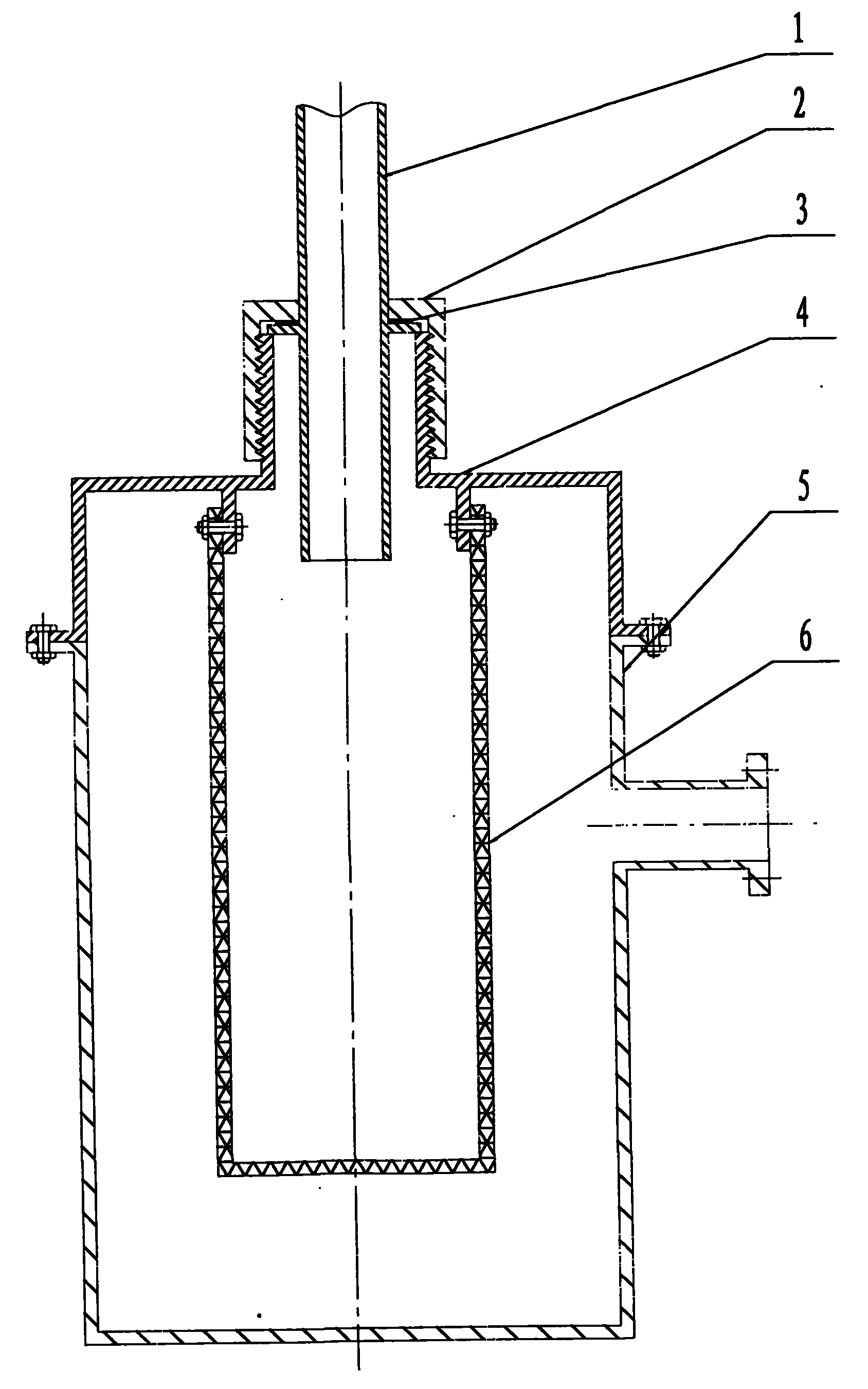

Fig. 1 is total figure of the present utility model.
As shown in the figure, 1. feed tubes among the figure, 2. locking nut, 3. seal washer, 4. filter cover, 5. filter lower cover, 6. filter screen.
The specific embodiment
As shown in fig. 1, a kind of inward flow filtration-type filter, it comprises feed tube 1, locking nut 2, seal washer 3, filter cover 4, filter lower cover 5, the filter screen 6 that links to each other with filter cover 4.Feed tube 1 outer wall of the present utility model has boss, link to each other with filter cover 4 by locking nut 2, between feed tube 1 and locking nut 2, seal washer 3 is arranged, play the seal fluid effect, filter screen 6 is in filter lower cover (5) inside, link to each other with filter cover 4 by bolt, filter cover 4 also is to link to each other by bolt with filter lower cover 5, the liquid of band particle is from feed tube 1 inflow filter, filtration through filter screen 6, make particle be retained in filter screen inside, the liquid behind the filtration, purification passes through the side exit outflow filter on the filter lower cover 5, thereby reaches the effect of particle in the filter liquide.

Claims (1)

1. inward flow filtration-type filter, it comprises feed tube (1), locking nut (2), seal washer (3), filter cover (4), filter lower cover (5), filter screen (6), it is characterized by: feed tube (1) outer wall has boss, link to each other with filter cover (4) by locking nut (2), between feed tube (1) and locking nut (2) seal washer (3) is arranged, filter screen (6) is in filter lower cover (5) inside, link to each other with filter cover (4) by bolt, filter cover (4) also is to link to each other by bolt with filter lower cover (5).
