Abstract
The utility model relates to a novel automatic knockout mechanism with an improved structure, which is arranged on a press and comprises a pushing device. The utility model is characterized in that a transfer passage is arranged along the pushing direction of the pushing device; a loading area is arranged at the exterior end of the transfer passage, wherein the transfer passage is tilted and the height of the transfer passage reduces gradually from the side of the pushing device to the side of the loading area; the transfer passage is provided with a step, which is used for the overturning of the roughcast transferred. Thereby, the utility model has the advantages that: 1. the utility model is particularly applicable to the discharging of the rough cast of EI-type magnetic material (shaped like two overlapped squares), and the discharge and transfer of the roughcast is very stable; the step on the transfer passage is capable of overturning the roughcast; 2. The utility model has an overall simple structure, the operation is easy and the cost is low. 3. The degree of automation is high, thereby a great deal of manpower and material resources can be saved, the efficiency of labor is improved, and the utility model does not easily cause damage to the product.
Description
Technical field
The utility model relates to field of mechanical technique, especially relates to a kind of automatic blank arranging mechanism that is used to make the improvement structure of magnetic material.
Background technology
Magnetic material needs to suppress with press in process, forms blank.The blank that compacting forms will in time take out from press, carries out the operation of next process.Traditional row's blank technology is by manually operating, and the defective of this method is: operating efficiency is low, and labor strength is big, wastes time and energy, and blank causes damage easily in the taking-up process, influence product quality.
Overcome above-mentioned defective in order to improve, people have carried out long-term exploration, have proposed various solutions.For example, Chinese patent literature discloses a kind of automatic blank arranging machine CN:02217626.8, comprises frame, switch board, conveyer belt and material-pulling device, has between press table top and conveyer belt: motor-driven rotating disk and spiral charging conduit; There is step the centre of rotating disk, and there is directive wheel at the edge of rotating disk.This automatic blank arranging machine, owing to adopt a rotating disk to be connected with the press table top, after the workpiece discharging, landing is rotated with rotating disk on rotating disk, under the effect of the step in the middle of rotating disk and the directive wheel of disk edge, workpiece is arranged in proper order along a certain direction.The spiral charging conduit that is connected with rotating disk can make along the tactic workpiece of a certain direction, turns to desired angle ejection, to reach the requirement of rule row base direction.Therefore, have characteristic of simple structure, be a kind of high efficiency, can get base automatically, and blank is discharged neat automatic blank arranging machine.But said apparatus does not also fit into the magnetic material blank of EI type [day font]; And complicated integral structure, running cause blank to damage easily.
Summary of the invention
The utility model mainly is to solve existing in prior technology automaticity ground, wastes time and energy, and causes the technical problem of damage of product etc. easily; A kind of automaticity height is provided, time saving and energy saving, high efficiency, the automatic blank arranging mechanism that can not cause the improvement structure of damage of product.
It is to solve the existing in prior technology complex structure that the utility model also has a purpose, and cost cost height is not suitable for the technical problem of the magnetic material blank etc. of EI type [day font]; Provide a kind of simple in structure, easy to implement, with low cost, be specially adapted to the automatic blank arranging mechanism of the improvement structure of EI type [day font] magnetic material blank.
Above-mentioned technical problem of the present utility model is mainly solved by following technical proposals: the automatic blank arranging mechanism that improves structure, be arranged on the press, comprise a material-pulling device, it is characterized in that, the direction of propulsion of described material-pulling device is provided with transfer passage, place, outer end at transfer passage is provided with the district that gathers materials, this transfer passage is obliquely installed, and its height reduces gradually from material-pulling device one side direction district's one side of gathering materials, and is provided with a step that is used to make the blank upset that is transferred on transfer passage.
Behind the blank that promotes to form when material-pulling device, blank can be pushed on the transfer passage, because transfer passage is obliquely installed by the press compacting, blank can slide thereon, and when blank moved to step, blank can be realized upset, and along transfer passage continuation slip, and enter the district that gathers materials.In the district that gathers materials, blank can be concentrated arrangement, and operating personnel can take out arranging good row's blank after a period of time.So just can increase work efficiency effectively, improve the quality of products.
As preferably, the drop of described step is 1.0～3.0cm.
As preferably, the angle of inclination of described transfer passage is 30 degree～60 degree.The angle of inclination is too small to be unfavorable for transmission, and the excessive transmission speed that causes easily is too fast, and product is caused damage.
As preferably, described material-pulling device comprises a pusher cylinder, and the pusher cylinder piston rod links to each other with push rod.
As preferably, the described district that gathers materials comprises a workbench, and this stationary table is on support, and the tail end of slide rail is positioned at workbench.
Therefore, the utlity model has following advantage: 1. the row's base transmission that is specially adapted to EI type [day font] magnetic material blank is stable especially, and the step on the transfer passage can be realized the blank upset.2. whole apparatus structure is simple, easy to implement, with low cost.3. the automaticity height can be saved a large amount of manpower and materials, raises labour efficiency, and is difficult for causing damage of product.
Description of drawings

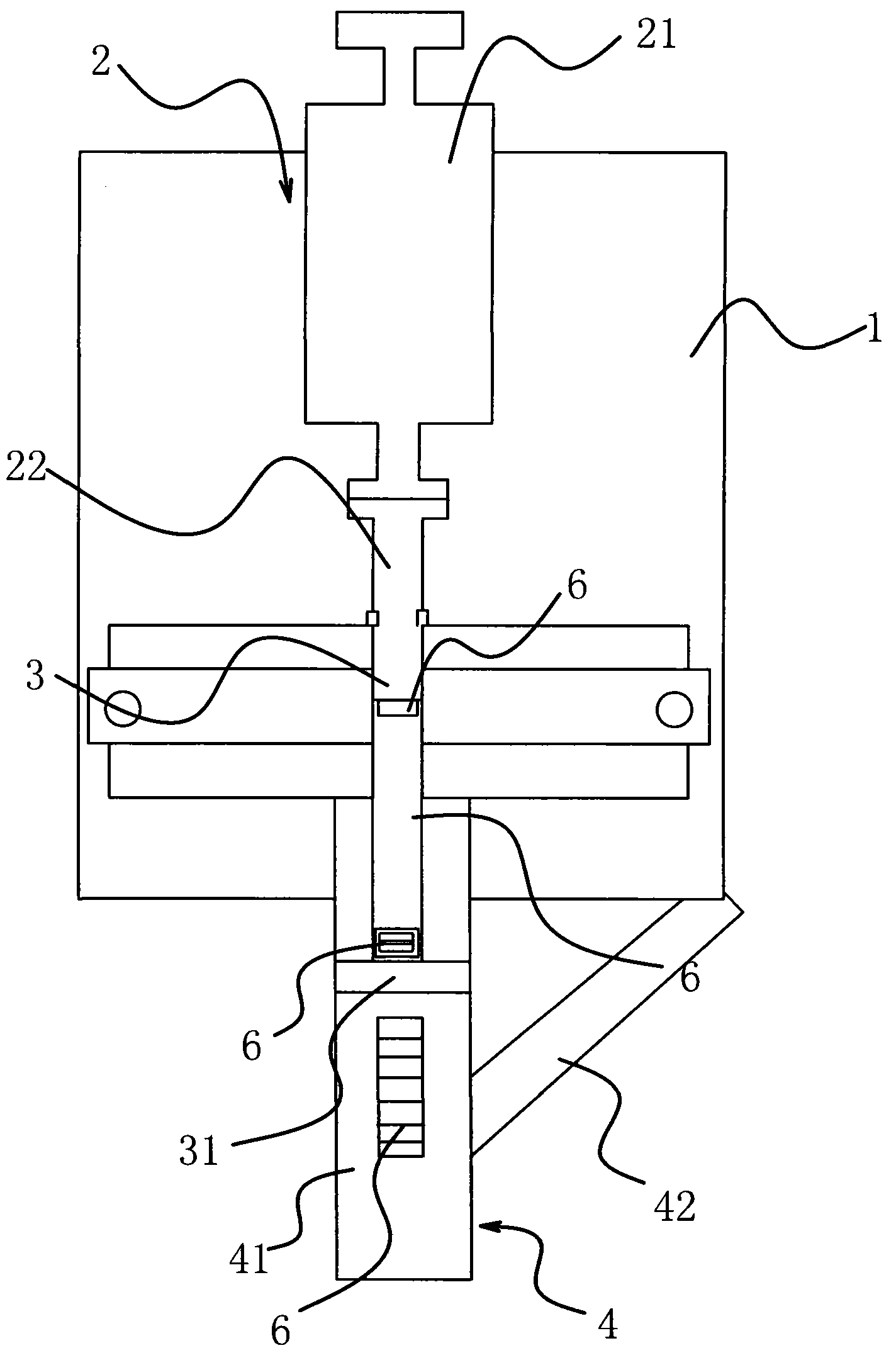

Accompanying drawing 1 is a kind of structural representation of the present utility model.
Among the figure, press 1, material-pulling device 2, pusher cylinder 21, push rod 22, transfer passage 3, step 31, district 4, workbench 41, support 42, blank 6 gather materials.
The specific embodiment
Below by embodiment, and in conjunction with the accompanying drawings, the technical solution of the utility model is described in further detail.
Embodiment:
As shown in Figure 1, improve the automatic blank arranging mechanism of structure, be arranged on the press 1, comprise a material-pulling device 2, the direction of propulsion of described material-pulling device 2 is provided with transfer passage 3, is provided with the district 4 that gathers materials at the place, outer end of transfer passage 3, and this transfer passage 3 is obliquely installed, and its height reduces gradually from material-pulling device 2 one side direction district's 4 one sides of gathering materials, and is provided with a step 31 that is used to make 6 upsets of the blank that is transferred on transfer passage 3.The drop of step 31 is 1.5cm.The angle of inclination of transfer passage 3 is 40 degree.
In the present embodiment, material-pulling device 2 comprises a pusher cylinder 21, and pusher cylinder 21 piston rods link to each other with push rod 22.The district that gathers materials 4 comprises a workbench 41, and this workbench 41 is fixed on the support 42, and the tail end of slide rail 3 is positioned at workbench 41.
During work, behind the blank that promotes to form when material-pulling device by the press compacting, blank can be pushed on the transfer passage, because transfer passage is obliquely installed, blank can slide thereon, and when blank moved to step, blank can be realized upset, and along transfer passage continuation slip, and enter the district that gathers materials.In the district that gathers materials, blank can be concentrated arrangement, and operating personnel can take out arranging good row's blank after a period of time.The utility model is adapted to the magnetic material blank of EI type [day font] especially.
Specific embodiment described herein only is that the utility model spirit is illustrated.The utility model person of ordinary skill in the field can make various modifications or replenishes or adopt similar mode to substitute described specific embodiment, but can't depart from spirit of the present utility model or surmount the defined scope of appended claims.
Although this paper has used press 1, material-pulling device 2, pusher cylinder 21, push rod 22, transfer passage 3, step 31, the terms such as district 4, workbench 41, support 42, blank 6 that gather materials morely, do not get rid of the possibility of using other term.Using these terms only is in order to describe and explain essence of the present utility model more easily; They are construed to any additional restriction all is contrary with the utility model spirit.
Claims (5)
1. automatic blank arranging mechanism that improves structure, be arranged on the press (1), comprise a material-pulling device (2), it is characterized in that, the direction of propulsion of described material-pulling device (2) is provided with transfer passage (3), is provided with the district (4) that gathers materials at the place, outer end of transfer passage (3), and this transfer passage (3) is obliquely installed, and its height reduces gradually from material-pulling device (2) one side direction district (4) one sides of gathering materials, and is provided with a step (31) that is used to make the blank that is transferred to overturn on transfer passage (3).
2. the automatic blank arranging mechanism of improvement structure according to claim 1 is characterized in that, the drop of described step (31) is 1.0～3.0cm.
3. the automatic blank arranging mechanism of improvement structure according to claim 1 is characterized in that, the angle of inclination of described transfer passage (3) is 30 degree～60 degree.
4. according to the automatic blank arranging mechanism of claim 1 or 2 or 3 described improvement structures, it is characterized in that described material-pulling device (2) comprises a pusher cylinder (21), pusher cylinder (21) piston rod links to each other with push rod (22).
5. according to the automatic blank arranging mechanism of claim 1 or 2 or 3 described improvement structures, it is characterized in that, the described district (4) that gathers materials comprises a workbench (41), and this workbench (41) is fixed on the support (42), and the tail end of slide rail (3) is positioned at workbench (41).
