CN201129867Y - Flue gas condensing type gas water heater - Google Patents
Flue gas condensing type gas water heater Download PDFInfo
- Publication number
- CN201129867Y CN201129867Y CNU2007203063012U CN200720306301U CN201129867Y CN 201129867 Y CN201129867 Y CN 201129867Y CN U2007203063012 U CNU2007203063012 U CN U2007203063012U CN 200720306301 U CN200720306301 U CN 200720306301U CN 201129867 Y CN201129867 Y CN 201129867Y
- Authority
- CN
- China
- Prior art keywords
- heat exchanger
- condensate
- gap
- housing
- heat
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02B—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO BUILDINGS, e.g. HOUSING, HOUSE APPLIANCES OR RELATED END-USER APPLICATIONS
- Y02B30/00—Energy efficient heating, ventilation or air conditioning [HVAC]
Abstract
The utility model discloses a smoke condensing gas water heater, a water heater smoke vent is arranged on the upper portion of a condensation heat exchanger, a condensed water tube set is arranged in a shell, a sensible heat exchanger is arranged on the upper portion of a blast chamber, the condensation heat exchanger is located on the upper portion of the sensible heat exchanger, a smoke baffle plate is located on the upper portion of the shell of the condensation heat exchanger, a declinate smoke guiding plate is located on the lower portion of the shell of the condensation heat exchanger, the condensed water tube set is sealed in the space between the smoke baffle plate, the shell and the smoke guiding plate, a first gap is left between one end of the smoke baffle plate and an inner side of the shell, a second gap is left between the smoke guiding plate and the other relative inner side, the smoke guiding plate is close to one end of the second gap and is higher than the other end which is far from the second gap, a water inlet of the condensed water tube set in the condensation heat exchanger is connected with tap water, a water outlet of the condensed water tube set in the condensation heat exchanger is communicated with the water inlet of the sensible heat exchanger, and the water outlet of the sensible heat exchanger is connected with users. The smoke condensing gas water heater has simple structure and reliable operation.
Description
Technical field
The utility model relates to a kind of gas heater, especially a kind of flue gas condensing formula gas heater.
Background technology
Now, along with China's rapid development of economy, energy problem becomes increasingly conspicuous.Develop the meaning of simple gas instantaneous water heater, bring up to the strategic height that realizes sustainable economic development from simple for saving expenditure.Contain a large amount of SO in the flue gas of gas heater at present
2, NO
XDeng sour gas, atmosphere is caused very big pollution, and the thermal efficiency can't improve substantially again.
Summary of the invention
In order to overcome above-mentioned defective, the utility model provides a kind of flue gas condensing formula gas heater, and this flue gas condensing formula gas heater can effectively reduce the SO in the flue gas
2, NO
XThe discharging and the raising thermal efficiency, and simple in structure, reliable.
The utility model for the technical scheme that solves its technical problem and adopt is: a kind of flue gas condensing formula gas heater, be provided with condensate and heat exchanger, condensate and heat exchanger is mainly by housing, the condensate pipe group, gas baffle and smoke deflector are formed, the top of condensate and heat exchanger is provided with the water heater exhaust opening, be provided with the condensate pipe group in the housing, the top, combustion chamber is the sensible heat heat exchanger, condensate and heat exchanger is in the sensible heat heat exchanger top of (being used for domestic water), gas baffle is in the housing top of condensate and heat exchanger, be the lower housing portion that oblique smoke deflector is in the condensation heat exchange hydrophone, the condensate pipe group is closed in gas baffle, in the space between housing and the smoke deflector, leave first gap (for cooling back exhanst gas outlet) between gas baffle one end and housing one inboard, leave second gap (for smoke inlet) between another relative inner of smoke deflector and housing, smoke deflector is higher than its other end away from second gap near an end in second gap, condensate pipe group water inlet in the condensate and heat exchanger connects running water, condensate pipe group delivery port in the condensate and heat exchanger communicates with sensible heat heat exchanger water inlet, sensible heat heat exchanger delivery port meets the user, condensate and heat exchanger can make full use of a large amount of latent heat in flue gas and the steam like this, makes the thermal efficiency of water heater improve about 12%.
Further technical scheme of the present utility model is: condensation heat exchange utensil two-way heat exchange circulation.
The beneficial effects of the utility model are: flue gas enters condensate and heat exchanger from second gap behind the sensible heat heat exchanger carries out heat exchange and (forms condensed water, SO the condensate and heat exchanger simultaneously
2, NO
XBe dissolved in the condensed water Deng sour gas), cooling back flue gas comes out to discharge by exhaust opening from first gap, and exhaust gas temperature is reduced near dew point or below the dew point, can effectively reduce the exhaust emission of flue gas.Condensate and heat exchanger makes full use of a large amount of latent heat of flue gas and steam simultaneously, can make the thermal efficiency of water heater improve about 12%, and the utility model is simple in structure, reliable.
Description of drawings

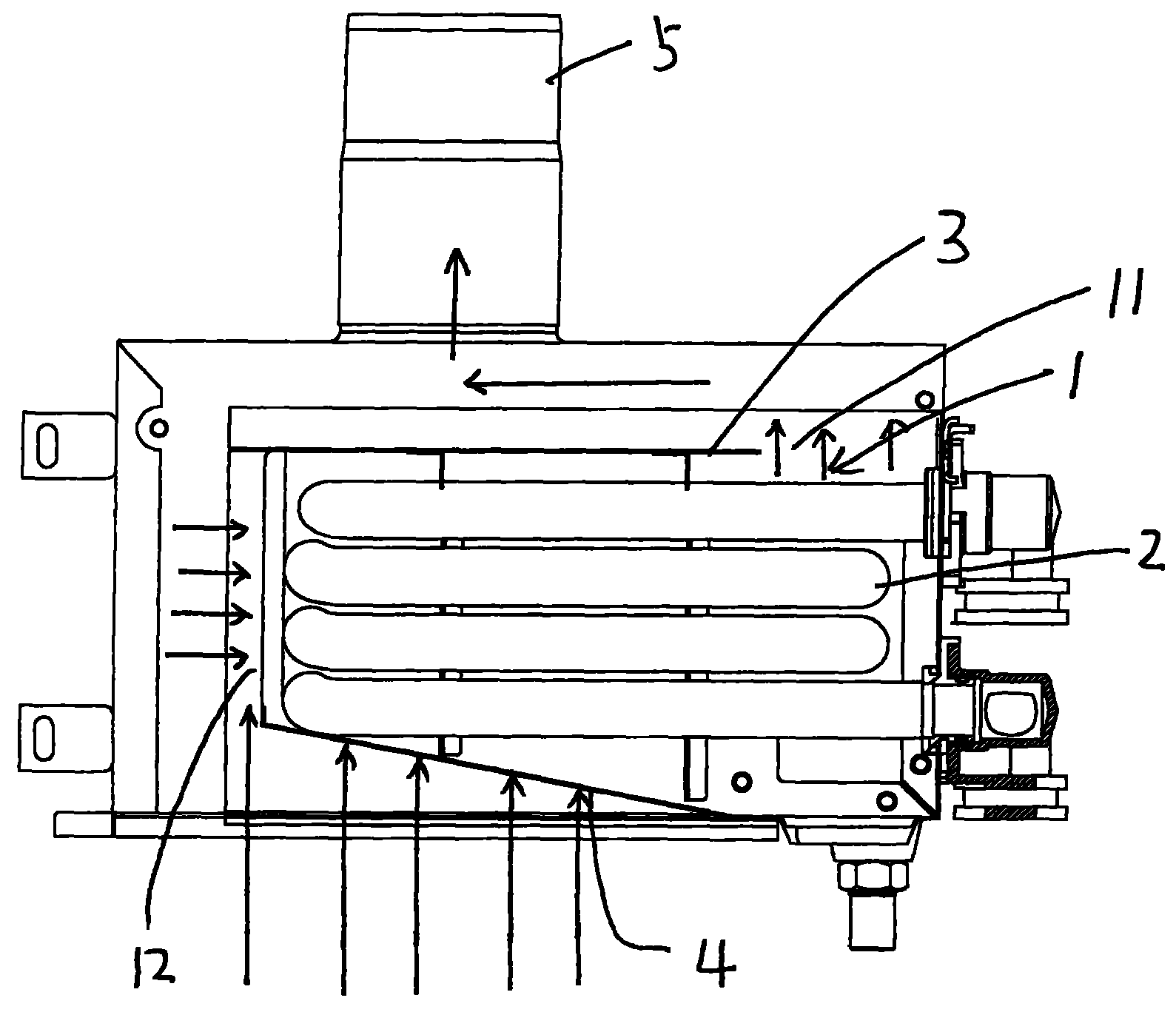

Fig. 1 is the utility model schematic diagram.
Arrow is a flue gas flow direction among the figure.
The specific embodiment
Embodiment: a kind of flue gas condensing formula gas heater, be provided with condensate and heat exchanger 1, condensate and heat exchanger is mainly by housing, condensate pipe group 2, gas baffle 3 and smoke deflector 4 are formed, the top of condensate and heat exchanger is provided with water heater exhaust opening 5, be provided with the condensate pipe group in the housing, the top, combustion chamber is the sensible heat heat exchanger, condensate and heat exchanger is in the sensible heat heat exchanger top of (being used for domestic water), gas baffle is in the housing top of condensate and heat exchanger, be the lower housing portion that oblique smoke deflector is in the condensation heat exchange hydrophone, the condensate pipe group is closed in gas baffle, in the space between housing and the smoke deflector, leave first gap 11 (for cooling back exhanst gas outlet) between gas baffle one end and housing one inboard, leave second gap 12 (for smoke inlet) between another relative inner of smoke deflector and housing, smoke deflector is higher than its other end away from second gap near an end in second gap, condensate pipe group water inlet in the condensate and heat exchanger connects running water, condensate pipe group delivery port in the condensate and heat exchanger communicates with sensible heat heat exchanger water inlet, sensible heat heat exchanger delivery port meets the user, condensate and heat exchanger can make full use of a large amount of latent heat in flue gas and the steam like this, makes the thermal efficiency of water heater improve about 12%.
Condensation heat exchange utensil two-way heat exchange circulation.
The structure of this flue gas condensing formula gas heater adopts the flue gas flow guiding type.The material of condensate and heat exchanger is a stainless steel.
Operation principle is:
The combustion chamber is in the bottom of water heater, and high-temperature flue gas flows into sensible heat heat exchanger (being domestic water) from the combustion chamber, and after the sensible heat heat exchanger absorbed most of heat, in the outlet of sensible heat heat exchanger, flue-gas temperature was reduced to 200-250 ℃ approximately; Low-temperature flue gas flow to condensate and heat exchanger through second gap again through smoke deflector, upwards heat exchange takes place in flue gas that flows and the heat exchanger tube in the condensate and heat exchanger (Guan Zhongwei is without the cold water of crossing heat exchange), flue-gas temperature drops to dew-point temperature, discharge by flue by first gap, air deflector again, flow into the sensible heat heat exchanger again after cold water enters from condensate and heat exchanger simultaneously, cold water in the condensate and heat exchanger obtains flowing into the sensible heat heat exchanger again after the heat exchange like this, can make the thermal efficiency of water heater improve about 12%; In condensate and heat exchanger, condensate liquid accumulates in the bottom again, flows out from the condensate liquid conduit at last, enters foul water system again through after the neutralisation treatment.Condensate pipe group in the condensate and heat exchanger adopts corrugated stainless steel tubing, and structure does not have heat absorbing sheet, be difficult for knot carbon, and the stainless steel acid corrosion-resistant is very strong.
Claims (2)
1. flue gas condensing formula gas heater, it is characterized in that: be provided with condensate and heat exchanger, condensate and heat exchanger is mainly by housing, the condensate pipe group, gas baffle and smoke deflector are formed, the top of condensate and heat exchanger is provided with the water heater exhaust opening, be provided with the condensate pipe group in the housing, the top, combustion chamber is the sensible heat heat exchanger, condensate and heat exchanger is in the top of sensible heat heat exchanger, gas baffle is in the housing top of condensate and heat exchanger, be the lower housing portion that oblique smoke deflector is in the condensation heat exchange hydrophone, the condensate pipe group is closed in gas baffle, in the space between housing and the smoke deflector, leave first gap between gas baffle one end and housing one inboard, leave second gap between another relative inner of smoke deflector and housing, smoke deflector is higher than its other end away from second gap near an end in second gap, condensate pipe group water inlet in the condensate and heat exchanger connects running water, condensate pipe group delivery port in the condensate and heat exchanger communicates with sensible heat heat exchanger water inlet, and sensible heat heat exchanger delivery port meets the user.
2. flue gas condensing formula gas heater according to claim 1 is characterized in that: condensation heat exchange utensil two-way heat exchange circulation.
