Abstract

The utility model discloses a polyphenyl composite heat-insulation wall plate dual-layer external wall used for construction. The dual-layer external wall comprises an interior wall 1, an air interlayer 2 and an exterior wall 3 and is characterized in that the interior wall 1 can be a masonned body formed by different bulk materials; the air interlayer 2 plays a role in sound and heat insulation and fire resistance; the exterior wall 3 consists of a protection panel 4 and a heat-insulation plate 5; two layers of alkali-proof high-strength glass fiber grid cloth are laid in the protection panel 4; groined grid grooves are evenly cut on two large faces of the heat-insulation plate 5 to fixedly bond the heat-insulation plate 5 and the protection panel 4; a plurality of through holes with small diameter are arranged on the large face vertical to the heat-insulation plate 5 so as to cause a cement mortar tension bar 6 to be formed between the two protection panels 4; rectangular grooves are arranged on two long small faces of the heat-insulation plate 5 and the heat-insulation plates 5 are connected with each other by heat-insulation hold-down strips in a shape of a cross so as to effectively eliminate cracks or cold bridge in the external wall.

Description

Polyphenyl composite thermo-insulating wall board double leaf exterior wall
Technical field
The utility model relates to a kind of new construction material---polyphenyl composite thermo-insulating wall board double leaf exterior wall.
Background technology
China's Current Housing construction will develop energy saving building, and the exterior enclosure wall of building must have multiple functions such as insulation, heat insulation, sound insulation.In recent years, the mode that common employing is pasted polyphenyl plate or daub powder granular polystyrene at the exterior wall external surface of building in energy saving building reaches heat insulation effect, from the exterior-wall heat insulation practice in several years, see, these two kinds of heat preserving modes all exist many technological deficiencies and quality problems, and outstanding is, and thermal insulation dehiscence, impact resistance are poor, poor durability etc.On former energy-conservation 50% basis, government proposes to carry out energy-conservation 65% index again, and two kinds of outer heat preserving modes of existing this run into the difficulty that some are difficult to overcome.For adapting to the development of frame construction and steel work, polyphenyl composite thermo-insulating wall board double leaf exterior wall has been proposed, solve the problem of external thermal insulation dehiscence of exterior wall and poor durability effectively, can satisfy the energy-conservation requirement of higher standard.
The utility model content
The purpose of this utility model is to overcome the cracking of existing building external wall insulating layer appearance and the problem of poor durability, and the polyphenyl composite thermo-insulating wall board double leaf exterior wall of a kind of high heat preservation performance that provides.The technical solution of the utility model is achieved in that a kind of polyphenyl composite thermo-insulating wall board double leaf exterior wall, comprises internal lobe wall 1, air space 2 and siphonal lobe wall 3, and wherein siphonal lobe wall 3 is to be made of protection panel 4 and the heat-insulation wall plate that warming plate 5 is composited; On two big faces of warming plate 5, evenly be processed with the groove of " well " glyph grid shape, so that make warming plate 5 and protection panel 4 organic secure bond, simultaneously on two big faces, evenly be processed with several small-bore through holes perpendicular to warming plate 5, so that form cement mortar tension rib 6, to protect panel 4 and warming plate 5 close and firm to connect into an integral body, increase the rigidity of siphonal lobe wall 3; The protection panel 4 of siphonal lobe wall 3 is with the concrete preparation, wherein lays two-layer alkaline-resisting high-strength glass fibre grid cloth, strengthens impact strength; Two long facets of the warming plate 5 in the siphonal lobe wall 3 are provided with rectangular recess, between the polyphenyl composite thermo-insulating wall board are to connect for " ten " font high density insulation press strip by section; Seam between the protection panel 4 is met with the anticracking grout ditch, prevents siphonal lobe wall cracking, improves durability; Air space 2 sound insulation, fire prevention and function of heat insulation; Internal lobe wall 1 can be the masonry that porous brick, building-block, stripe board are built by laying bricks or stones; Siphonal lobe wall 3 is installed earlier, after build internal lobe wall 1 by laying bricks or stones.
Description of drawings

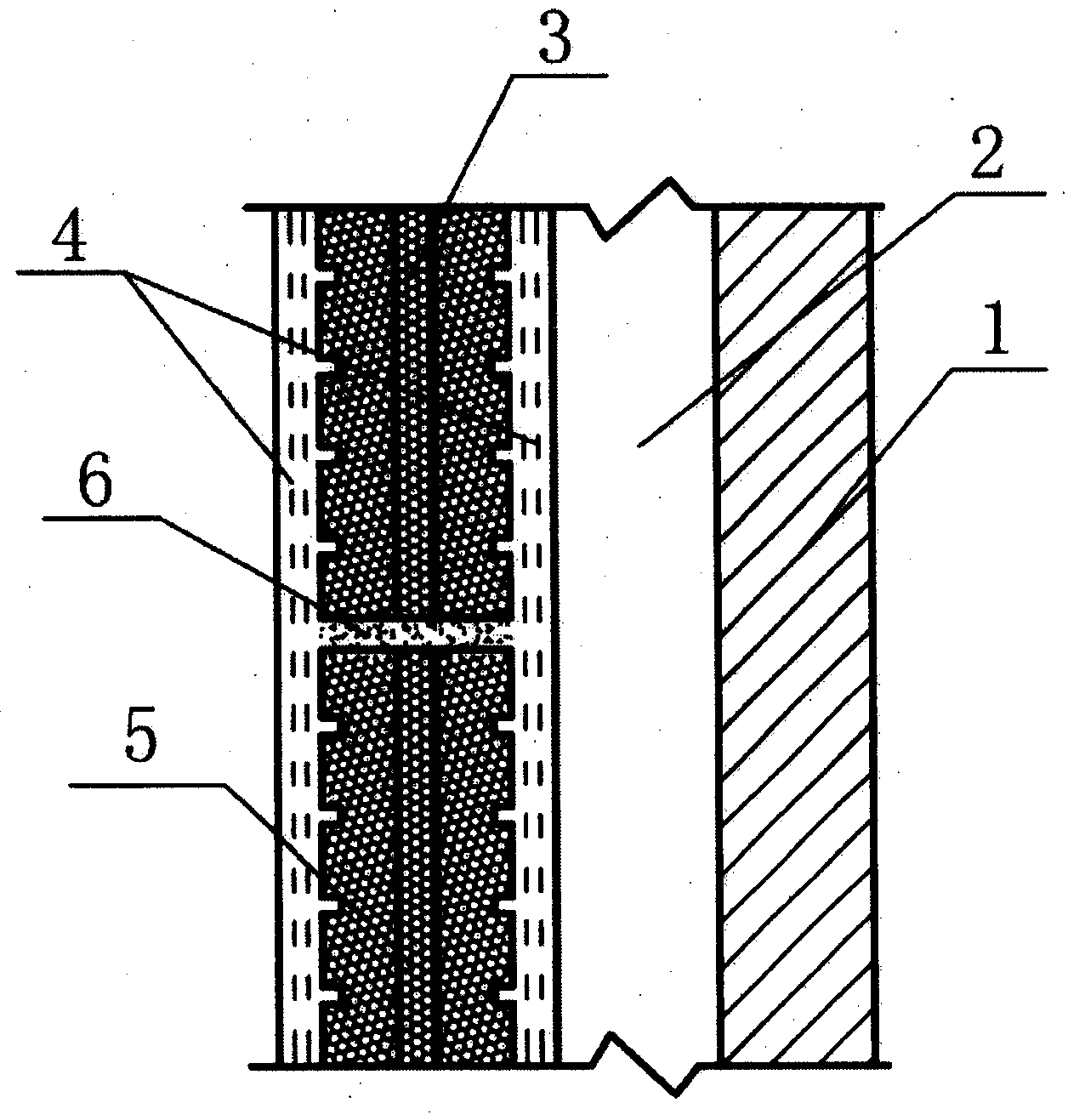

Fig. 1 is the utility model structural representation.
Fig. 2 is the utility model practice of construction schematic diagram.
Fig. 3 is the utility model siphonal lobe wall seam construction schematic diagram.
Among the figure: 1 is the internal lobe wall.
2 is air space.
3 is the siphonal lobe wall.
4 is the protection panel of siphonal lobe wall 3.
5 is the warming plate of siphonal lobe wall 3.
6 for connecting the cement mortar tension rib of protection panel 4 and warming plate 5.
7 are the fixing F shaped steel spare of siphonal lobe wall 3.
8 for the crab-bolt of anchoring F shaped steel spare 7.
9 for connecting " ten " font high-density sealed press strip of polyphenyl composite thermo-insulating wall board.
10 anticracking grouts for ditch seam usefulness.
11 for being laid on the fiberglass gridding cloth in the siphonal lobe wall 3.
12 for the decorative layer of plastering of siphonal lobe wall 3 external surfaces.
13 is floated coat in the siphonal lobe wall 3.
14 are the internal lobe decorative layer of plastering within the walls.
Specific embodiments
The utility model is achieved in that in conjunction with the accompanying drawings and is described further.(1) polyphenyl composite thermo-insulating wall board double leaf wall is to be made of internal lobe wall 1, air space 2 and siphonal lobe wall 3; (2) internal lobe wall 1 can be the masonry that porous brick, building-block or stripe board constitute; (3) siphonal lobe wall 3 is that the polyphenyl composite thermo-insulating wall board constitutes, evenly be processed with " well " glyph grid shape groove on two big faces of warming plate 5, so that make protection panel 4 and warming plate 5 secure bond, evenly be provided with the through hole of several small-bores simultaneously on the big face perpendicular to warming plate 5, so that form cement mortar tension rib 6, warming plate 5 and protection panel 4 are closely linked as a whole; (4) protection panel 4 is with the concrete preparation, wherein lays two-layer alkaline-resisting high-strength glass fibre grid cloth, increases its impact strength; (5) being provided with the groove of rectangle on two long facets of warming plate 5, is that the thermal-insulating sealing press strip 9 of " ten " word shape connects by section between siphonal lobe wall 3 warming plates 5; (6) seam between the protection panel 4 is stitched with anticracking grout 10 ditches; (7) siphonal lobe wall 3 is fixed between the lower and upper cross-member by F shaped steel spare 7, and with the fixing F shaped steel spare 7 of crab-bolt 8; (8) siphonal lobe is laid two-layer high strength anti alkali containing glass fibre grid cloth 11 within the walls, does siphonal lobe wall 3 exterior rendering finish coats 12 and interior floated coat 13 simultaneously; (9) siphonal lobe wall 3 is finished after, build internal lobe wall 1 by laying bricks or stones, finish building internal lobe wall 1 after, that can carry out indoor wall plasters 14.

Claims (4)

1. polyphenyl composite thermo-insulating wall board double leaf exterior wall for building; comprise internal lobe wall (1), air space (2) and siphonal lobe wall (3), it is characterized in that: siphonal lobe wall (3) is to be made of the polyphenyl composite thermo-insulating wall board that warming plate (5) and protection panel (4) are composited.
2. according to the described polyphenyl composite thermo-insulating wall board of claim 1 double leaf exterior wall, it is characterized in that: evenly be processed with " well " glyph grid shape groove on two big faces of the warming plate (5) in the siphonal lobe wall (3), on two big faces, be processed with perpendicular to warming plate (5) small-bore through hole several, on two long facets of warming plate (5), be provided with rectangular recess.
3. according to the described polyphenyl composite thermo-insulating wall board of claim 1 double leaf exterior wall, it is characterized in that: the protection panel (4) in the siphonal lobe wall (3) wherein is equipped with two-layer alkaline-resisting high-strength glass fibre grid cloth with the concrete material preparation.
4. according to the described polyphenyl composite thermo-insulating wall board of claim 1 double leaf exterior wall, it is characterized in that: be to connect for " ten " font high density insulation press strip between the composite thermo-insulating wall board of formation siphonal lobe wall (3) by section.
