CN201058470Y - Continuous production device of thermal insulation dry powder mortar - Google Patents
Continuous production device of thermal insulation dry powder mortar Download PDFInfo
- Publication number
- CN201058470Y CN201058470Y CNU2007200706693U CN200720070669U CN201058470Y CN 201058470 Y CN201058470 Y CN 201058470Y CN U2007200706693 U CNU2007200706693 U CN U2007200706693U CN 200720070669 U CN200720070669 U CN 200720070669U CN 201058470 Y CN201058470 Y CN 201058470Y
- Authority
- CN
- China
- Prior art keywords
- housing
- exit
- dispenser
- screw rod
- mixer
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Lifetime
Links
Images
Abstract
The utility model discloses a heat-insulated dry powder mortar continuous production device, which comprises feed bins, bucket elevators, a feeder, a mixer and a packaging machine, the two feed bins are arranged in parallel and are provided with the bucket elevators correspondingly, wherein the feeder is arranged at the exit of one feed bin, the mixer is disposed at the exit of the feeder, a feeding mixer is arranged at the exit of the other feed bin, and the packaging machine is disposed at the exit of the mixer. The utility model realizes the continuous production with low labor intensity, high production efficiency and good product quality.
Description
Technical field
The utility model relates to the production equipment of dry powder construction material, the continuous process units of specifically a kind of heat preserving dry powder mortar.
Background technology
Insulating dry powder mortar is to be mixed by the aggregate of multiple powder-material and inorganic light weight particle (as expanded perlite, expanded vermiculite, expanded and vitrified small ball etc.); at present on the building materials market; with the insulating dry powder mortar of expanded and vitrified small ball as aglite production; because performances such as the thermal insulation of its excellence, fire prevention, ageing-resistant, high-low temperature resistant, low absorptivity, lightweight; applied just rapidly, the market demand is just with geometric growth.What adopt at present is the production method that stirs in batches; mix by mechanical agitation; because the particle size of expanded and vitrified small ball and the Binder Materials that matches, additive etc., unit weight etc. differ greatly; especially unit weight differs and reaches tens times; expanded and vitrified small ball easily produces in various degree broken and along the peeling off of layer structure direction under the effect of mechanical agitation power, thereby influences heat insulation effect.At present domestic and even also do not have a kind of more effective production technology and equipment to solve above problem in the world.As: the horizontal axial helical ribbon agitator of Beijing Huaweijia Technologies Co., Ltd.'s exploitation and Shanghai Yu Chen Technology Co., Ltd's utilization double helix conical agitator are produced; reduced the fragmentation of expanded and vitrified small ball to a certain extent, but can't avoid that the uniformity is not high, segregation and shortcomings such as production efficiency is low, labour intensity height.
Summary of the invention
Problems such as the purpose of this utility model is a kind of heat preserving dry powder mortar continuous production processes and the device that provides at the deficiencies in the prior art, and it has solved, and heat preserving dry powder mortar produces in batches that the product uniformity that causes is poor, segregation (difference of each bag proportioning of same batch product is big) and productivity ratio are low.
The purpose of this utility model is achieved in that
The continuous process units of a kind of heat preserving dry powder mortar, comprise feed bin, bucket elevator, packing machine, characteristics are that feed bin is powder material warehouse and inorganic lightweight aggregate storehouse and is set up in parallel, two feed bin correspondences are provided with bucket elevator, the powder material warehouse exit is provided with dispenser, the dispenser exit connects to feed mixer, and exit, inorganic lightweight aggregate storehouse connects to feed mixer, and packing machine is located at feed mixer outlet place.
Described dispenser is a screw rod quantitative dispenser, and it is made up of variable-frequency motor and decelerator, screw rod, housing, and screw rod is located in the housing, housing one end connect variable-frequency motor and decelerator, upper end export with powder material warehouse be connected, the lower end be connected to feed mixer.
Described is screw dosing blender to feed mixer, it is made up of variable-frequency motor and decelerator, screw rod, housing, screw rod is located in the housing, housing one end connects variable-frequency motor and decelerator, the housing left upper end is connected with the outlet of inorganic lightweight aggregate storehouse, middle upper end is connected with dispenser, and the lower end is provided with packing machine.
The beneficial effects of the utility model:
1. because in the whole process of production, because inorganic lightweight aggregate is not subjected to any powerful stirring, therefore broken and top layer is peeled off very little, thereby has guaranteed the insulation quality.
2. thoroughly solved conventional batch and produced the easily problem of segregation, uniformity difference, every bag of formula for a product is extremely stable.
3. realized continuous production, labour intensity is low, the production efficiency height.Per hour reach as high as about 8 tons.
4. every product quality indicator obviously improves.
Description of drawings

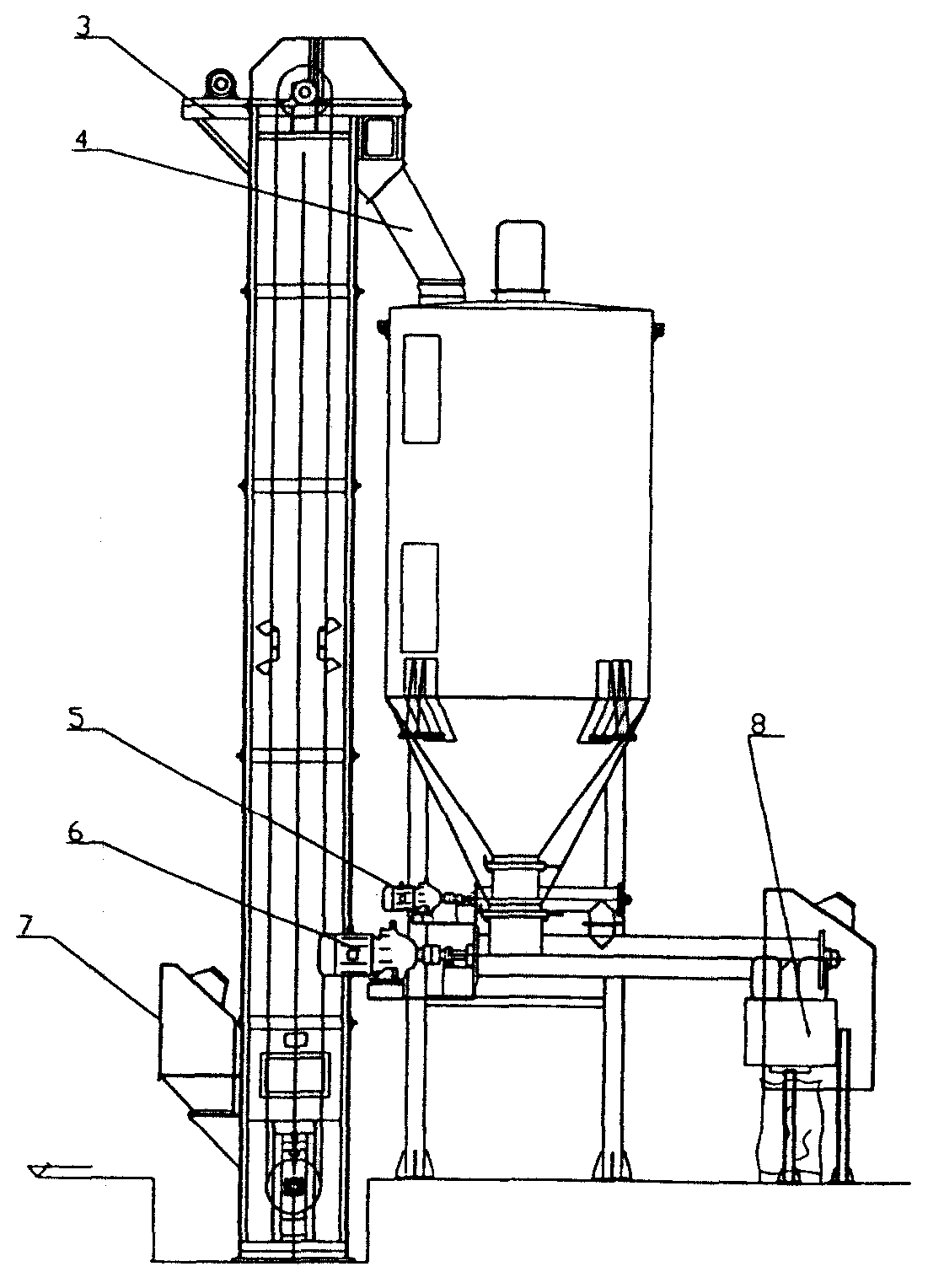

Fig. 1 is the utility model structural representation
Fig. 2 is Fig. 1 vertical view
Fig. 3 is the utility model dispenser structural representation
Fig. 4 is the utility model feed mixer structure schematic diagram
The specific embodiment
Consult accompanying drawing, the utility model comprises feed bin, bucket elevator, packing machine, feed bin is powder material warehouse 1, inorganic lightweight aggregate storehouse 2 and is set up in parallel, two feed bin correspondences are provided with bucket elevator 3, powder material warehouse 1 exit is provided with dispenser 5, dispenser 5 exits connect to feed mixer 6, and 2 exits, inorganic lightweight aggregate storehouse connect to feed mixer 6, and packing machine 8 is located to feed mixer 6 exits; Dispenser 5 is a screw rod quantitative dispenser, it is made up of variable-frequency motor and decelerator 9, screw rod 10, housing 11, screw rod 10 is located in the housing 11, and housing 11 1 ends connection variable-frequency motor and decelerator 9, upper end are connected with powder material warehouse 1 outlet, the lower end is connected with giving feed mixer 6; Giving feed mixer 6 is screw dosing blender, it is made up of variable-frequency motor and decelerator 12, screw rod 13, housing 14, screw rod 13 is located in the housing 14, housing 14 1 ends connect variable-frequency motor and decelerator 12, housing 14 left upper ends are connected with 2 outlets of inorganic lightweight aggregate storehouse, middle upper end is connected with dispenser 5, and the lower end is provided with packing machine 8.
The utility model is work like this: the powder body material that mixes is sent into from hopper 7, entered powder material warehouse 1 by bucket elevator 3 through elephant trunk 4; And inorganic lightweight aggregate sent into from another hopper, enter inorganic lightweight aggregate storehouse 2 by another bucket elevator through elephant trunk.Material in the powder material warehouse 1 enters dispenser 5, and evenly enters in the blender 6 with the speed of setting in housing 11; Material in the inorganic lightweight aggregate storehouse 2 enter the feed stage to feed mixer 6 left ends, and material evenly enters with the speed of setting in the housing 14 and mixes with powder from dispenser 5, and mixed material is packaged into product through packing machine 8 packs.Entire work process is continuous and quantitative batching, mixed and packing.
Claims (3)
1. continuous process units of heat preserving dry powder mortar, comprise feed bin, bucket elevator, packing machine, it is characterized in that feed bin is powder material warehouse (1), inorganic lightweight aggregate storehouse (2) and is set up in parallel, two feed bin correspondences are provided with bucket elevator (3), powder material warehouse (1) exit is provided with dispenser (5), dispenser (5) exit connects to feed mixer (6), and exit, inorganic lightweight aggregate storehouse (2) connects to feed mixer (6), and packing machine (8) is located to feed mixer (6) exit.
2. device according to claim 1, it is characterized in that described dispenser (5) is a screw rod quantitative dispenser, it is made up of variable-frequency motor and decelerator (9), screw rod (10), housing (11), screw rod (10) is located in the housing (11), and housing (11) one ends connection variable-frequency motor and decelerator (9), upper end are connected with powder material warehouse (1) outlet, the lower end is connected with giving feed mixer (6).
3. device according to claim 1, it is characterized in that described is screw dosing blender to feed mixer (6), it is made up of variable-frequency motor and decelerator (12), screw rod (13), housing (14), screw rod (13) is located in the housing (14), housing (14) one ends connect variable-frequency motor and decelerator (12), housing (14) left upper end is connected with inorganic lightweight aggregate storehouse (2) outlet, middle upper end is connected with dispenser (5), and the lower end is provided with packing machine (8).
