Abstract
The utility model provides a chemical fiber thread separator, which relates to a thread separation of chemical fiber individual thread (nylon and polyester), winding and forming device. The structure of the utility model contains a thread receding machine, a hot plate device, a thread guide tray, a thread separator, a traversing gear, a winding device and a frame. The thread receding machine is arranged on the lower part of the frame. The thread receding machine has a thread receding bobbin, and the thread receding bobbin is on the frame. An upper buffer bar and a lower buffer bar are separately arranged on the upper and the lower part of the thread receding bobbin. Ceramic components are arranged on the upper and lower buffer bar. The hot plate device is arranged on the upper part of the frame. The hot plate device has a heating plate. The heating plate is provided with a thread winding groove. The thread guide tray is arranged on one side of the upper part of the frame. The thread guide tray has a drive motor. A thread guide roller is arranged on the frame. The thread separator is on the top of the frame. The thread separator has a ceramic component chair plate which is fixed on the top of the frame. The ceramic components are arranged on the ceramic component jack on the ceramic component chair plate. The traversing gear contains a threaded spindle, a sliding block, an L-shaped thread rack and a threaded spindle drive motor. The winding device contains a motor, a belt pulley, a spindle seat and a spindle.
Description
Technical field
What the utility model chemical fiber separation machine related to is branch silk, the coiling and molding device of a kind of chemical fibre monofilament (polyamide fibre, polyester monofilament).
Background technology
At present, the method for domestic production monofilament at first is that the monofilament precursor of producing chemical fibre (claims again: UDY).The production process of UDY is called the spinning of preceding road, and (be called for short: preceding spinning), its production equipment is: preceding spinning equipment.UDY obtains finished product DTY chemical fibre monofilament after carrying out draw twisting through draw twister.This process is called back road spinning (be called for short: then spin).This kind method is produced the chemical fibre monofilament, and its spinnerets generally has only 3～4 holes, and production efficiency is low, energy consumption is high, thereby causes production cost high.In recent years, be that the second generation chemical fibre monofilament textile technology of representative is ripe with countries such as Japan, Korea S.The characteristics of this technology are: preceding spinning directly produced the full drawing-off multifilament of chemical fibre (claiming FDY again), with chemical fiber separation machine FDY carried out the branch silk again, thereby obtains the chemical fibre monofilament.At present, divide relatively difficulty of silk for multifilament (claiming FDY again).
Summary of the invention
The purpose of this utility model is to provide a kind of chemical fiber separation machine at above-mentioned weak point, have chemical fibre FDY multifilament is carried out the branch silk, obtain the ability of chemical fibre monofilament, can carry out the branch silk by chemical fiber separation machine of the present invention to FDY and handle and directly to obtain chemical fibre monofilament cake before spinning the full drawing-off multifilament of the chemical fibre of directly producing (claiming FDY again), directly offer the weaving mill and use.
Chemical fiber separation machine takes following scheme to realize: the chemical fiber separation machine structure comprises moves back a device, hot plate apparatus, draw-off godet, branch silk device, traversing gear, coiler device, frame.Be respectively arranged with in the frame both sides and move back a device, hot plate apparatus, draw-off godet, branch silk device, traversing gear, coiler device chemical fiber separation mechanism, two cover chemical fiber separation mechanisms can be installed on same frame.
Move back a device and be contained in frame lower, move back a utensil and move back the silk tube, moving back silk tube one end is contained on the frame by bearing, the full drawing-off multifilament of chemical fibre spinning cake can be sleeved on and move back on the silk tube, near moving back the upper and lower side of silk tube upper and lower buffer bar is housed respectively, on the upper and lower buffer bar porcelain spare is housed, spring is housed respectively on the upper and lower buffer bar, spring one end is contained on the buffer bar, and the other end is fixed on the frame.
Hot plate apparatus is contained in upper rack, and hot plate apparatus has heating plate, and heating plate is provided with the wire groove, and electrical heating elements is housed in the heating plate, in the heating plate outside case is housed, and is filled with insulation material between case and heating plate.
Draw-off godet is contained in upper rack one side, and draw-off godet is equipped with drive motor, and godet roller is housed on frame.
Divide the silk apparatus on the frame top, divide the silk utensil that porcelain spare seat board is arranged, porcelain spare seat board is fixed on the frame top.Porcelain spare seat board is provided with several porcelain spare jacks, in porcelain spare jack porcelain spare is housed.
Traversing gear comprises leading screw, slide block, L shaped guide frame, lead screw transmission motor.Leading screw one end is fixed on the frame, and the other end and lead screw transmission motor output shaft are fixed together.Motor is fixed on the frame, and slide block is housed on the leading screw, and L shaped guide frame is housed on the slide block, at the L shaped guide frame other end porcelain spare fixed bar is housed, and at porcelain spare fixed bar several seal wire porcelain spares is housed, and is used for seal wire.When the lead screw transmission motor was just changeing, leading screw just changeed, and slide block is moved up, be fixed on the L shaped guide frame on the slide block and be fixed on porcelain spare fixed bar on the L shaped guide frame and porcelain spare along with moving up, move up and be wound on equably on the paper tube thereby drive silk; When the lead screw transmission motor reverses, the counter-rotating of leading screw moves down slide block, be fixed on the L shaped guide frame on the slide block and be fixed on porcelain spare fixed bar on the L shaped guide frame and porcelain spare along with moving down, thereby the drive silk moves down and is wound on equably on the paper tube, so go round and begin again, filament winding is become needed shape.
Coiler device comprises coiling motor, belt pulley, belt, spindle seat, spindle, the coiling motor is fixed on the frame bottom, on the coiling motor output shaft belt pulley is housed, several spindle seats are fixed on the frame equably, and the spindle dress is inserted on the spindle seat, and spindle is provided with pulley groove, be used to assemble driving belt, paper tube is sleeved on the spindle with spindle rotation, and belt one end is contained on the belt pulley of coiling motor, and the other end is sleeved on the spindle pulley groove.Corresponding several porcelain spare holders that is provided with spindle are equipped with seal wire porcelain spare on porcelain spare holder on the crossbeam of coiler device upper stand.
The operation principle of chemical fiber separation machine: at first the full drawing-off multifilament of chemical fibre (claiming FDY again) precursor spinning cake is hung over and move back the moving back on the silk tube an of device, the paper tube of spinning cake is moved back a device and is clipped, and spinning cake is moving back on the device and can rotate at a high speed neatly, satisfies the requirement of moving back silk.
The spinning cake silk head that moves back on the device is drawn, around last draw-off godet, constantly back off (till having moved back), behind hot plate apparatus cancellation stress, enter branch silk device by the continuous rotation of draw-off godet and with the silk on the spinning cake through buffer bar.Divide the silk device that the FDY tow is divided into monofilament.
Divide good monofilament to be sent into coiler device immediately,, form the monofilament spinning cake by on the paper tube of rotation at a high speed.
Be to guarantee the moulding of monofilament spinning cake, silk be through traversing gear just by around last paper tube because traversing gear drives the upper and lower reciprocating motion of silk, silk just by equably on paper tube, forms the shape of customer requirements.
The utility model chemical fiber separation machine is reasonable in design, compact conformation, easy to use, can carry out the branch silk by the utility model chemical fiber separation machine to FDY and handle and directly to obtain chemical fibre monofilament cake before spinning the full drawing-off multifilament of the chemical fibre of directly producing (claiming FDY again), directly offer the weaving mill and use.The utility model chemical fiber separation machine is easy to use, and stable performance divides silk speed can reach 1000 meters/minute, the production efficiency height.
Description of drawings
The utility model is described in further detail below with reference to accompanying drawing.

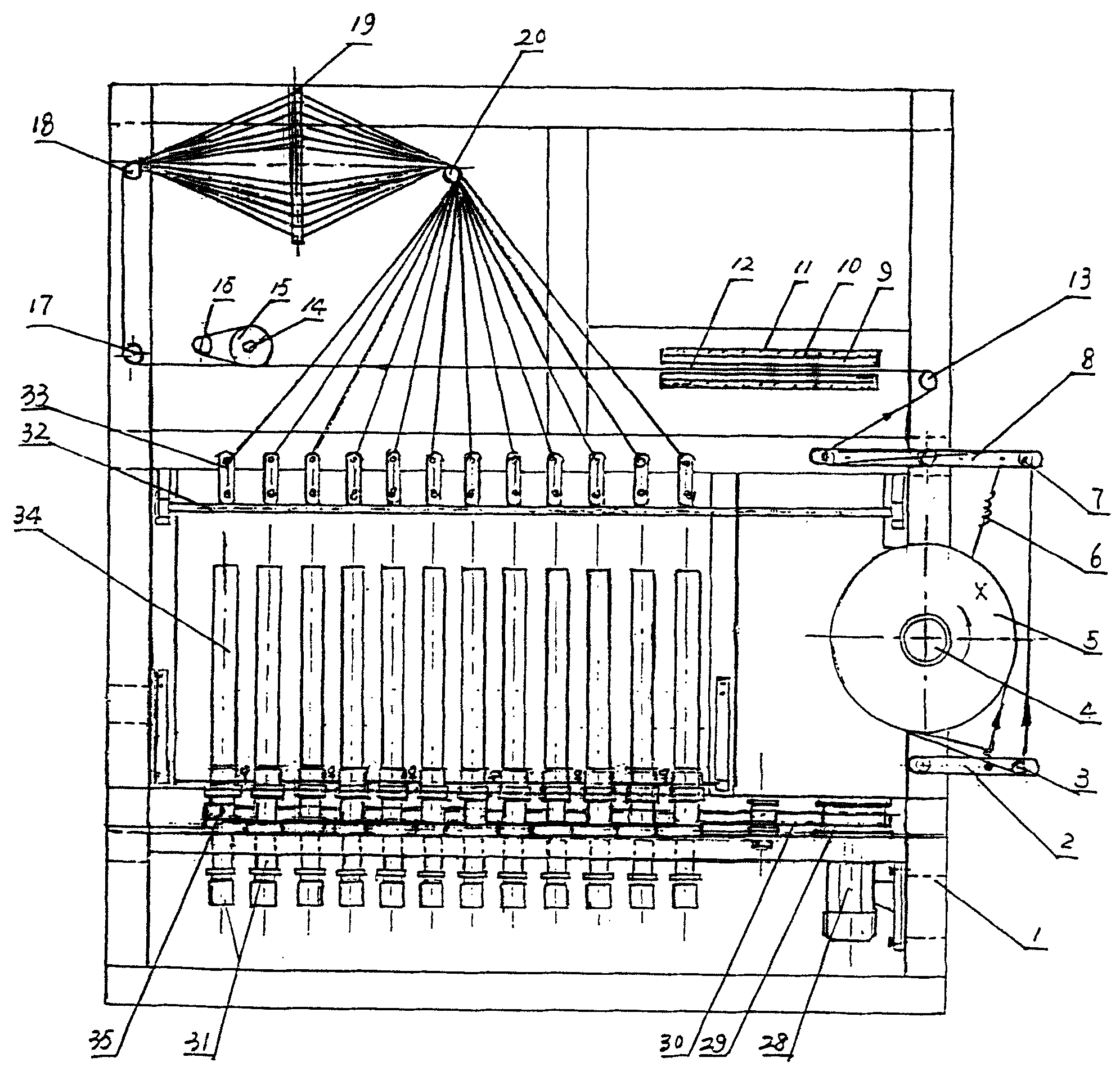

Fig. 1 is the chemical fiber separation machine structural front view.
Fig. 2 is a chemical fiber separation machine structure left view.
The specific embodiment
With reference to accompanying drawing 1,2, the chemical fiber separation machine structure comprises moves back a device, hot plate apparatus, draw-off godet, branch silk device, traversing gear, coiler device, frame.Be respectively arranged with in the frame both sides and move back a device, hot plate apparatus, draw-off godet, branch silk device, traversing gear, coiler device chemical fiber separation mechanism, two cover chemical fiber separation mechanisms can be installed on same frame.
Move back a device and be contained in frame 1 bottom, move back a utensil and move back silk tube 4, moving back silk tube 4 one ends is contained on the frame 1 by bearing, the full drawing-off multifilament of chemical fibre spinning cake 5 can be sleeved on and move back on the silk tube 4, near moving back silk tube 4 upper and lower sides buffer bar 8, following buffer bar 2 are housed respectively, porcelain spare 7 are housed on the last buffer bar 8, on the buffer bar 2 porcelain spare 3 are housed down, spring 6 is housed respectively on the upper and lower buffer bar, spring 6 one ends are contained on the buffer bar, and the other end is fixed on the frame 1.
Hot plate apparatus is contained in frame 1 top, and hot plate apparatus has heating plate 9, and heating plate 9 is provided with wire groove 12, in the heating plate 9 electrical heating elements is housed, and in heating plate 9 outsides case 4 is housed, and is filled with insulation material 10 between case 4 and heating plate.
Draw-off godet 15 is contained in frame 1 top one side, and draw-off godet 15 is equipped with drive motor 14, and several godet rollers 13,16,17,18,20 are housed on frame 1, is used for seal wire.
Divide the silk apparatus on frame 1 top, divide the silk utensil that porcelain spare seat board 19 is arranged, porcelain spare seat board 19 is fixed on frame 1 top.Porcelain spare seat board 19 is provided with several porcelain spare jacks 21, and porcelain spare 22 is housed in porcelain spare jack 21.
Traversing gear comprises leading screw 23, slide block 24, L shaped guide frame 25, lead screw transmission motor 27.Leading screw 23 1 ends are fixed on the frame 1, and the other end and lead screw transmission motor 27 output shafts are fixed together.Lead screw transmission motor 27 is fixed on the frame 1, and slide block 24 is housed on the leading screw 23, and L shaped guide frame 25 is housed on the slide block 24, at L shaped guide frame 25 other ends porcelain spare fixed bar is housed, and at porcelain spare fixed bar several seal wire porcelain spares 26 is housed, and is used for seal wire.When lead screw transmission motor 27 is just changeing, leading screw 23 is just changeing, slide block 24 is moved up, be fixed on the L shaped guide frame 25 on the slide block 24 and be fixed on porcelain spare fixed bar on the L shaped guide frame 25 and seal wire porcelain spare 26 along with moving up, move up and be wound on equably on the paper tube thereby drive silk; When 27 counter-rotatings of lead screw transmission motor, the counter-rotating of leading screw 23 moves down slide block 24, be fixed on the L shaped guide frame 25 on the slide block 24 and be fixed on porcelain spare fixed bar on the L shaped guide frame 25 and porcelain spare 26 along with moving down, thereby the drive silk moves down and is wound on equably on the paper tube, so go round and begin again, filament winding is become needed shape.
Coiler device comprises coiling motor 28, belt pulley 29, belt 30, spindle seat 31, spindle 34, coiling motor 28 is fixed on frame 1 bottom, on coiling motor 28 output shafts belt pulley 29 is housed, several spindle seats 31 are fixed on the frame 1 equably, spindle 34 dresses are inserted on the spindle seat 31, spindle 34 is provided with pulley groove 35, be used to assemble driving belt 30, paper tube is sleeved on the spindle 34 with spindle rotation, belt 30 1 ends are contained on the belt pulley 29 of coiling motor 28, and the other end is sleeved on the spindle pulley groove 35.On the crossbeam 32 of coiler device upper stand 1,, seal wire porcelain spare 32 is housed on porcelain spare holder with spindle 34 corresponding several porcelain spare holders that are provided with.Spindle 34 adopts the paper tube spindle.
Chemical fiber separation machine characteristics: 1, the chemical fiber separation machine paper tube spindle that can be used for reeling; 2, change Fine sub-wire machine can be used for the sub-wire processing that chemical fibre adds elater; 3, the winding tension of chemical fiber separation machine After setting, automatically keep constant; 4, chemical fiber separation machine can the matched with self-control system, adopts Computer controlled automatic has realized the operation of " fool " formula.
Claims (5)
1. chemical fiber separation machine is characterized in that structure comprises to move back a device, hot plate apparatus, draw-off godet, branch silk device, traversing gear, coiler device, frame;
Move back a device and be contained in frame lower, move back a utensil and move back the silk tube, move back silk tube one end and be contained on the frame, upper and lower buffer bar is housed respectively, on the upper and lower buffer bar porcelain spare is housed near moving back the upper and lower side of silk tube by bearing;
Hot plate apparatus is contained in upper rack, and hot plate apparatus has heating plate, and heating plate is provided with the wire groove, and electrical heating elements is housed in the heating plate;
Draw-off godet is contained in upper rack one side, and draw-off godet is equipped with drive motor, and godet roller is housed on frame;
Divide the silk apparatus on the frame top, divide the silk utensil that porcelain spare seat board is arranged, porcelain spare seat board is fixed on the frame top, and porcelain spare seat board is provided with several porcelain spare jacks, in porcelain spare jack porcelain spare is housed;
Traversing gear comprises leading screw, slide block, L shaped guide frame, lead screw transmission motor; Leading screw one end is fixed on the frame, and the other end and lead screw transmission motor output shaft are fixed together, and motor is fixed on the frame, slide block is housed on the leading screw, L shaped guide frame is housed on the slide block, porcelain spare fixed bar is housed, several seal wire porcelain spares are housed at porcelain spare fixed bar at the L shaped guide frame other end;
Coiler device comprises coiling motor, belt pulley, belt, spindle seat, spindle; The coiling motor is fixed on the frame bottom, on the coiling motor output shaft belt pulley is housed, several spindle seats are fixed on the frame equably, the spindle dress is inserted on the spindle seat, spindle is provided with pulley groove, be used to assemble driving belt, paper tube is sleeved on the spindle with spindle rotation, belt one end is contained on the belt pulley of coiling motor, the other end is sleeved on the spindle pulley groove, corresponding several porcelain spare holders that is provided with spindle are equipped with seal wire porcelain spare on porcelain spare holder on the crossbeam of coiler device upper stand.
2. chemical fiber separation machine according to claim 1 is characterized in that being equipped with respectively on the upper and lower buffer bar spring, and spring one end is contained on the buffer bar, and the other end is fixed on the frame.
3. chemical fiber separation machine according to claim 1 is characterized in that in the heating plate outside case being housed, and is filled with insulation material between case and heating plate.
4. chemical fiber separation machine according to claim 1, it is characterized in that being respectively arranged with and move back a device, hot plate apparatus, draw-off godet, branch silk device, traversing gear, coiler device chemical fiber separation mechanism, two cover chemical fiber separation mechanisms are installed on same frame in the frame both sides.
5. chemical fiber separation machine according to claim 1 is characterized in that spindle adopts the paper tube spindle.
